Wie-Spray

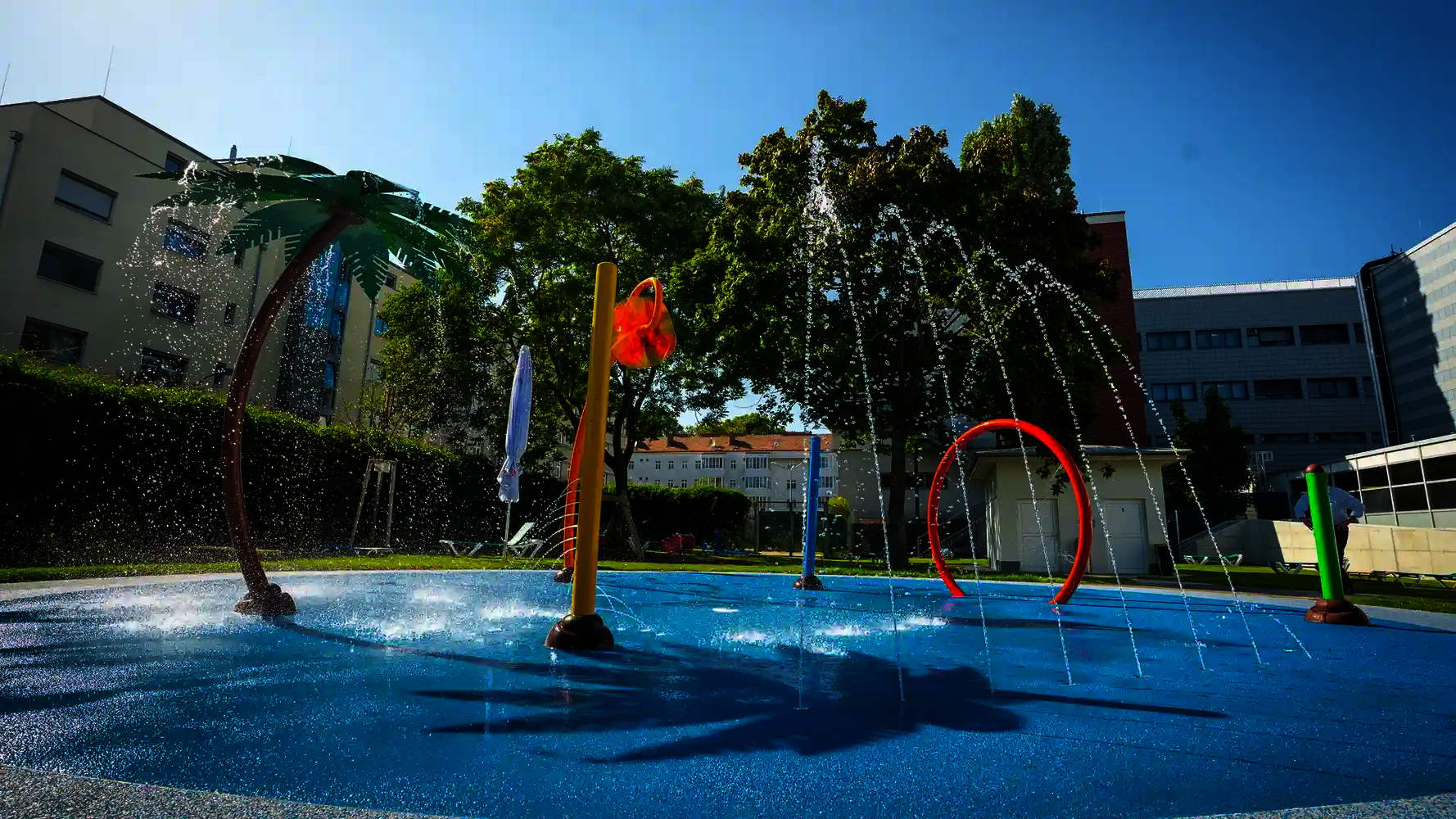

The slide Wie-Spray brings water experience to the point: The interactive water play zone provides cooling, fun and joy of discovery for all ages. Whether it's a gush of water, a bubbler or colorful nozzles – something is constantly on the move here.
The slide Wie-Spray is our flexible water play system for modern water playgrounds and leisure pools. This slide is based on robust stainless steel elements that can be individually designed thematically and functionally. The water feature elements are installed at ground level and are therefore barrier-free. Running rainbows, spraying fountains, tipping buckets and water swings can be combined as desired. The system can be designed for both toddlers and older children. This is why it offers a cross-generational attraction. Thanks to the modular construction units, the slide Wie-Spray can also be integrated on small areas or implemented as a central play element of a large water world. Colors, themes and functions can be freely chosen – also in combination with existing slides or spray pads. The slide Wie-Spray is durable, easy to care for and offers a high quality of stay for families due to its diversity.
All components

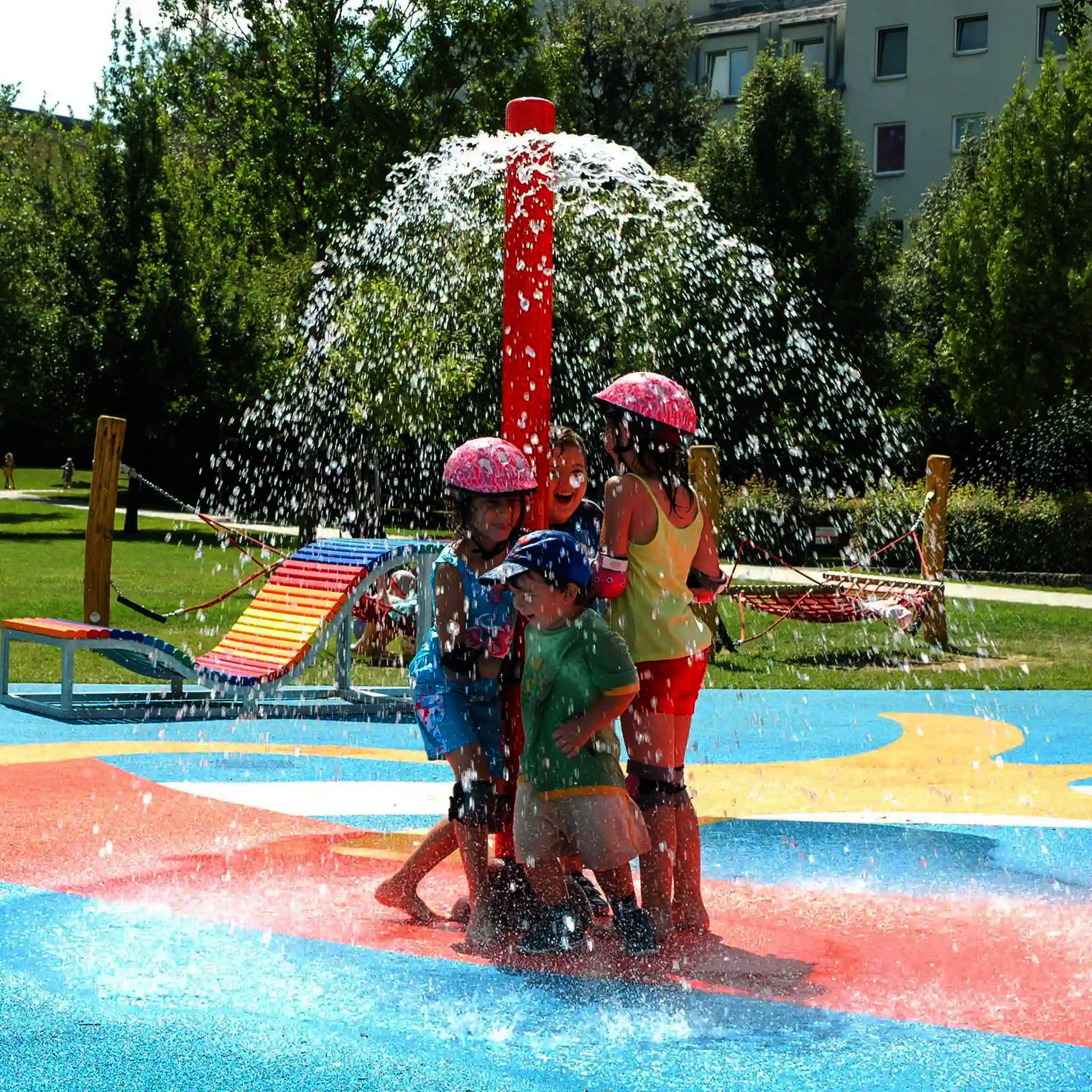

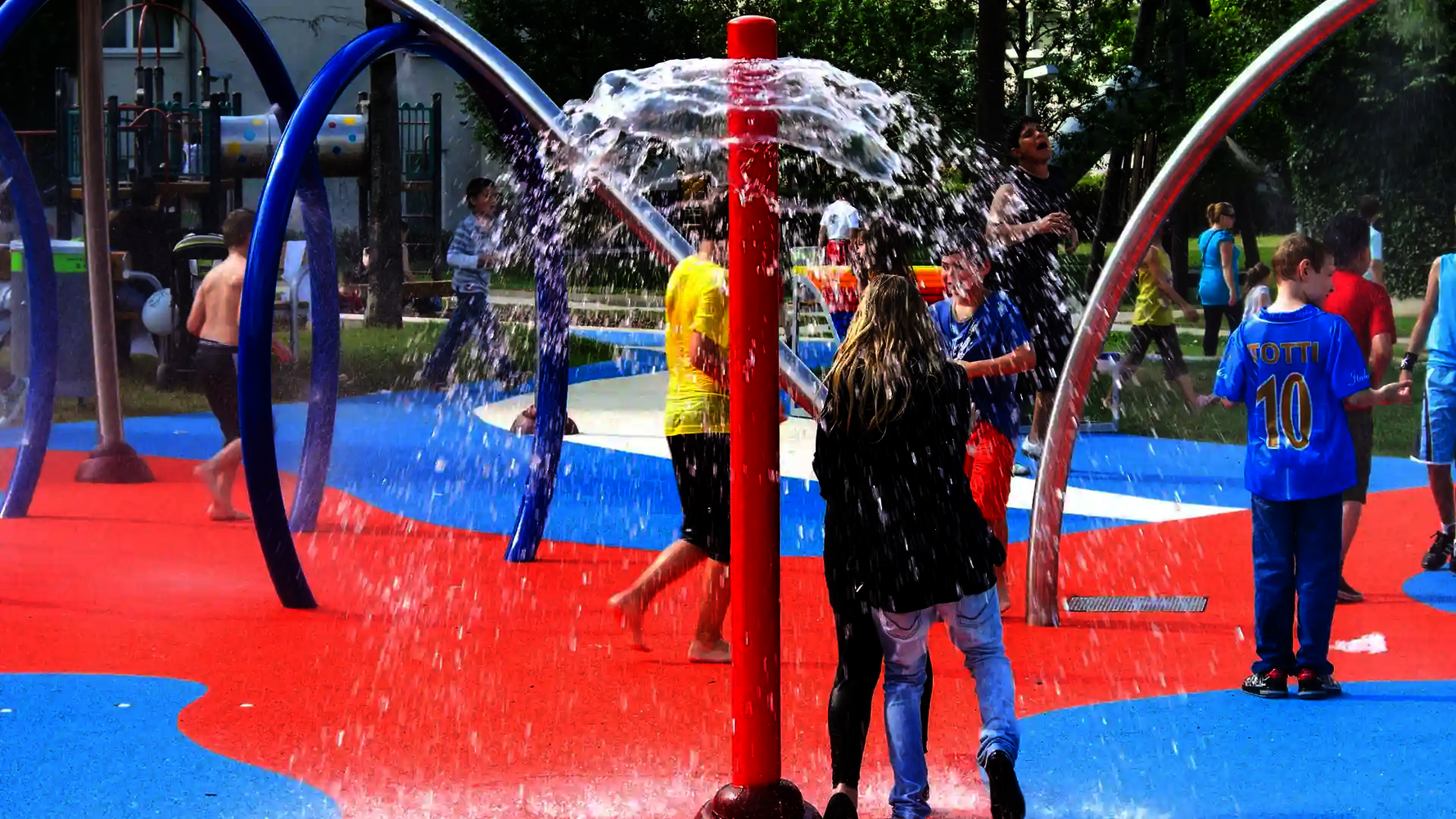

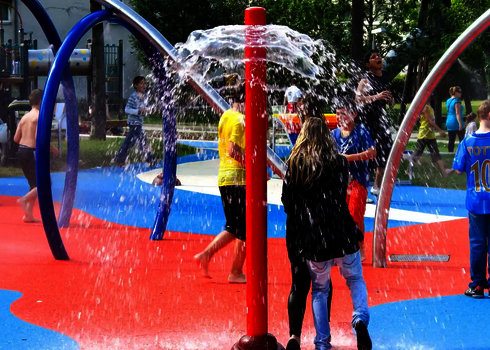

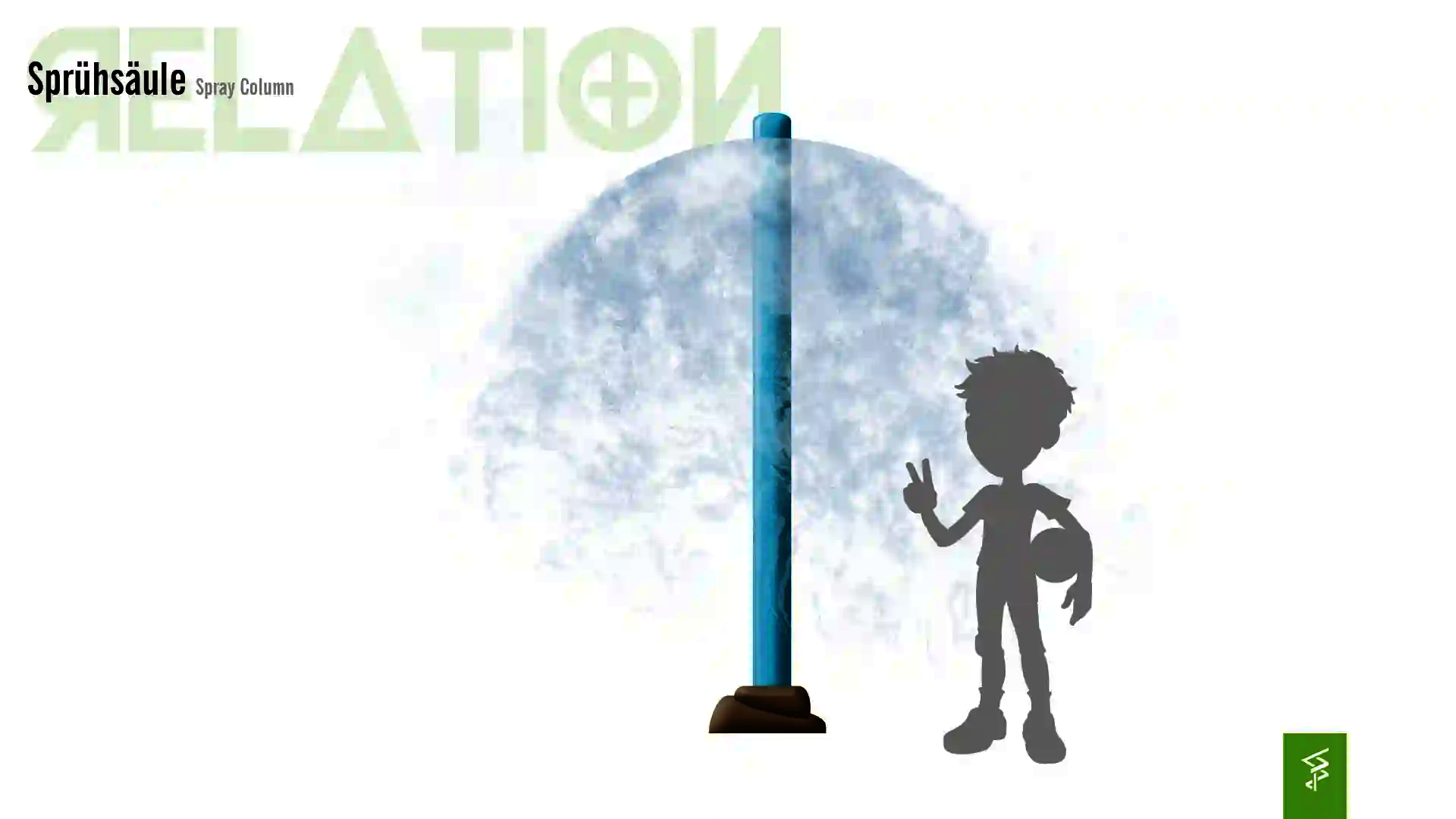

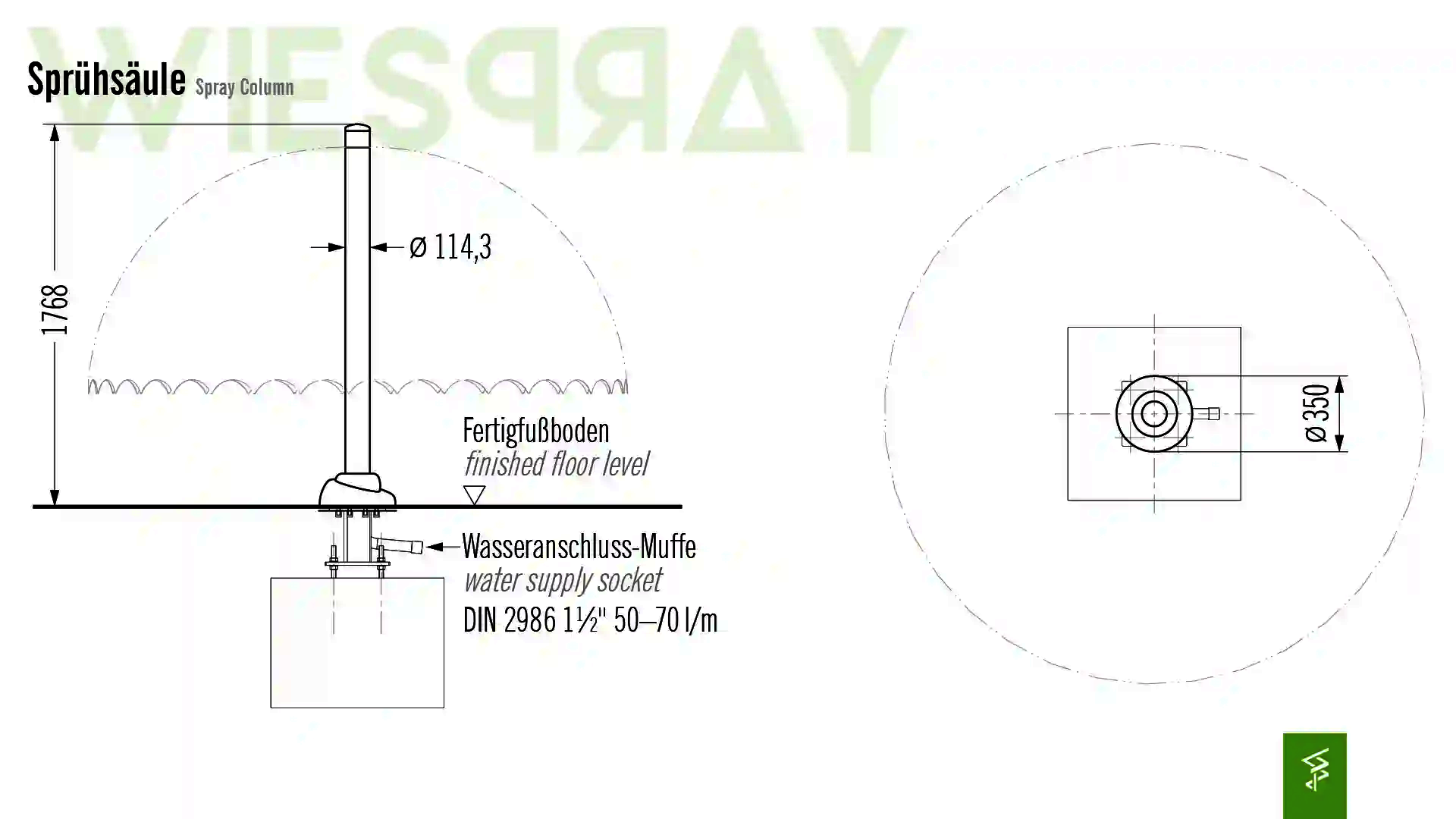

Spray Column
The spray column creates a gentle gush of water that lays over the guests like a protective umbrella. Whether as a central attraction or part of a larger water playground, this element invites children and adults to linger and refresh in a playful manner. Made of robust stainless steel and with a variable spray range from 90° to 360°, the spray column adapts flexibly to any type of environment. An individual theming ensures harmonious integration into every design concept.
Product features
Article number 101 | Stainless steel tube column with spray head |
Length | 0.35 m |
Width | 0.35 m |
Height | 1.77 meters |
Number of nozzles | 1 spray nozzle |
Spray area | φ3.00 m / 90-360° per nozzle |
Water demand | 5.5 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

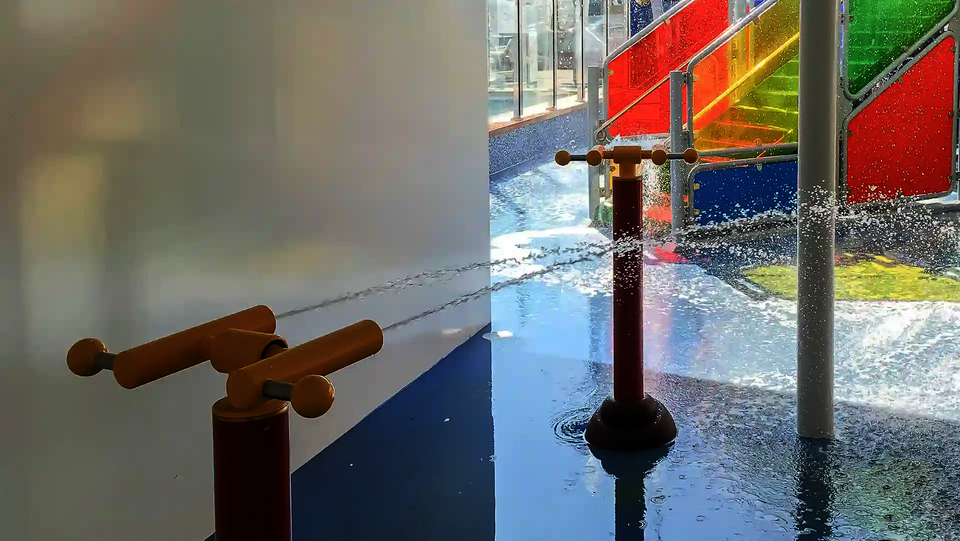

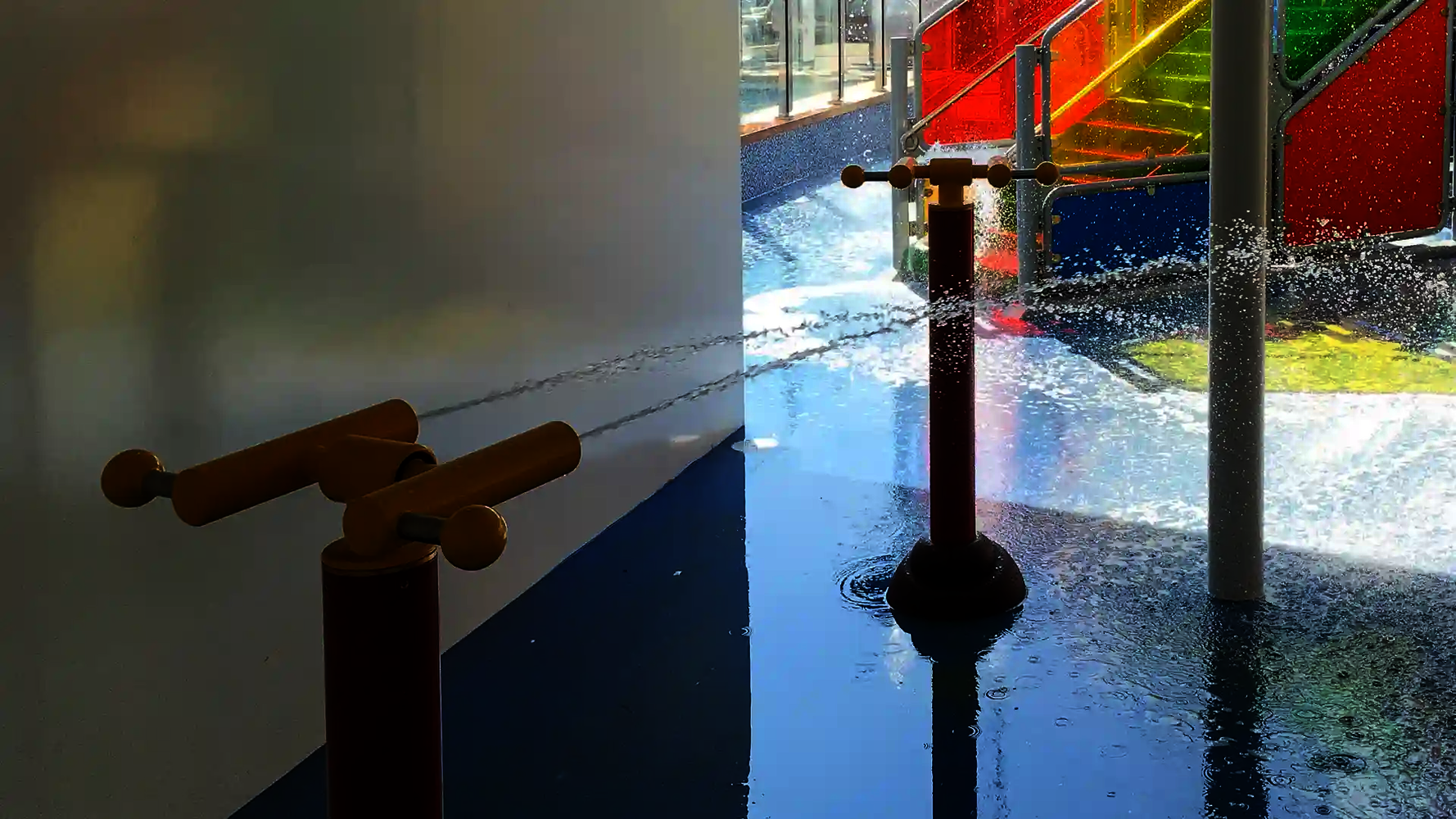

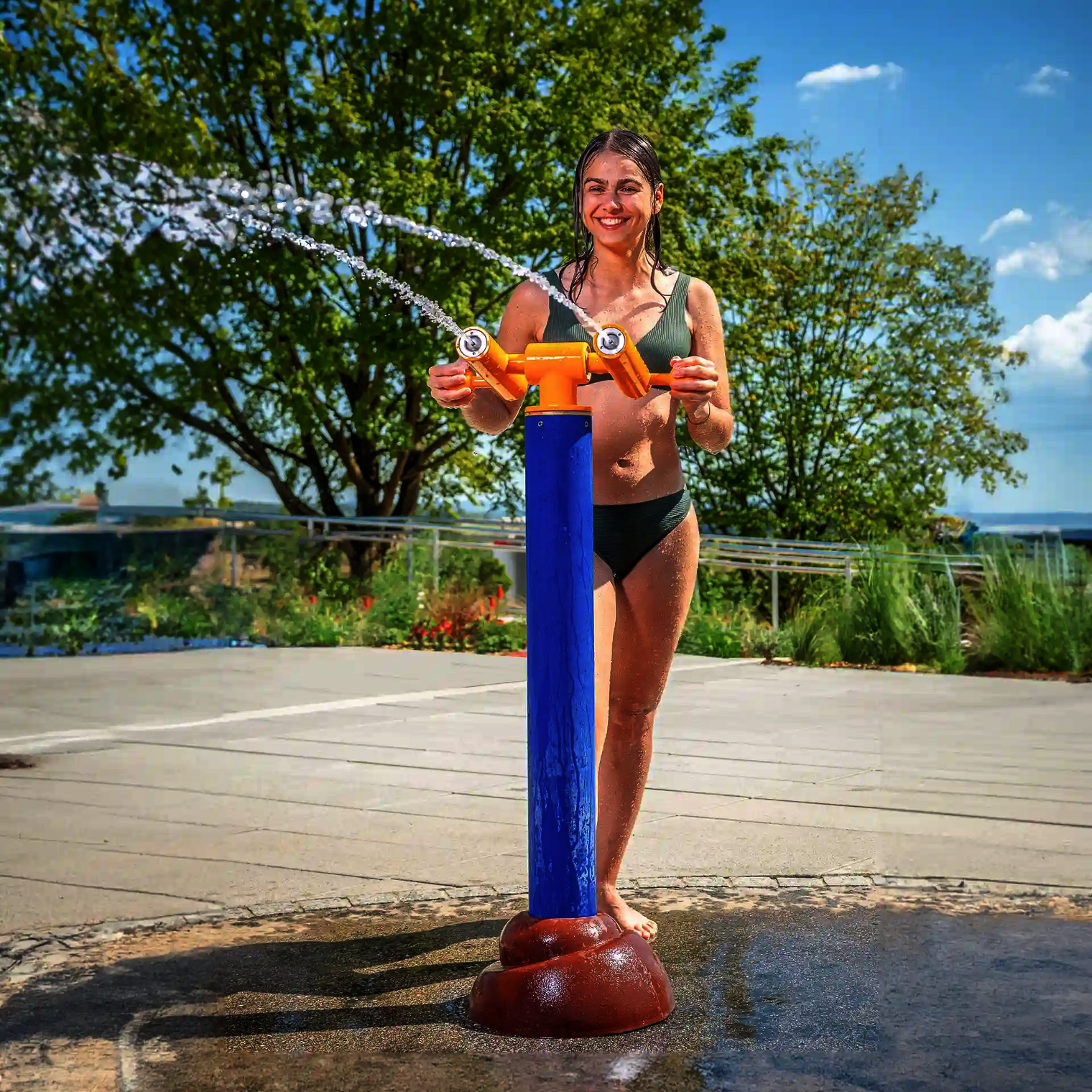

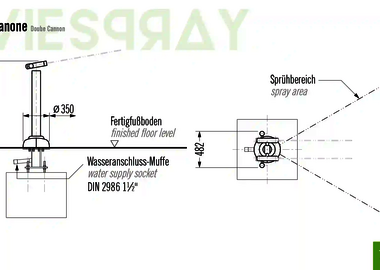

Double Cannon
The double cannon brings movement and excitement to your interactive water playground. The visitors can splash with water and test their accuracy – fun for young and old. Thanks to the rotatable and tiltable stainless steel tube and integrated limiting system, control is always guaranteed. The double cannon is suitable both as a single attraction and in combination with other game elements for dynamic water worlds.
Product features
Article number 102 | Stainless steel pipe with double pipe structure, rotatable and tiltable including limitation system of the spray area |
Length | 0.48 m |
Width | 0.28 m |
Height | 1.20 m |
Number of nozzles | 2 spray nozzles |
Spray area | approx. 4.00 m / 60° |
Water demand | 1.5 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

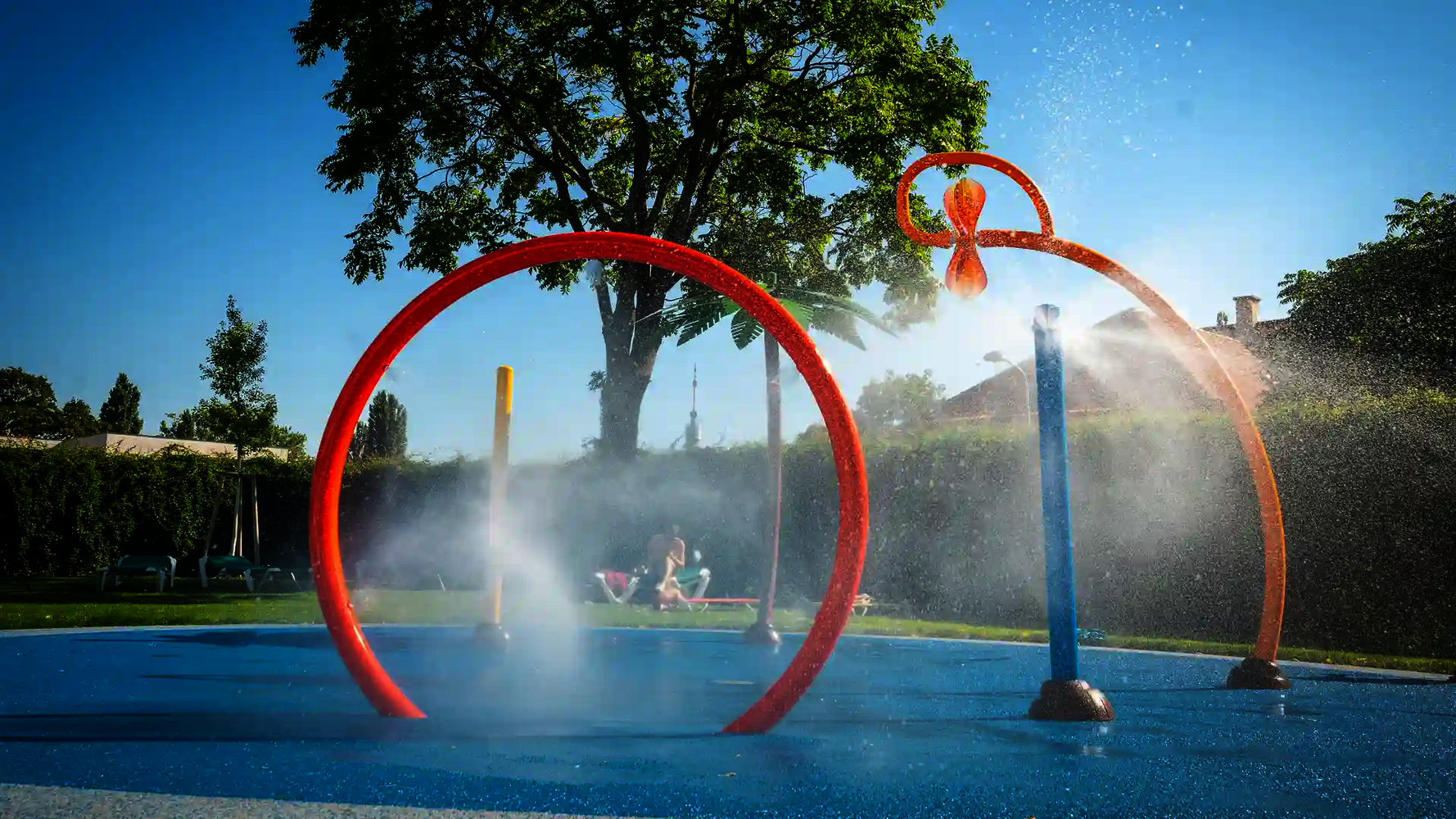

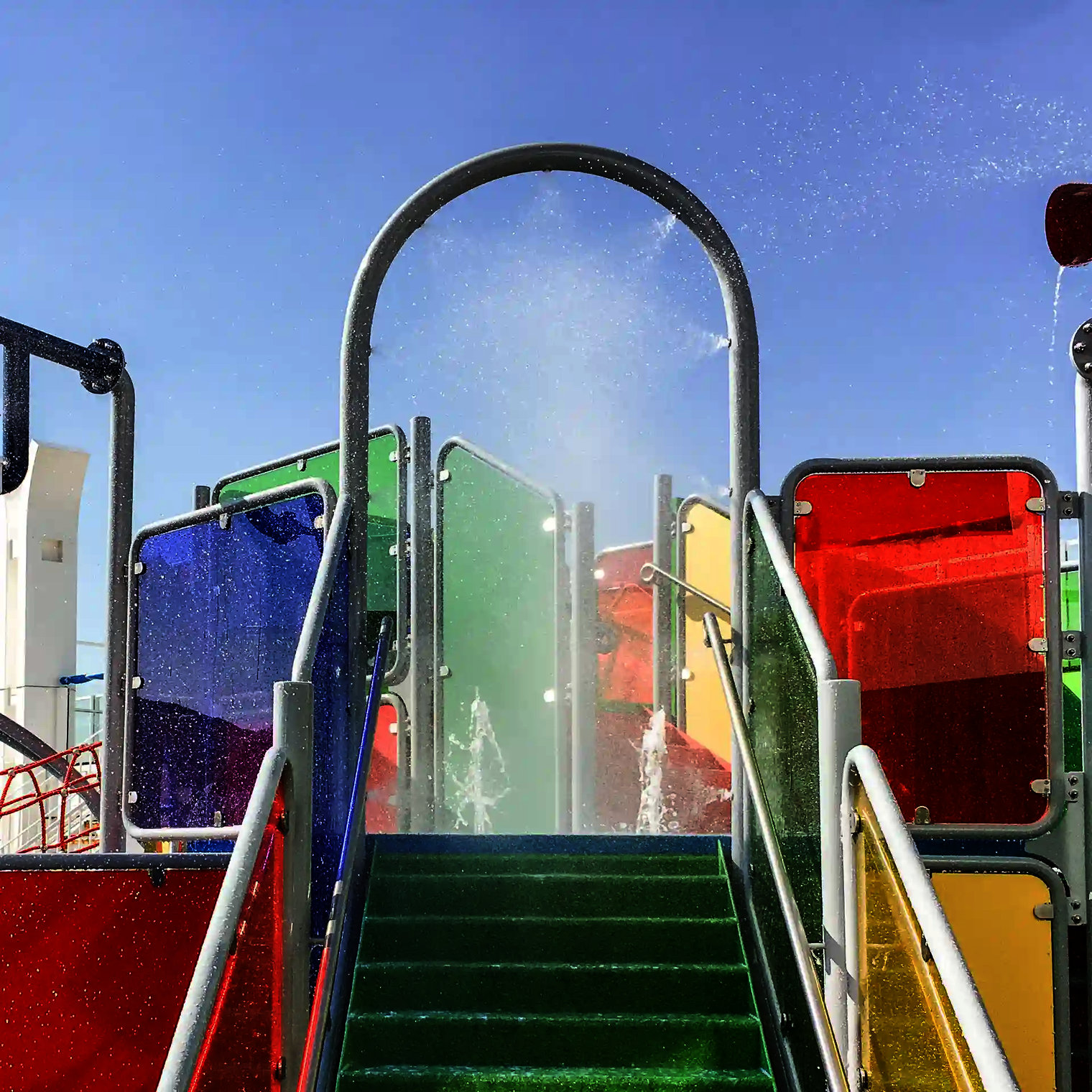

Waterbow
The water bow invites you to run through it and let yourself be sprinkled by fine jets of water. Nine flat jet nozzles, each with a 90° spray area, are discreetly integrated into the stainless steel bend. Whether individually or in series as a water tunnel – this compact element provides great water fun on a small area. The look can be flexibly adjusted.
Product features
Article number 103 | Stainless steel bend with 9 flat jet nozzles |
Length | 1.92 m |
Width | 0.12 m |
Height | 2.36 m |
Number of nozzles | 9 flat jet nozzles |
Spray area | approx. 1.00 m x 2.80 m/ 90° per nozzle |
Water demand | 5.5 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

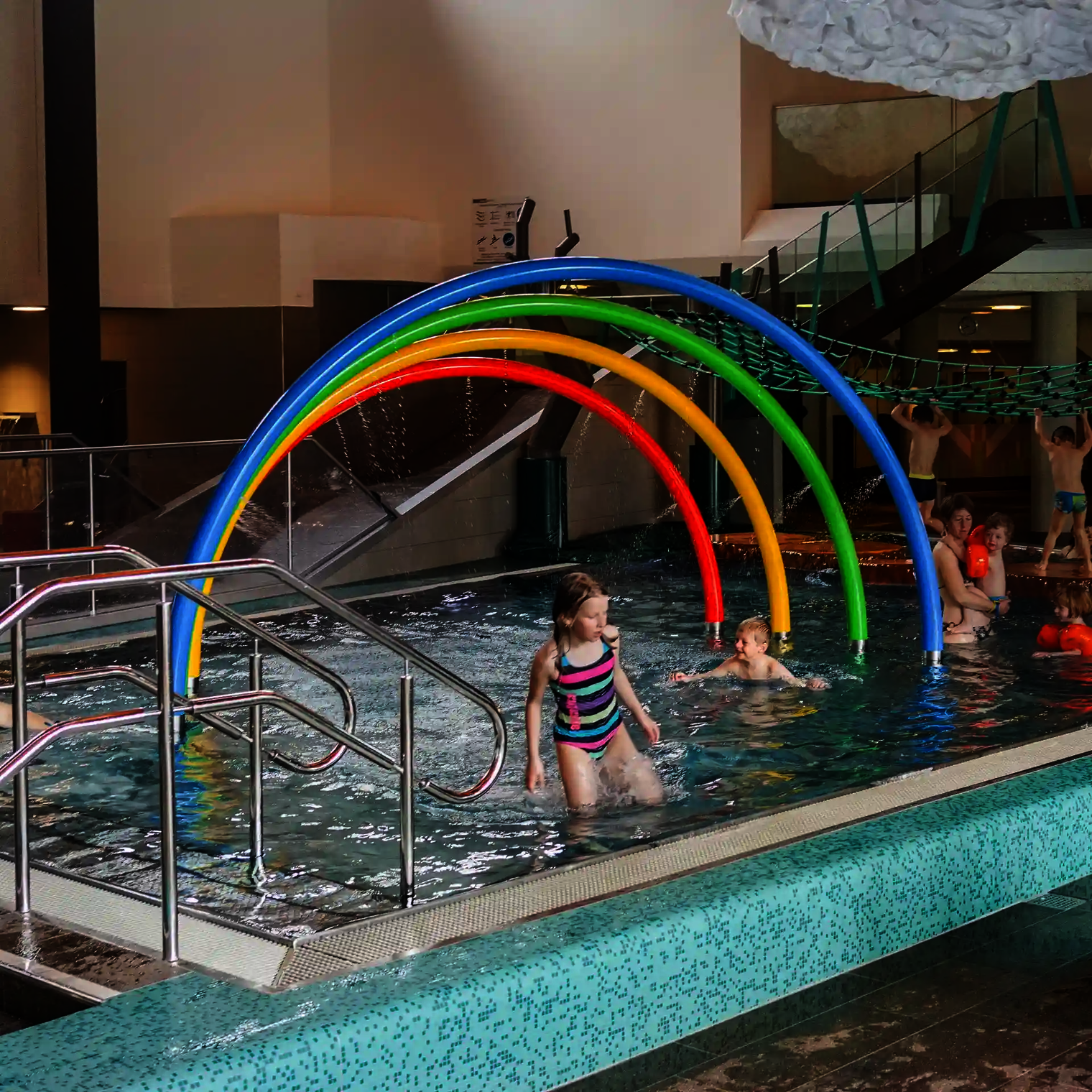

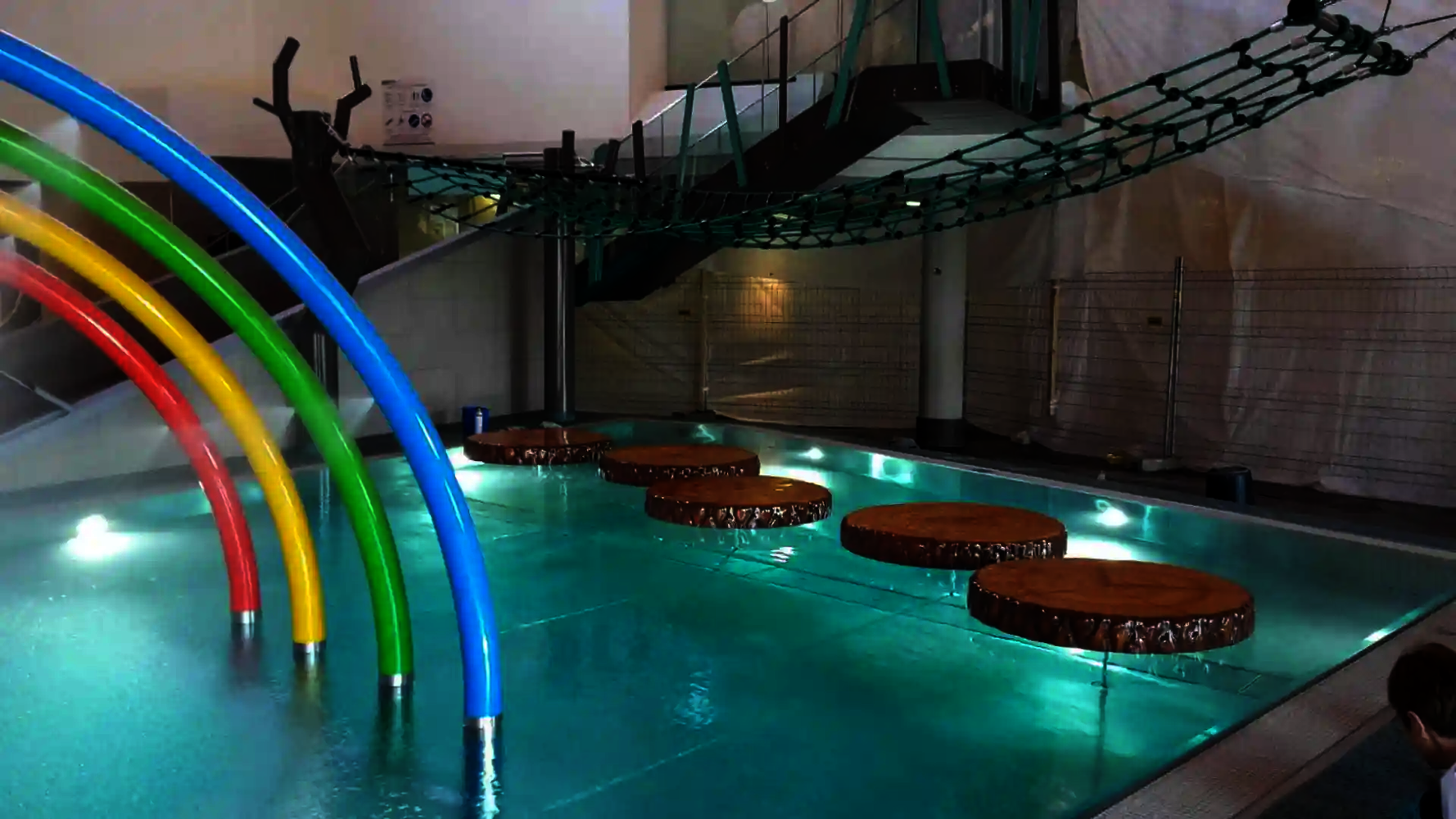

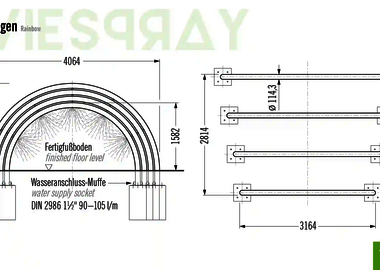

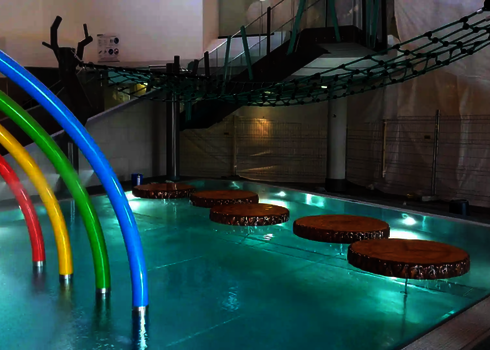

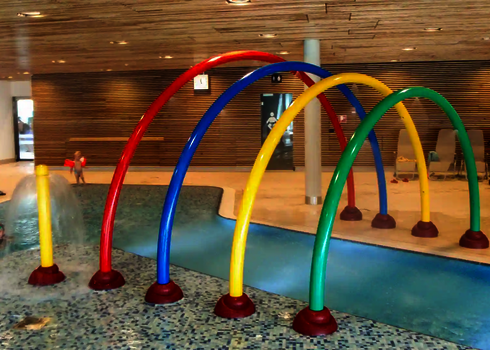

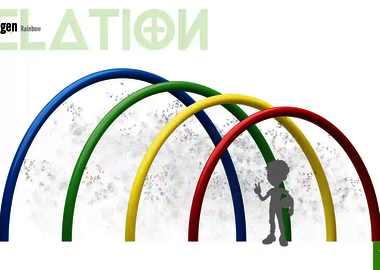

Rainbow
With its four different colored stainless steel arches, the rainbow not only sets visual accents, but also ensures uniform refreshment through fine spray rain. Five flat jet nozzles are integrated per bow. The size and coloring can be customized, so that the rainbow convinces both functionally and visually.
Whether above a lazy river, in a pool or on a playground – this element brings life to any kind of water playground!
Product features
Article number 104 | 4 different colored stainless steel bows having different sizes, 5 flat jet nozzles per ring |
Length | 2.82 m |
Width | 4.07 m |
Height | 2.04 m |
Number of nozzles | 5 flat jet nozzles |
Spray area | approx. 5.00 m x 3.90 m / 90° per nozzle |
Water demand | 5.4 - 6.3 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

Would you like a quote?

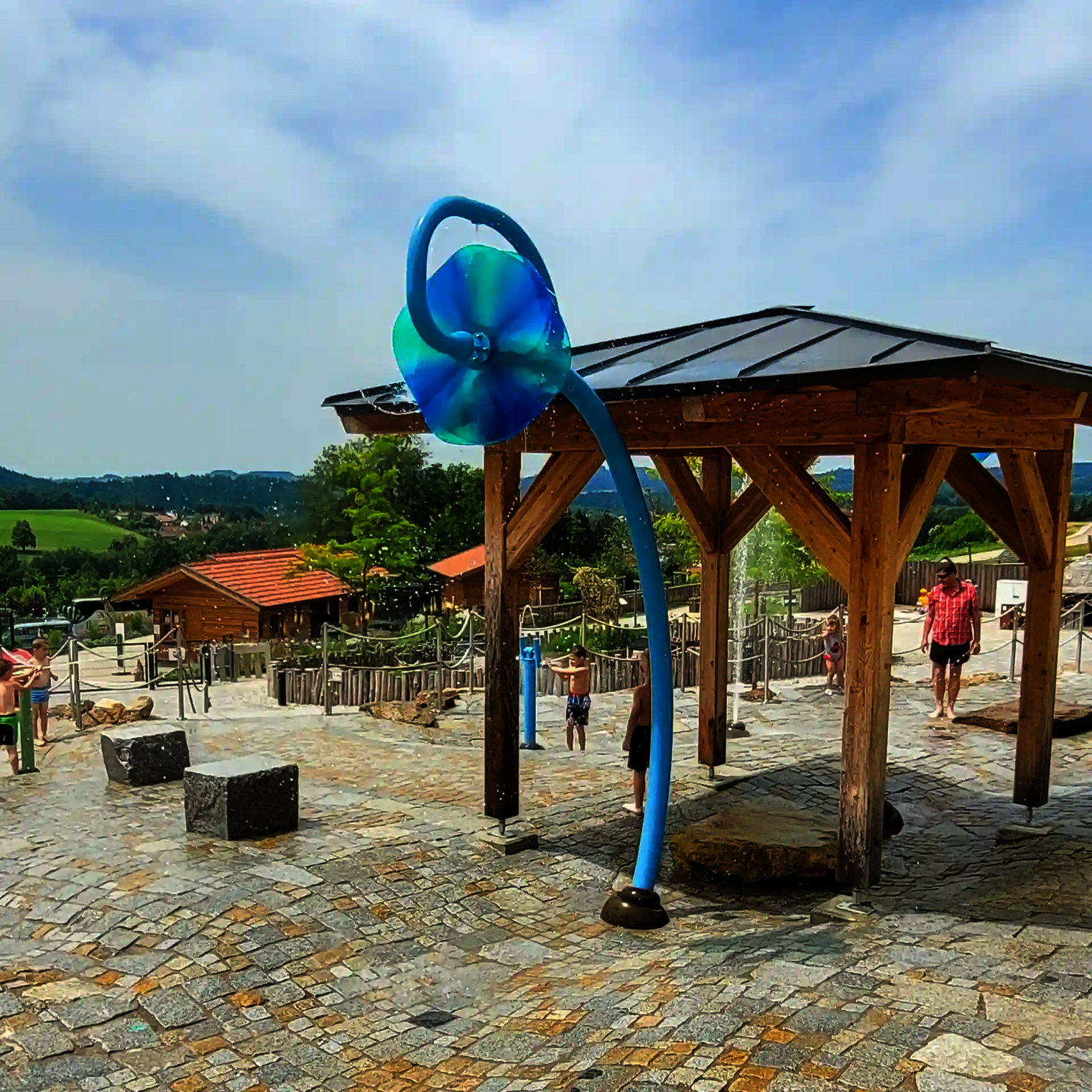

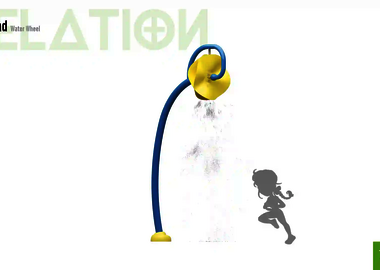

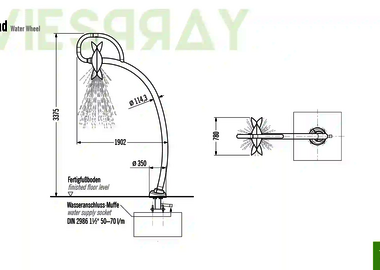

Water wheel
The water wheel is an interactive play element with splashes of water. It provides refreshing fun on any water playground. The water wheel distributes splashes of water, while the hand-moulded polycarbonate flower moves. The combination of stainless steel tube and rotating water element creates a lively play experience with a high challenge character. The color scheme can be chosen flexibly.
Product features
Article number 105 | Stainless Steel Pipe equipped with a Hand-Molded Polycarbonate Water Wheel |
Length | 2.04 m |
Width | 0.78 m |
Height | 3.38 m |
Number of nozzles | 1 spray nozzle |
Spray area | approx. 3.00 m x 2.00 m |
Water demand | 1.6 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

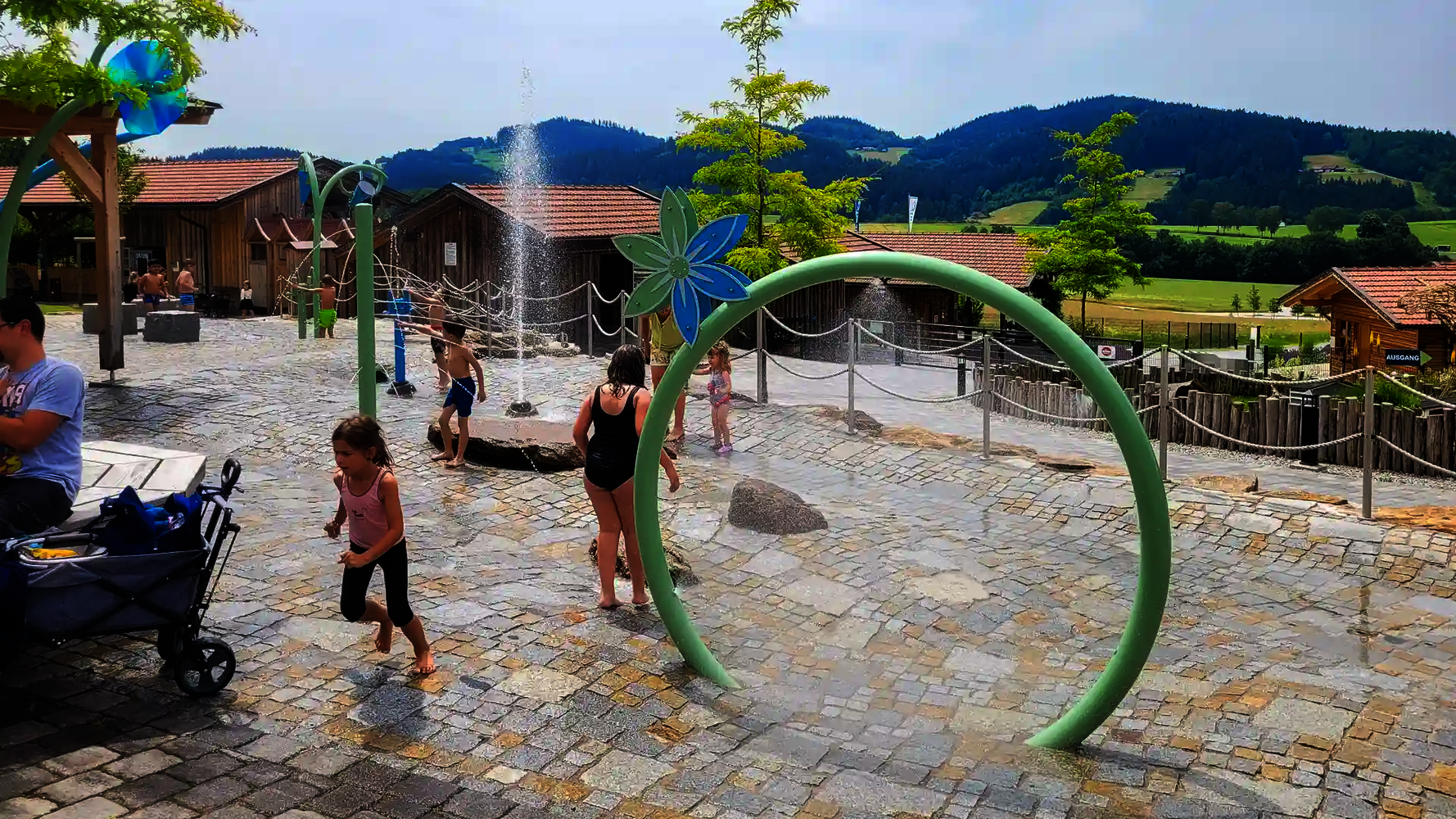

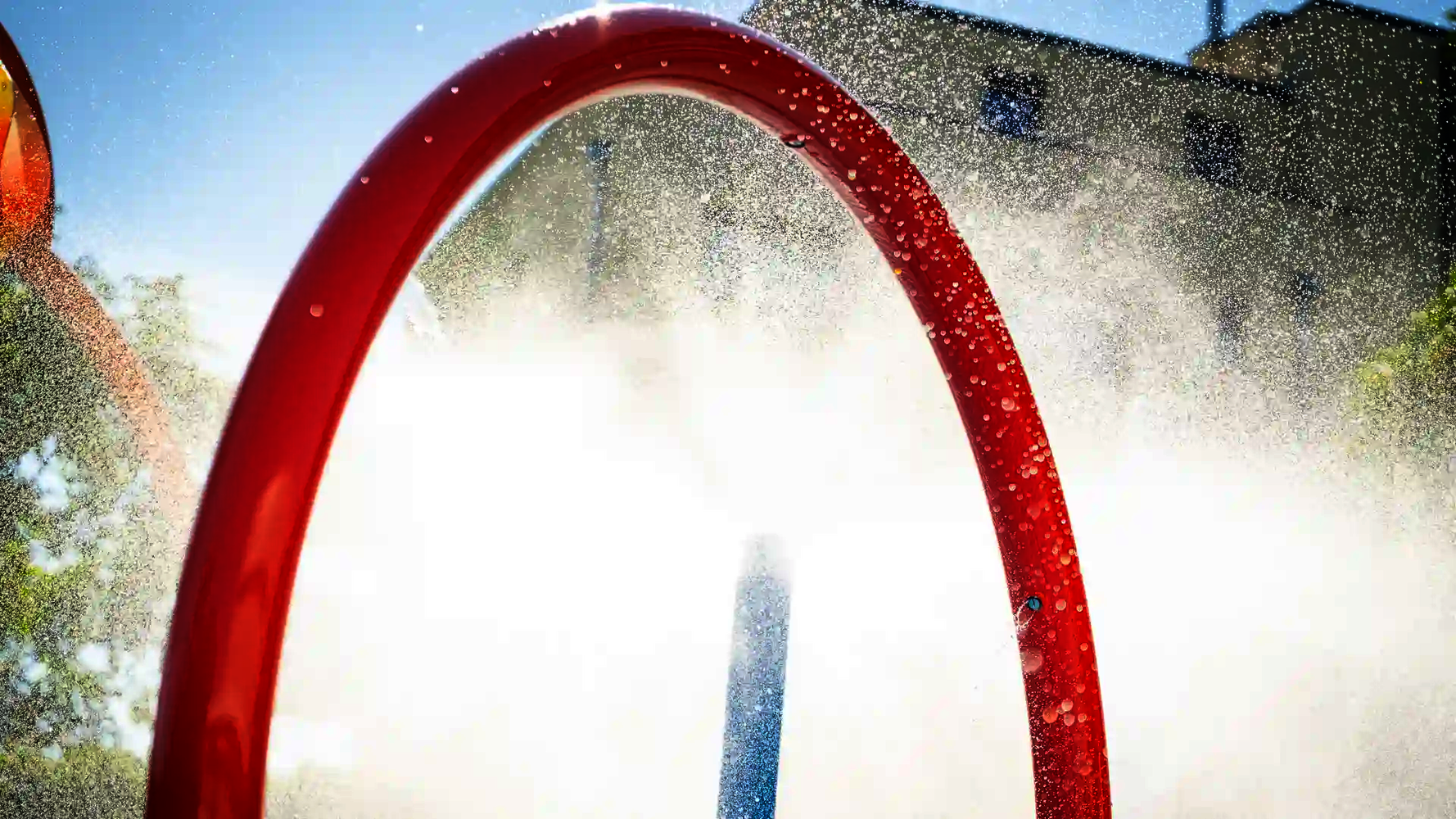

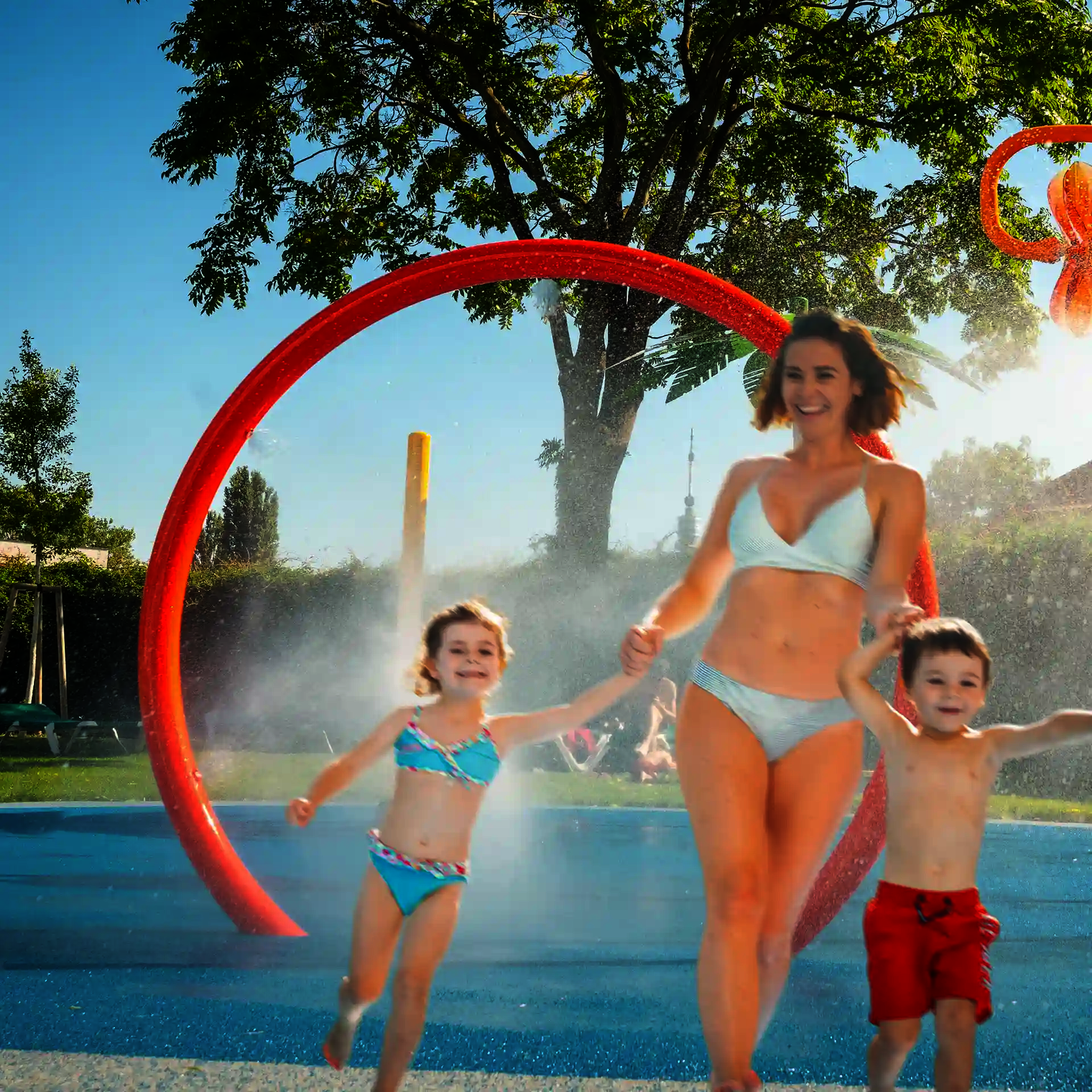

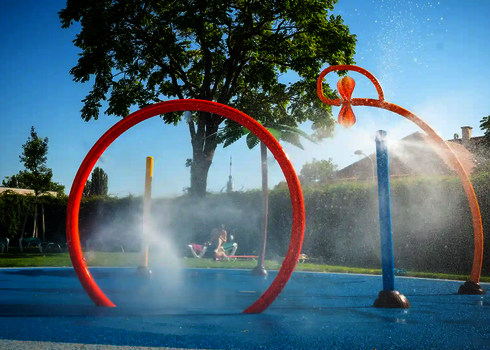

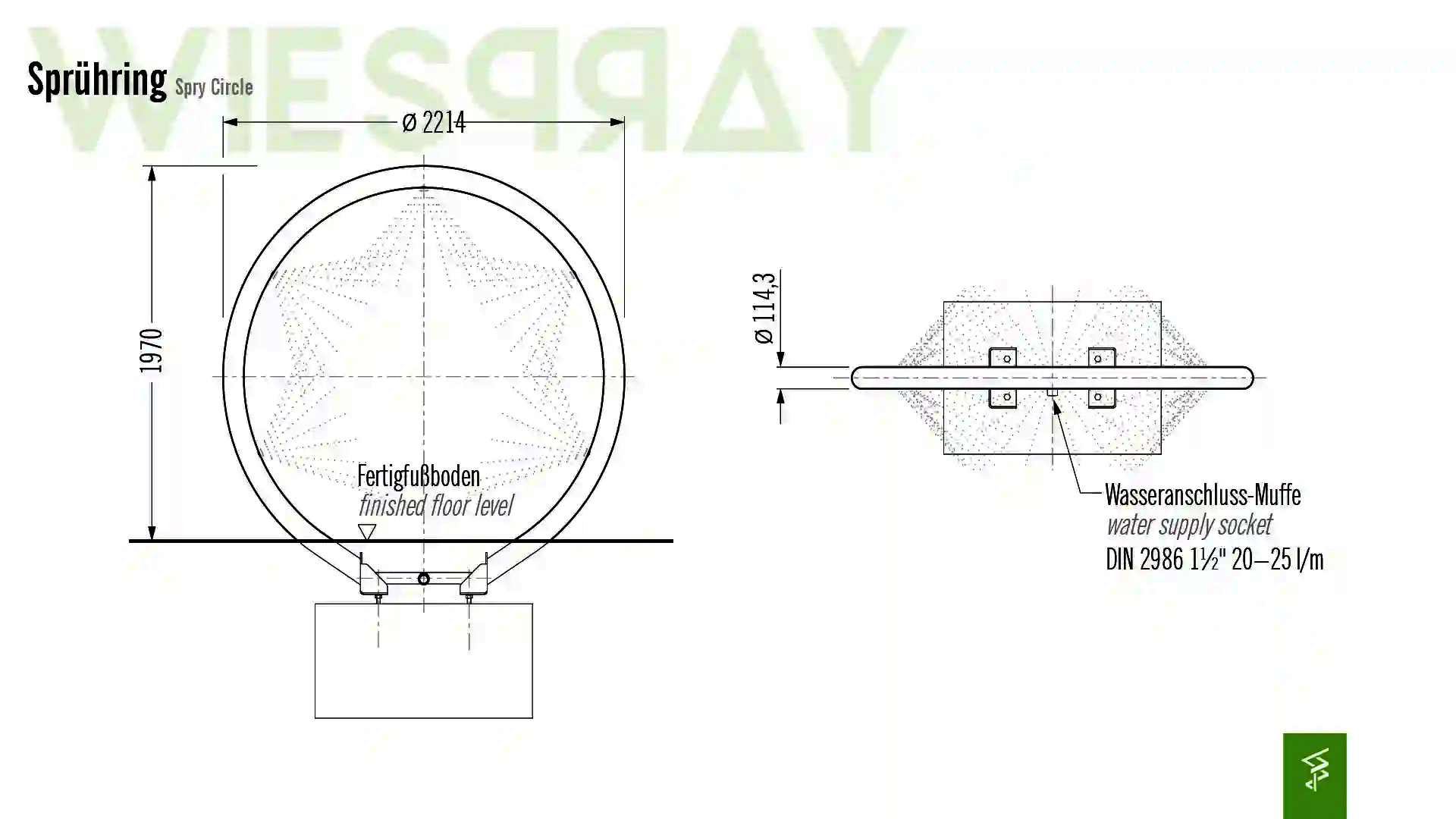

Spray ring
With a height of over two metres, the Spray Ring is a real highlight. Five flat jet nozzles distribute a gentle mist of water over the entire arc surface. The element consists of a sturdy stainless steel ring, the design and coloring of which can be adapted to the respective environment.
Product features
Article number 106 | Stainless steel ring equipped with five flat jet nozzles |
Length | 2.22 m |
Width | 0.12 m |
Height | 1.96 m |
Number of nozzles | 5 flat jet nozzles |
Spray area | φ 3.00 x 1.50 m / 90° per nozzle |
Water demand | 1.2 - 1.5 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

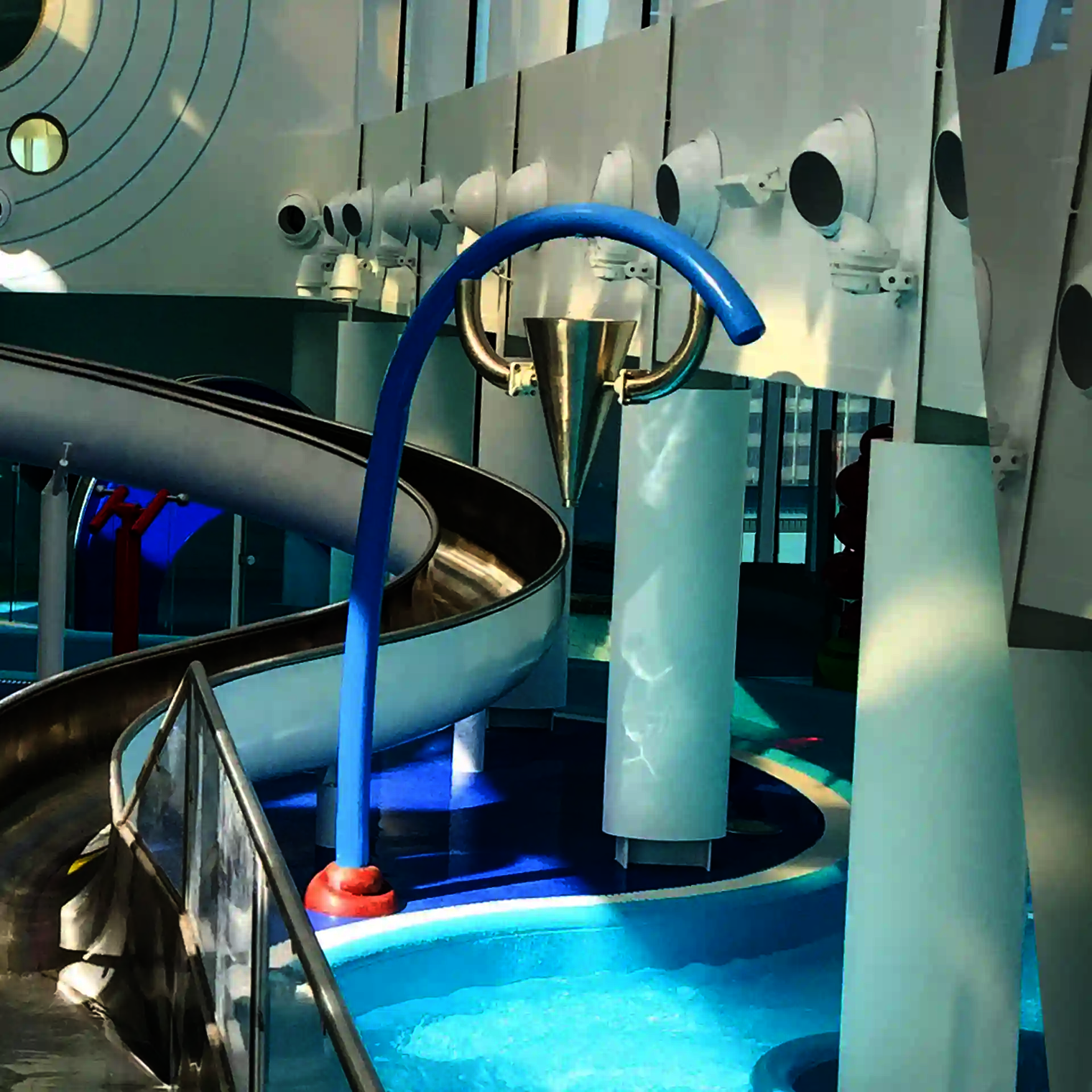

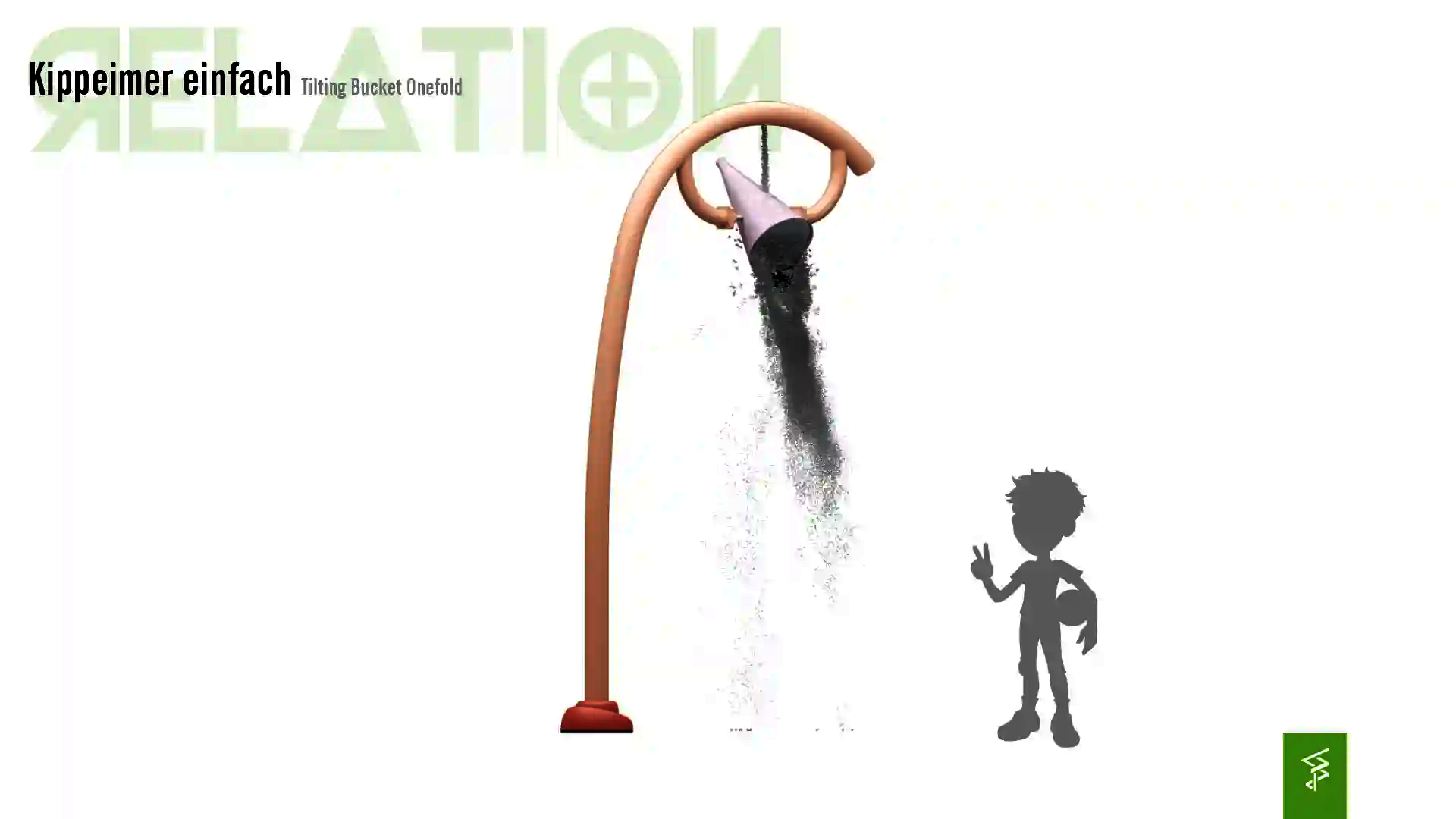

Tipping bucket simple
The tipping bucket provides surprising moments and smiling faces. As soon as the funnel-shaped bucket has filled with water, it suddenly tilts and discharges a refreshing gush onto the visitors below it. The construction is based on a curved stainless steel tube, which can be flexibly themed. This classic element brings movement to any water adventure world!
Product features
Article number 107 | Curved pipe with funnel-shaped tipping bucket |
Length | 1.92 m |
Width | 0.35 m |
Height | 3.07 m |
Number of nozzles | 1 spray nozzle |
Spray area | approx. 1.00 x 1.00 m |
Water demand | 4.8 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

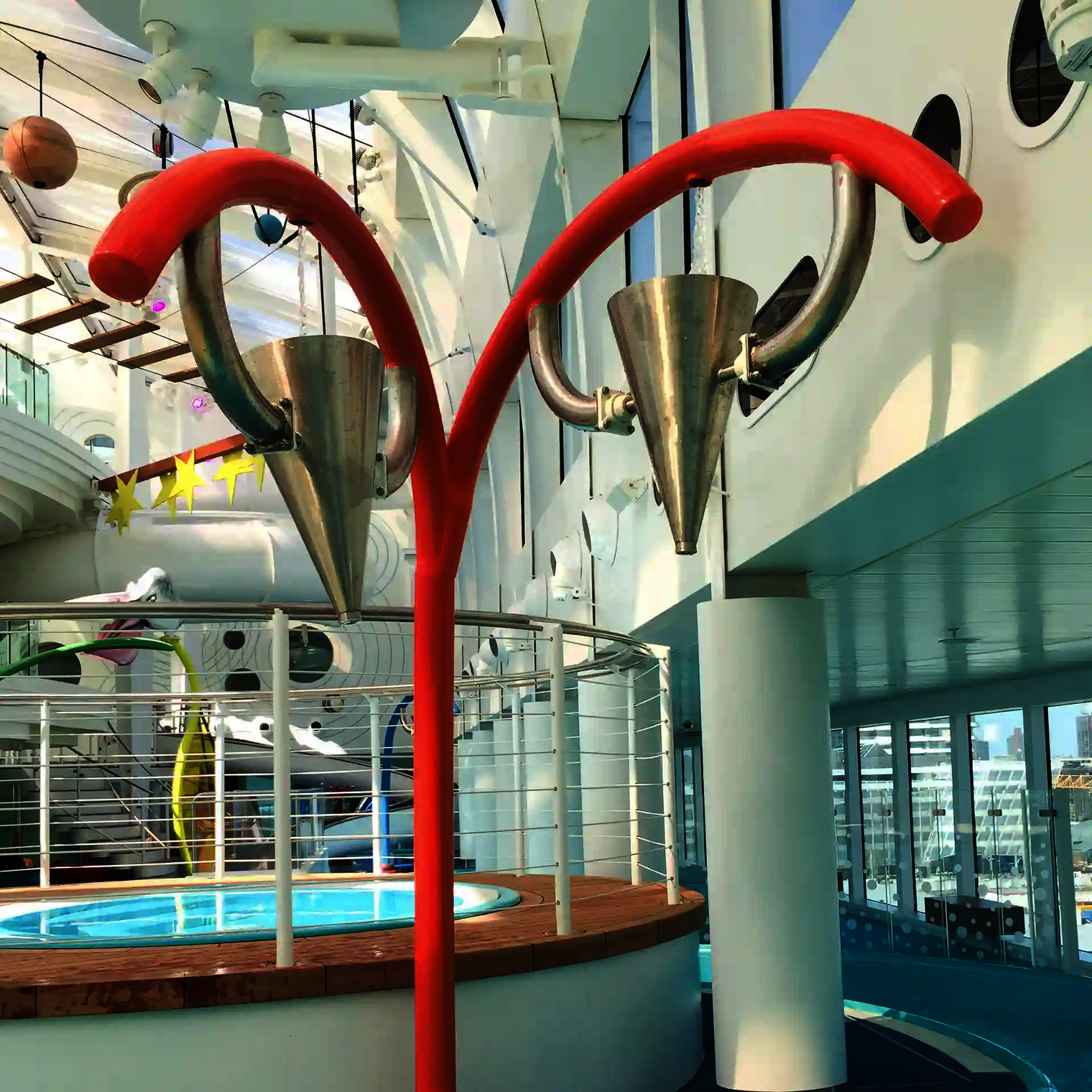

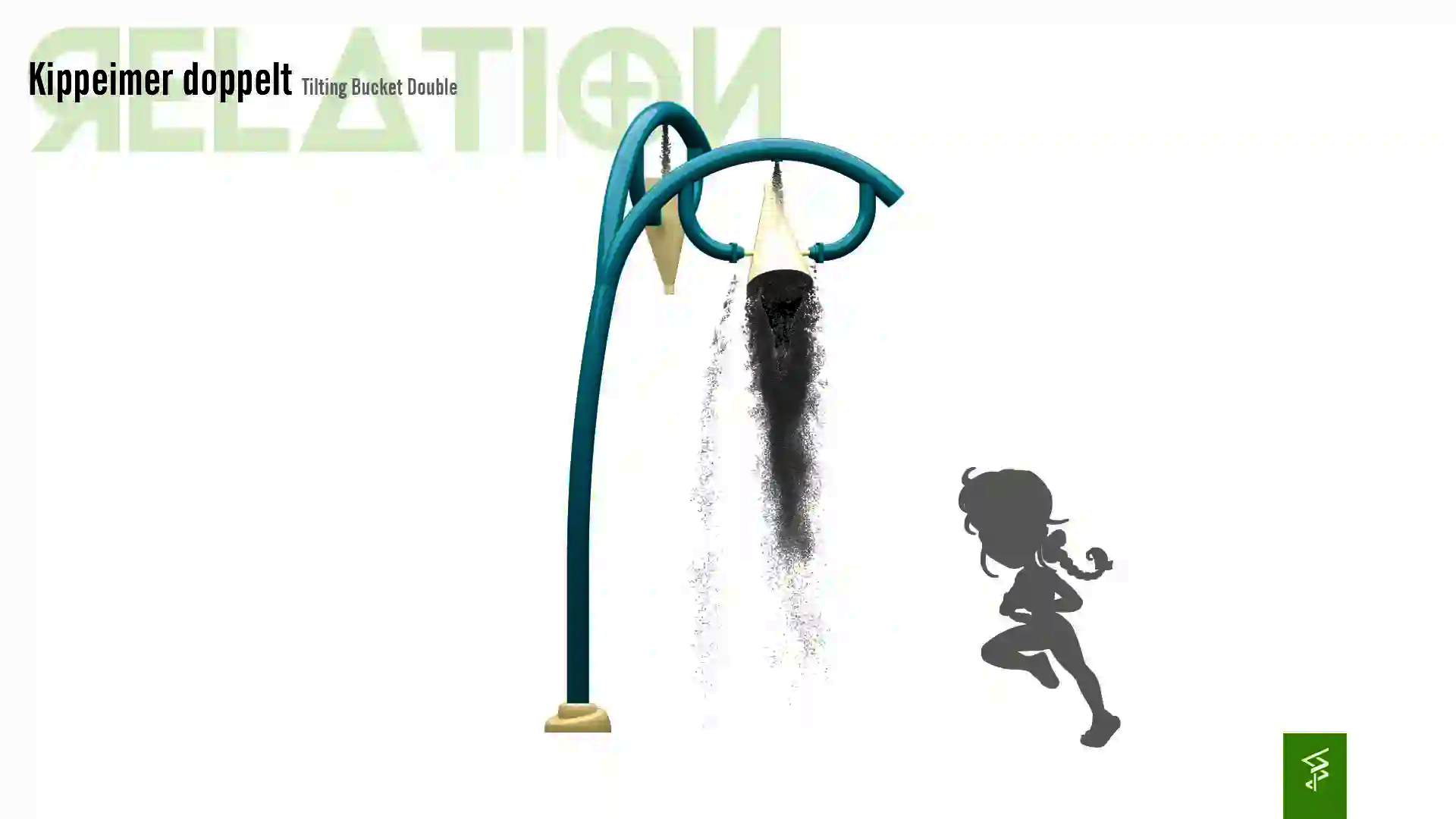

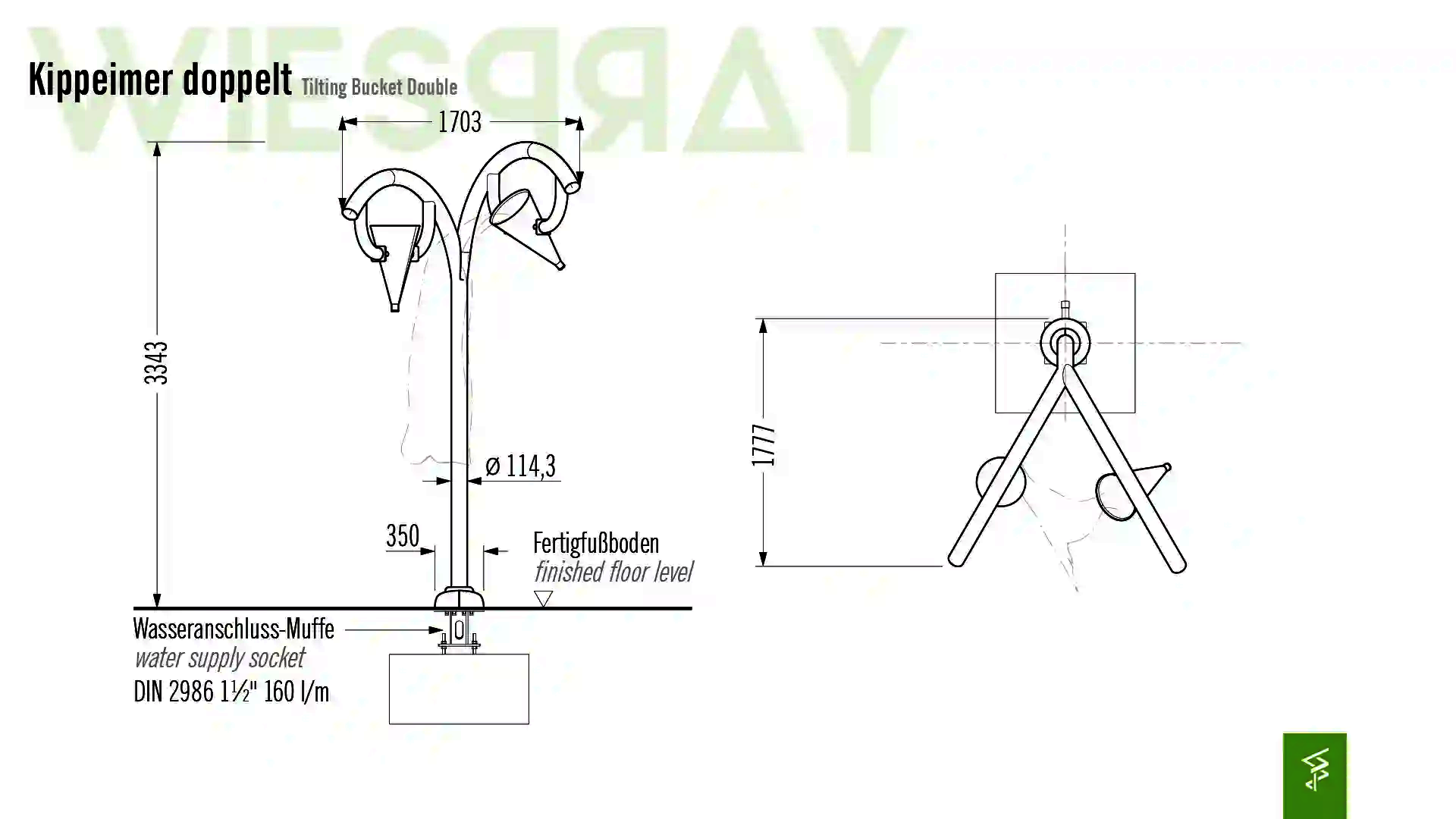

Tipping bucket double
The double tipping buckets increase the fun factor by unexpected waterfalls, which create tension at different times. Nobody knows exactly when the buckets will tip. And that's a thrill for explorers big and small. Two funnel-shaped buckets, mounted on antlers made of stainless steel tube, tilt at different times and surprise the players with sudden water charges. The design can be customized.
Product features
Article number 207 | Curved stainless steel tube including antlers with two funnel-shaped buckets |
Length | 1.71 m |
Width | 1.83 m |
Height | 3.35 m |
Number of nozzles | 2 spray nozzles |
Spray area | approx. 2.00 x 2.00 m |
Water demand | 9.6 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

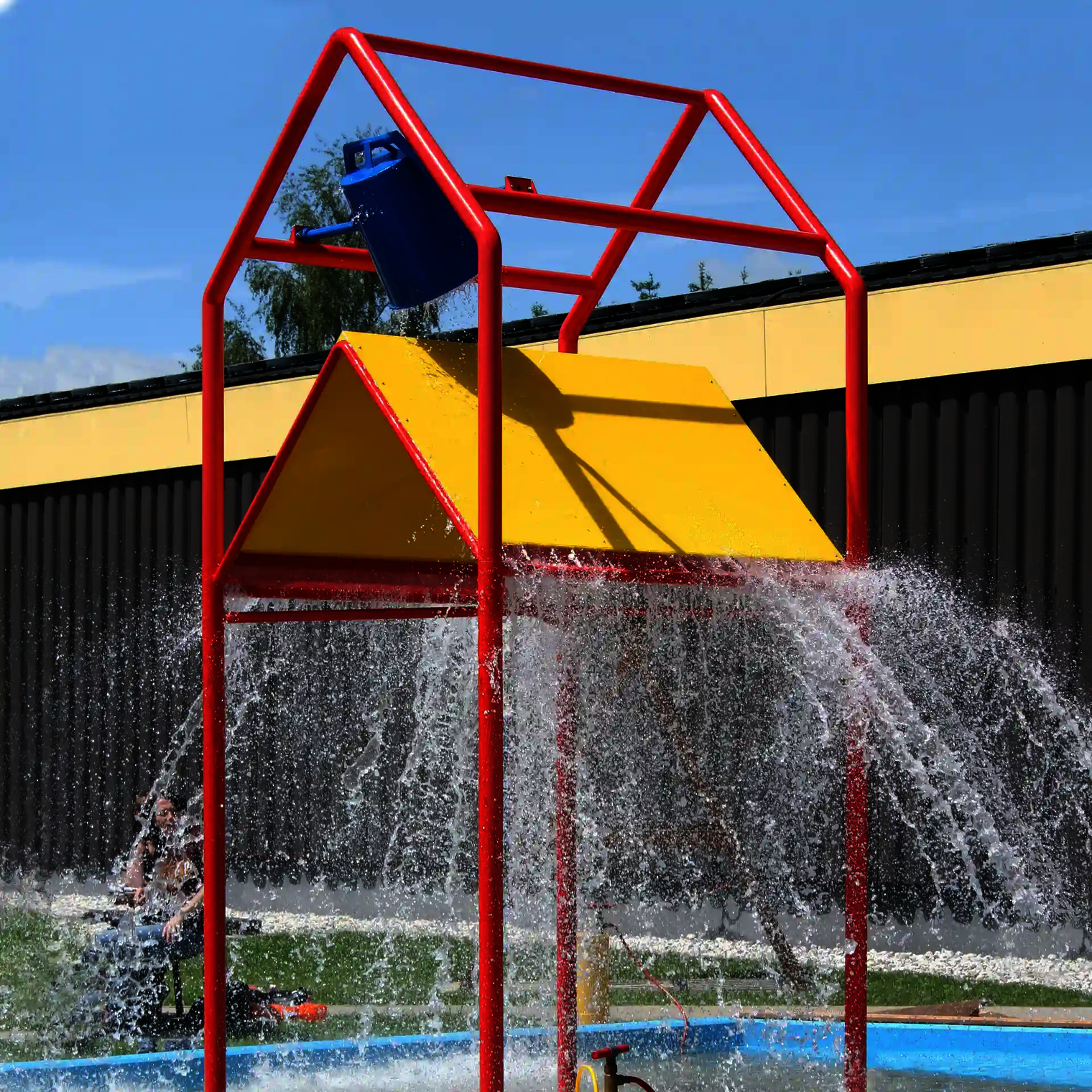

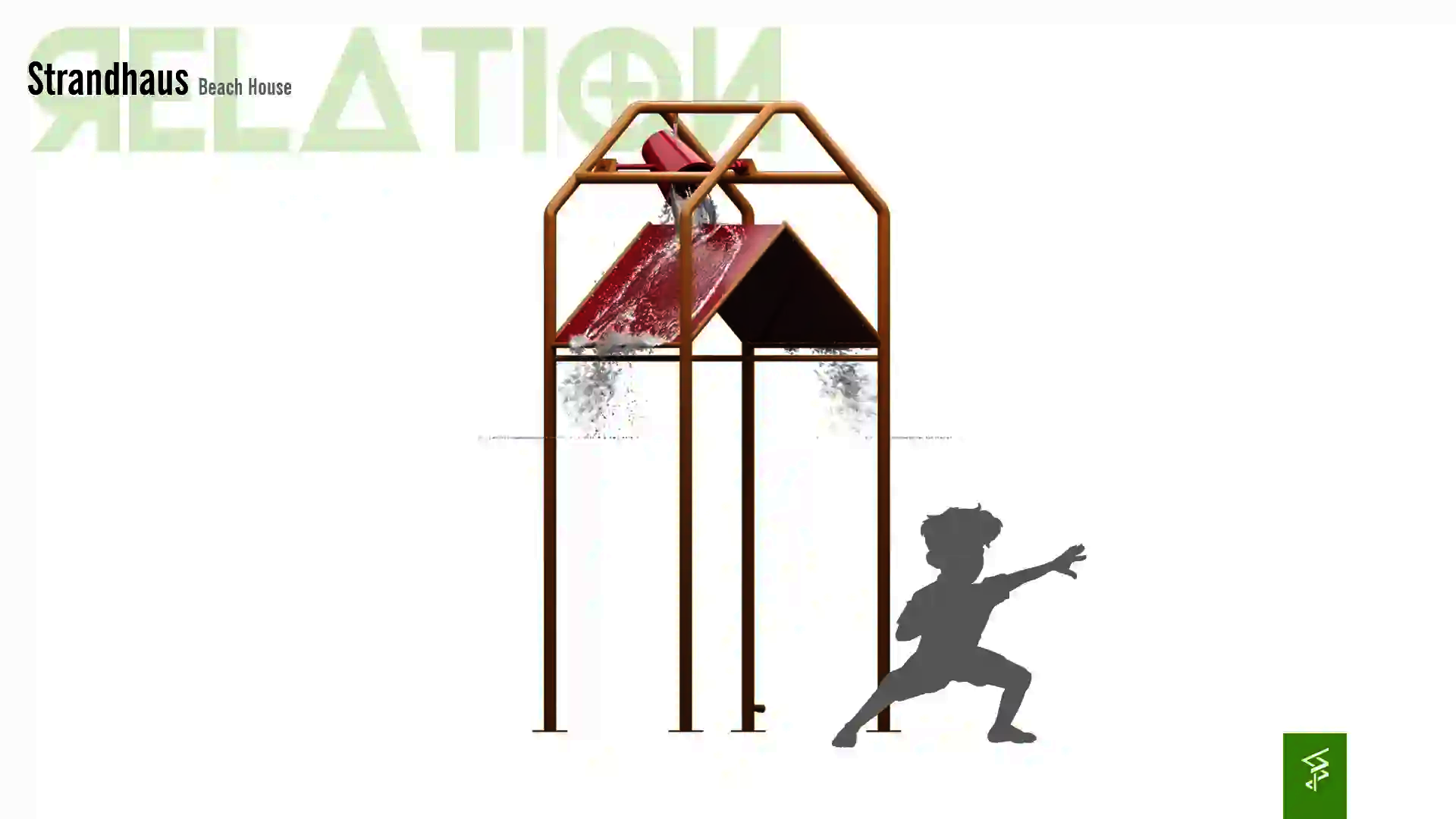

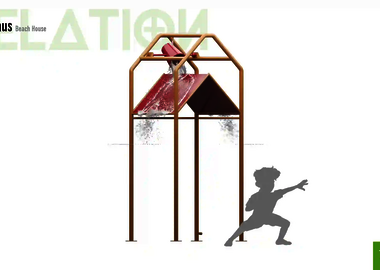

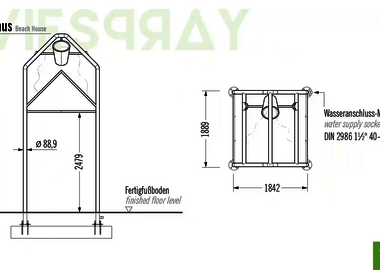

Beach house
At the beach house, a bucket mounted above the roof ensures regular gush experiences. As soon as the bucket has filled up, the water tips onto the perforated sheet metal roof and then pours from there onto the playing surface. The stainless steel construction can be themed and brings playful excitement to the water play area. Ideal for water adventure worlds, this element provides playful excitement and variety on every water feature.
Product features
Article number 108 | Stainless steel pipe construction, perforated stainless steel roof |
Length | 1.89 m |
Width | 1.85 m |
Height | 4.73 m |
Number of nozzles | |
Spray area | approx. 6.00 x 2.00 m |
Water demand | 8.0 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

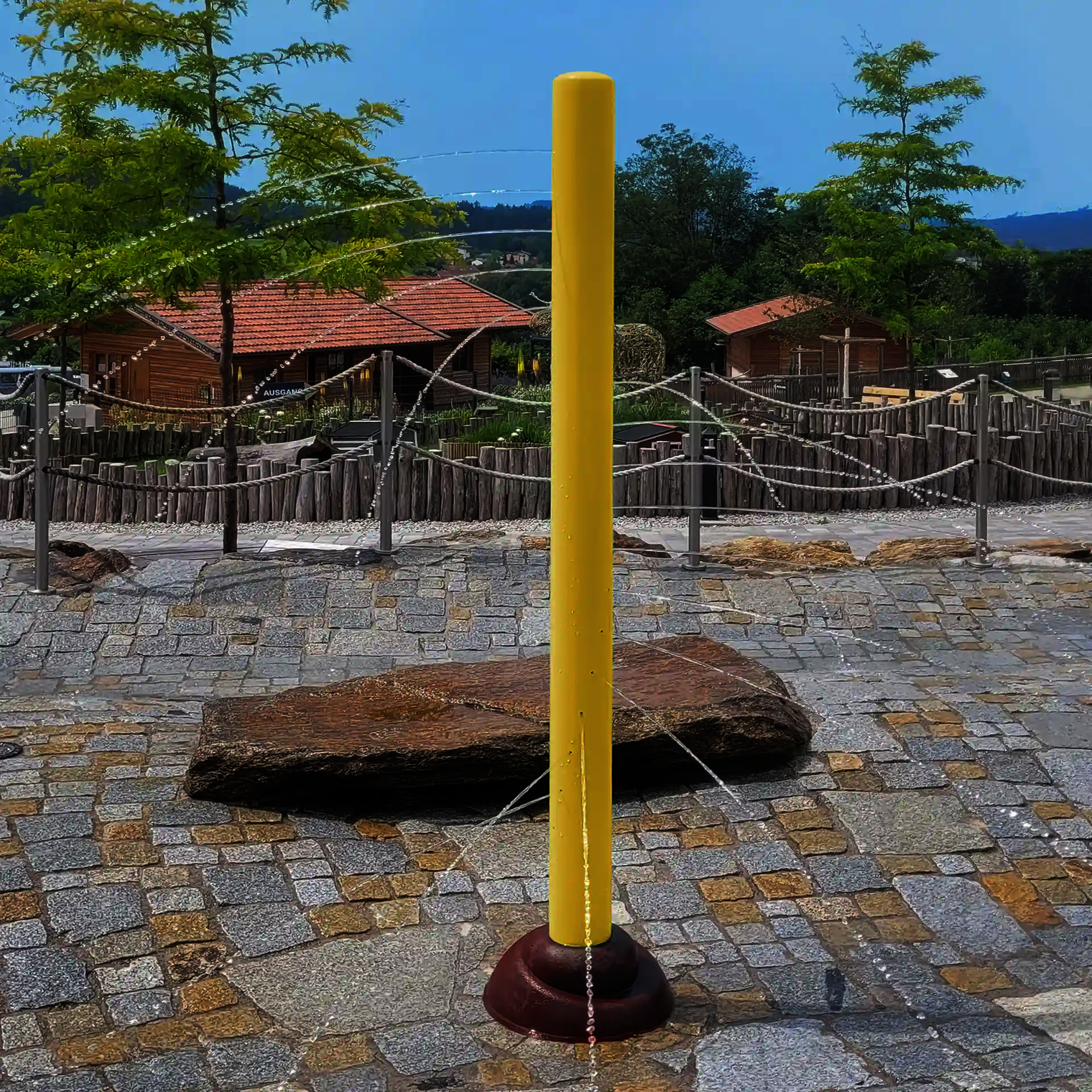

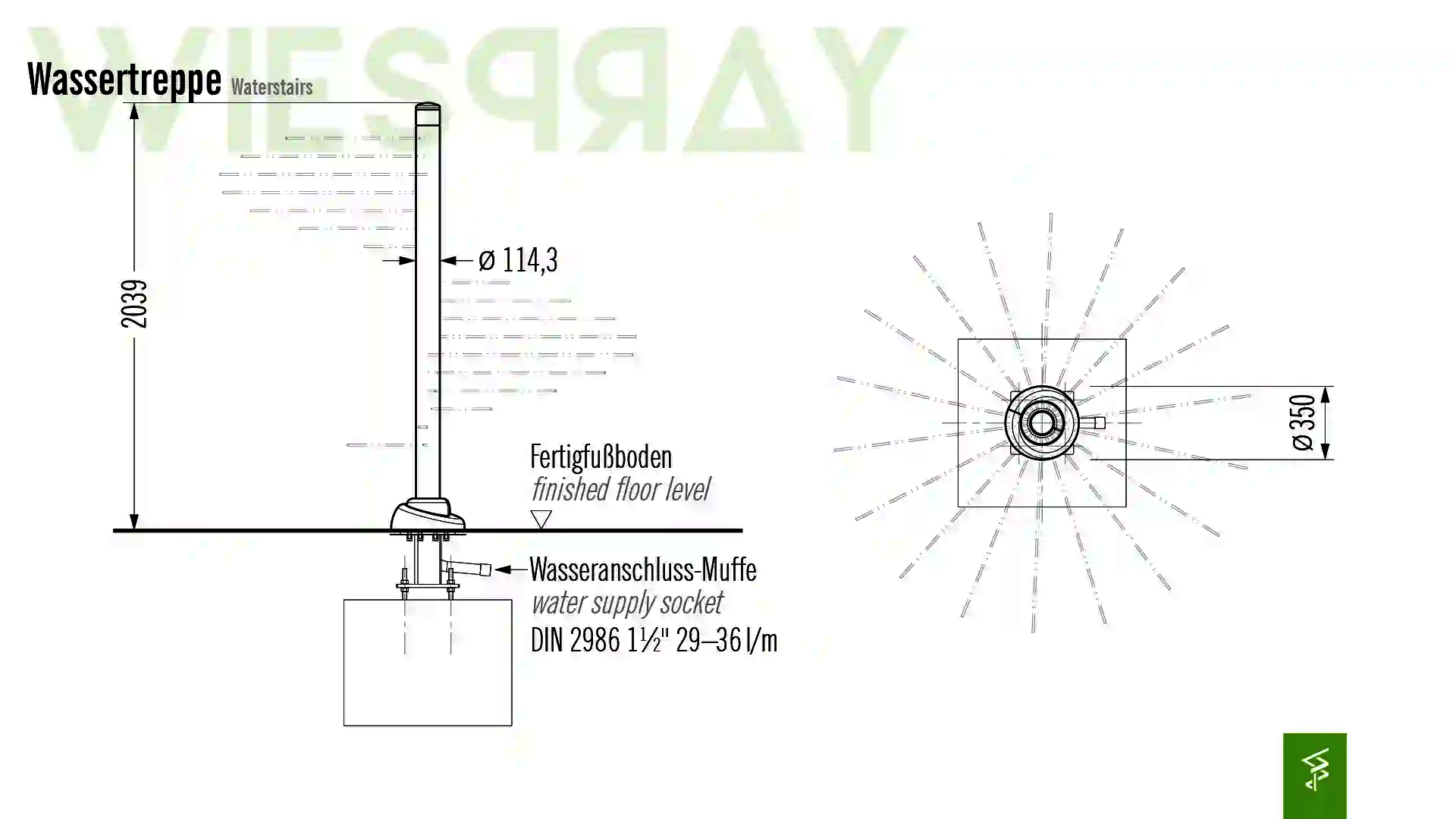

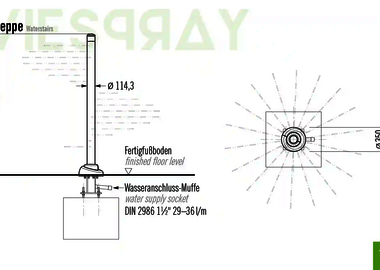

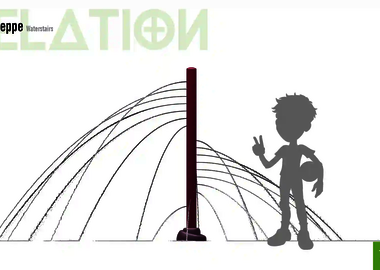

Water staircase
The water staircase provides a fascinating spectacle with 18 spirally arranged water jets. The fountains dance up dynamically along the stainless steel pillar. So they invite children as well as adults alike to run through the cool water or get refreshed. The construction is made of a robust stainless steel tube equipped with precisely drilled openings. For an individual design, the water staircase can be themed and adjusted in color – a harmonious interplay of technology and experience.
Product features
Article number 109 | Standing column made of stainless steel tube with 18 spirally arranged holes |
Length | 0.35 m |
Width | 0.35 m |
Height | 2.04 m |
Number of nozzles | |
Spray area | ø 3.00 m |
Water demand | 4.0 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

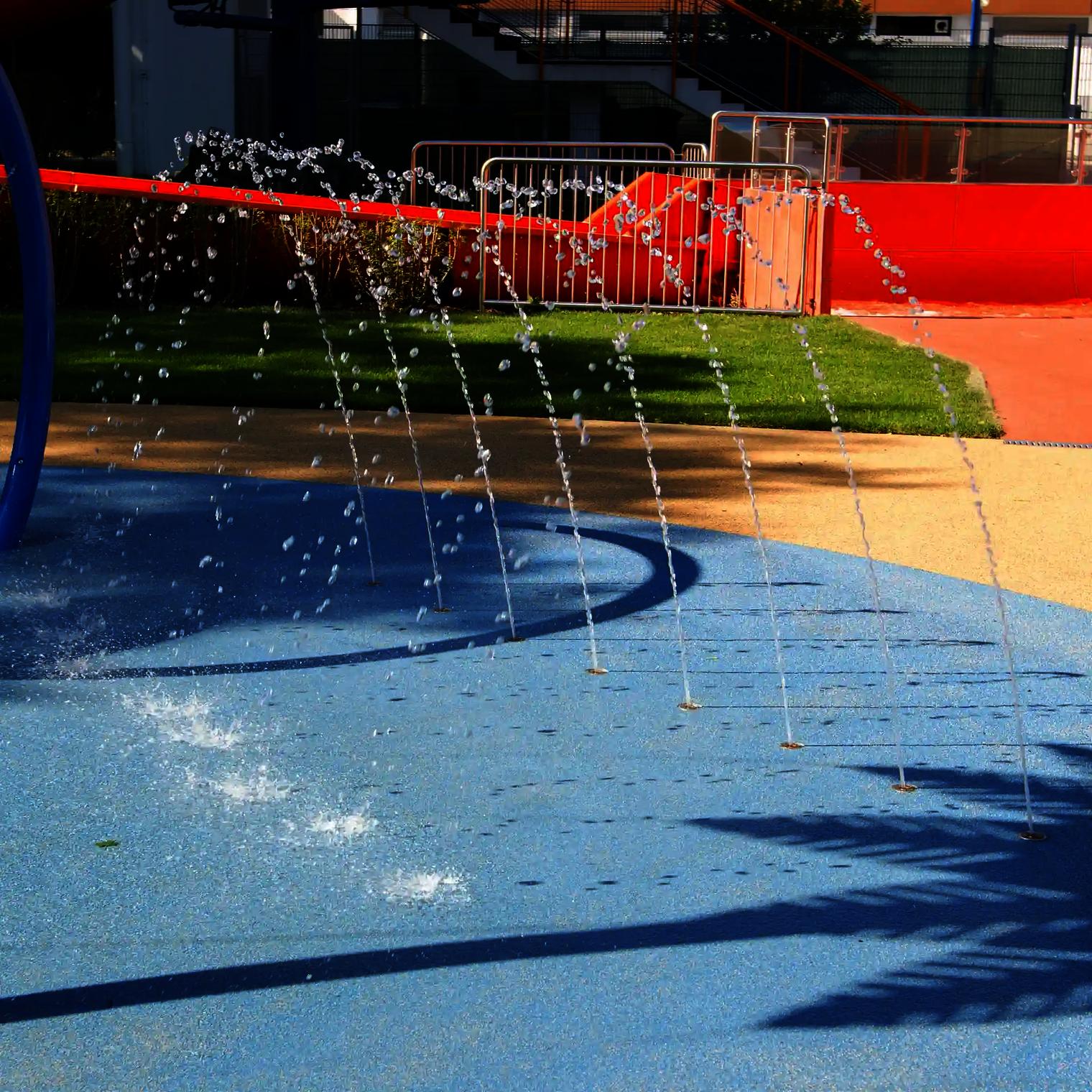

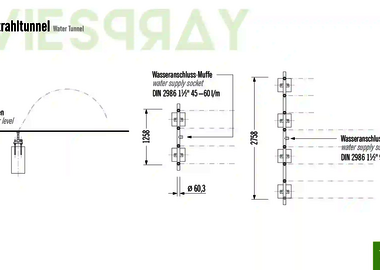

Water jet tunnel
The water jet tunnel transforms simple paths into interactive experiences. Eight adjustable ball nozzles shoot synchronously from the ground, forming an impressive tunnel of water jets. Whether walking through or watching, this water feature provides variety. The nozzles are installed at ground level on a rectilinear installation pipe and can be flexibly aligned. This feature creates a water effect that perfectly combines technology and fun.
Product features
Article number 190 | 4 or 8 adjustable ball nozzles arranged on rectilinear mounting tube and laid level with the floor |
Length | 1.50 / 3.0 m |
Width | 0.06 m |
Height | 0.00 m |
Number of nozzles | 4 / 8 Conical nozzles |
Spray area | 2.50 / 3.50 x 2.00 m |
Water demand | 2.7 - 3.6/5 .0 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

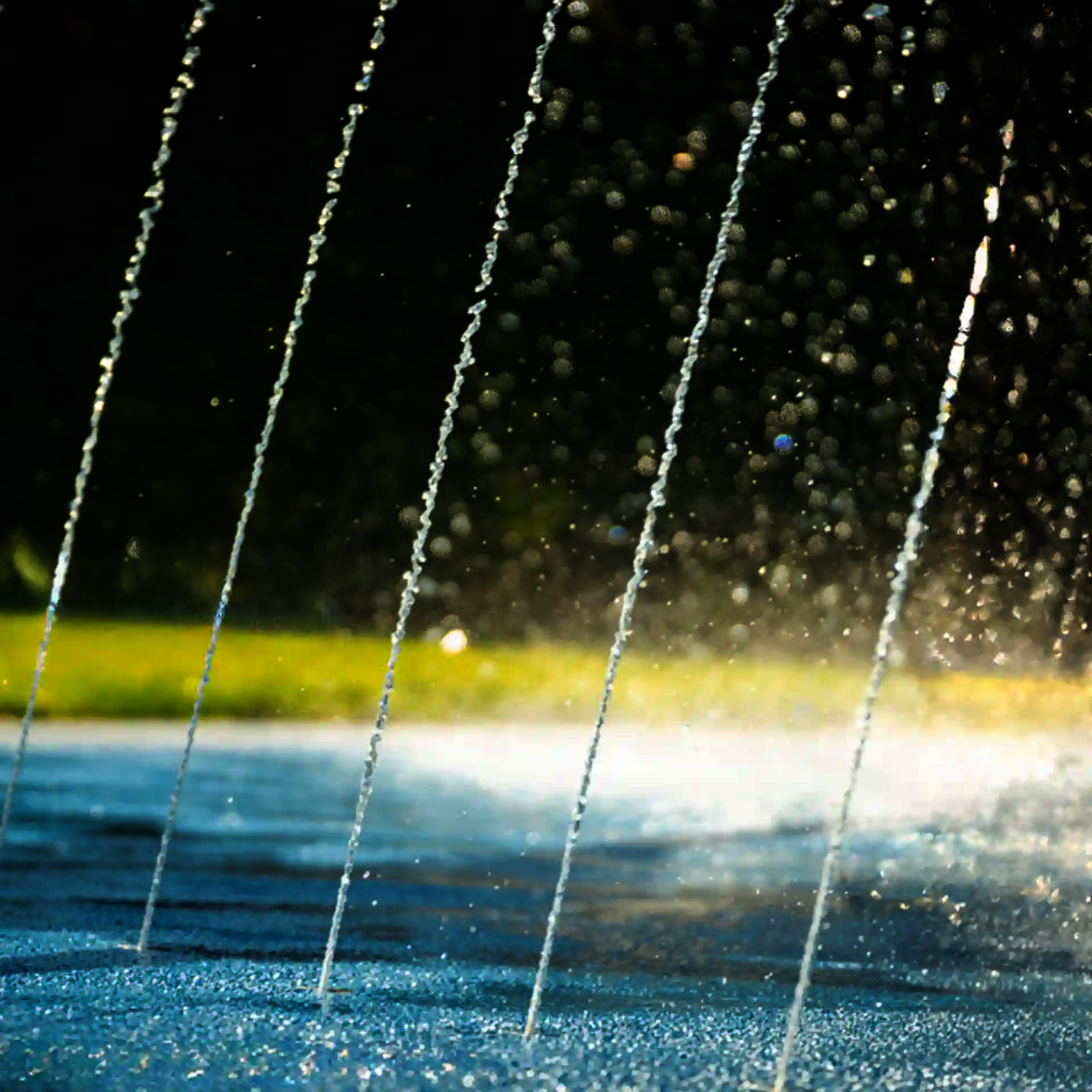

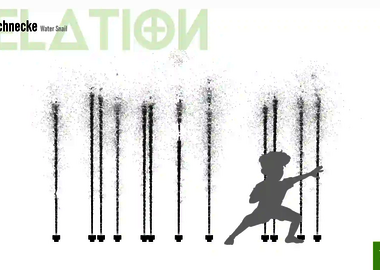

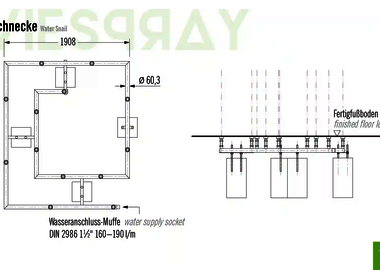

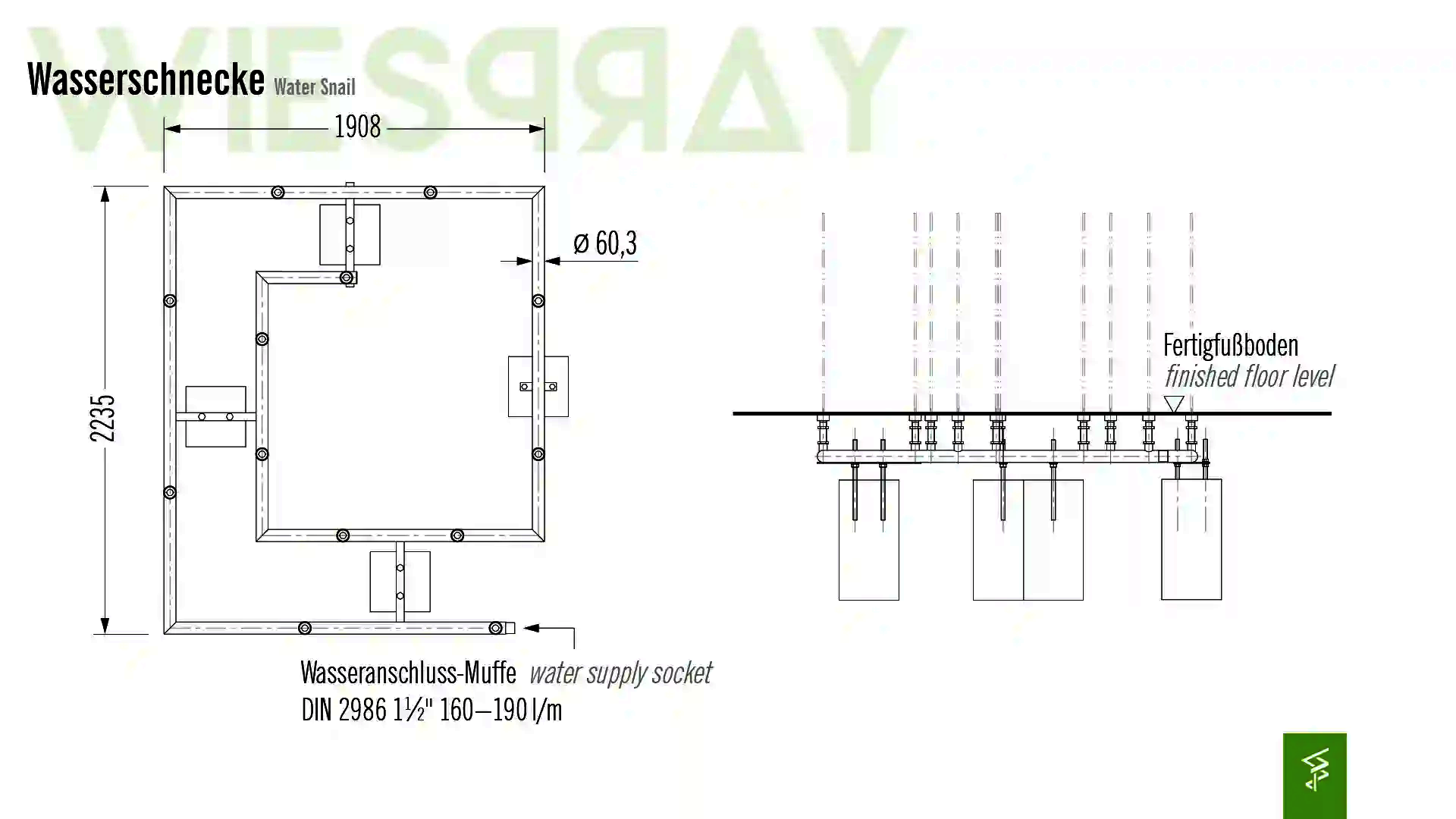

Water snail
Thanks to its snail-shaped water jets, the water snail surprises again and again. 13 adjustable ball nozzles suddenly bubble out of the ground and invite you to jump, dodge or run through. The curved installation pipe is laid level with the floor and allows flexible water images. The water snail is not only an interactive pleasure, but also an example of sophisticated technology with a high fun factor. The theming may be discussed.
Product features
Article number 191 | 13 adjustable ball nozzles arranged on screw-shaped installation tube and laid level with the floor |
Length | 1.91 m |
Width | 2.22 m |
Height | 0.00 m |
Number of nozzles | 13 ball nozzles |
Spray area | approx. 3.00 x 3.00 m |
Water demand | 9.6 - 11.4 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

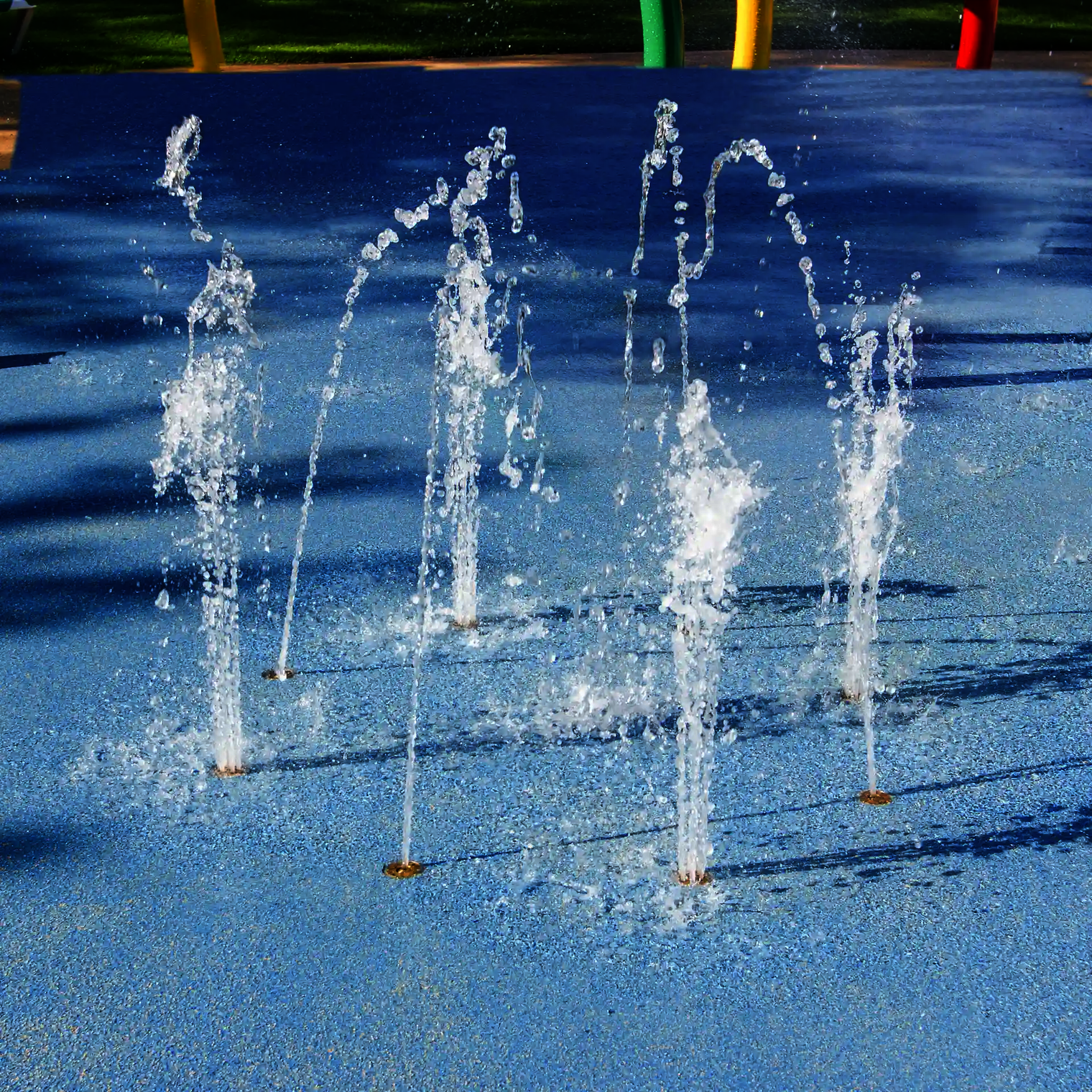

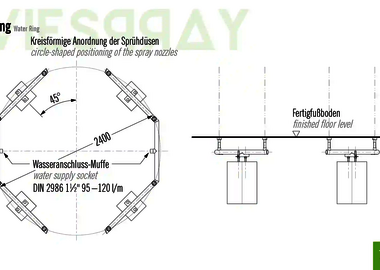

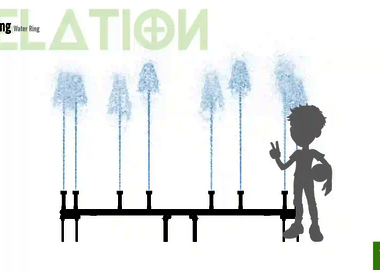

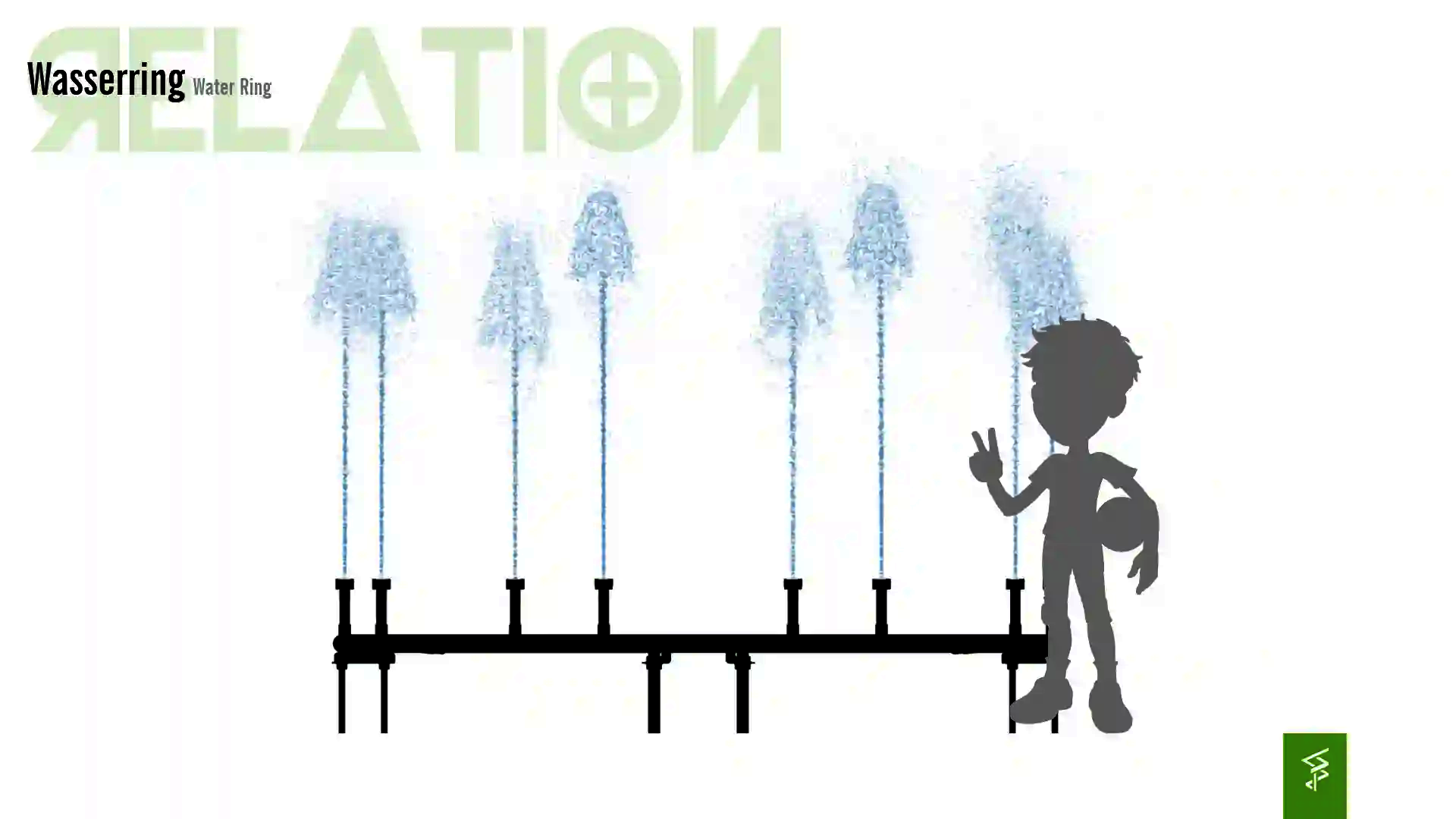

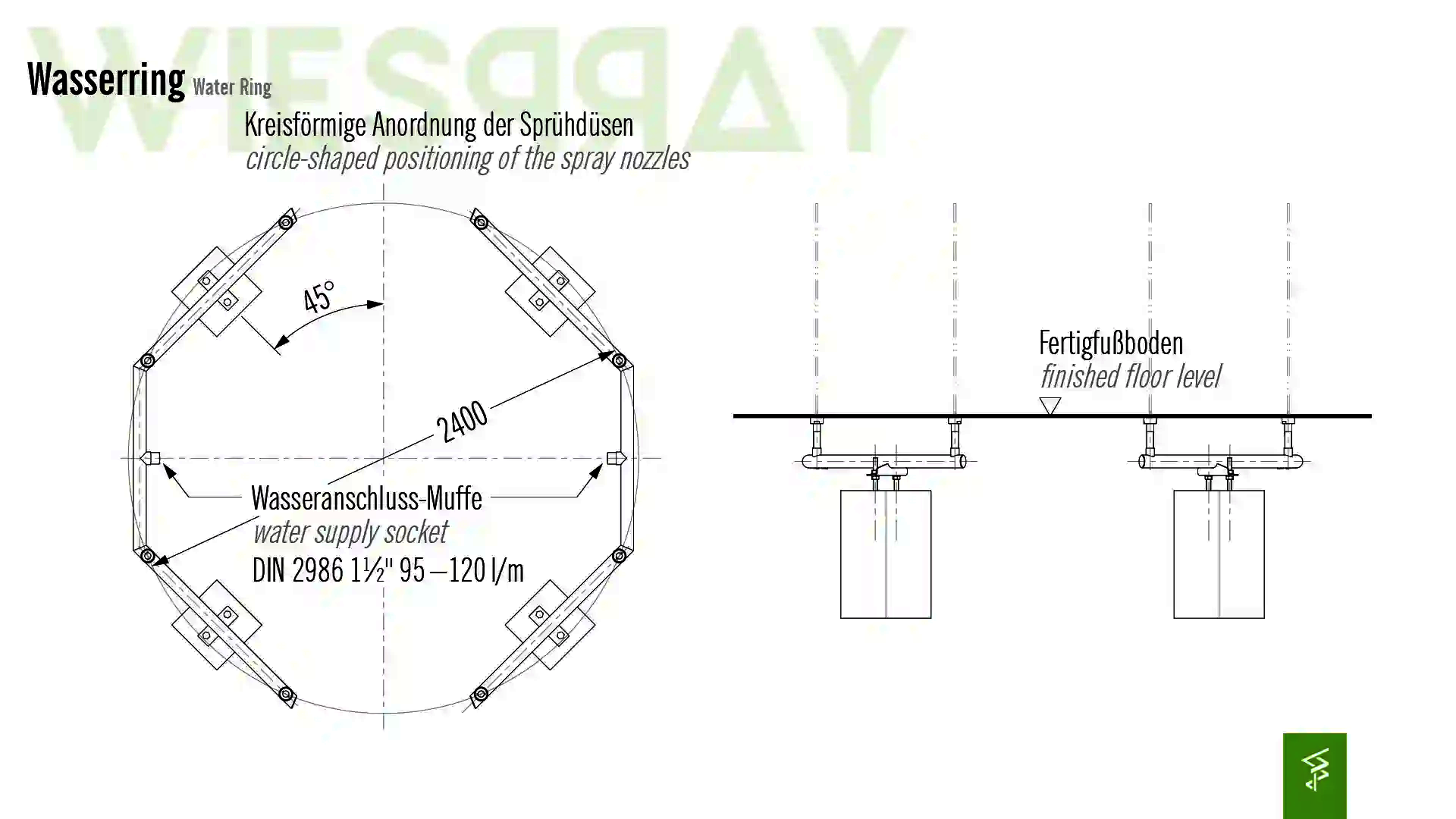

Water Ring
The water ring is equipped with eight evenly arranged fountains bubbling out of the ground in a perfect circle. The adjustable ball nozzles provide varied water images and invite you to play happily. The annular mounting tube is installed level with the ground and thus offers a safe playing field without tripping hazards. The element can be individually designed to create optical diversity.
Product features
Article number 192 | 8 adjustable ball nozzles arranged on an annular mounting tube and laid level with the floor |
Length | 2.56 m |
Width | 2.56 m |
Height | 0.00 m |
Number of nozzles | 8 ball nozzles |
Spray area | ø 3.50 m |
Water demand | 5.7 - 7.2 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

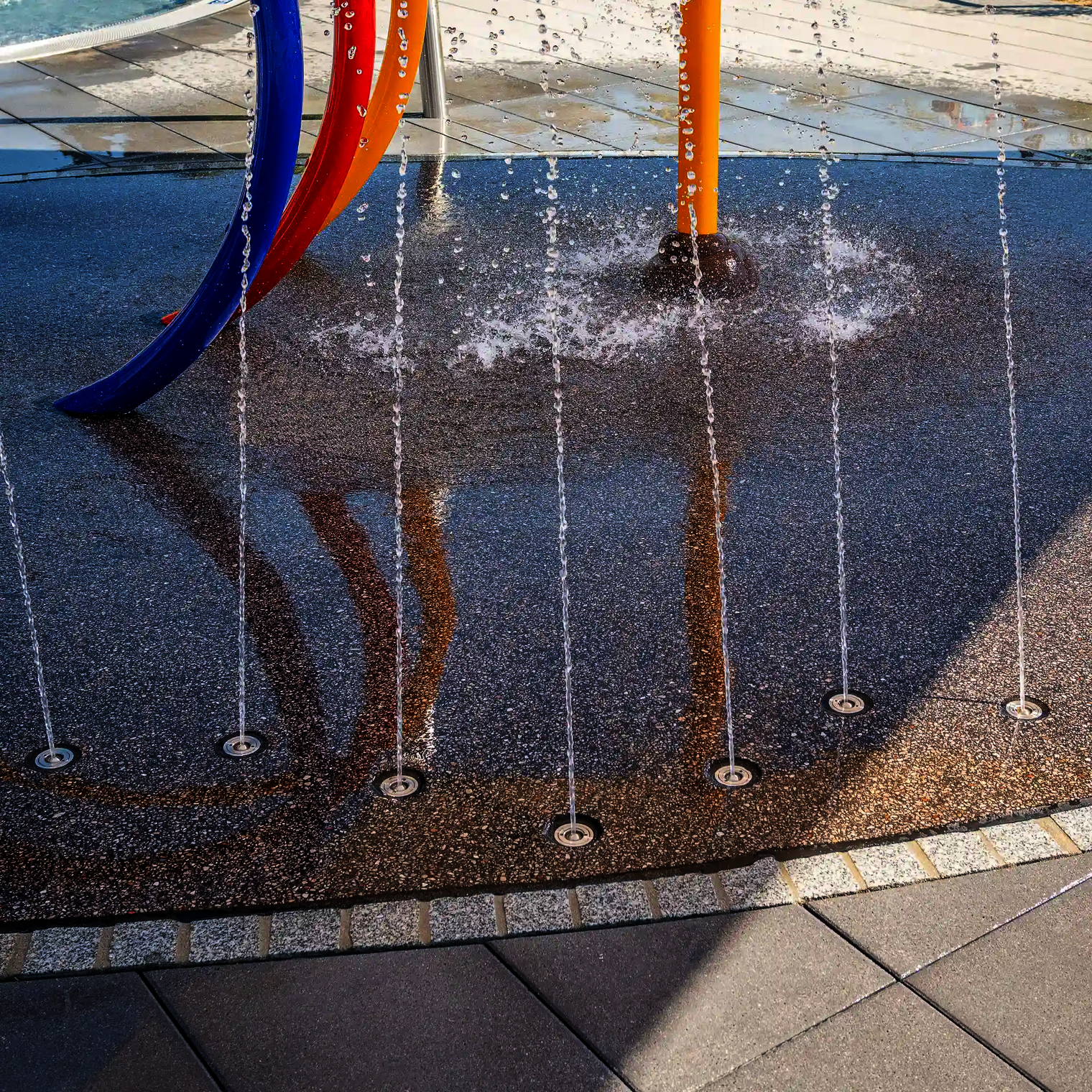

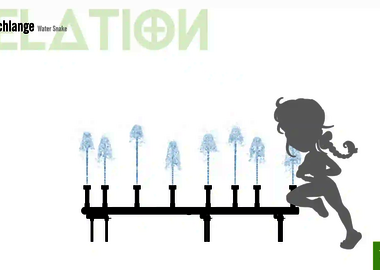

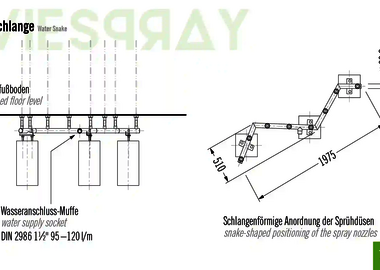

Water Snake
The water snake provides tension and movement: eight adjustable ball nozzles are arranged in a snake-shaped line. So they allow water jets to rise surprisingly from the ground. Whether a slalom run or a direct march – playful refreshment is guaranteed here. The flush-mounted built-in tube allows flexible alignment of the nozzles and seamless integration into any playing field.
Product features
Article number 193 | 8 adjustable ball nozzles arranged on a snake-shaped installation pipe and laid level with the floor |
Length | 2.13 m |
Width | 0.40 m |
Height | 0.00 m |
Number of nozzles | 8 ball nozzles |
Spray area | approx. 2.80 x 1.00 m |
Water demand | 5 - 7.2 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

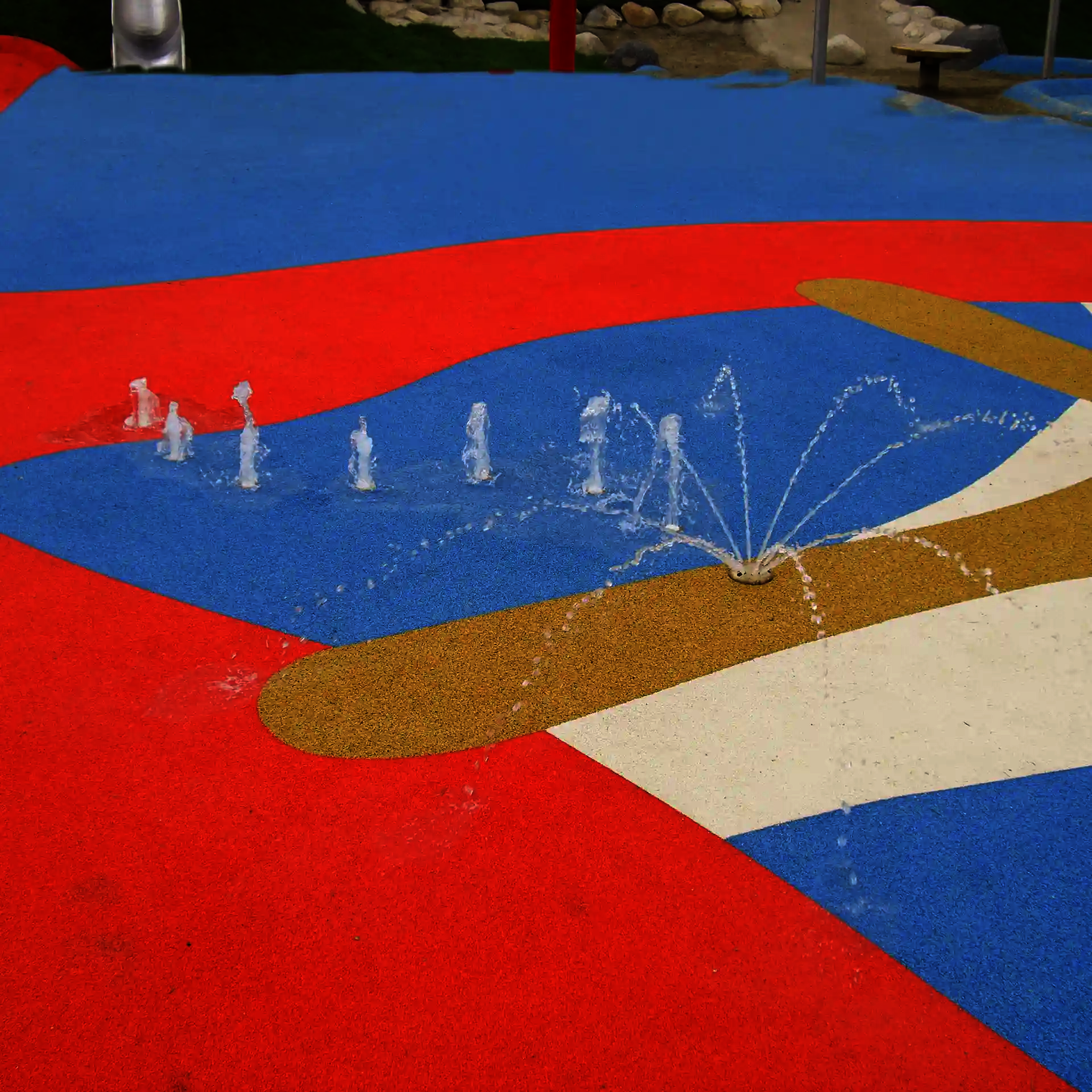

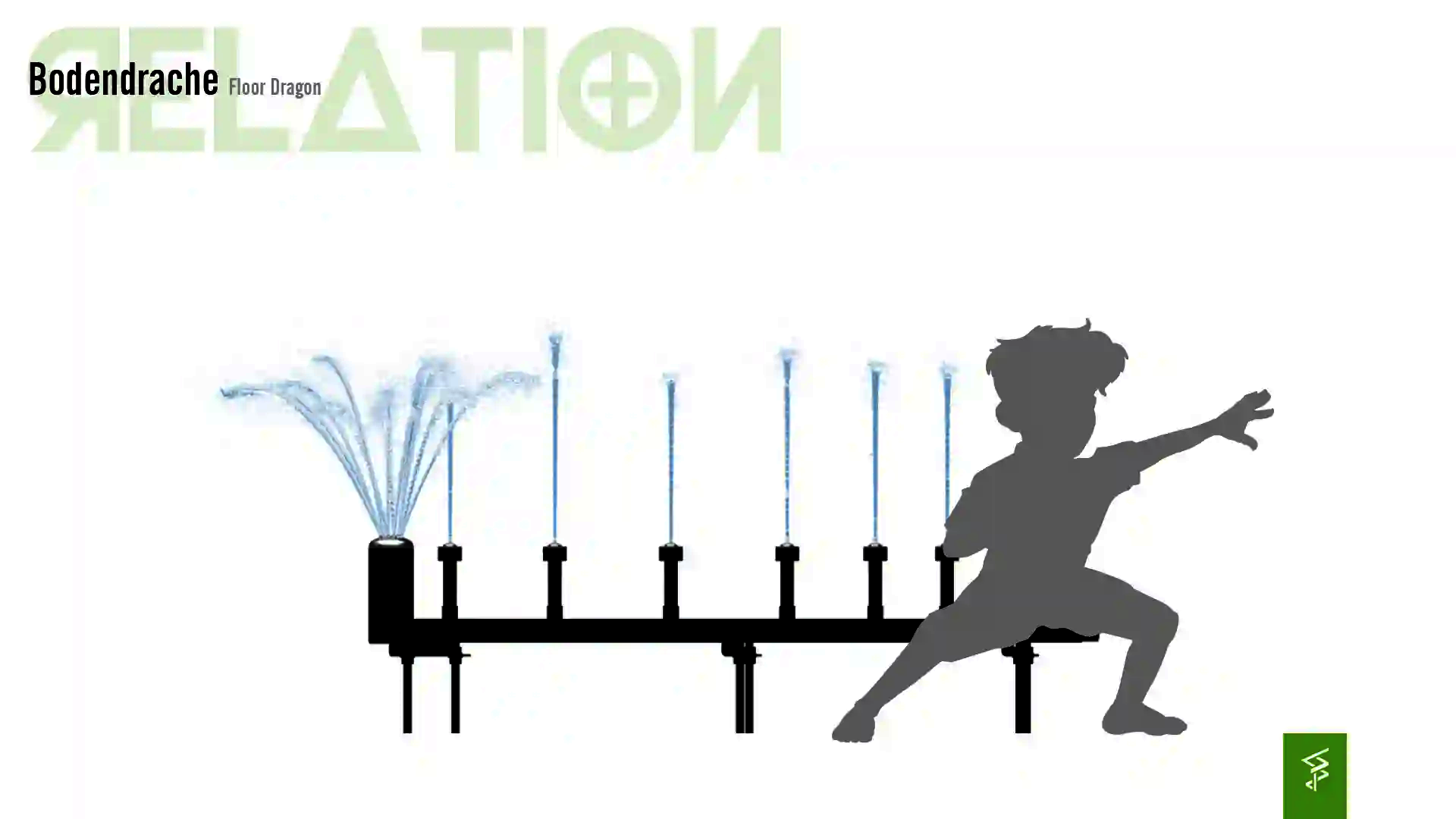

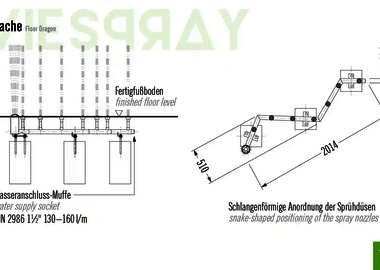

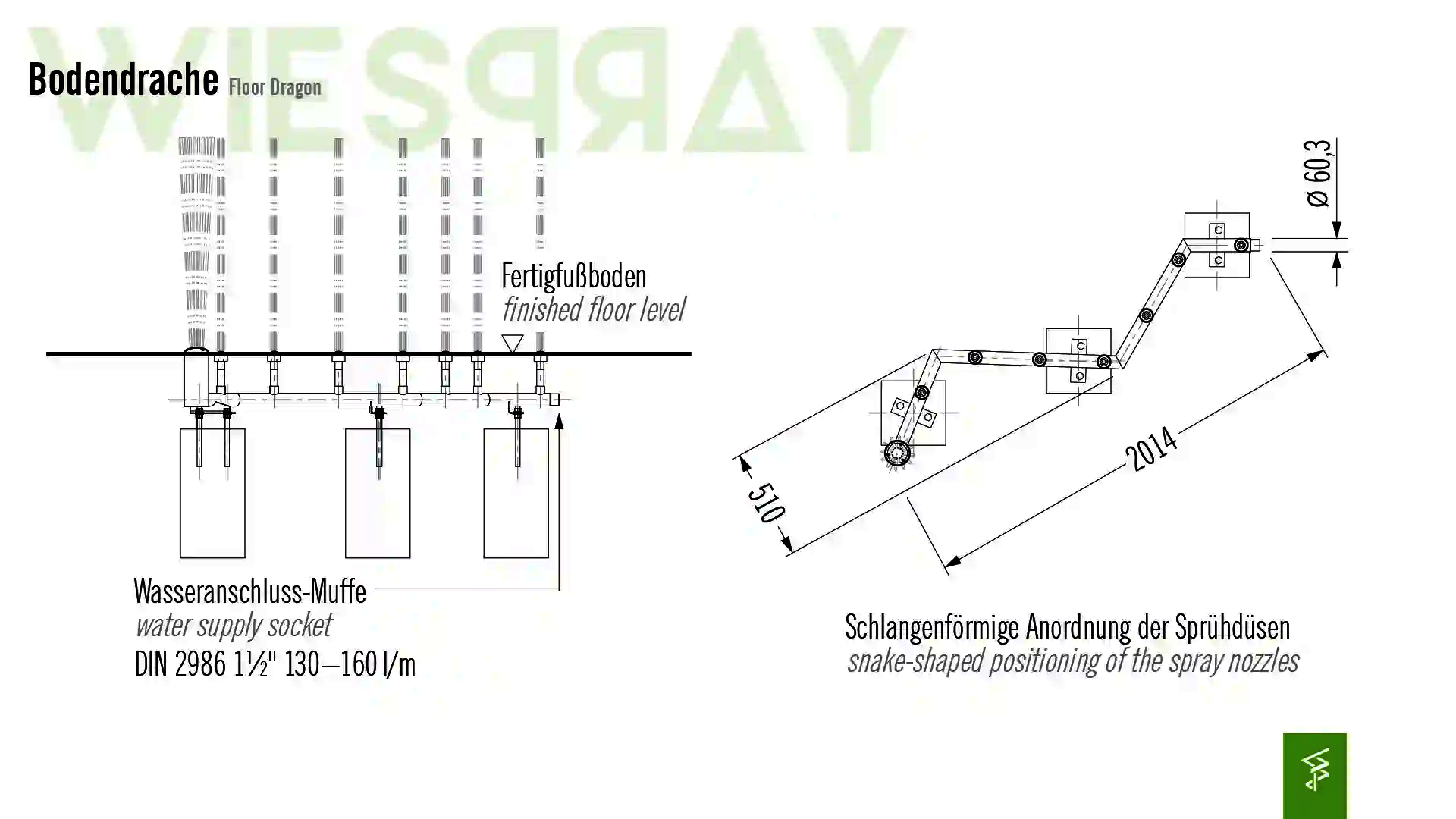

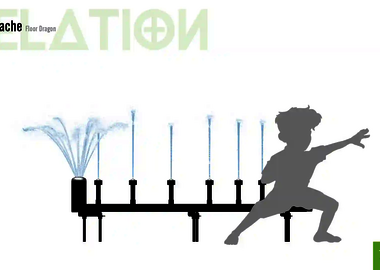

Bottom Dragon
The bottom dragon inspires with six lively water jets and a special fan nozzle on the dragon's head. The floor-level construction consisting of a bubble nozzle and seven closure nozzles creates a dynamic play: If a nozzle is blocked, then the pressure changes, so that the dragon seems to be moving. This interactive element combines playful thrills with smart technology. The flexible theme ensures that the floor kite fits perfectly into any design concept.
Product features
Article number 194 | 1 bubble nozzle and 7 closure nozzles arranged on curved installation pipe and laid level with the floor |
Length | 2.50 m |
Width | 0.71 m |
Height | 0.30 m |
Number of nozzles | 1 bubble nozzle and 7 closure nozzles |
Spray area | 3.50 x 2.00 m |
Water demand | 7.8 - 9.6 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

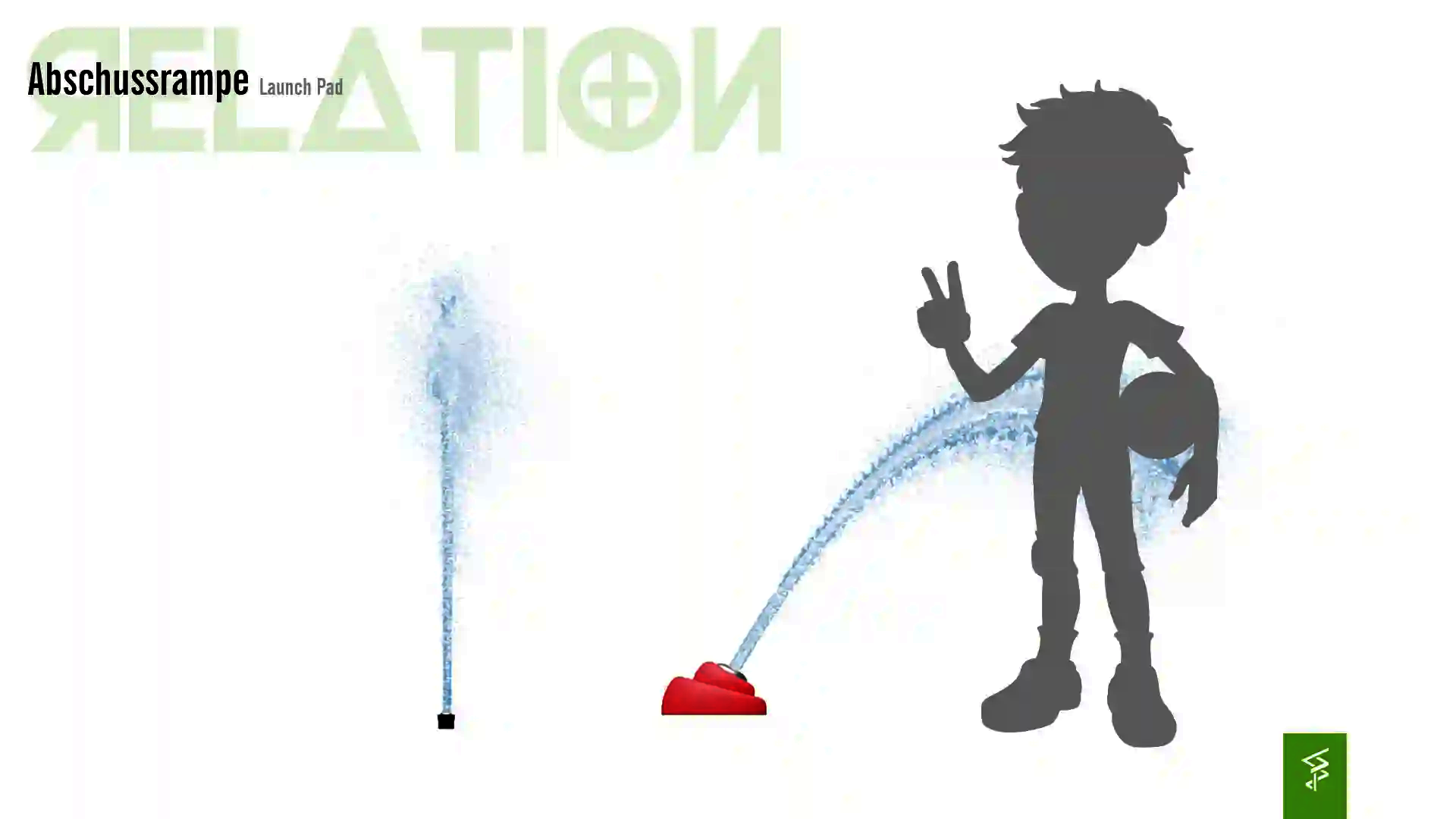

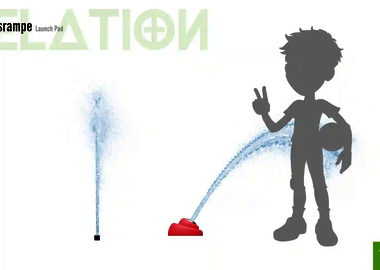

Launch pad
Six jets of water gush out of the ground at the launch pad. As soon as one of the nozzles is blocked or entered, the pressure of the remaining fountains changes. This dynamic response allows for creative play alone or in a group. Two angled stainless steel pipes with 7-nozzles and six ground-level shut-off nozzles form the basis of this lively water feature.
Product features
Article number 195 | 2 angled stainless steel pipes with 7-nozzle and covers and 6 closure nozzles laid on the same floor |
Length | 3.46 m |
Width | 1.86 m |
Height | 0.18 m |
Number of nozzles | 7-nozzle and 6 closure nozzles installed at ground level |
Spray area | 5.90 x 4.30 m |
Water demand | 6.6 - 8.4 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

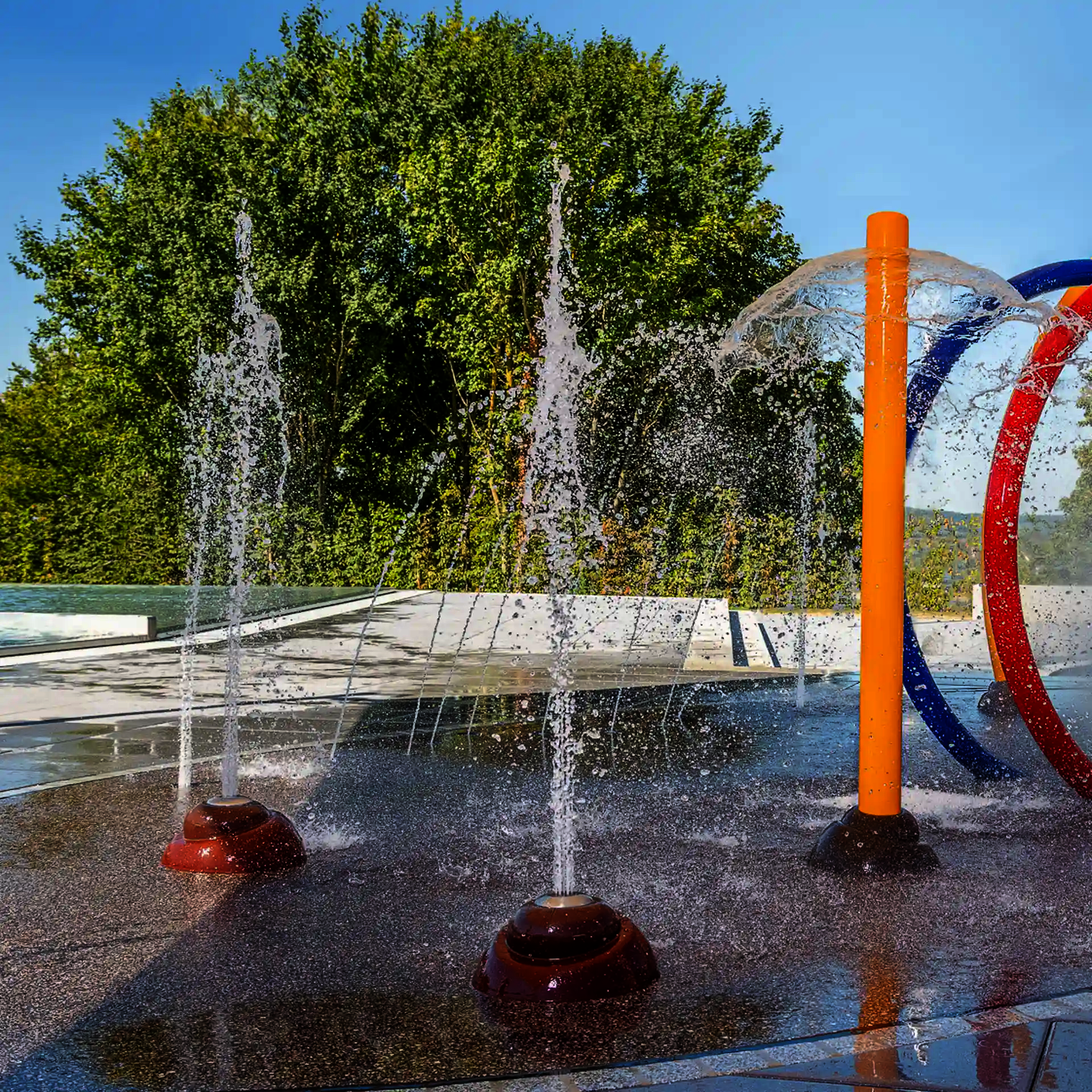

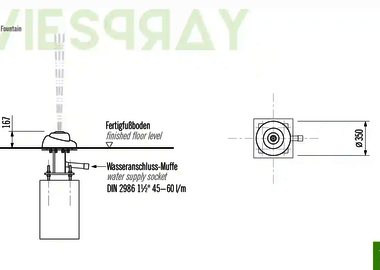

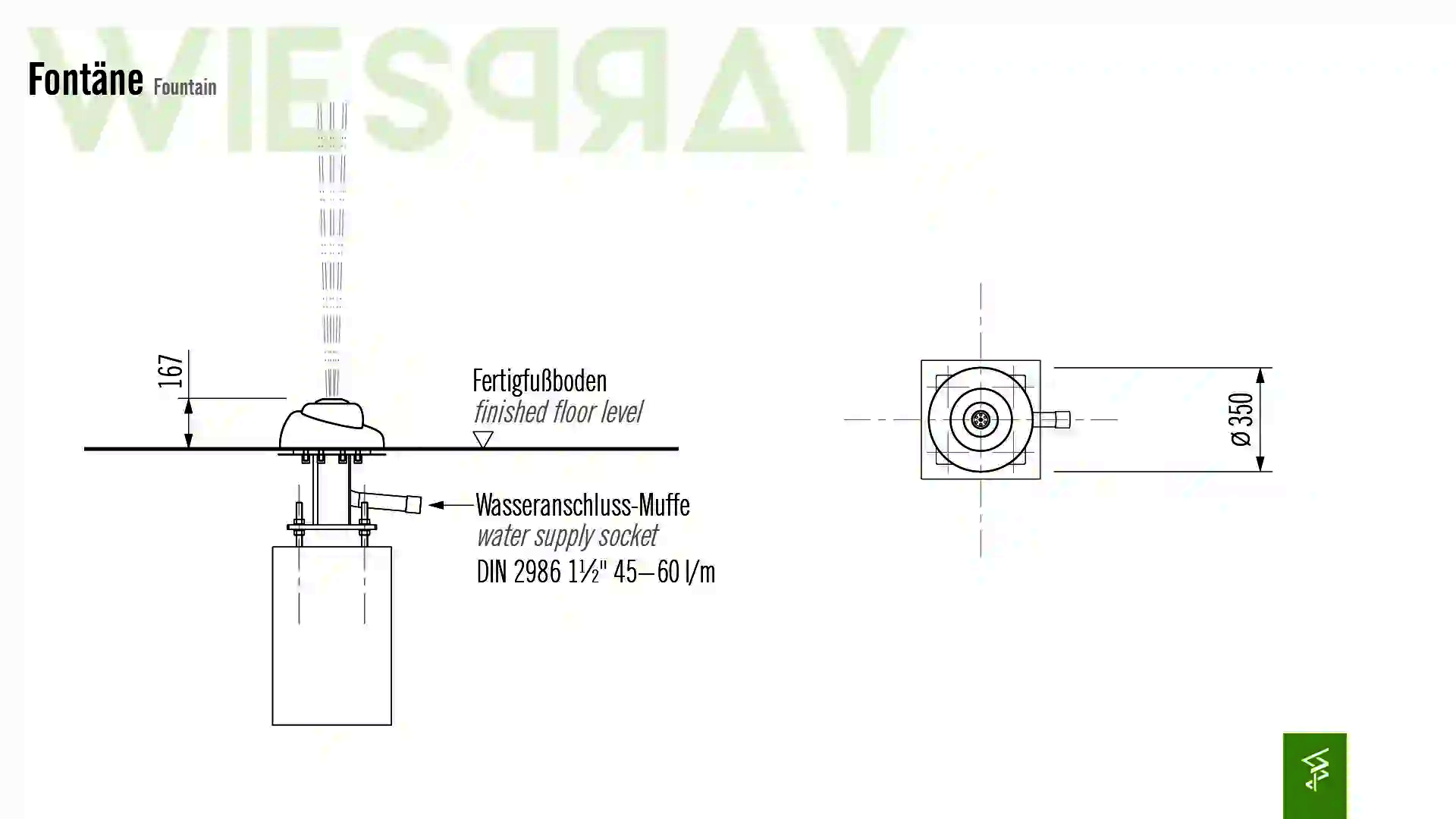

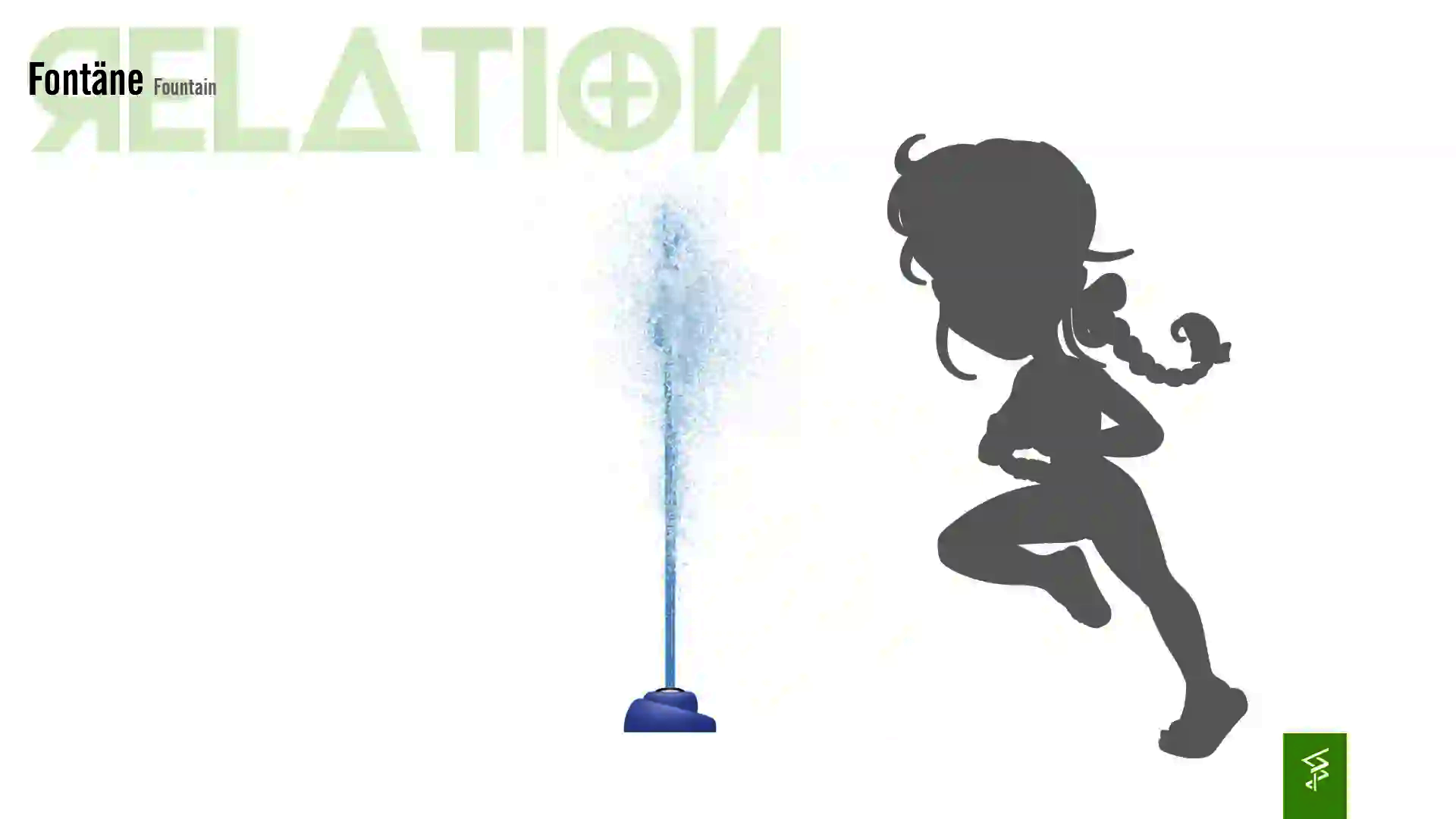

Fountain
The fountain shoots up powerfully at fixed intervals and brings excitement into play: when will the next water jet follow? The time control may be individually programmed via the distribution panel and the control cabinet. The robust construction consists of a stainless steel tube equipped with a 7-nozzle and cover.
Product features
Article number 196 | Stainless steel pipe equipped with 7-nozzle and cover |
Length | 0.35 m |
Width | 0.35 m |
Height | 0.17 m |
Number of nozzles | 1 spray nozzle |
Spray area | ø 1.00 m |
Water demand | 2.7 - 3.6 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

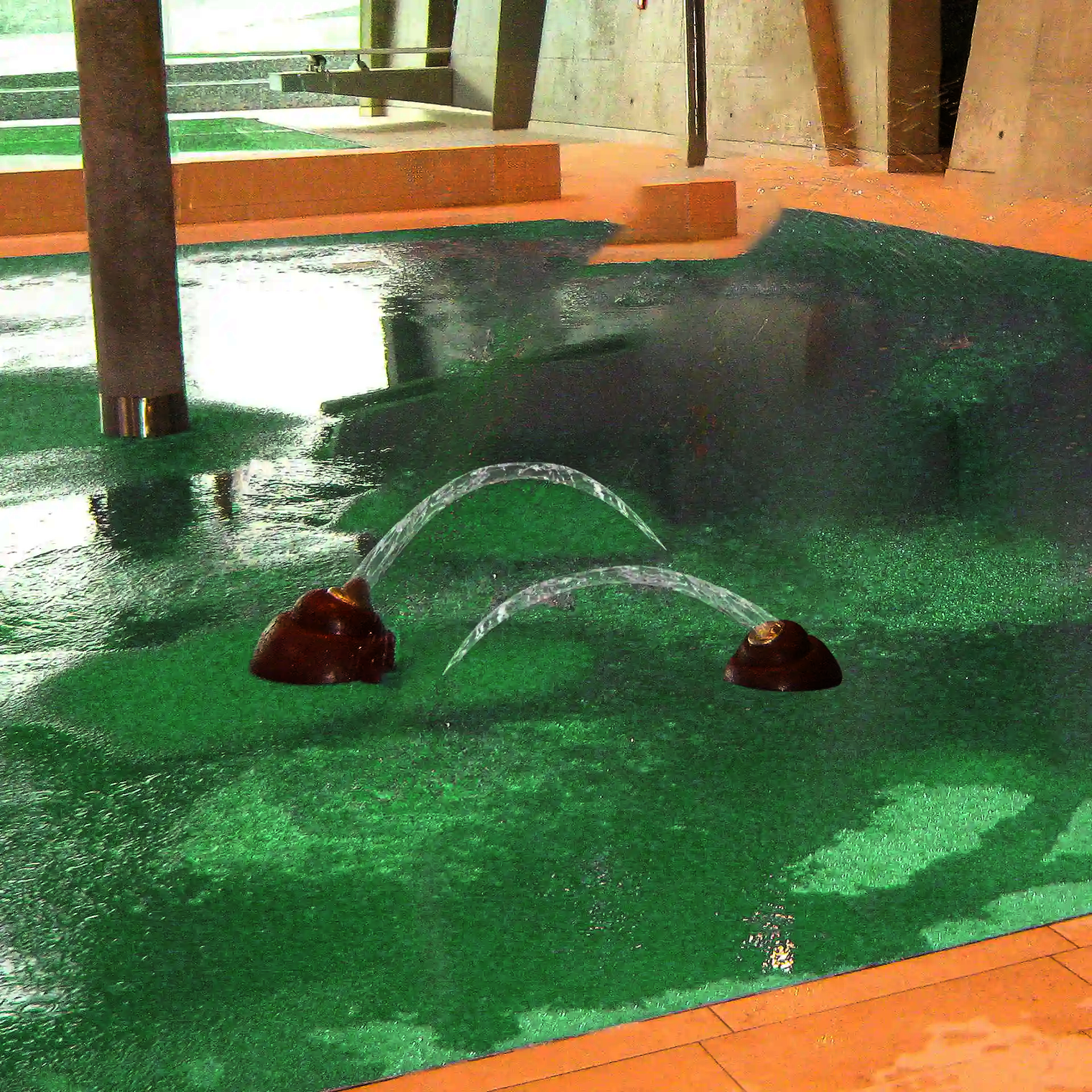

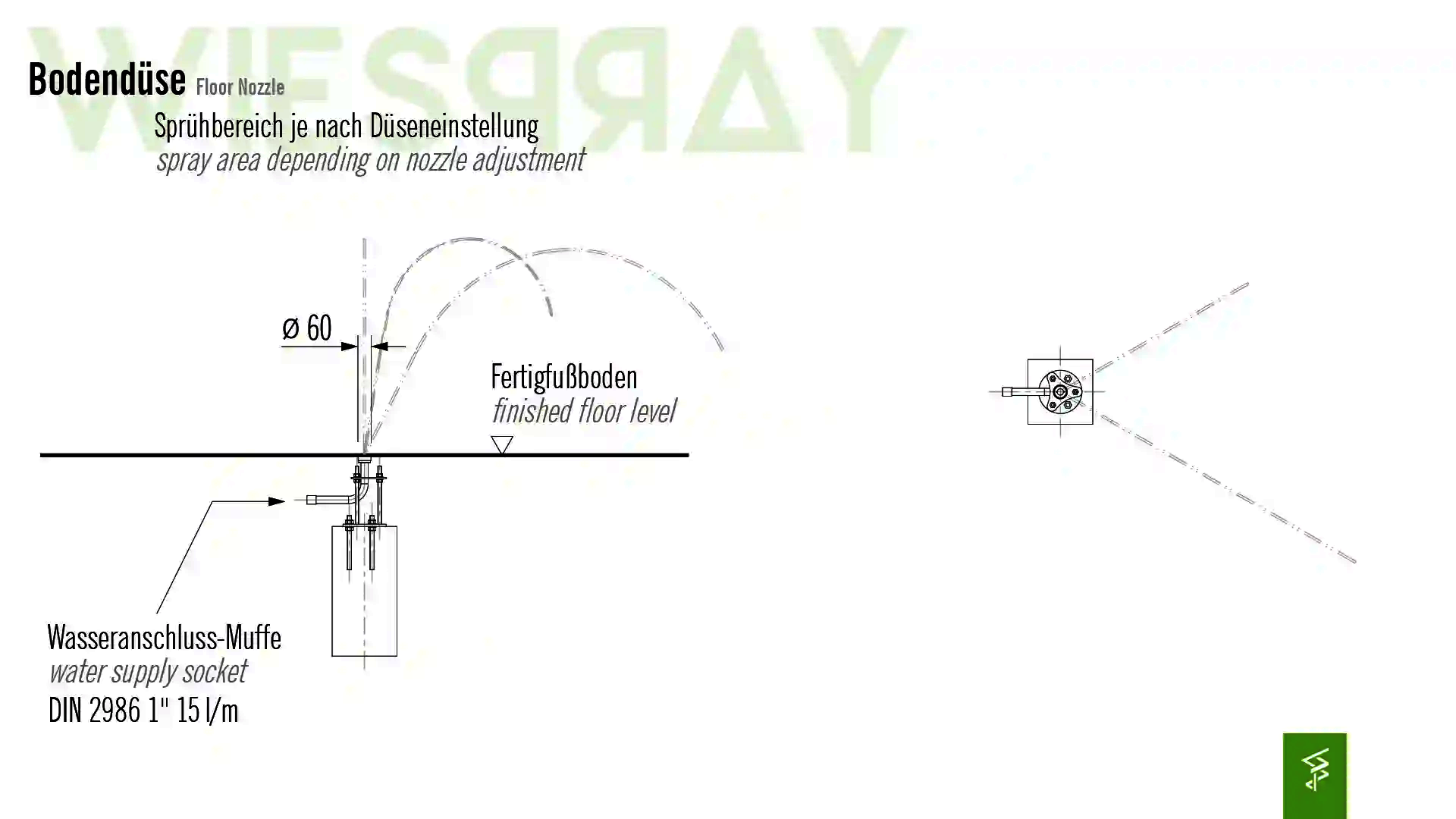

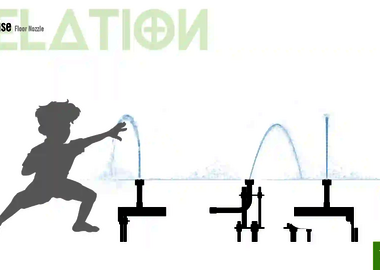

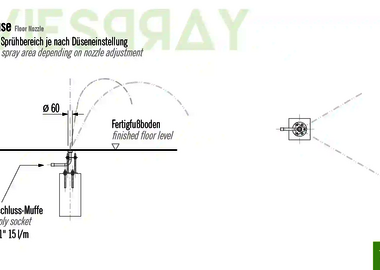

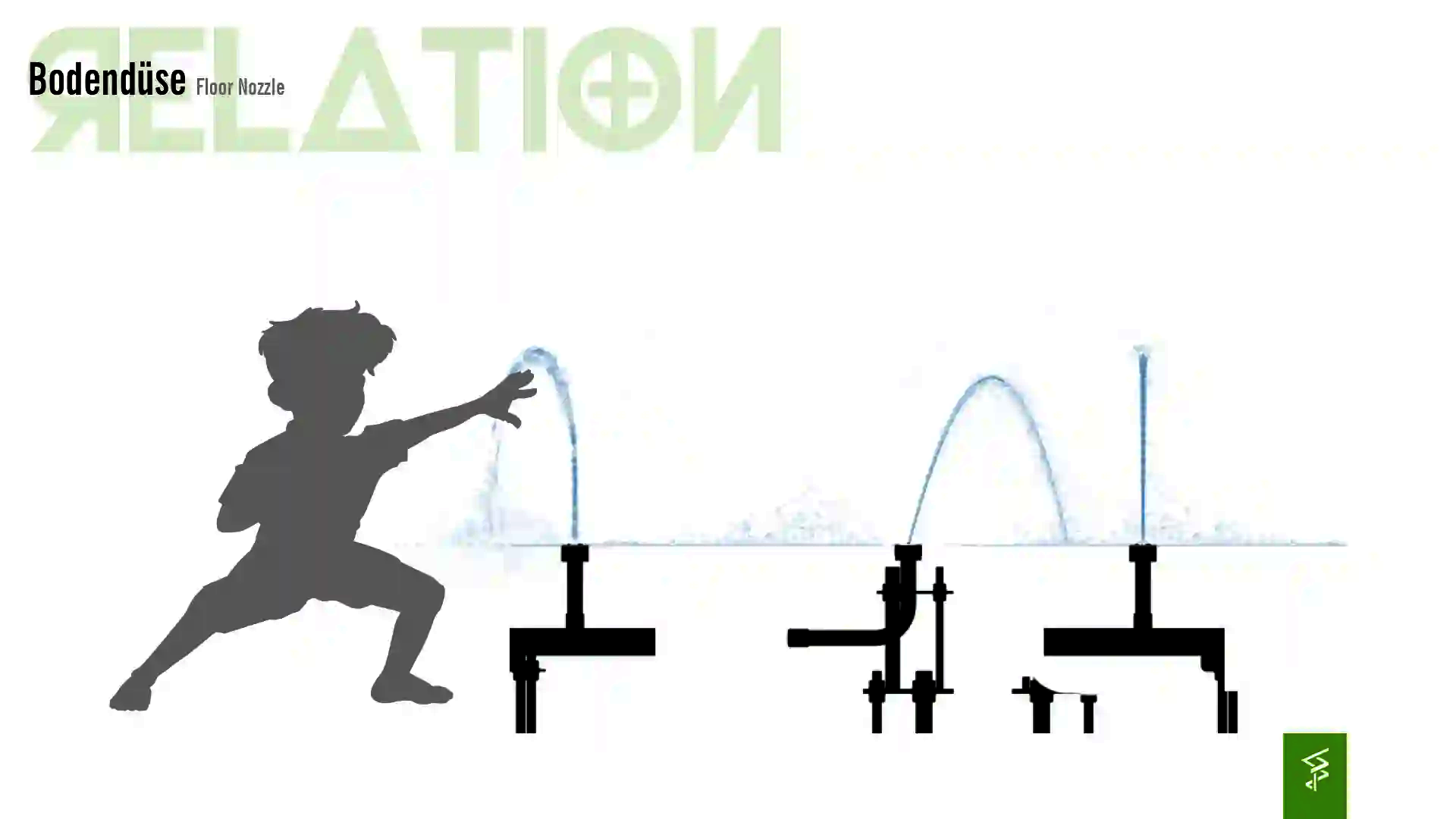

Floor nozzle
The floor gland is the ideal element for tailor-made water features. Installed level with the floor, it ensures variable spray patterns and can be perfectly integrated into any environment. Whether individually or in combination – it offers maximum freedom in the design of interactive water features.
Product features
Article number 197 | Floor nozzle for different spray patterns, laid level with the floor |
Length | 0.06 m |
Width | 0.06 m |
Height | 0.00 m |
Number of nozzles | |
Spray area | undetectable |
Water demand | 0.9 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

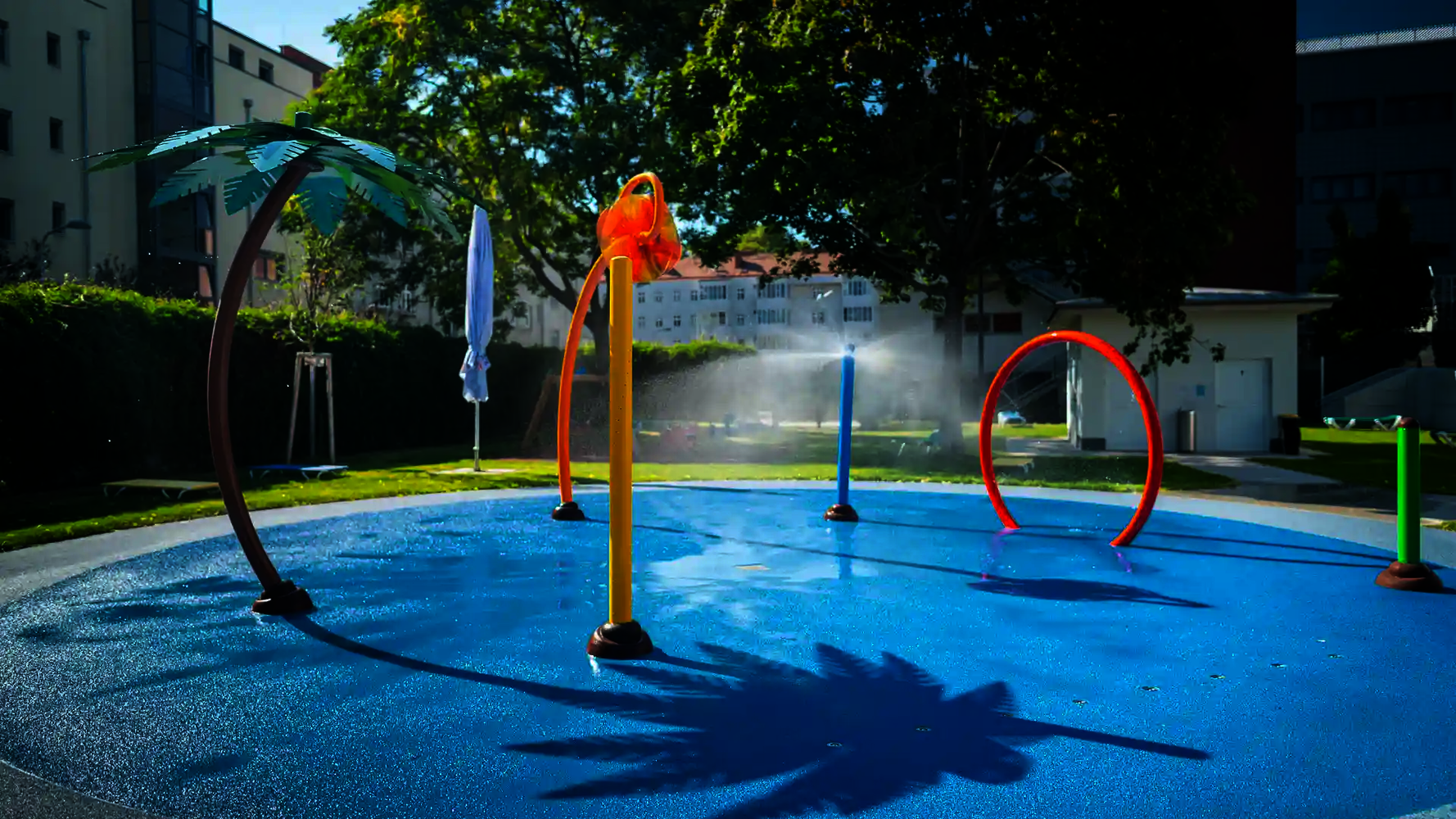

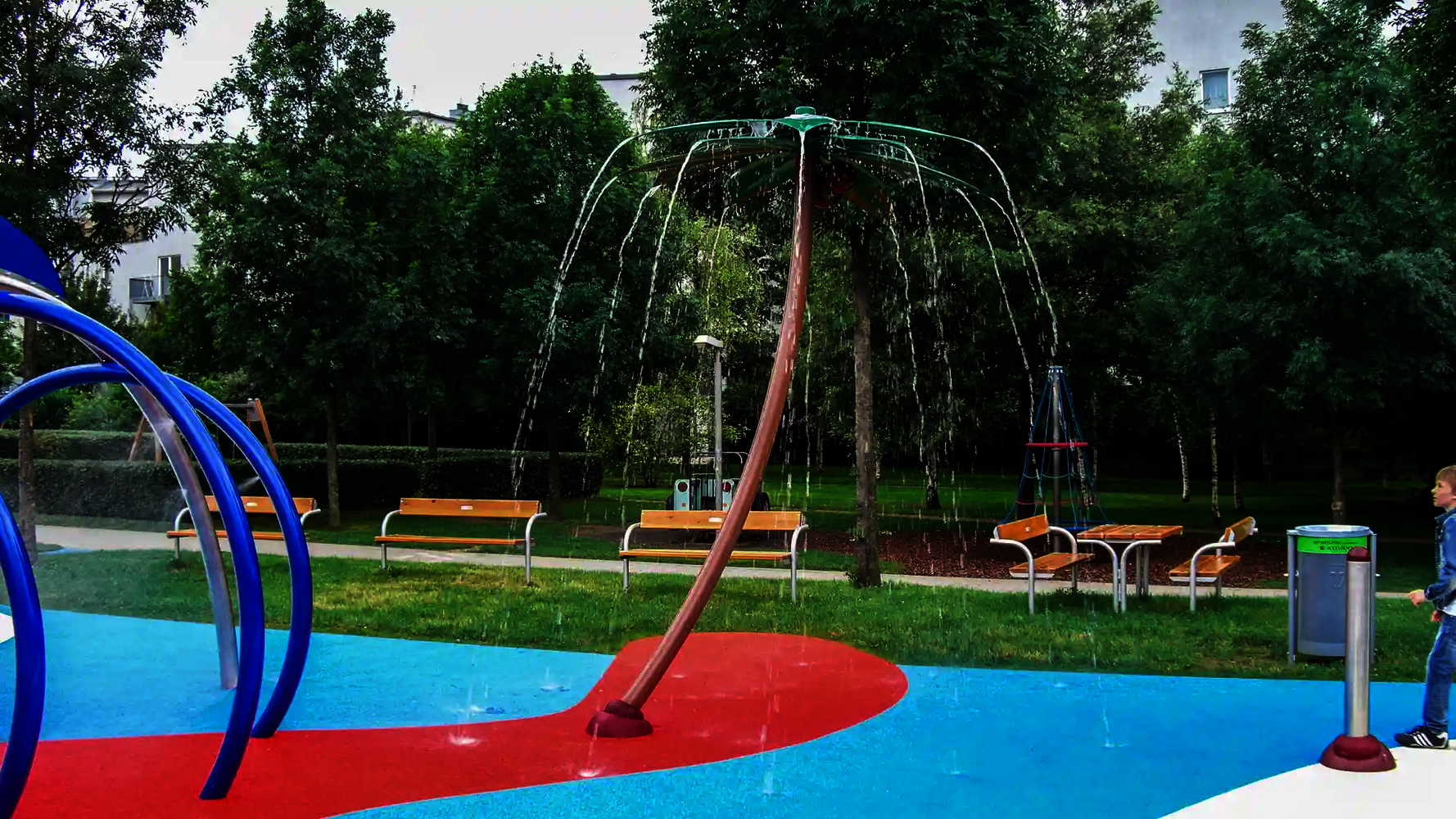

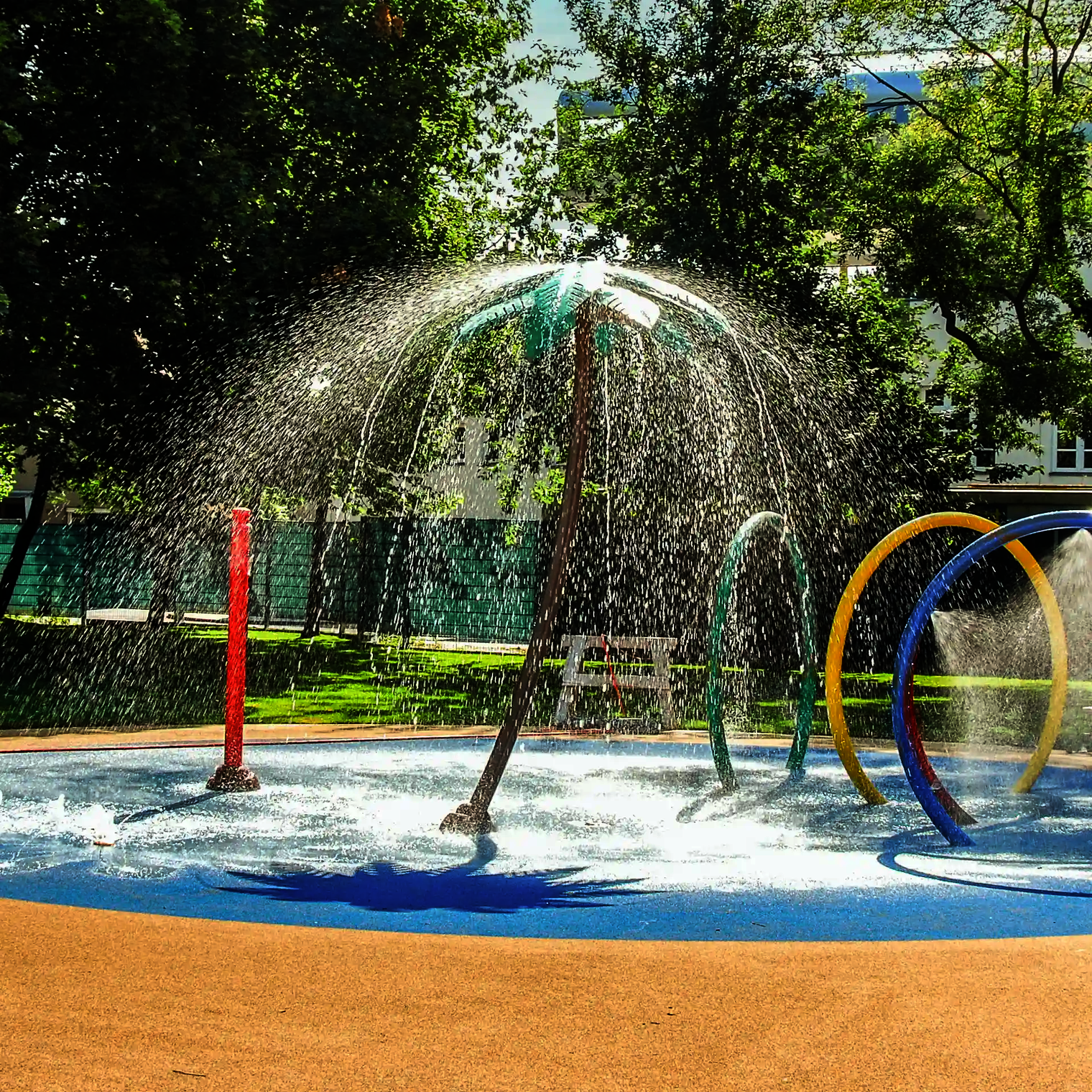

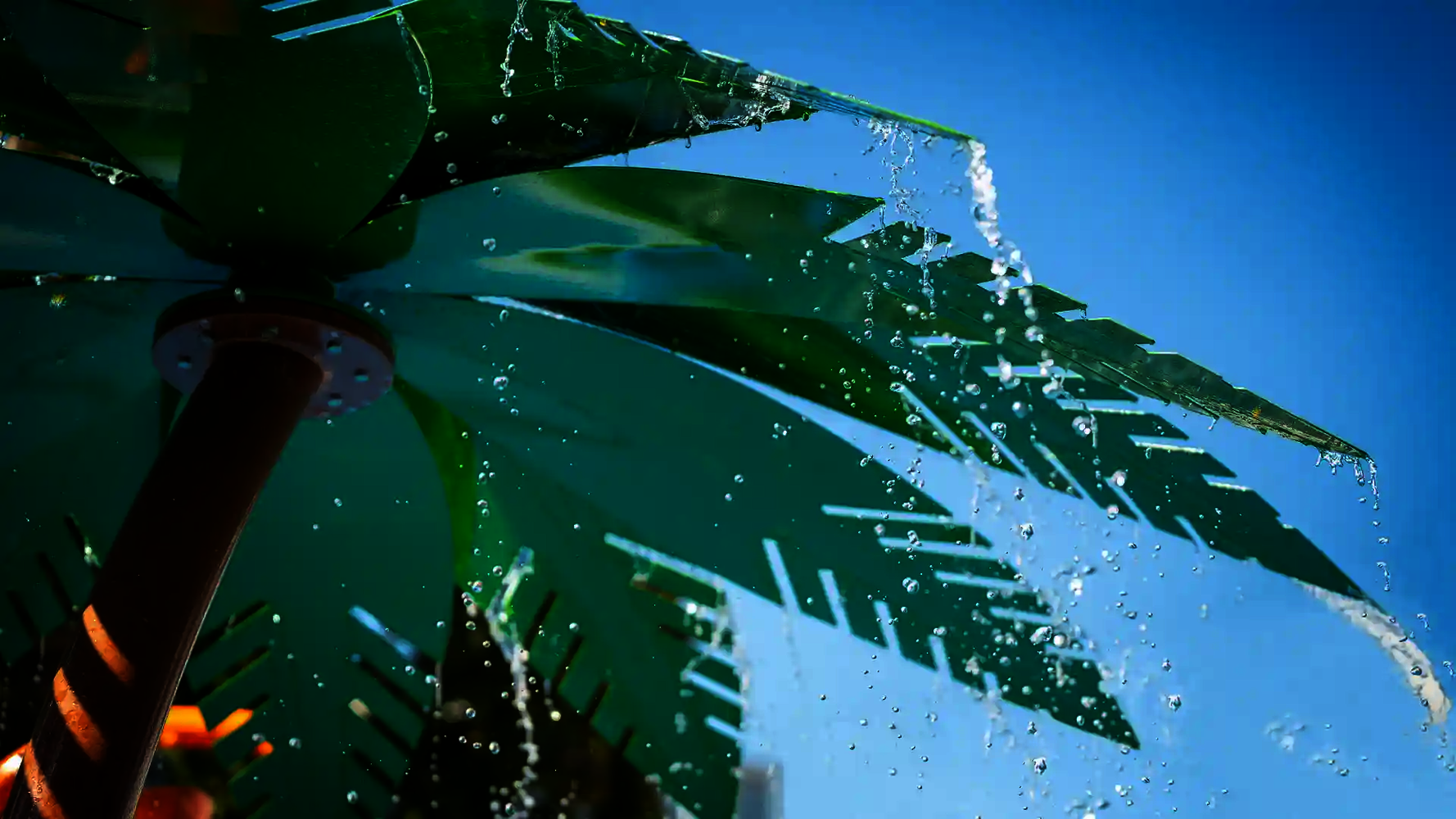

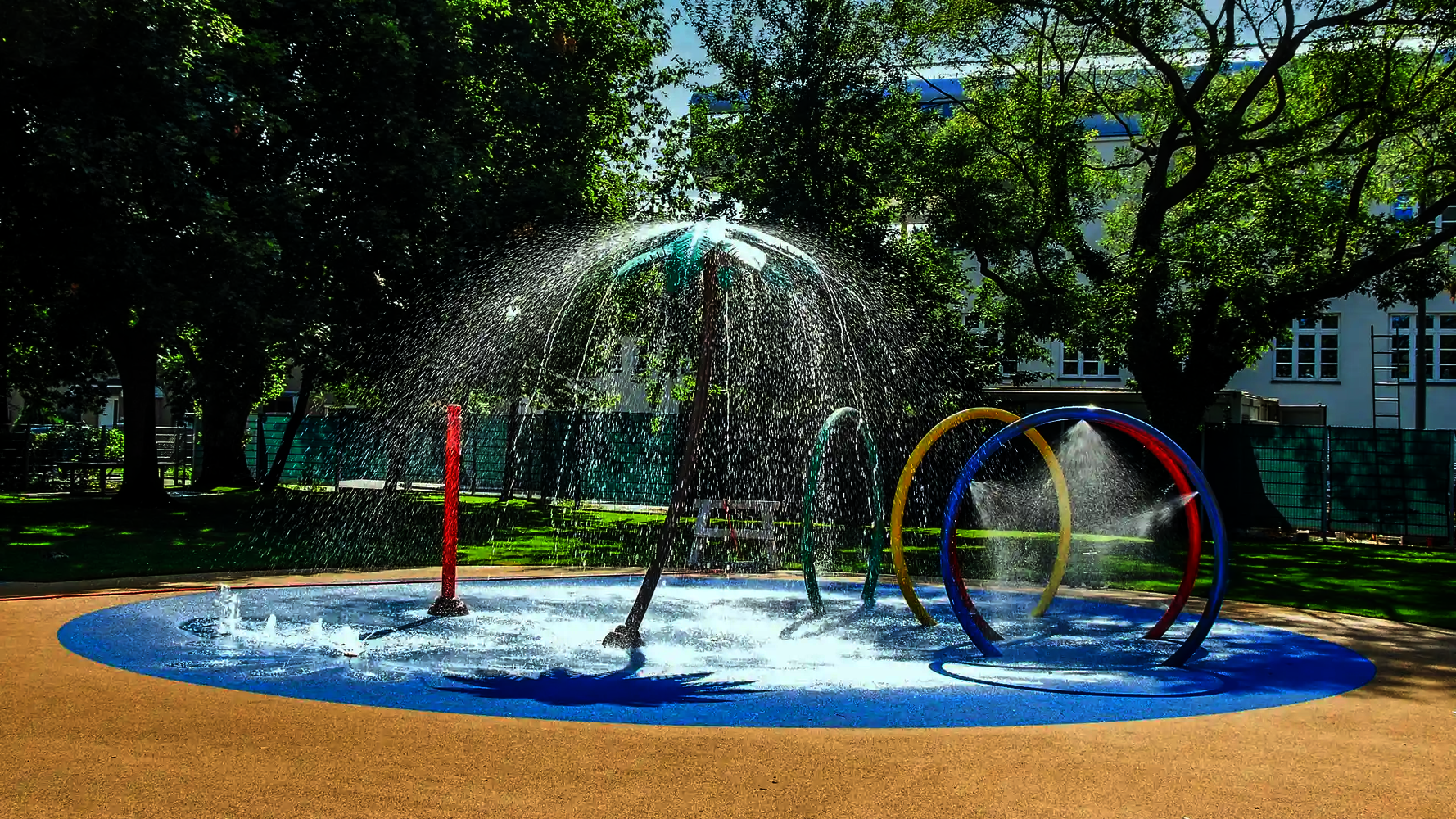

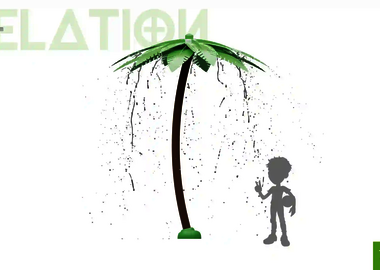

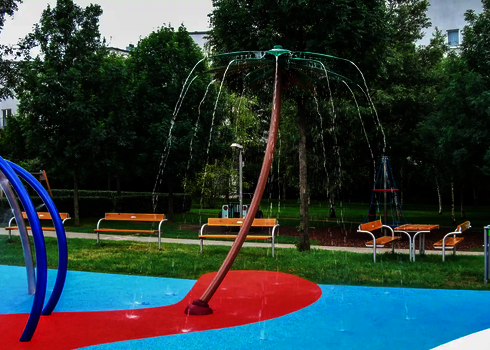

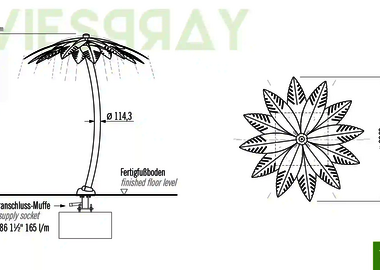

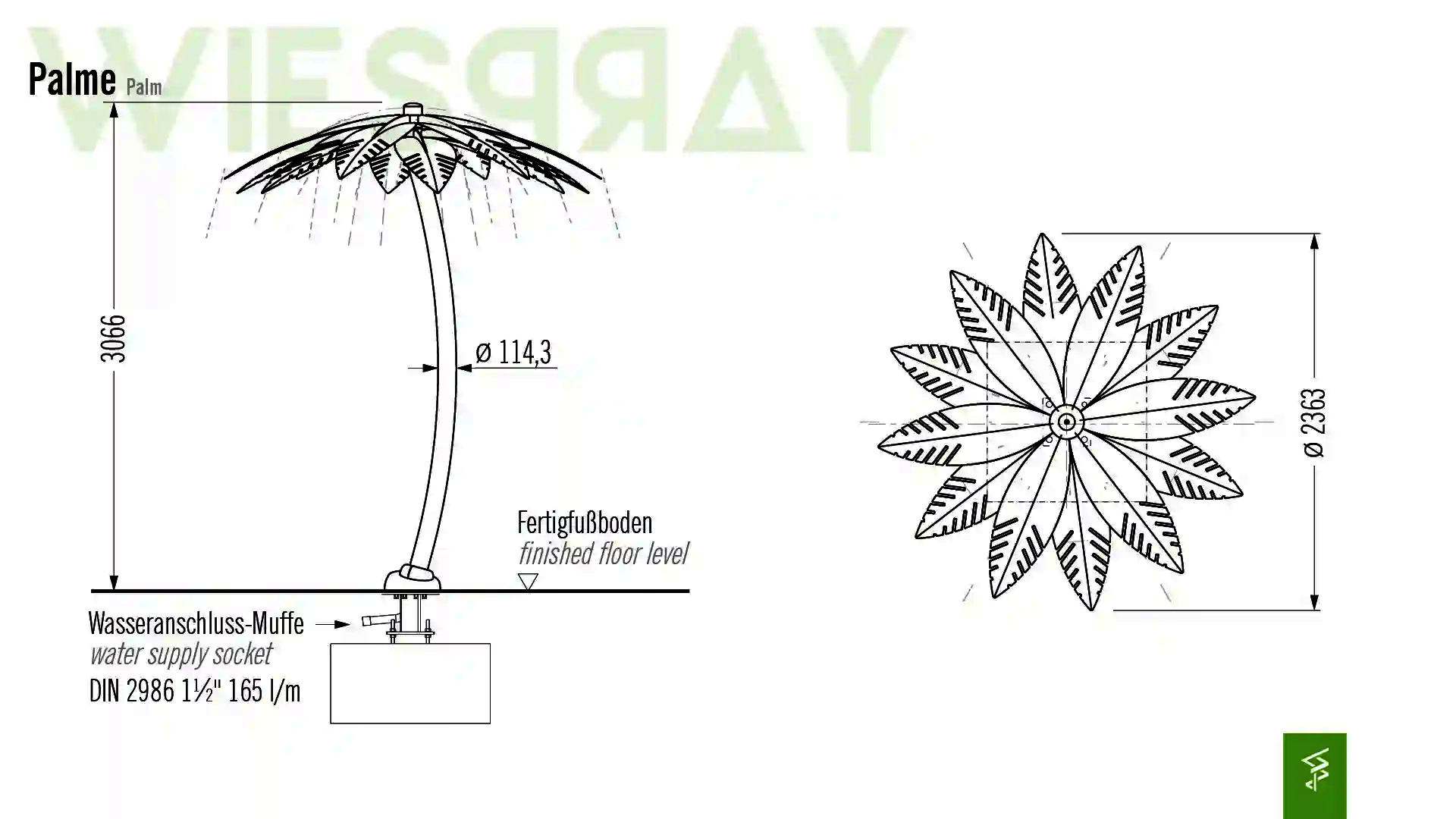

Palm tree
The palm tree brings summer flair to the water play area. As if after a warm rain shower, fine drops of water bubble down from the detailed stainless steel leaves. The trunk of the palm tree made of stainless steel tube ensures stability, while the leaves are made of stainless steel sheet. For special design ideas, the palm tree can be themed and individually adapted.
Product features
Article number 201 | Trunk of the palm tree made of stainless steel tube, palm leaves shaped from stainless steel sheet |
Length | 2.37 m |
Width | 2.37 m |
Height | 3.09 m |
Number of nozzles | |
Spray area | ø 3.00 m |
Water demand | 10.00 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

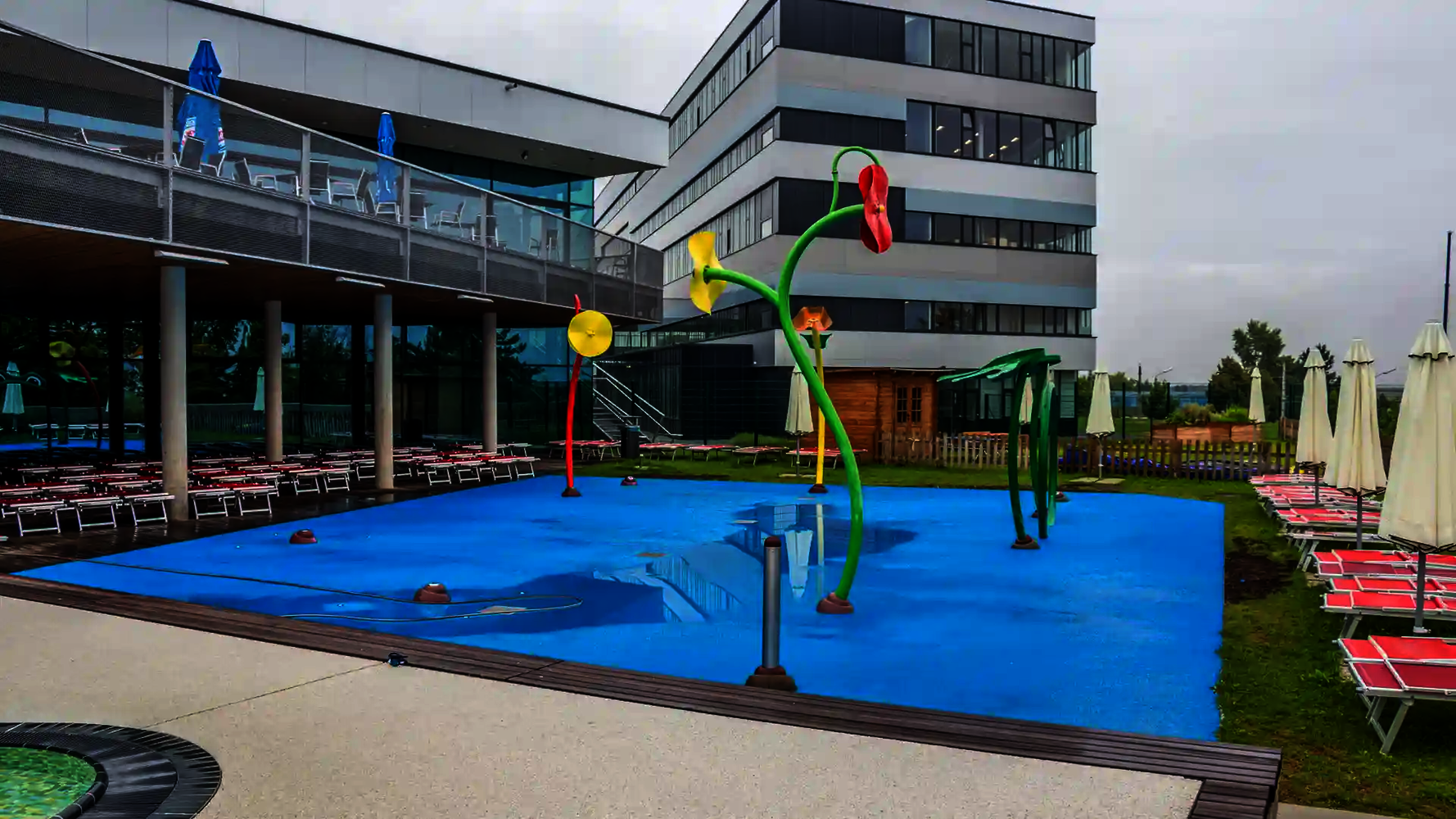

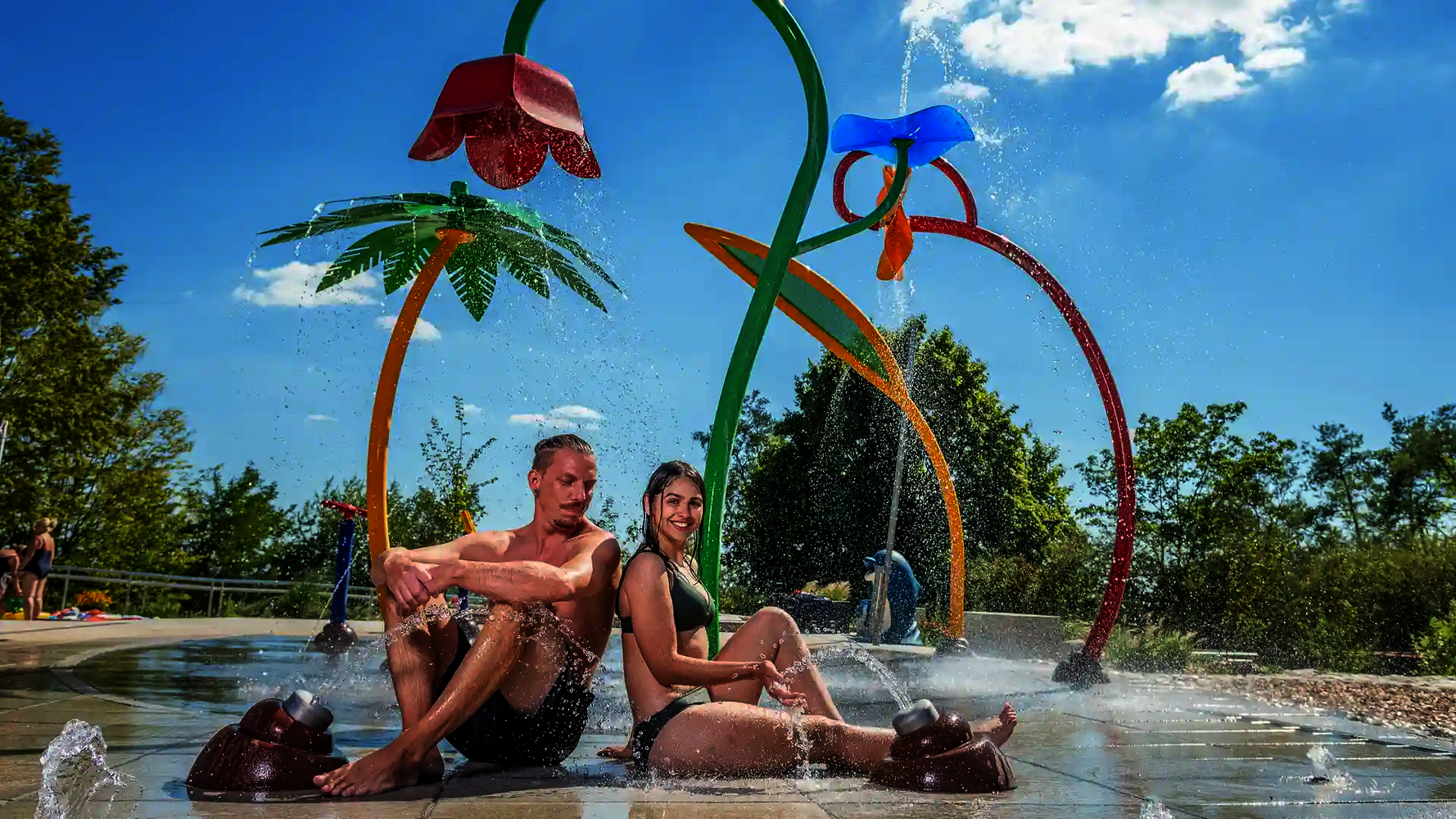

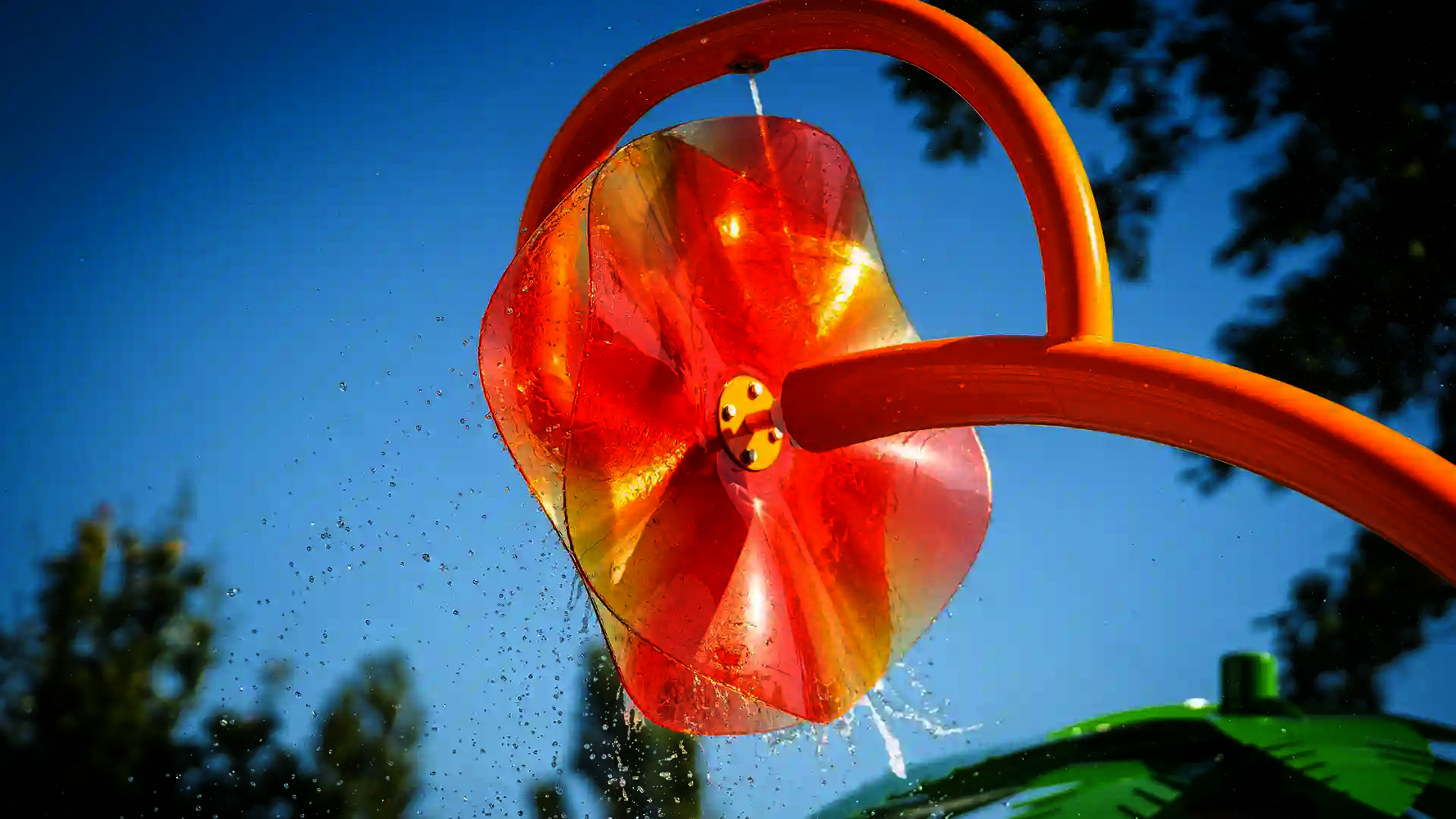

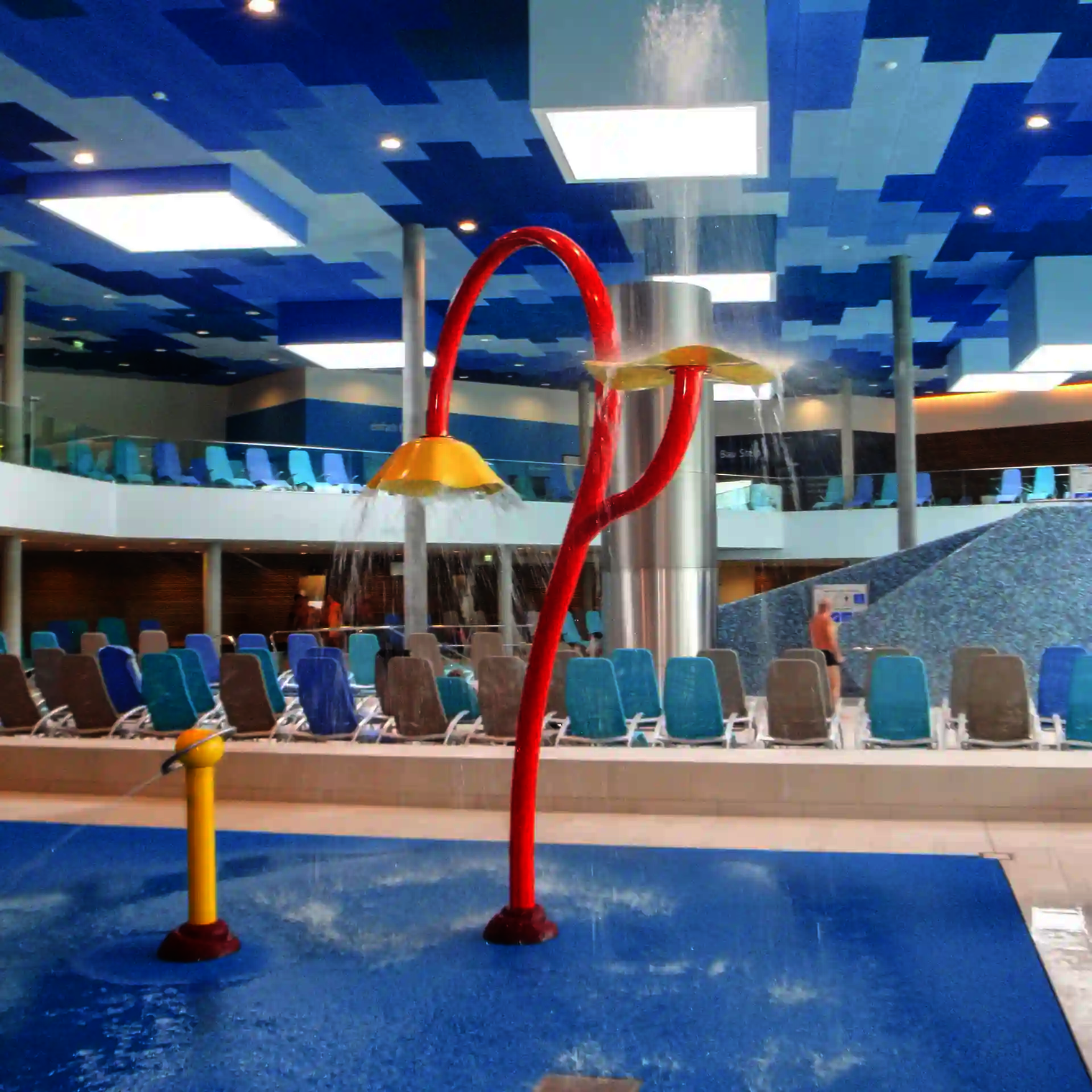

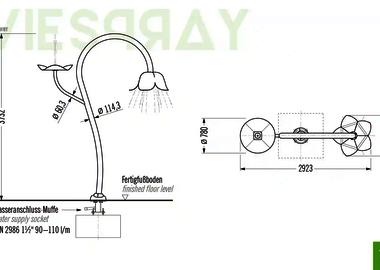

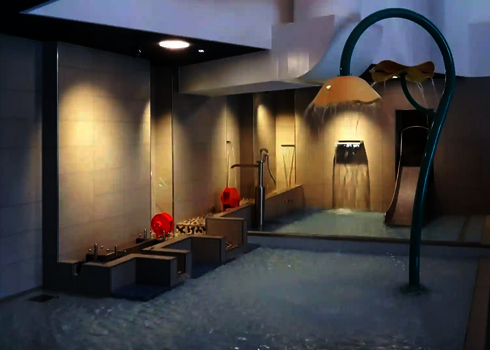

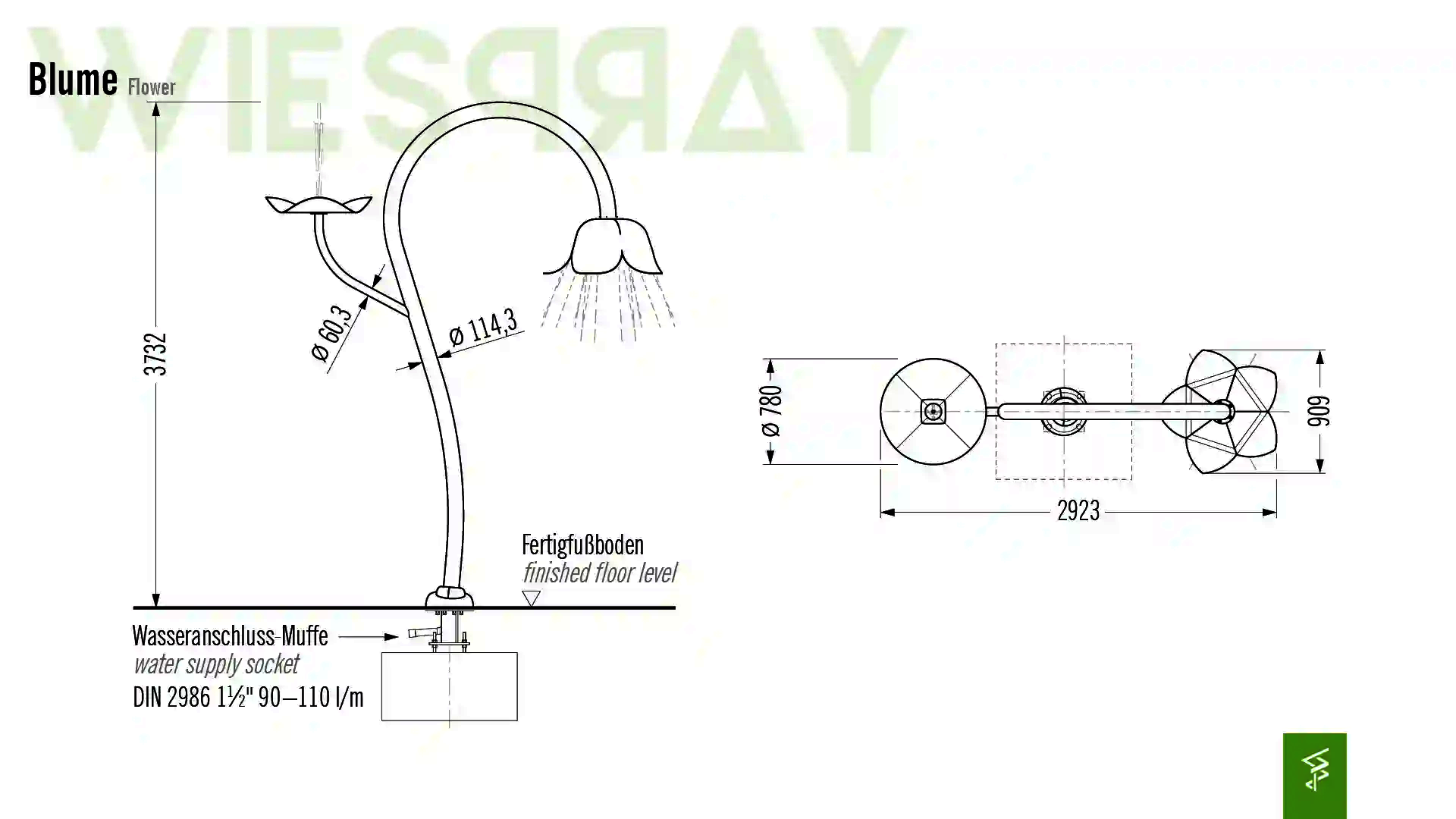

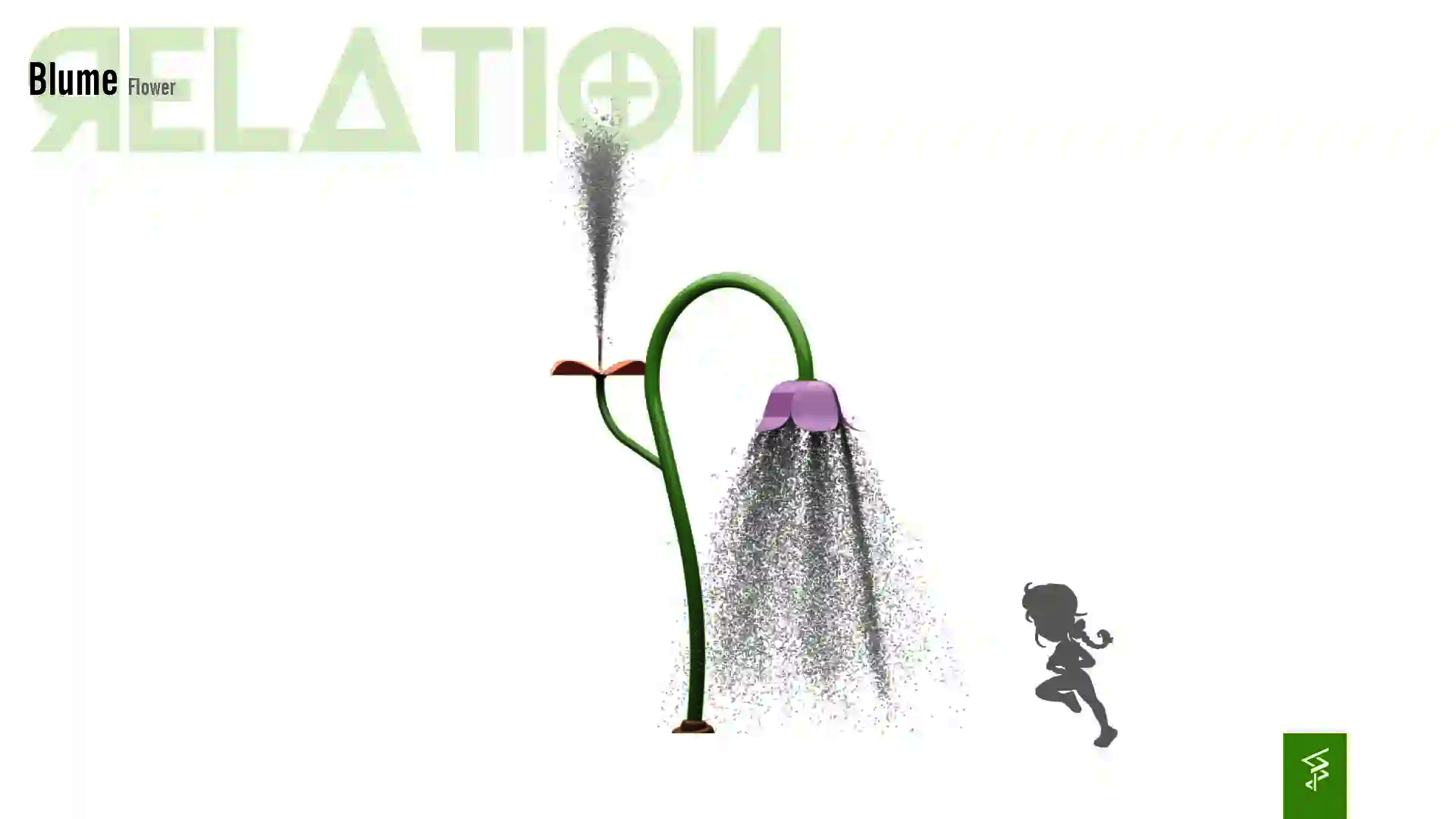

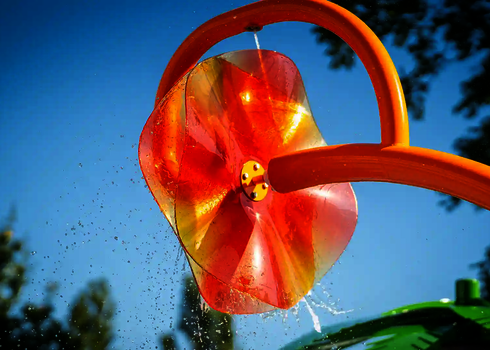

Flower
The large flower provides varied fun with two differently functioning flowers. While one bloom shoots up a lively stream of water, the other bloom turns into a gentle shower. The flower stem is made of stainless steel tube, while the flowers are hand-shaped from polycarbonate – colorful design included. They are a real eye-catcher for any playing surface.
Product features
Article number 202 | Stainless Steel Pipe Flower Stem with Hand-Molded Polycarbonate Flower and Stainless Steel Chalice |
Length | 2.93 m |
Width | 0.91 m |
Height | 3.73 m |
Number of nozzles | |
Spray area | approx. 4.00 x 1.50 m |
Water demand | 5.4 - 6.6 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

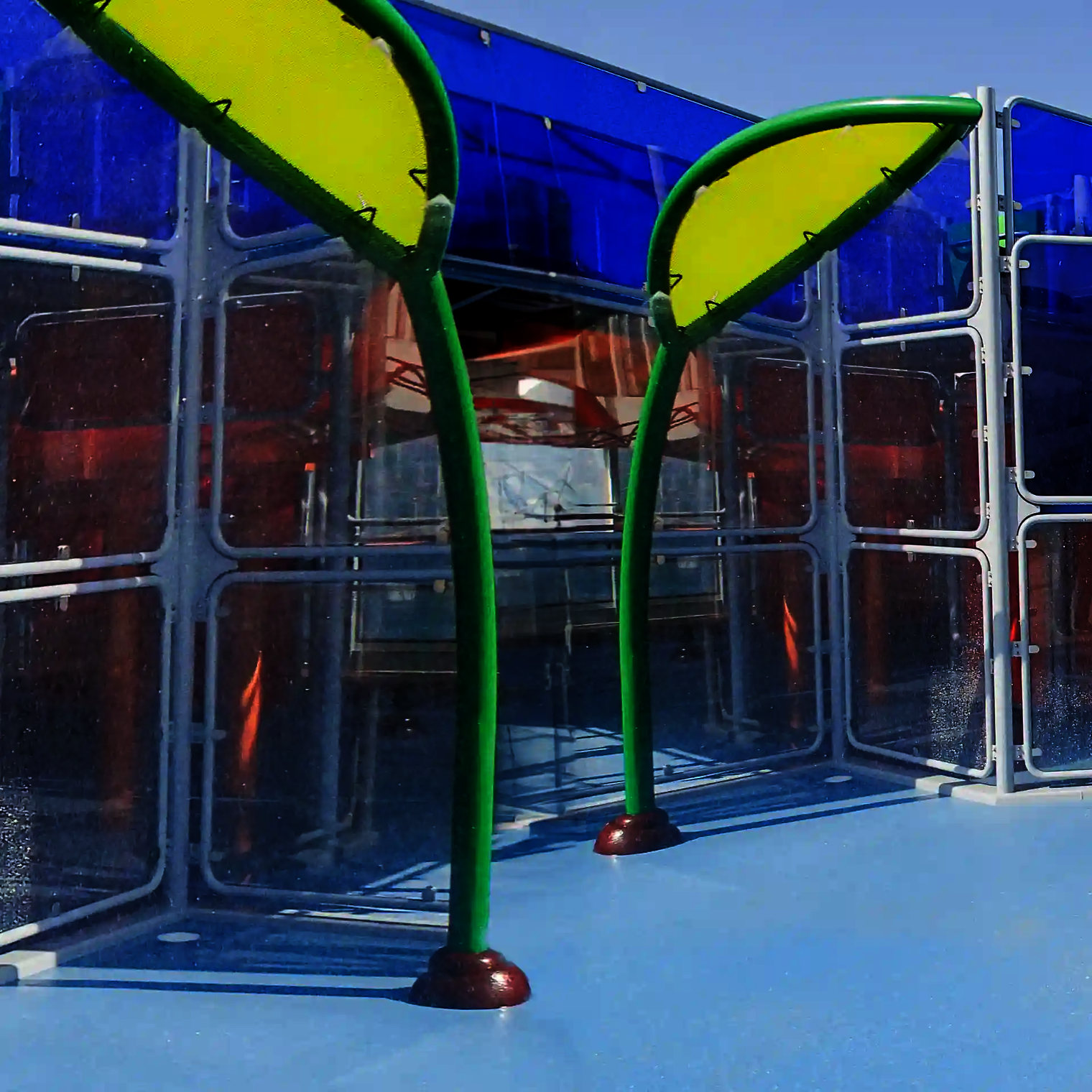

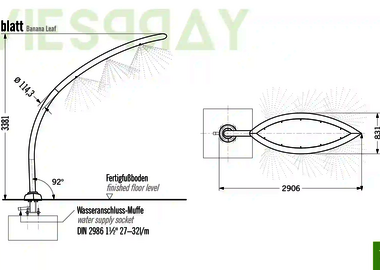

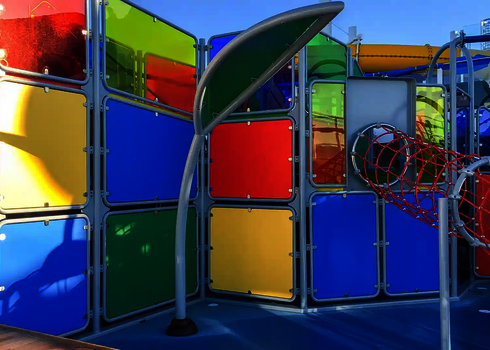

Banana leaf
The banana leaf invites you to linger under fine spray rain. The six flat jet nozzles are discreetly integrated into the polycarbonate or aluminium sheet so to create an even refreshment. A special highlight is the option to use coloured Plexiglas, which creates fascinating plays of light and shadow.
Product features
Article number 203 | Stainless steel tube leaf stalk with banana leaf made of polycarbonate, aluminium solid or perforated plate, with 6 flat jet nozzles |
Length | 2.90 m |
Width | 0.83 m |
Height | 3.38 m |
Number of nozzles | 6 flat jet nozzles |
Spray area | approx. 4.30 x 2.00 m / 90° per nozzle |
Water demand | 2.0 m³/h |
Mounting | A-FLEX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

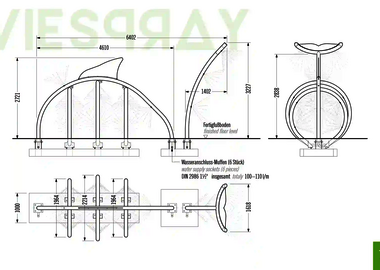

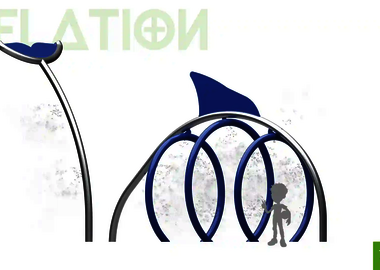

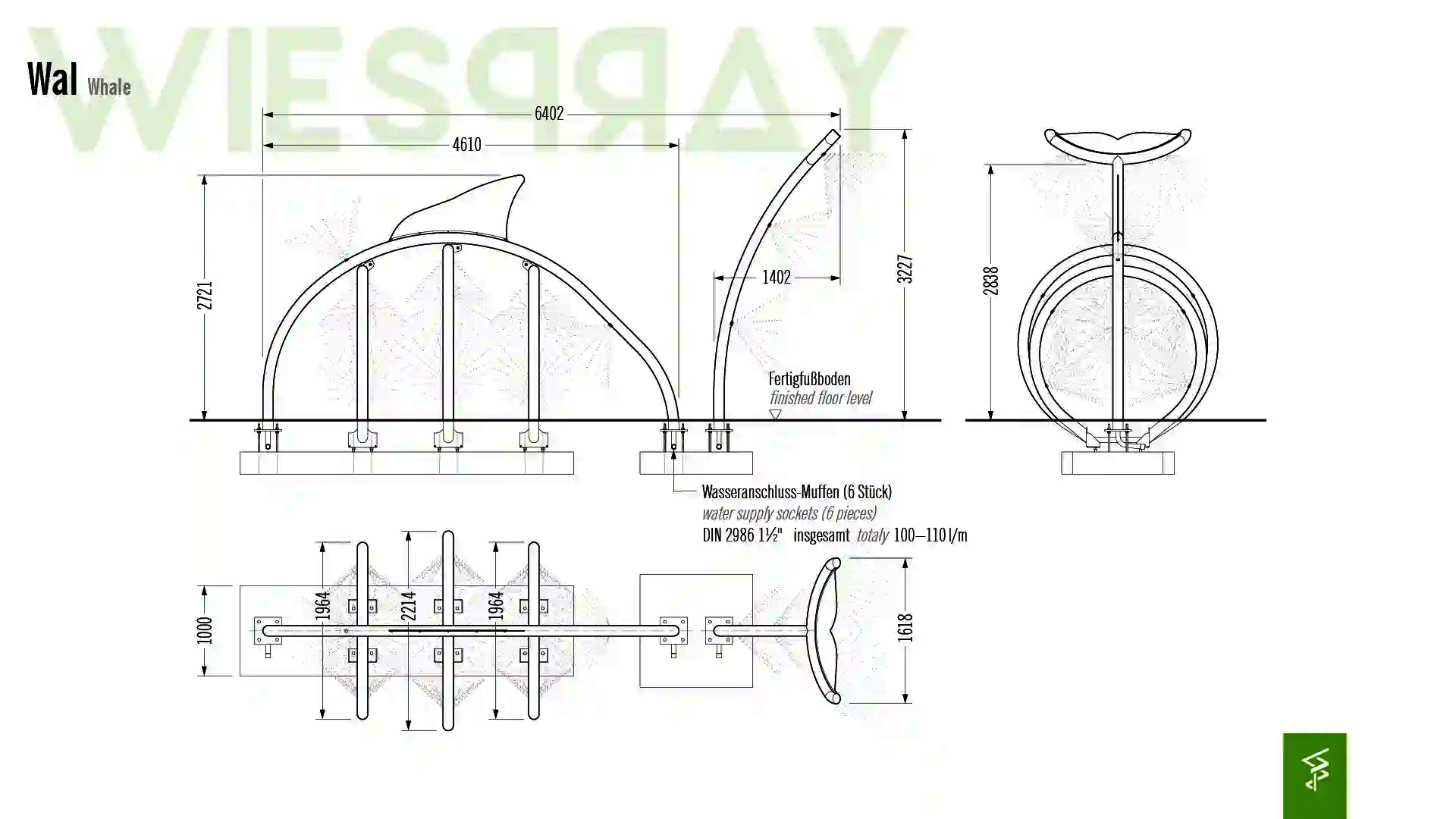

Whale
The distinctive whale skeleton invites children to walk through its arches, while a fine spray of 21 nozzles provides refreshment. The construction made of stainless steel tube and fins made of stainless steel sheet combines playful movement with pleasant cooling. The theme can be customized to fit the element perfectly into the environment.
Product features
Article number 302 | Whale skeleton made of stainless steel pipe 114.3 with fins made of stainless steel sheet, 21 full cone nozzles |
Length | 3.10 m |
Width | 8.10 m |
Height | 3.50 m |
Number of nozzles | 21 full cone nozzles |
Spray area | approx. 11.30 x 3.50 m |
Water demand | 6.0 - 6.6 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

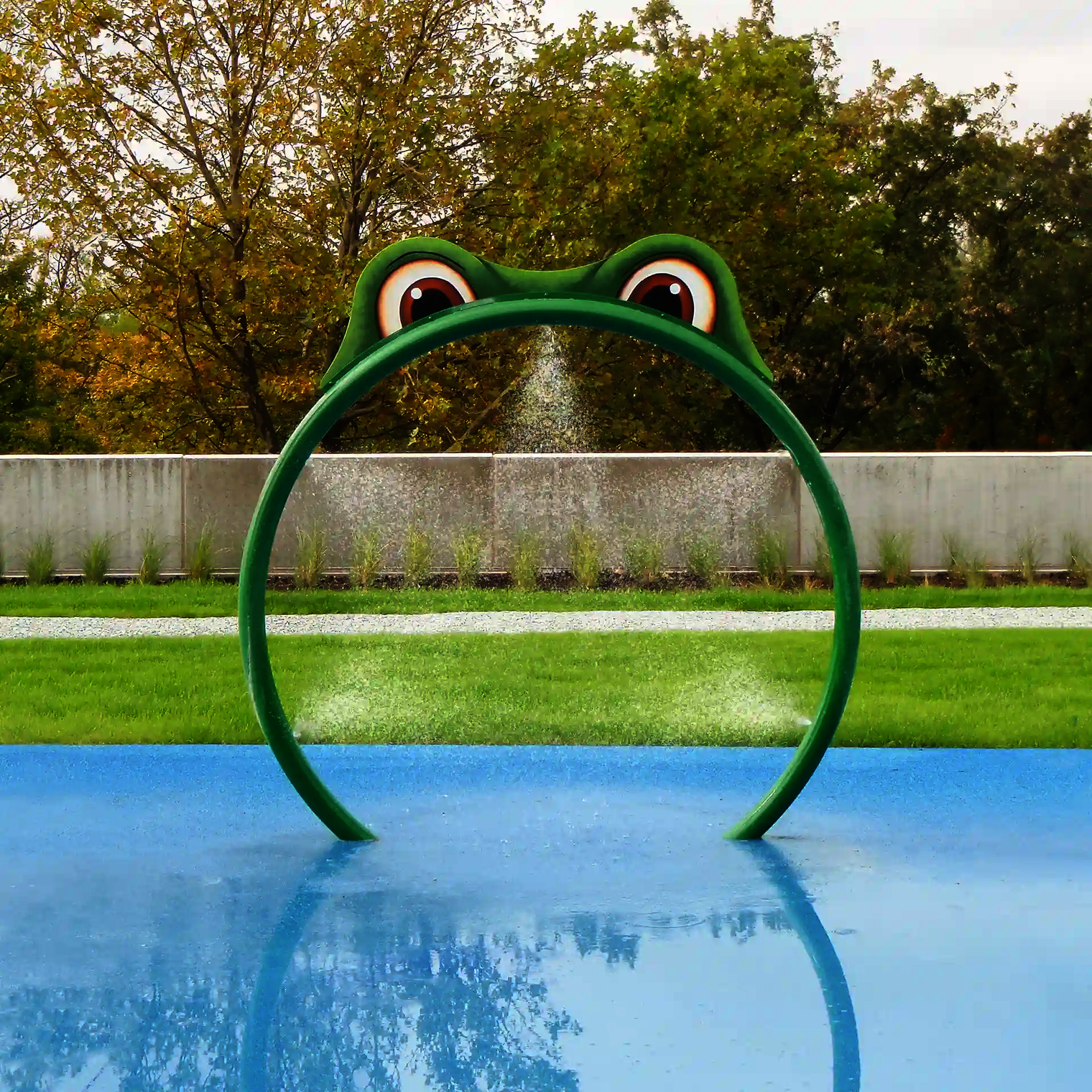

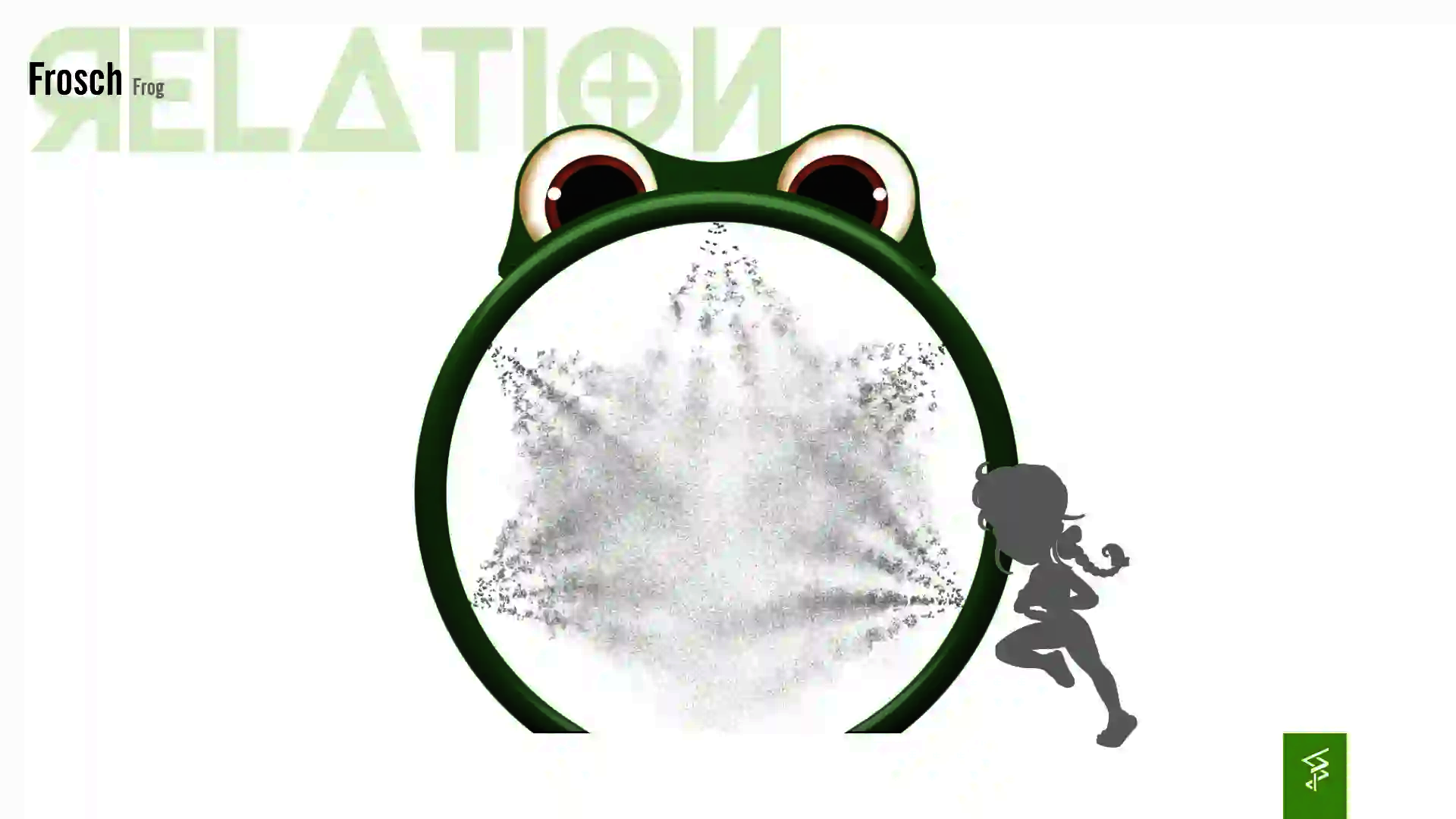

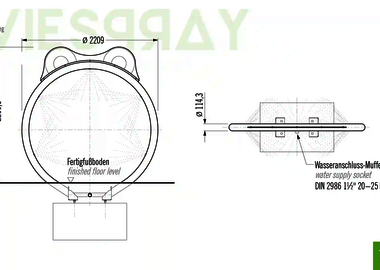

Frog
The frog impresses with its friendly appearance and a refreshing spray rain. Five full cone nozzles are integrated into the stainless steel ring as water splashes off your feet. The eye attachment gives the element its characteristic look and makes it the sympathetic focal point of any water play surface.
Product features
Article number 303 | Ring made of stainless steel pipe 114.3, equipped with 5 full cone nozzles, eye attachment |
Length | 1.40 m |
Width | 5.80 m |
Height | 2.40 m |
Number of nozzles | 5 full cone nozzles |
Spray area | approx. 7.50 x 2.00 m |
Water demand | 4.2 - 6.0 m³/h |
Mounting | B-FIX |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

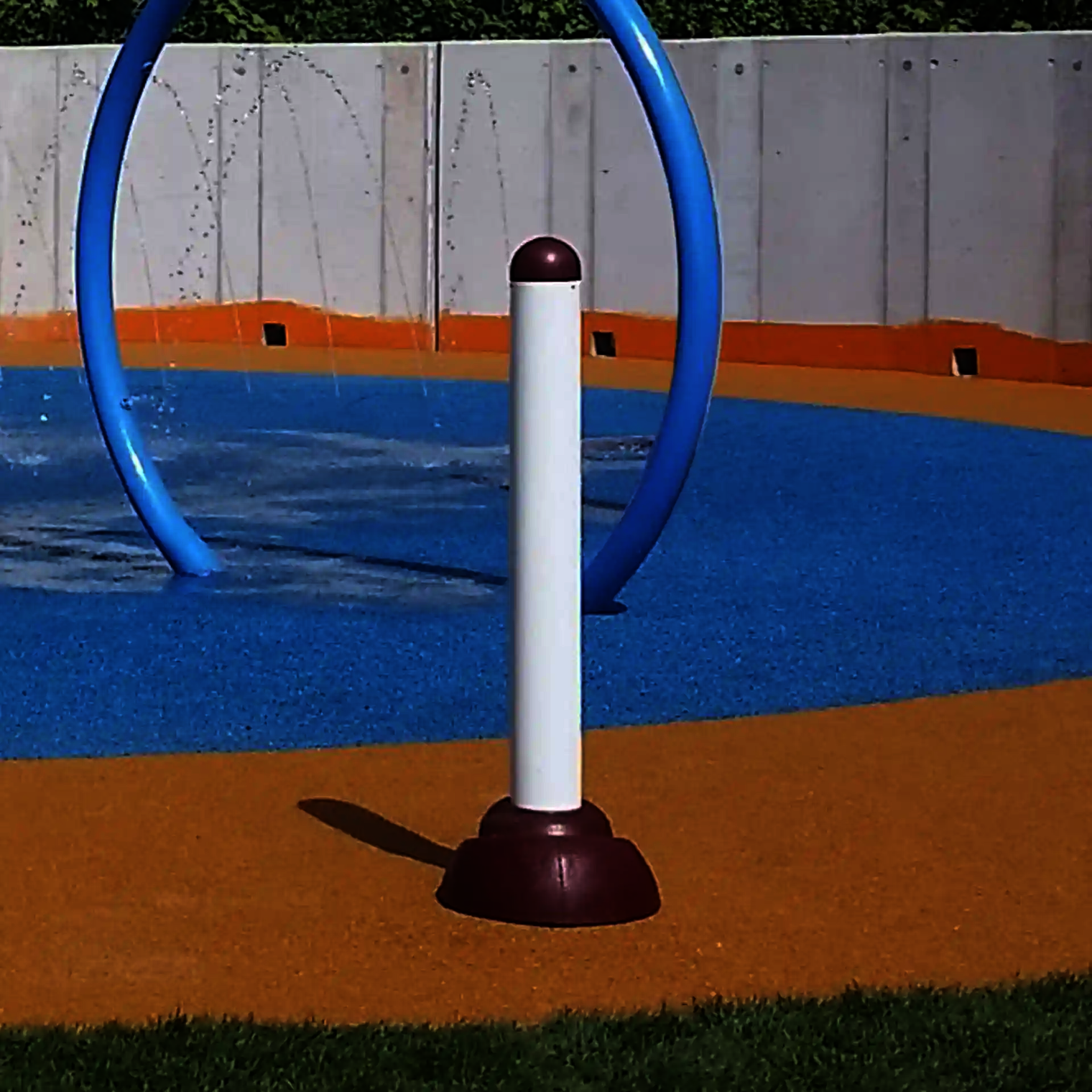

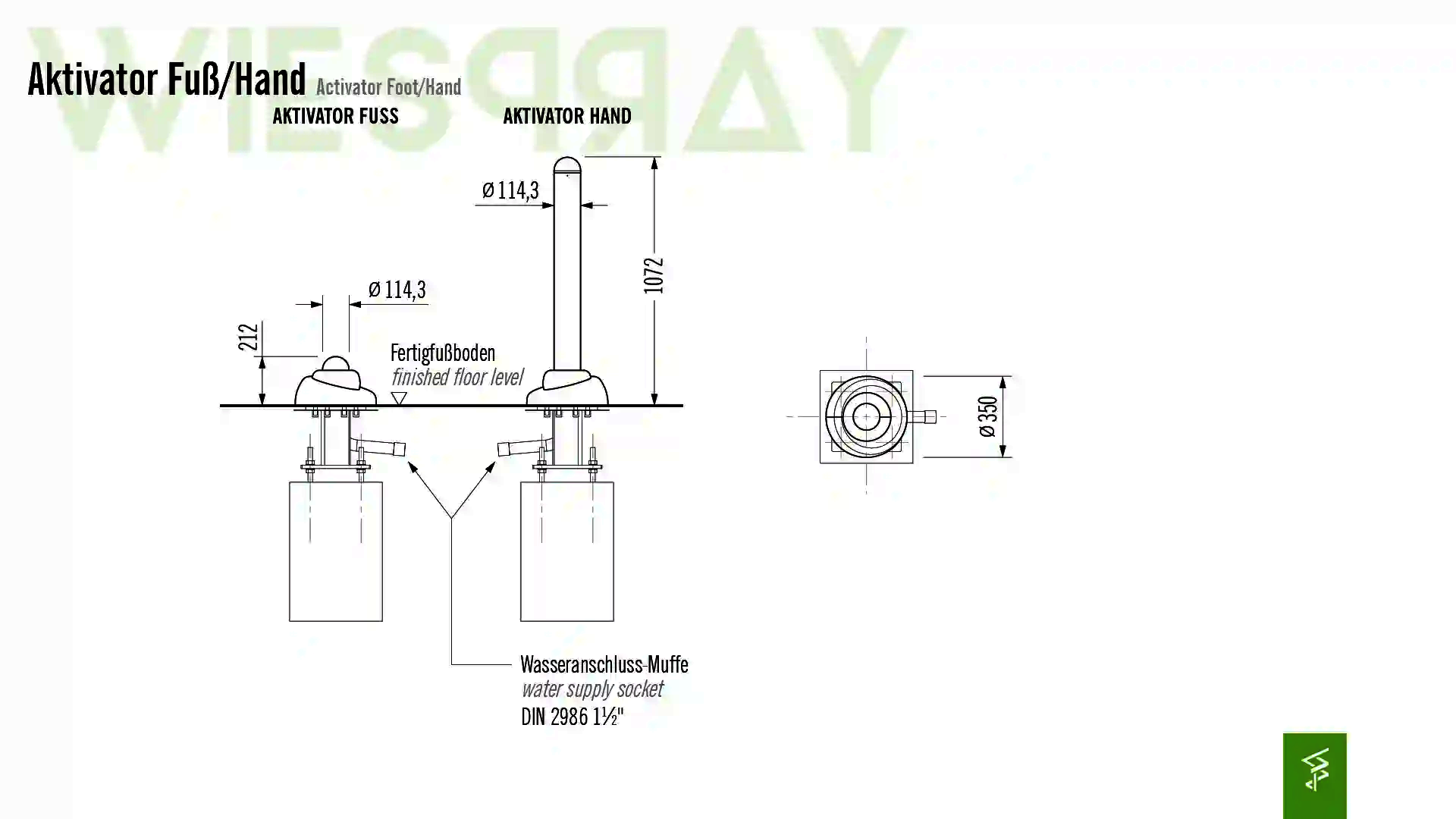

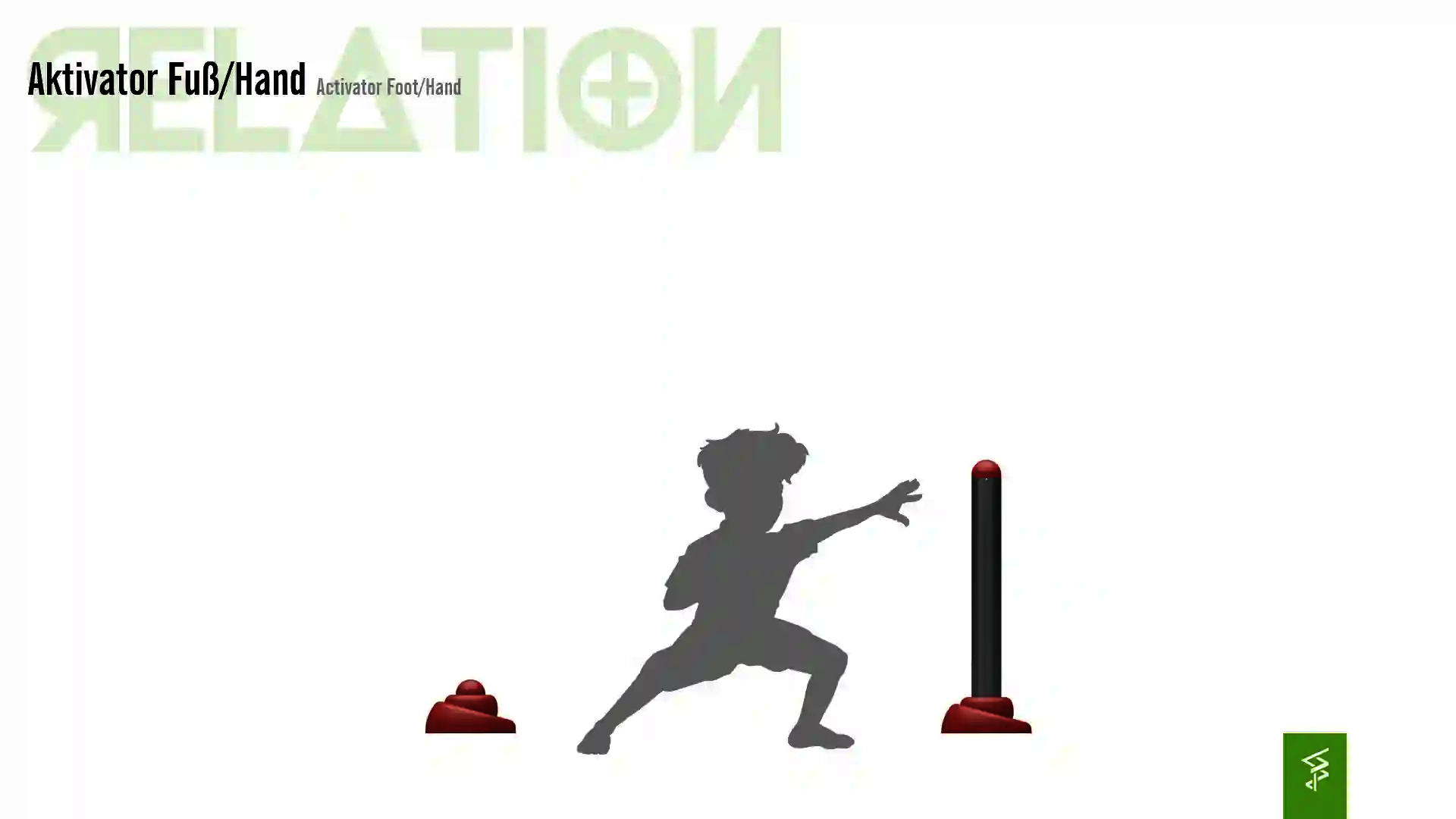

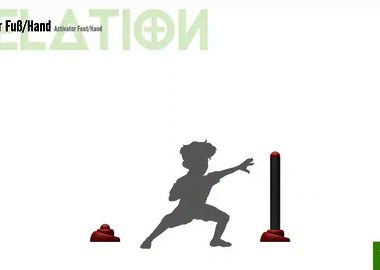

Activator foot/hand
With the foot or hand activator, visitors can easily start the water fun for children and adults. A short kick or pressure is enough to bring all the connected water features to life. The robust stainless steel elements with integrated sensor are ideal for water playgrounds and provide interactive experiences at the touch of a button.
Product features
Article number 901 (FOOT) / 902 (HAND) | Short stainless steel tube equipped with a plastic cap with integrated sensor |
Length | 0.35 m |
Width | 0.35 m |
Height | 0.21 / 1.07 m |
Number of nozzles | |
Spray area | n. n. |
Water demand | n. n. |
Mounting | n. n. |
Design | n. n. |
The product can be individually designed and can be produced in different colors and themes.

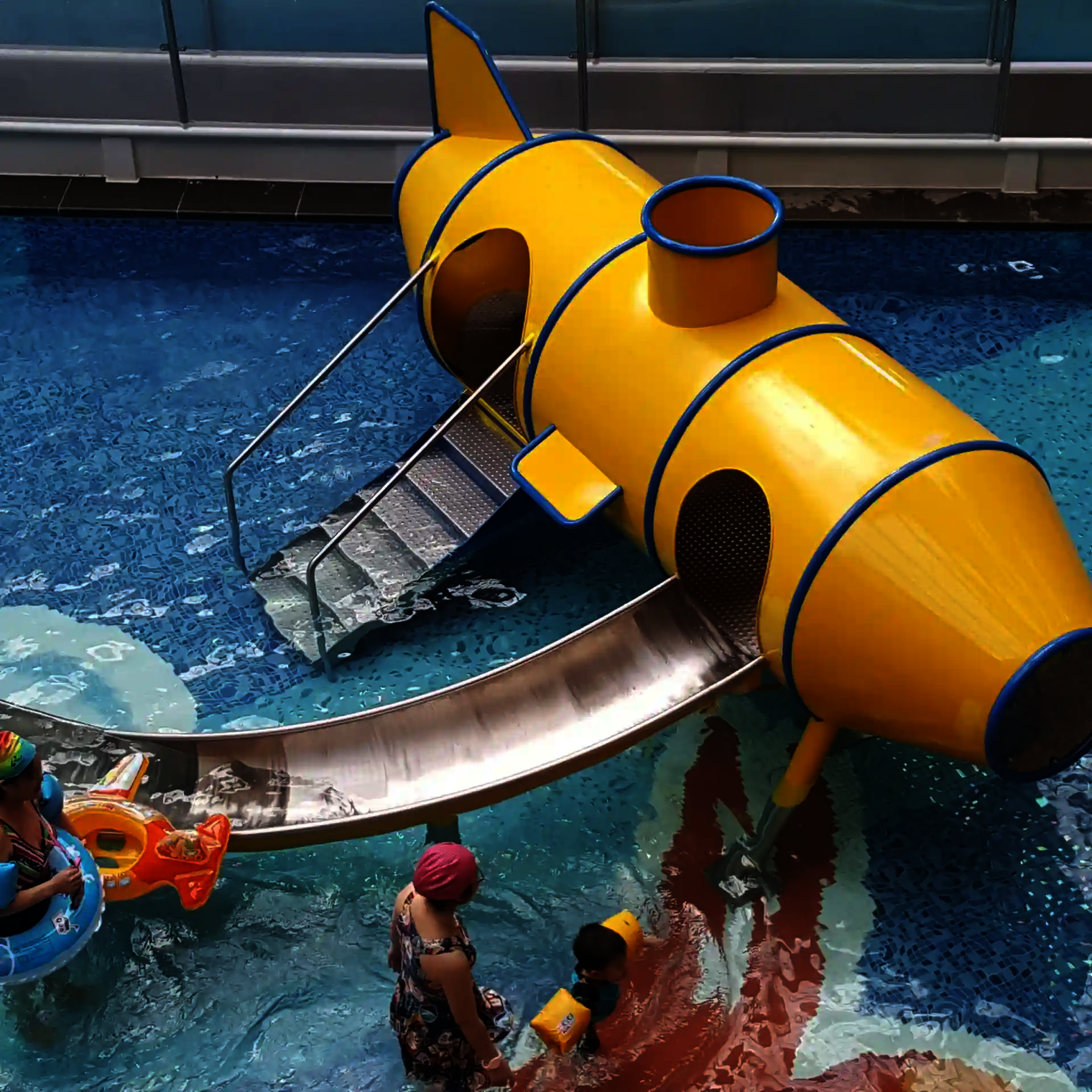

Submarine
The submarine invites little explorers to immerse themselves in an imaginative water world. The kids enter the interior via a ladder staircase, watch what is happening through portholes and finally slide back out into the open. A valve spinner controls the periscope shower for extra water fun. The construction can be supplemented with various spray elements and adapted thematically – a versatile play element with a slide and interactive functions.
Product features
Article number 801 | The submarine can be equipped with spray elements, but is otherwise to be considered as slide and play area. |
Length | 4.35 m |
Width | 4.71 m |
Height | 2.22 m |
Number of nozzles | - |
Spray area | - |
Water demand | 1.5 m³/h |
Mounting | - |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

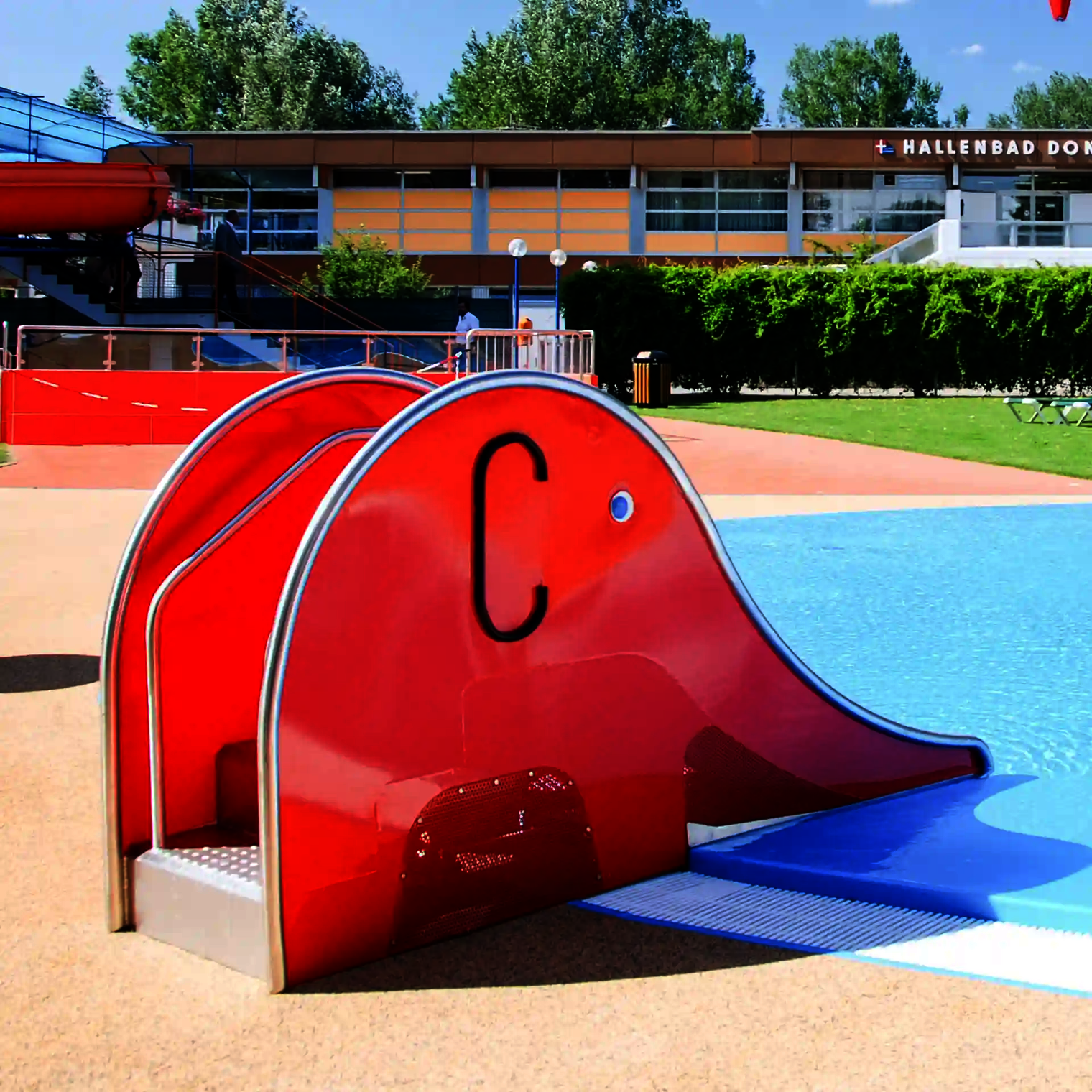

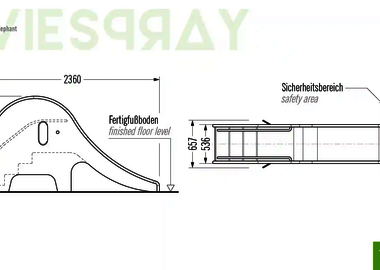

Elephant
The elephant brings fun to any game landscape with its friendly design. The compact slide is specially designed for children and can be set up flexibly at the edge of the pool, in the children's pool or with an individually designed safety pool. An uncomplicated play element always putting a smile on the faces of young guests.
Product features
Article number 802 | Toddler Elephant Slide |
Length | 2.36 m |
Width | 0.66 m |
Height | 1.33 m |
Number of nozzles | - |
Spray area | - |
Water demand | - |
Mounting | - |
Design | RAL colors |
The product can be individually designed and can be produced in different colors and themes.

Switch cabinet
The splash-proof control cabinet is individually tailored to the technical requirements of your Splash Park. It is all already wired and allows an easy installation and a safe control of all connected water feature elements. This structure is ideal for outdoor and wet areas.
Product features
Article number 903 | Fixed unit, splash-proof and approved for outdoor and damp rooms, all connections wired ready on delivery |
Length | |
Width | |
Height | |
Number of nozzles | - |
Spray area | - |
Water demand | - |
Mounting | - |
Design | - |
The product can be individually designed and can be produced in different colors and themes.
Distribution panel
The stainless steel distribution panel offers a central solution to reliably control a maximum of eight water play devices. Equipped with solenoid valves, flow regulator and emptying function, this panel is perfectly suited for continuous operation in water adventure worlds and public water play facilities. The operating pressure can be easily read via the pressure gauge.
Product features
Article number 904 | Stainless steel pipe with welded outlets, solenoid valves with flow regulator and emptying function, suitable for continuous operation, display operating pressure via pressure gauge |
Length | |
Width | |
Height | |
Number of nozzles | - |
Spray area | - |
Water demand | - |
Mounting | - |
Design | - |
The product can be individually designed and can be produced in different colors and themes.
Ensure durability and safety through regular maintenance.
// Our Service Team
We are waiting for your existing waterslide for the next TÜV appointment.
Due to the constant material stress, regular maintenance and cleaning work must be carried out. Through consistent and professional maintenance and servicing, long-term use of the water slide can be guaranteed.

Wie-Spray

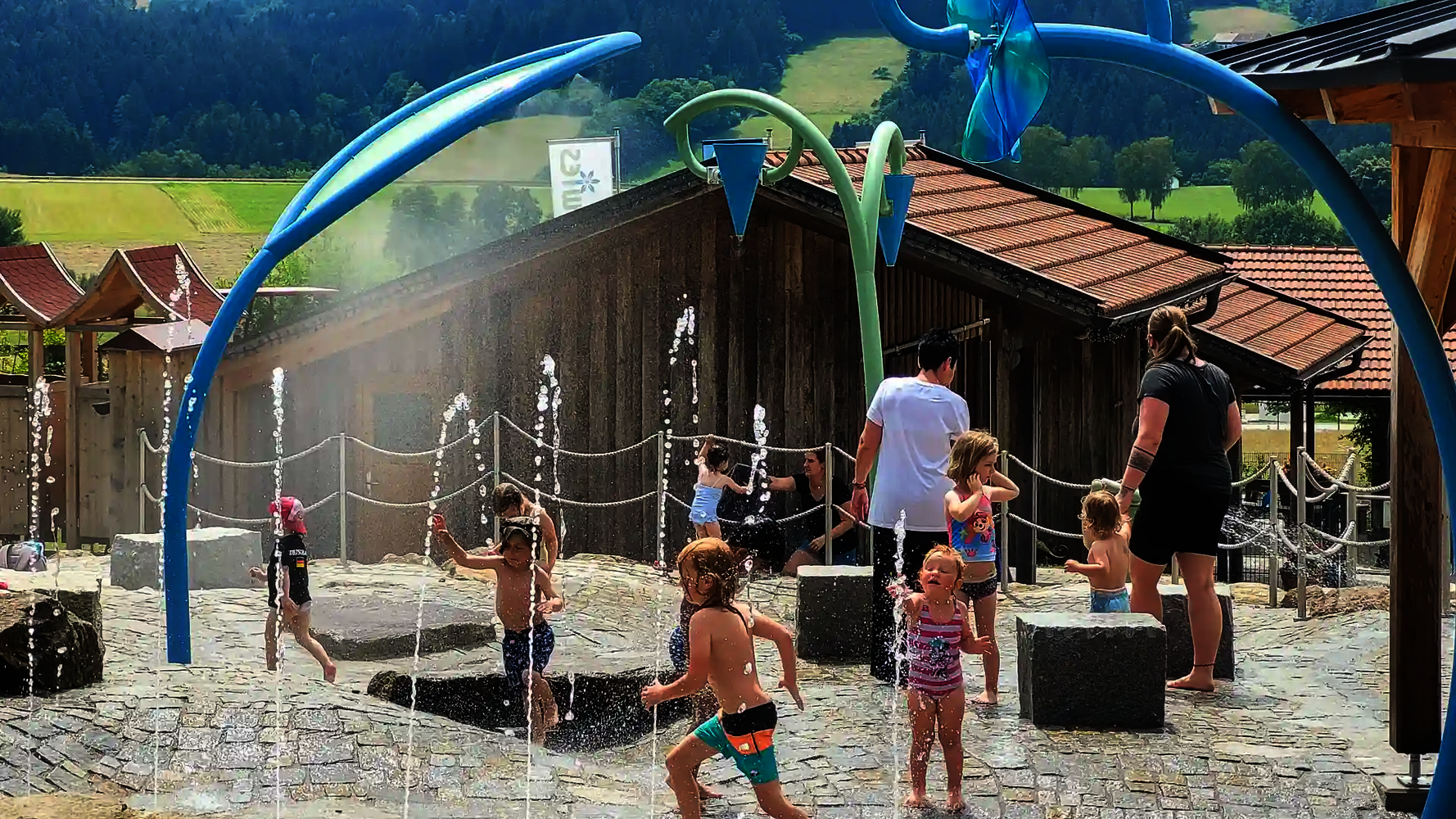

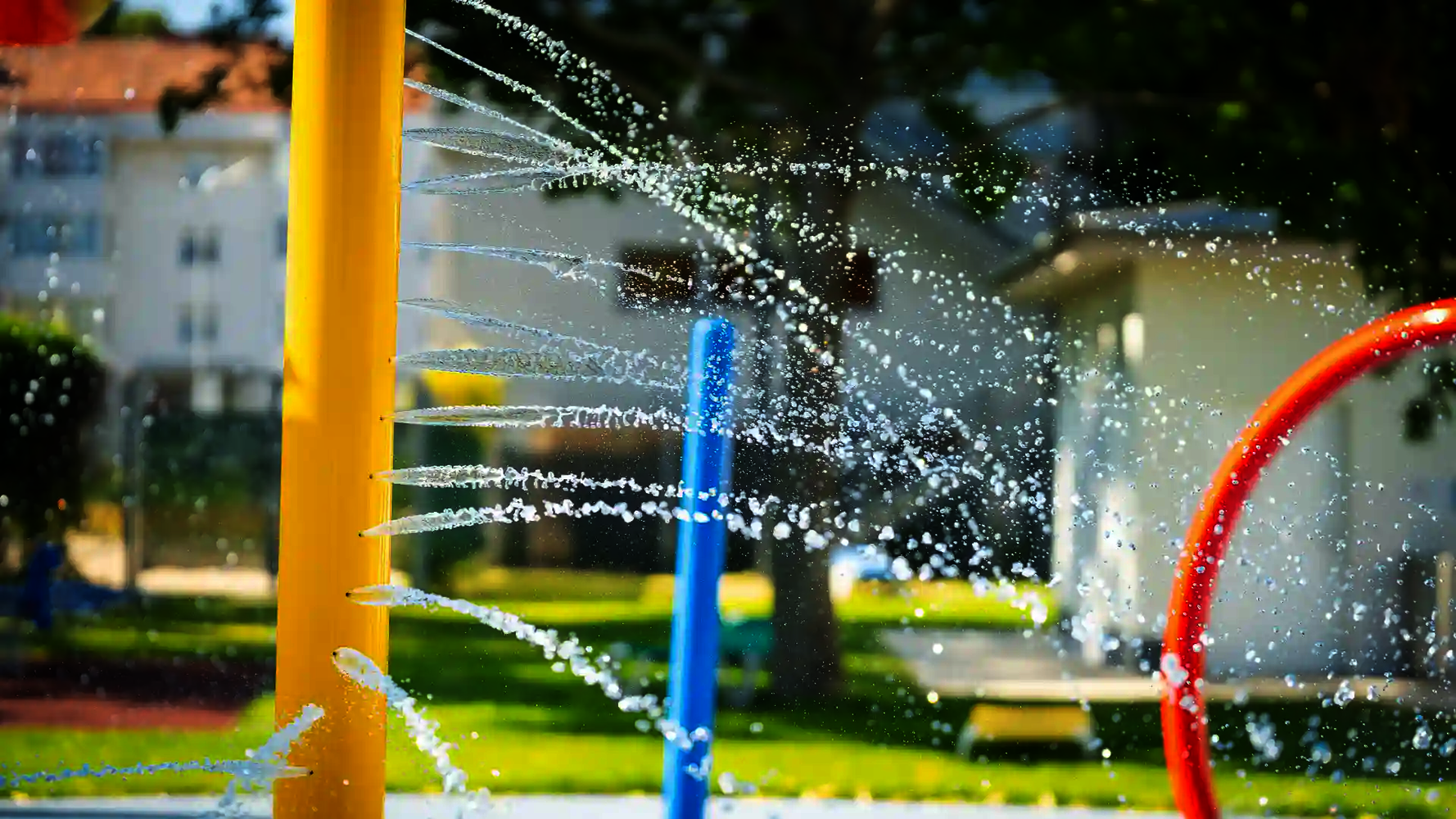

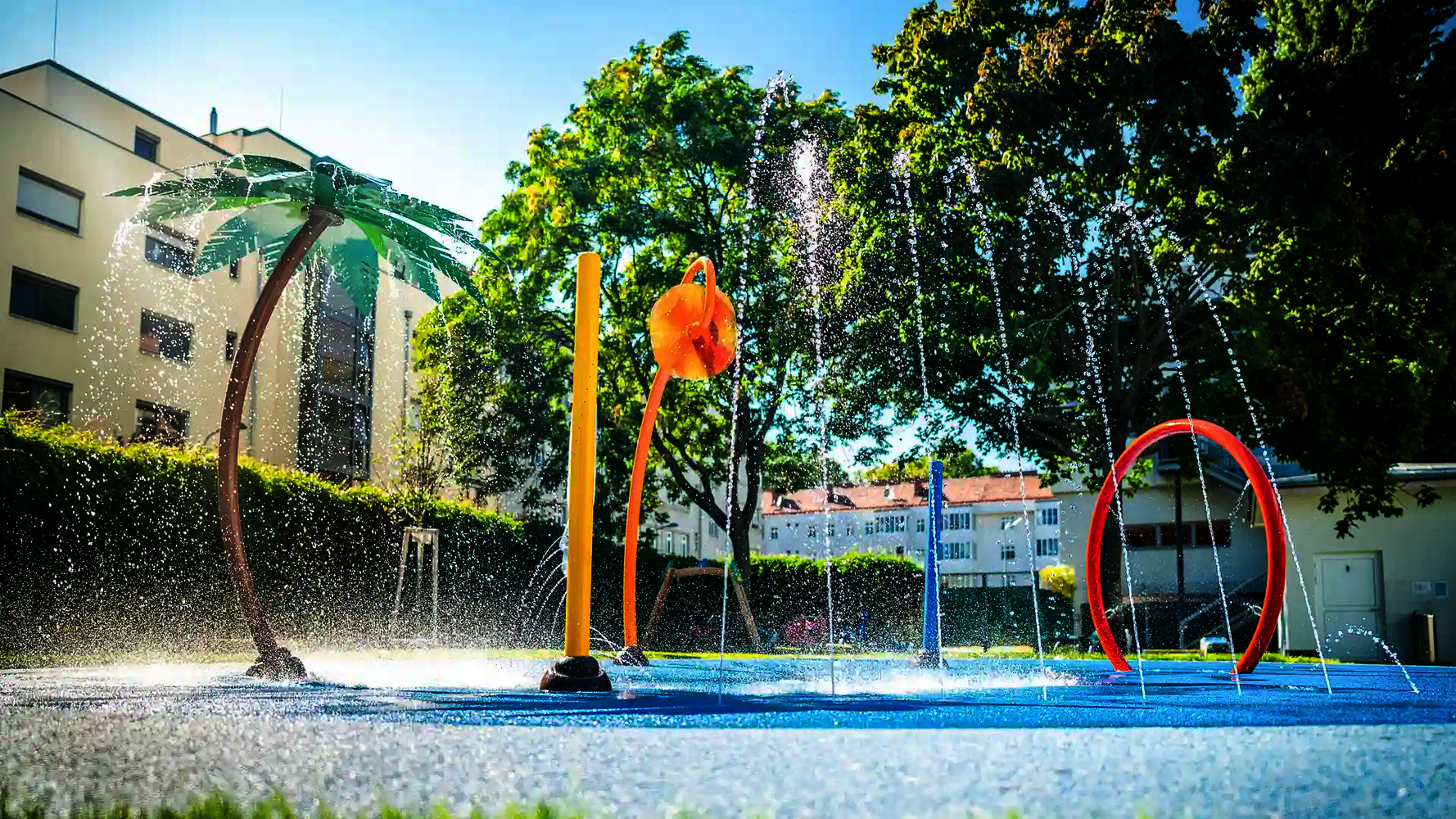

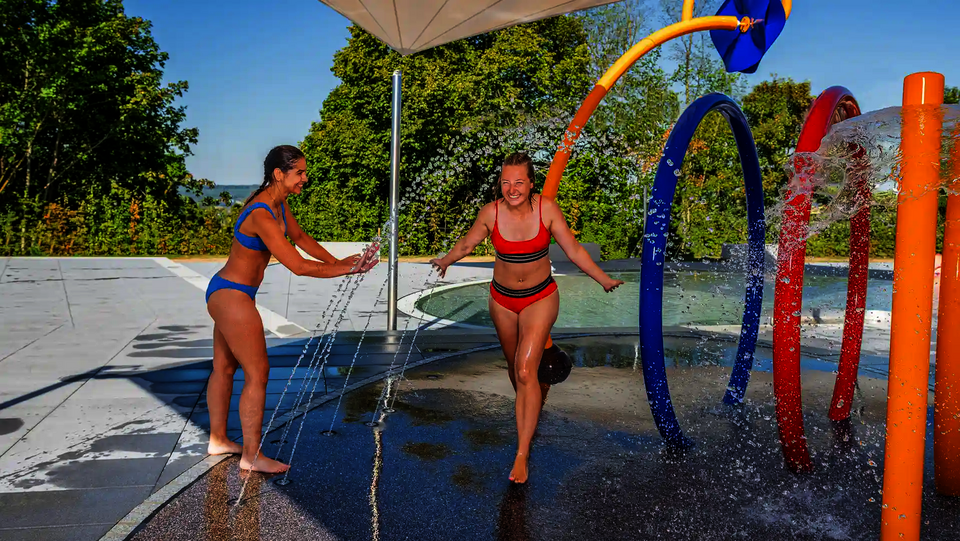

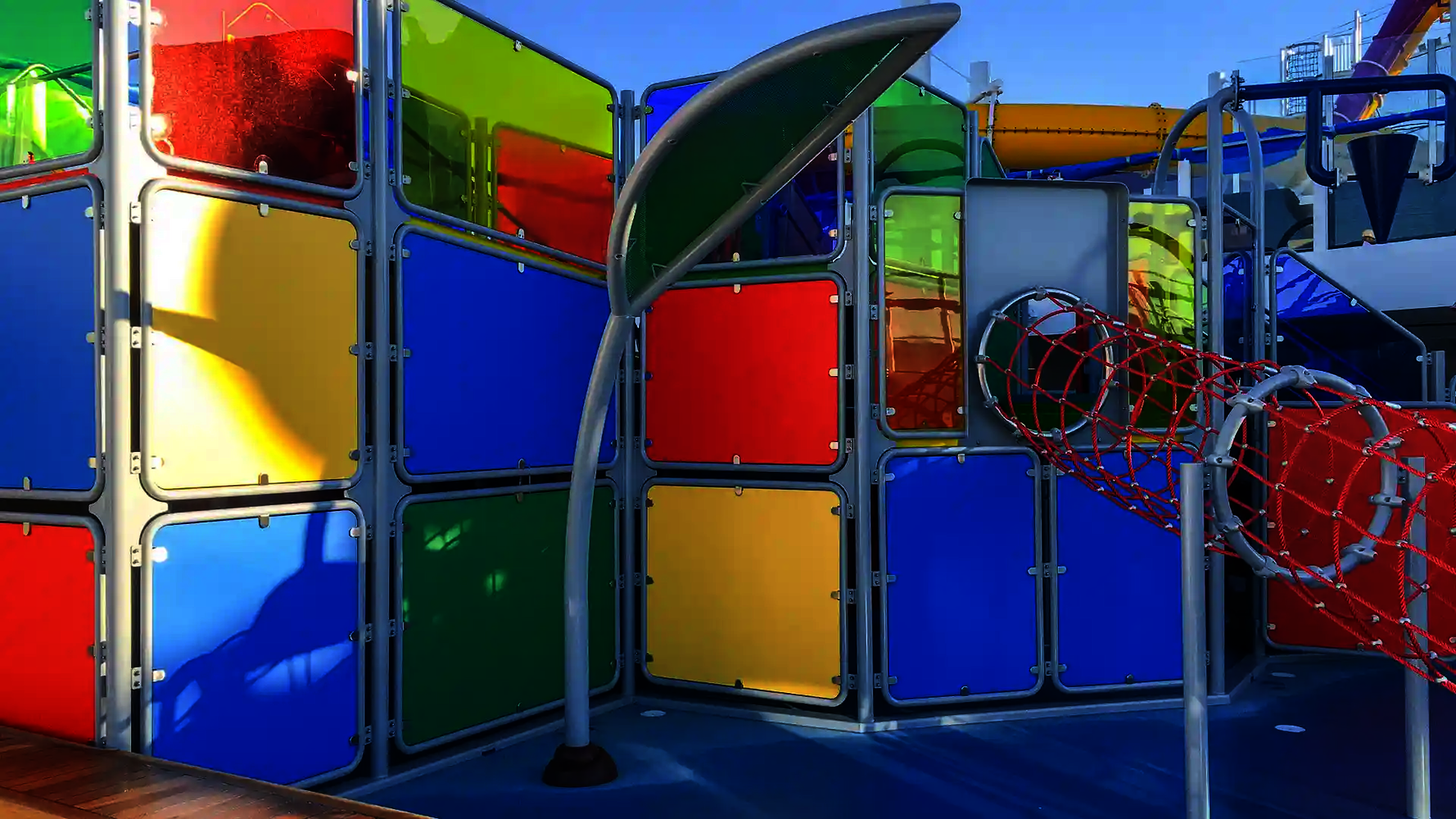

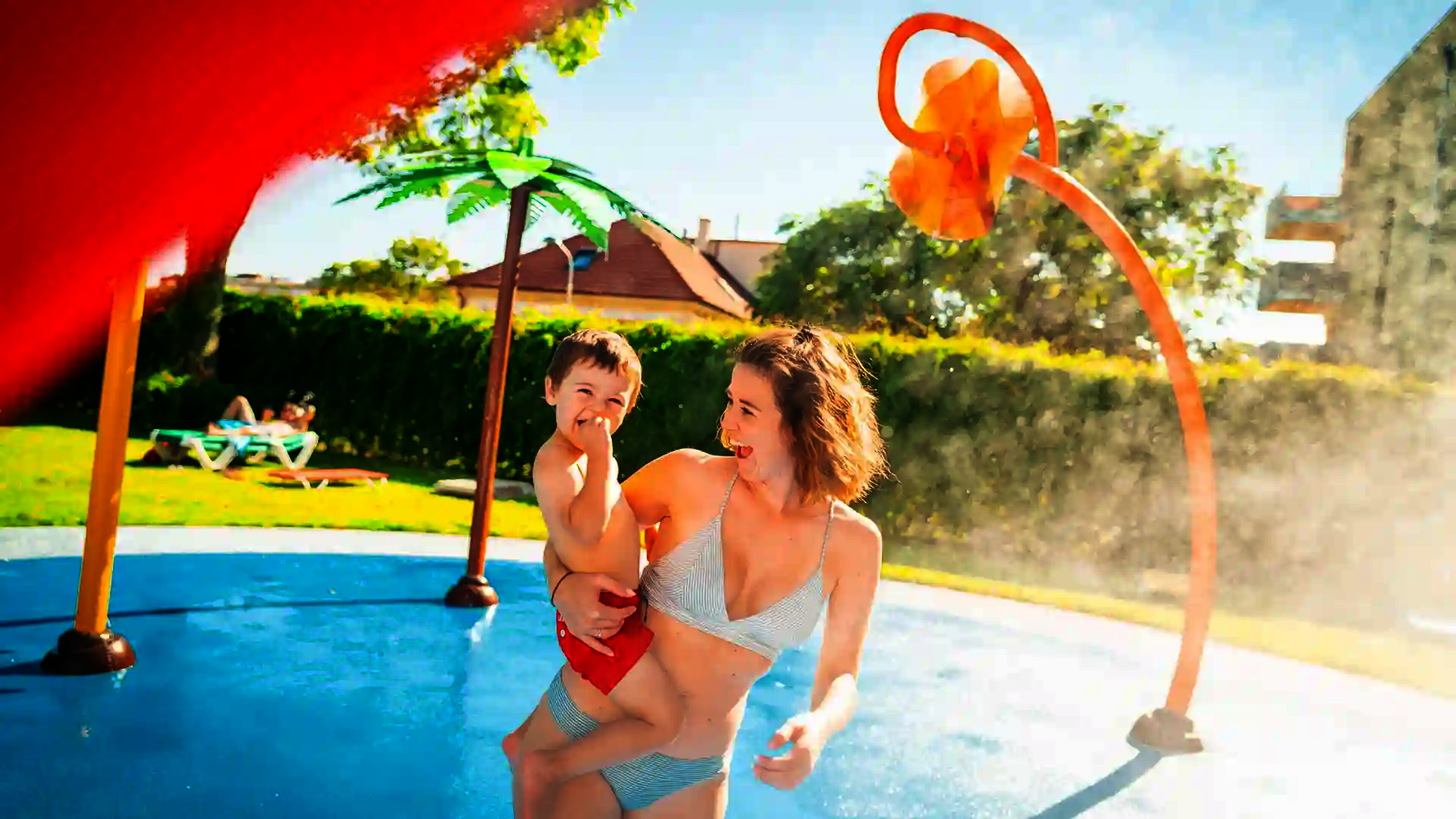

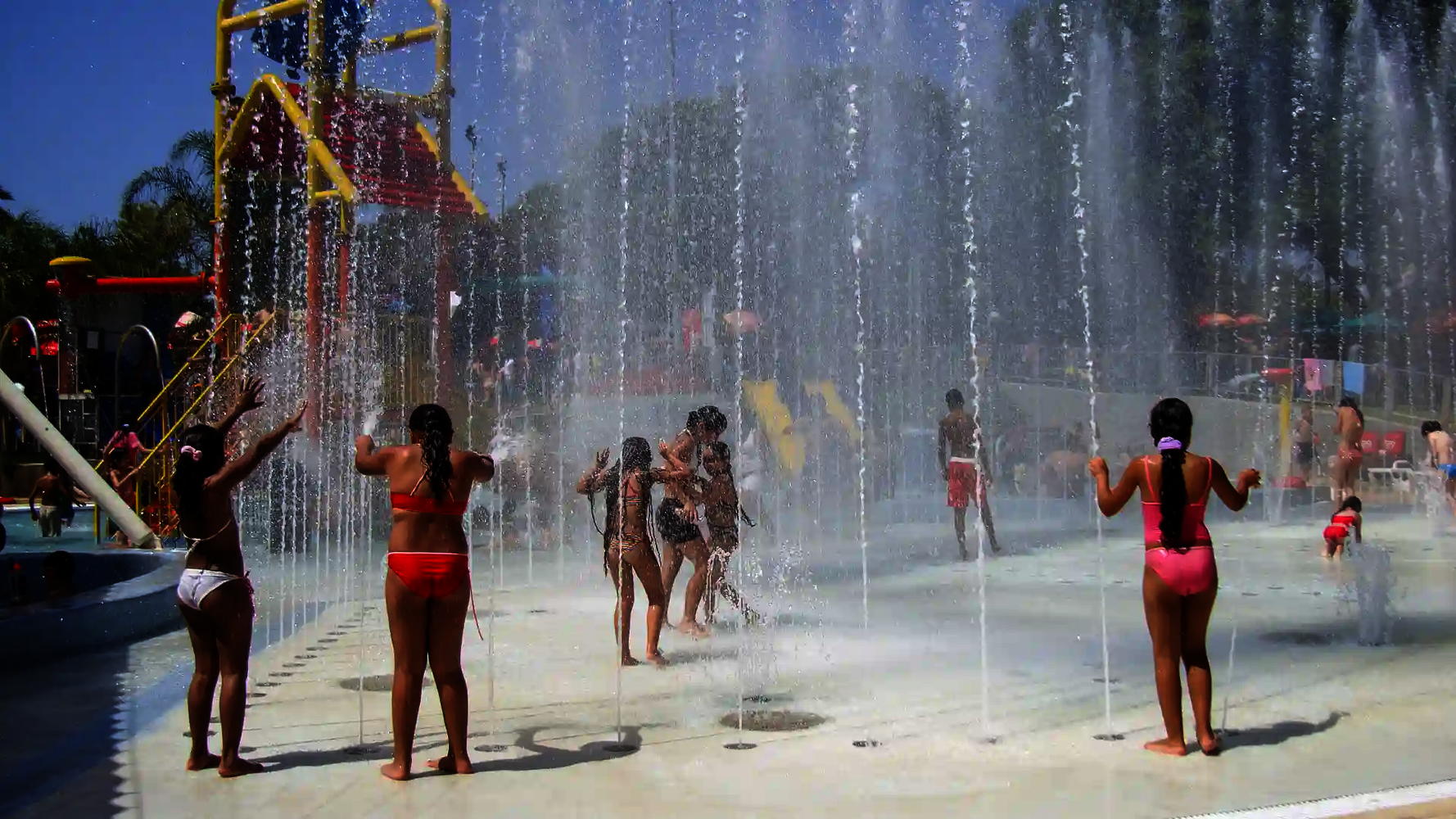

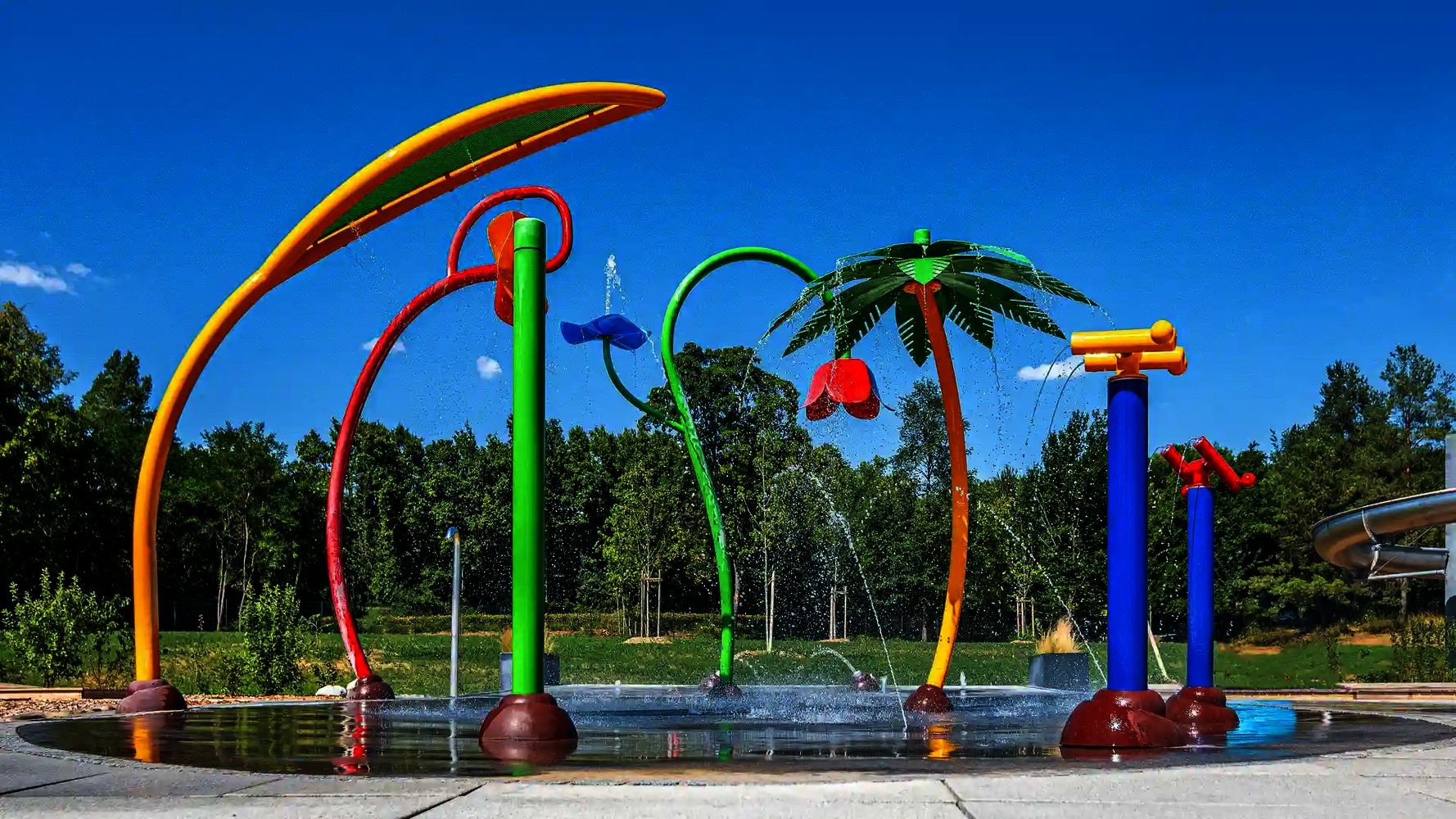

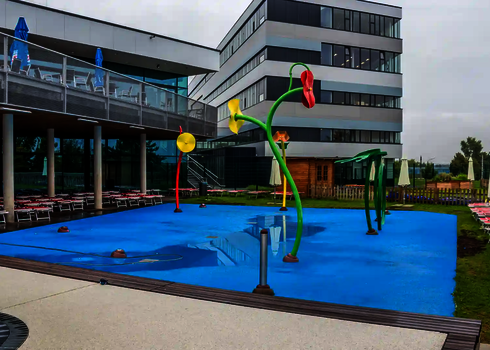

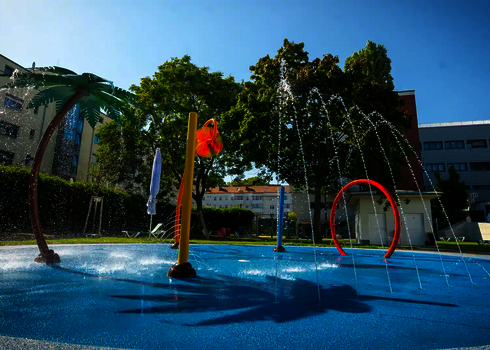

Wie-SPRAY is a product line of high-quality, interactive water play elements providing varied water fun. The individual components – such as spray columns, water arches, tipping buckets or floor nozzles – can be assembled and combined as desired. This option creates an individually designed water feature that is precisely tailored to the respective area and the desired play character.

The individual water play elements are modular and can be flexibly combined in order to create individual play landscapes. This allows the system to be expanded or adapted at any time.
The main components are durable stainless steel constructions, complemented by elements made of polycarbonate, aluminium or plexiglass. These materials are particularly resistant to weather conditions and are ideal for permanent use in wet areas.
Whether colorful or subtle, each element can be adapted thematically and in color. This allows the water features to be ideally integrated into already existing design concepts or to set specific accents.
The activation takes place either automatically via programmed time intervals or interactively via hand or foot activator. This option creates a varied game of spontaneous and planned water effects.
All products are designed to be safe for kids to use. Floor level installations, rounded edges and sturdy materials ensure a safe playing experience.

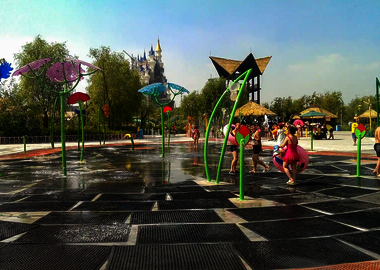

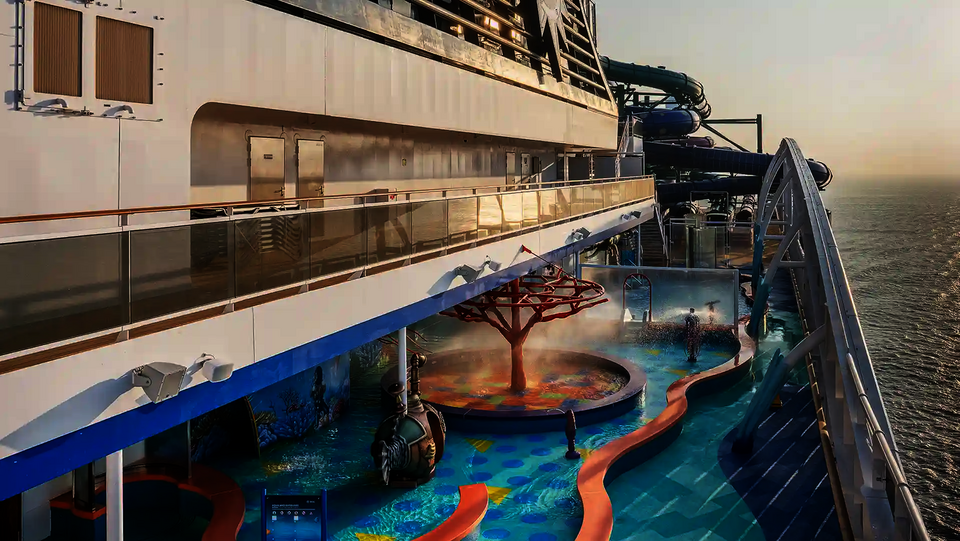

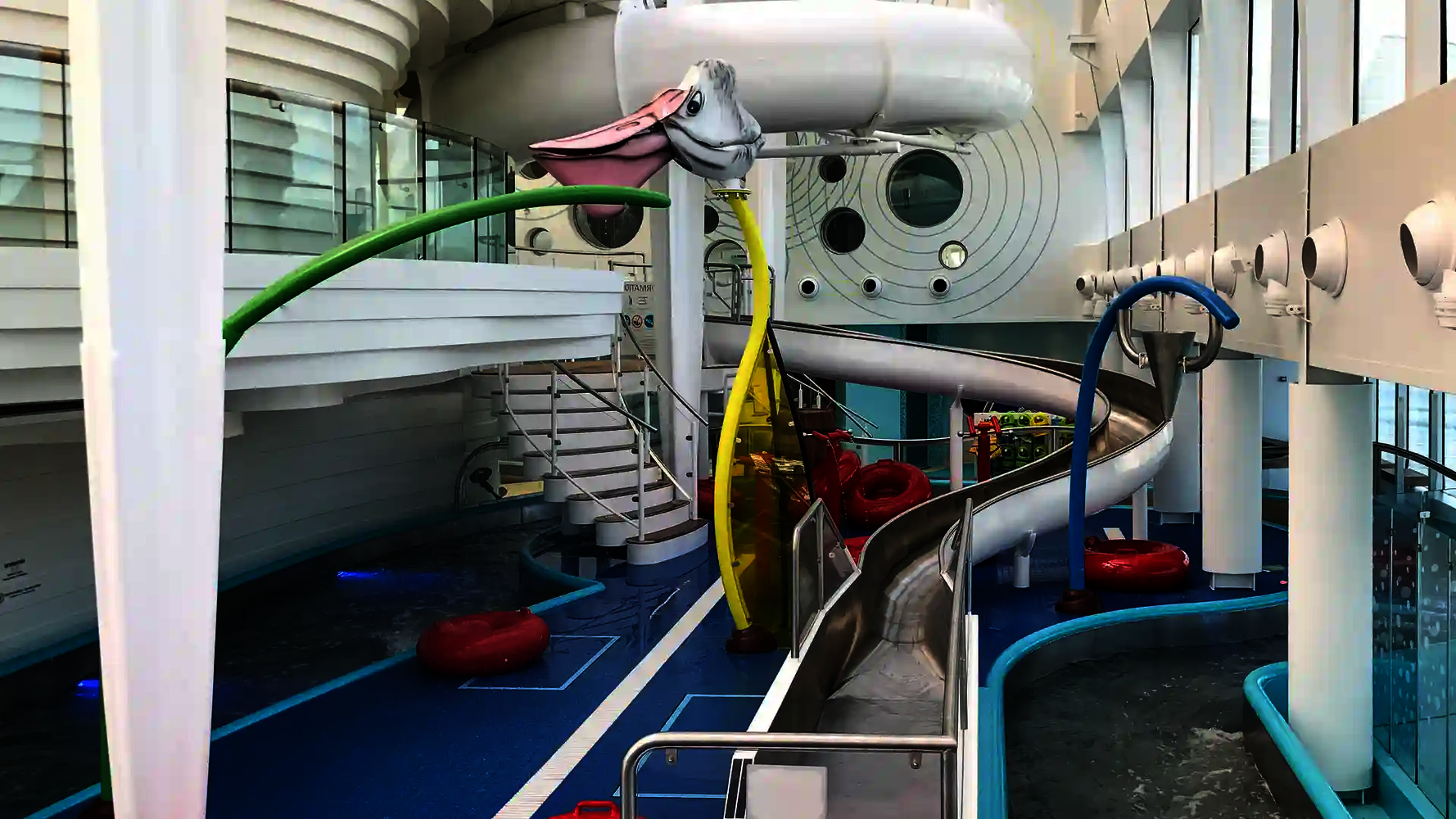

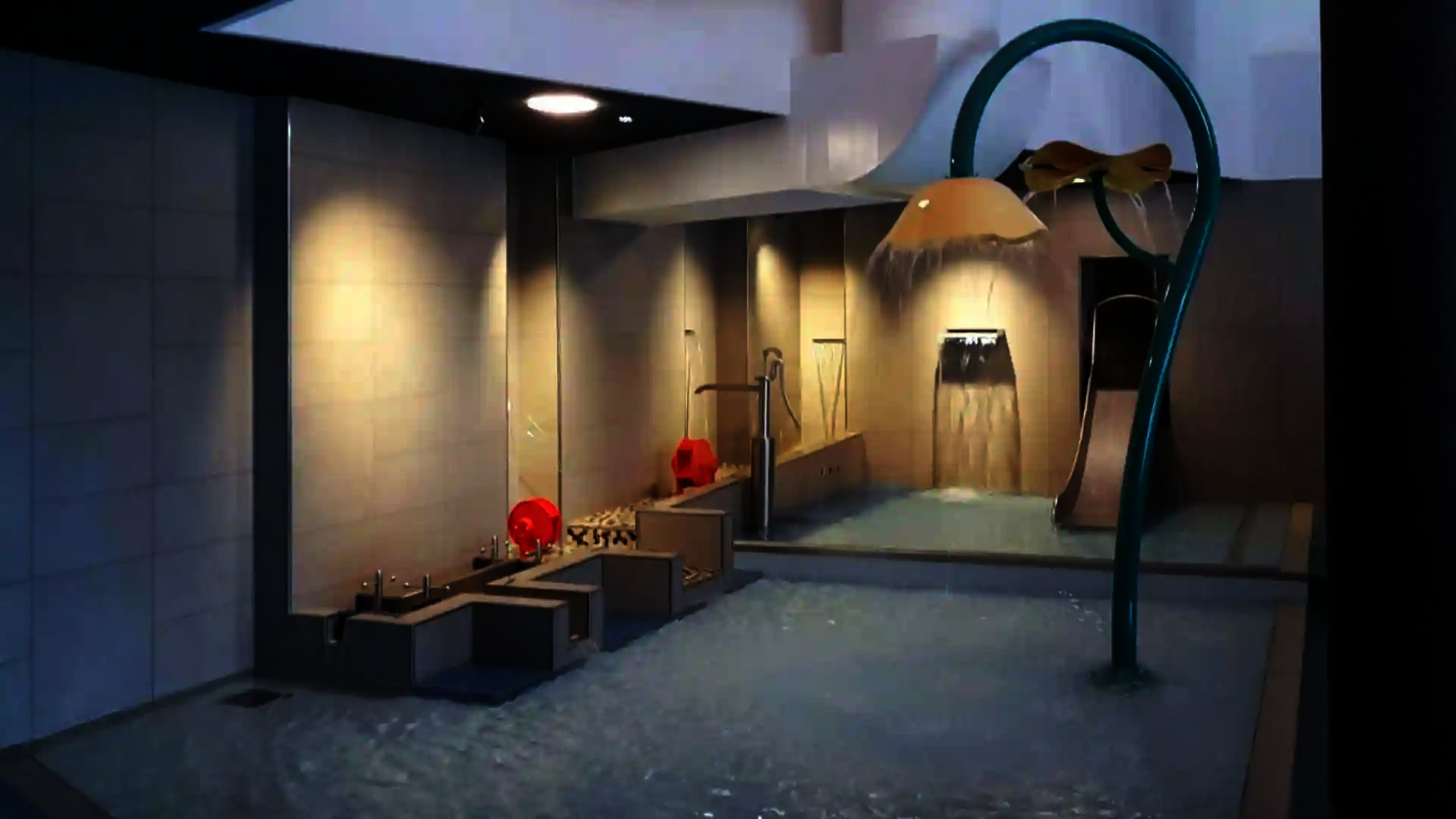

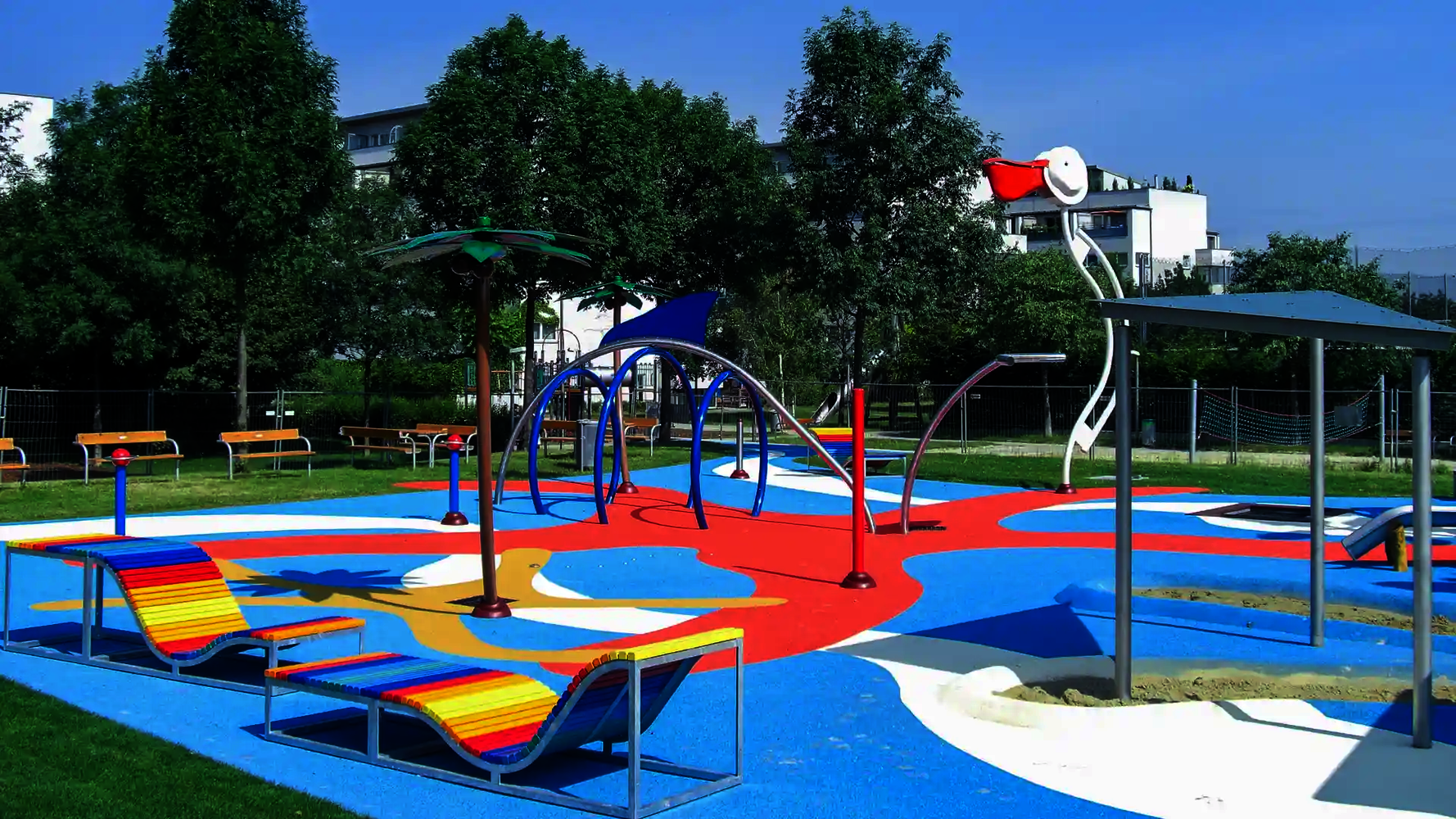

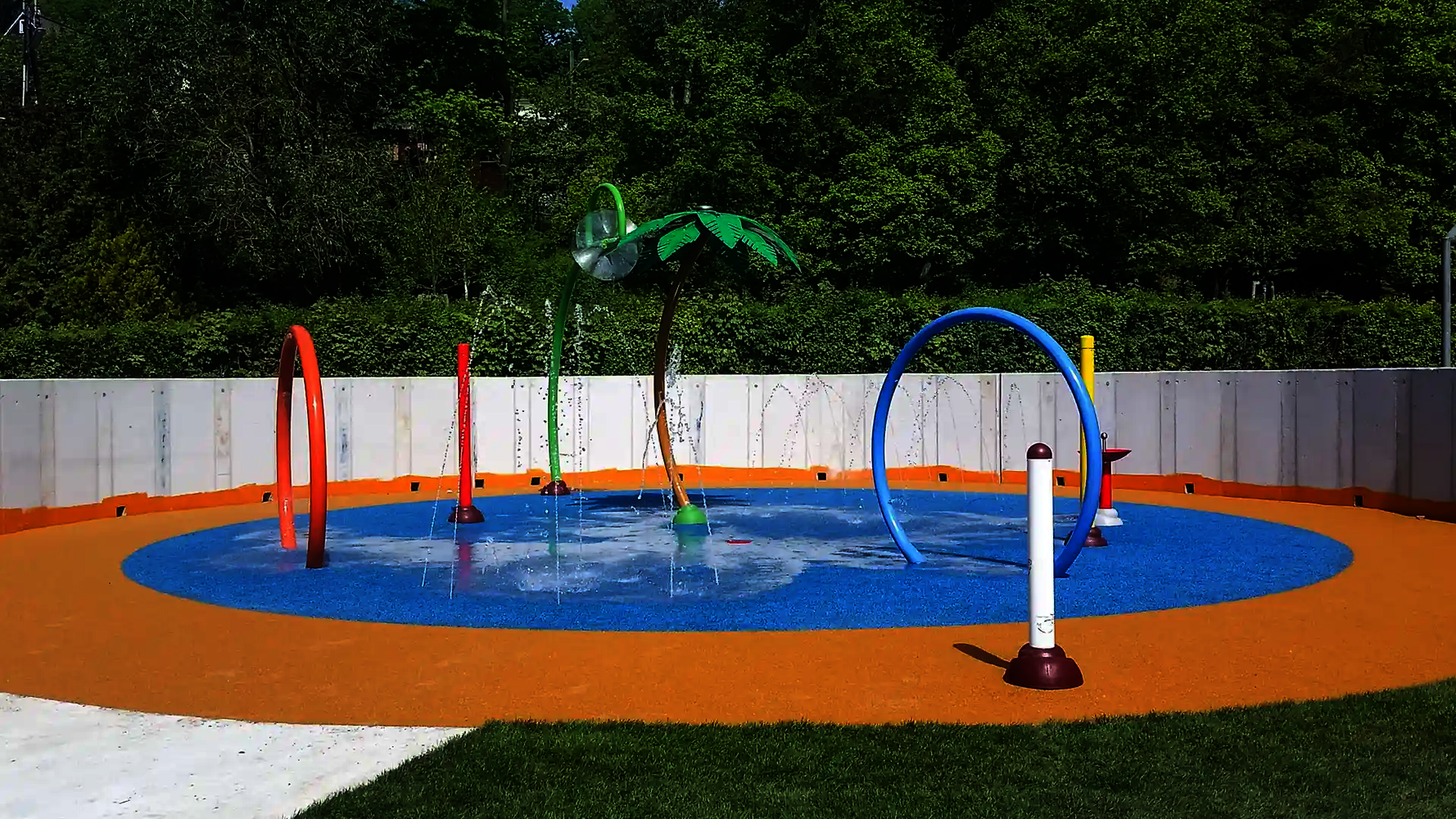

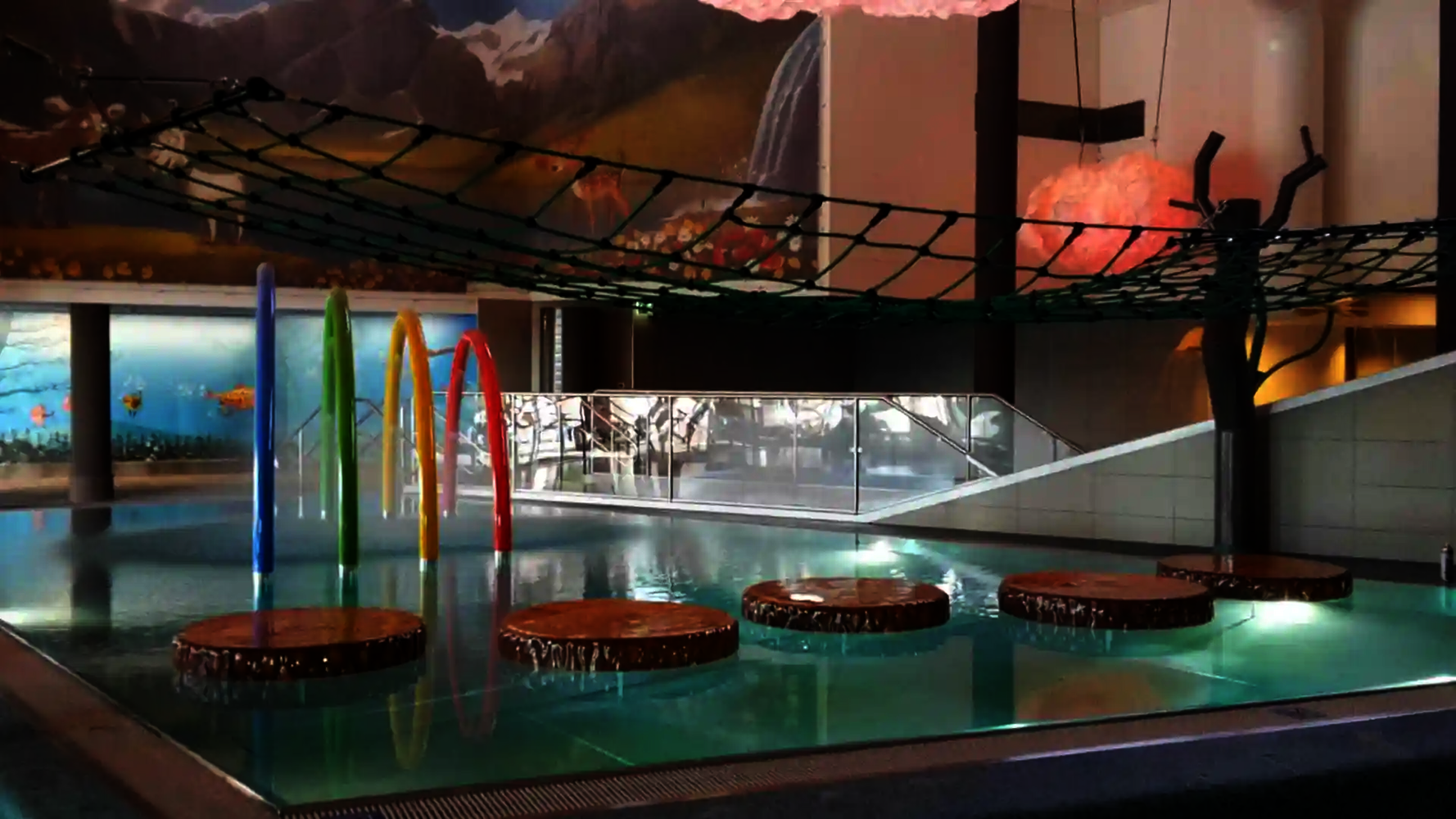

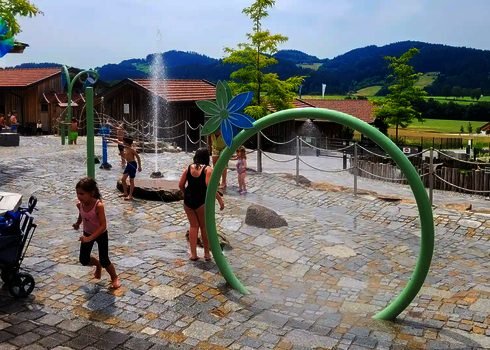

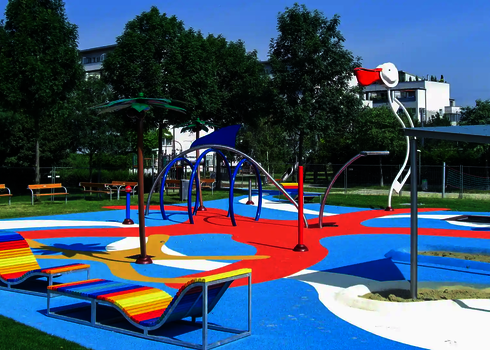

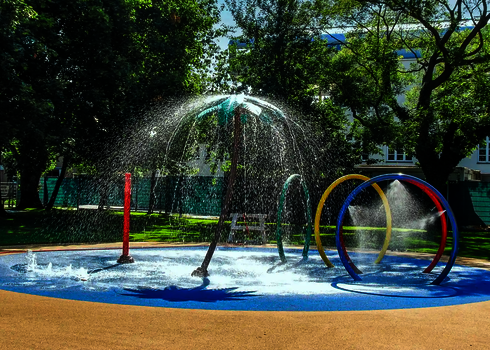

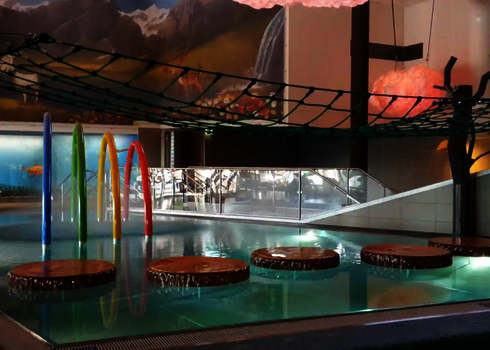

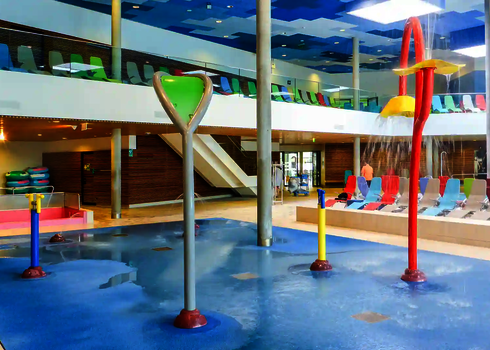

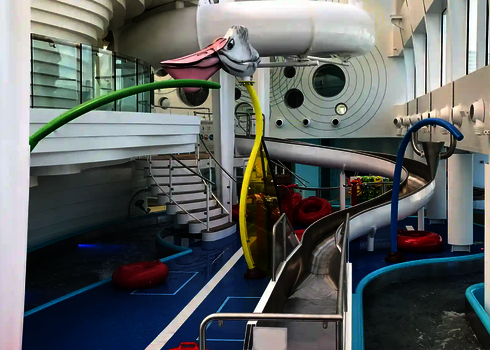

Whether in outdoor pools, indoor pools, water parks, amusement parks or cruise ships, the Wie-Spray elements ensure water fun wherever interactive game elements are in demand. A water playground equipped with various Wie-Spray elements is also available in public areas and offers pleasant cooling on hot days.
All elements are coordinated through weatherproof control cabinets and distribution panels. Water quantities can be regulated, intervals can be programmed and several devices can be controlled at the same time.

The materials used, such asStainless steelare particularly easy to maintain and corrosion-resistant. Regular visual inspections are usually sufficient to ensure long-term operation.

Many elements are designed to save space and offer varied play options even if the areas are small. We are gladto offer you our detailed consultingin this field.

The water consumption is optimized by integrated flow regulators and solenoid valves. In this manner, the operation remains resource-saving without restricting the fun of the game. The water consumption varies from product to product.

The installation is either level or stable. Depending on the system (A-Flex or B-Fix), the elements are flexibly replaceable or permanently fixed.
A-Flex is based on bottom sleeves into which the water feature elements are inserted. This option makes it possible to quickly exchange or redesign the playing surface which is ideal for seasonal adjustments or changing subject areas.
The B-Fix system ensures that the water feature elements are permanently anchored. This solution offers maximum stability level and is particularly suitable for systems operating without changes over the long term.
List of reference projects
Discover all our references in your area and around the world now!


We like to help you!
We will be happy to advise you on your waterslide project and prepare an individual offer. The maintenance work is also part of our service.
