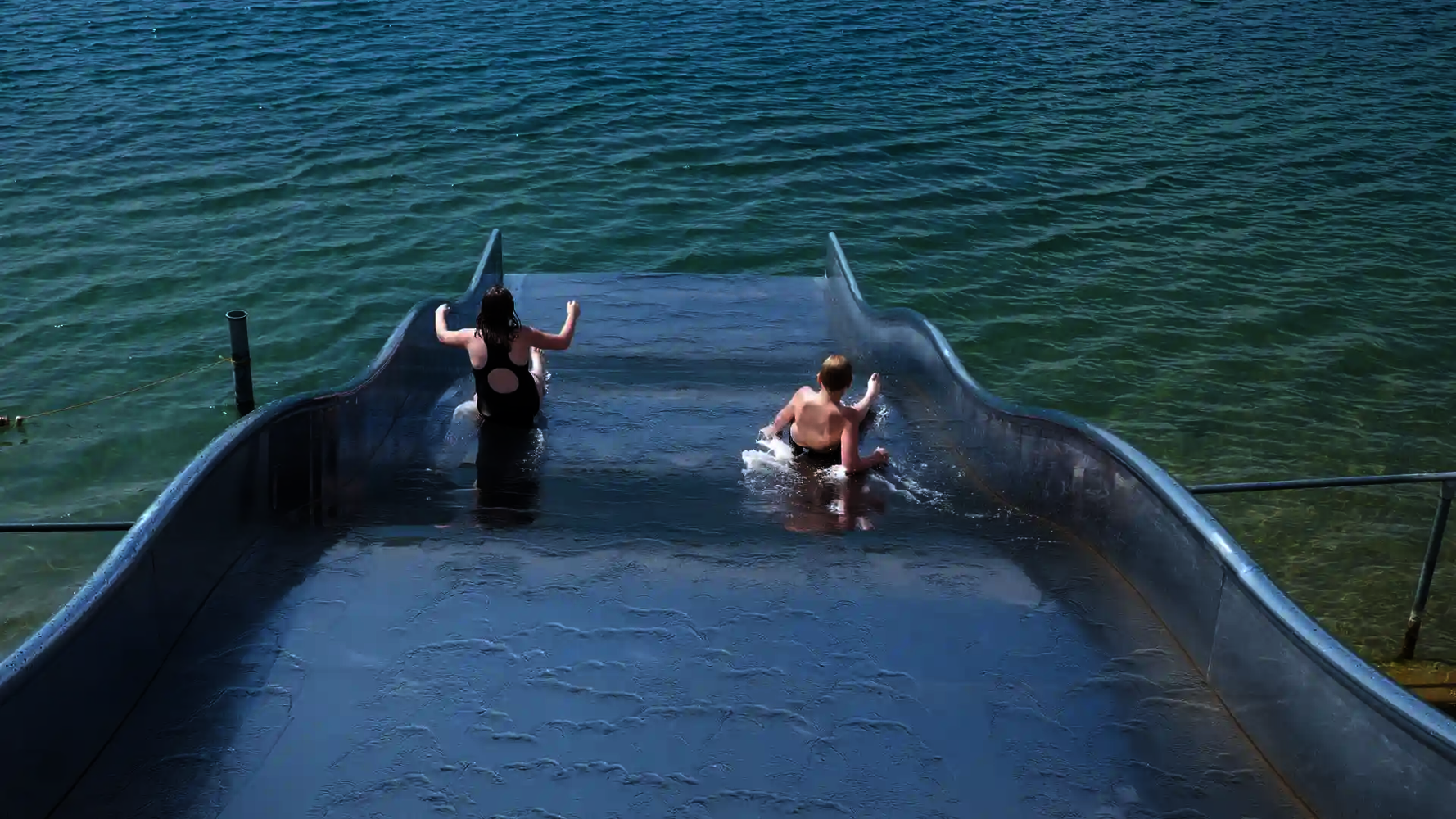

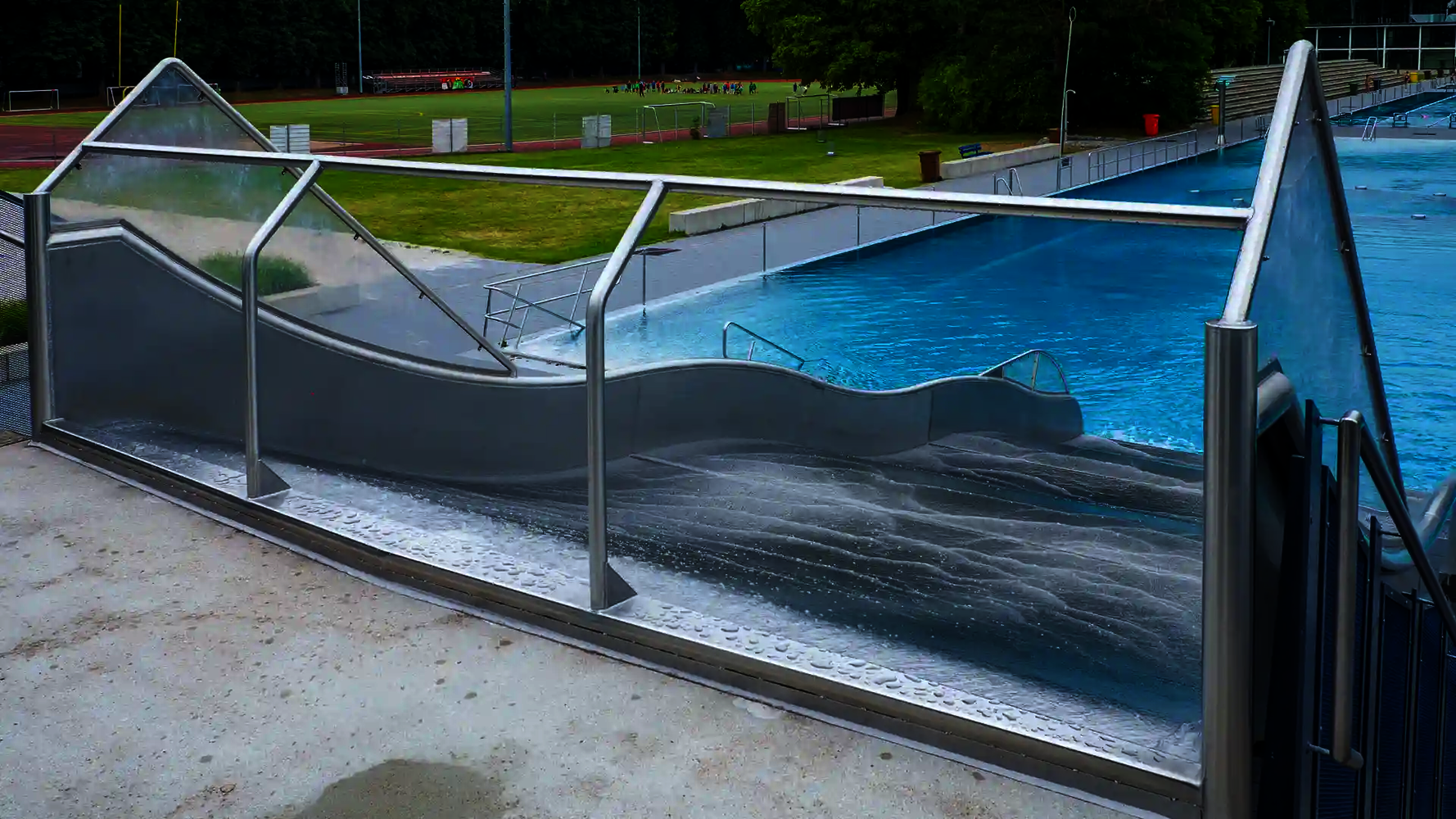

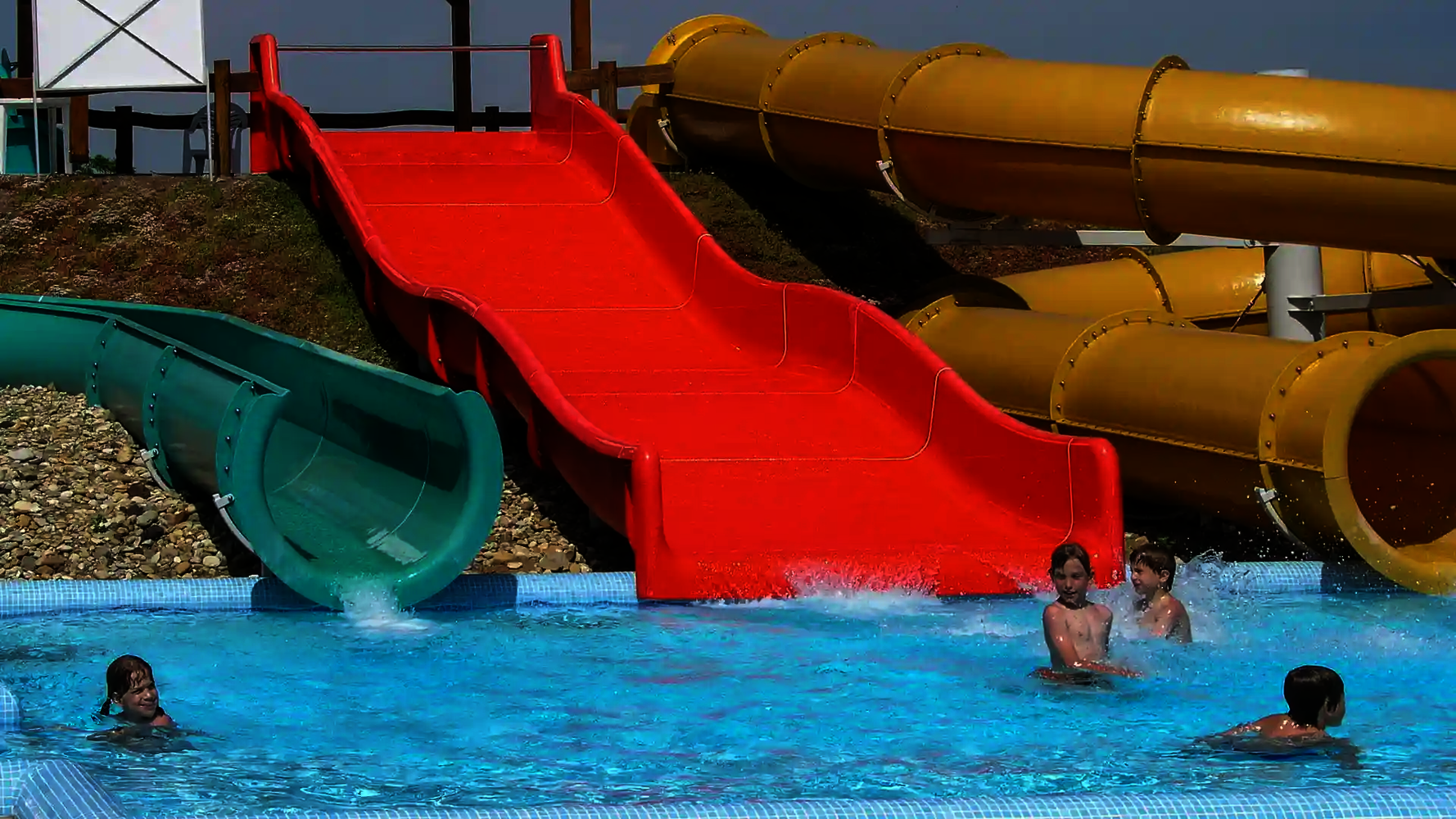

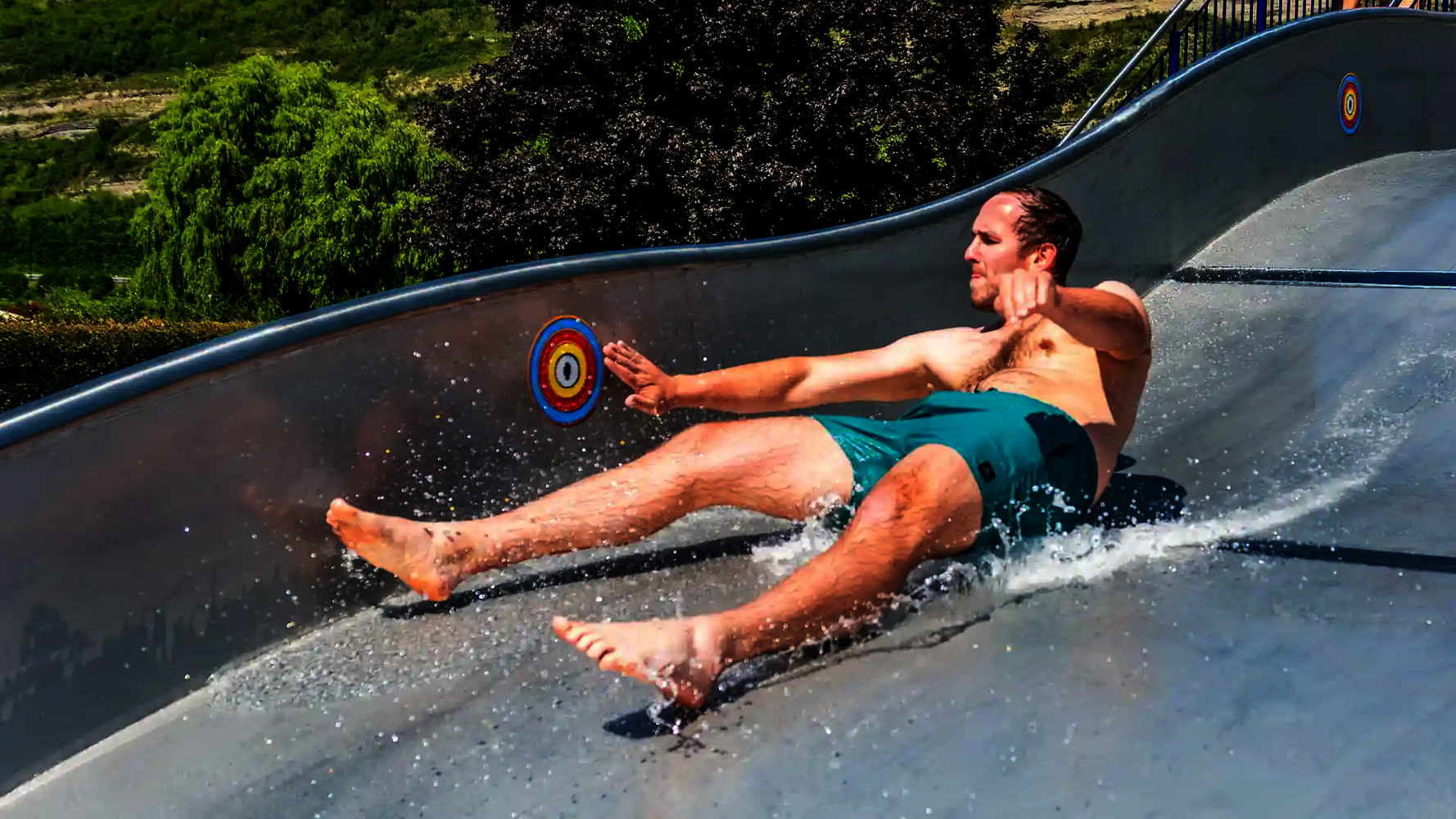

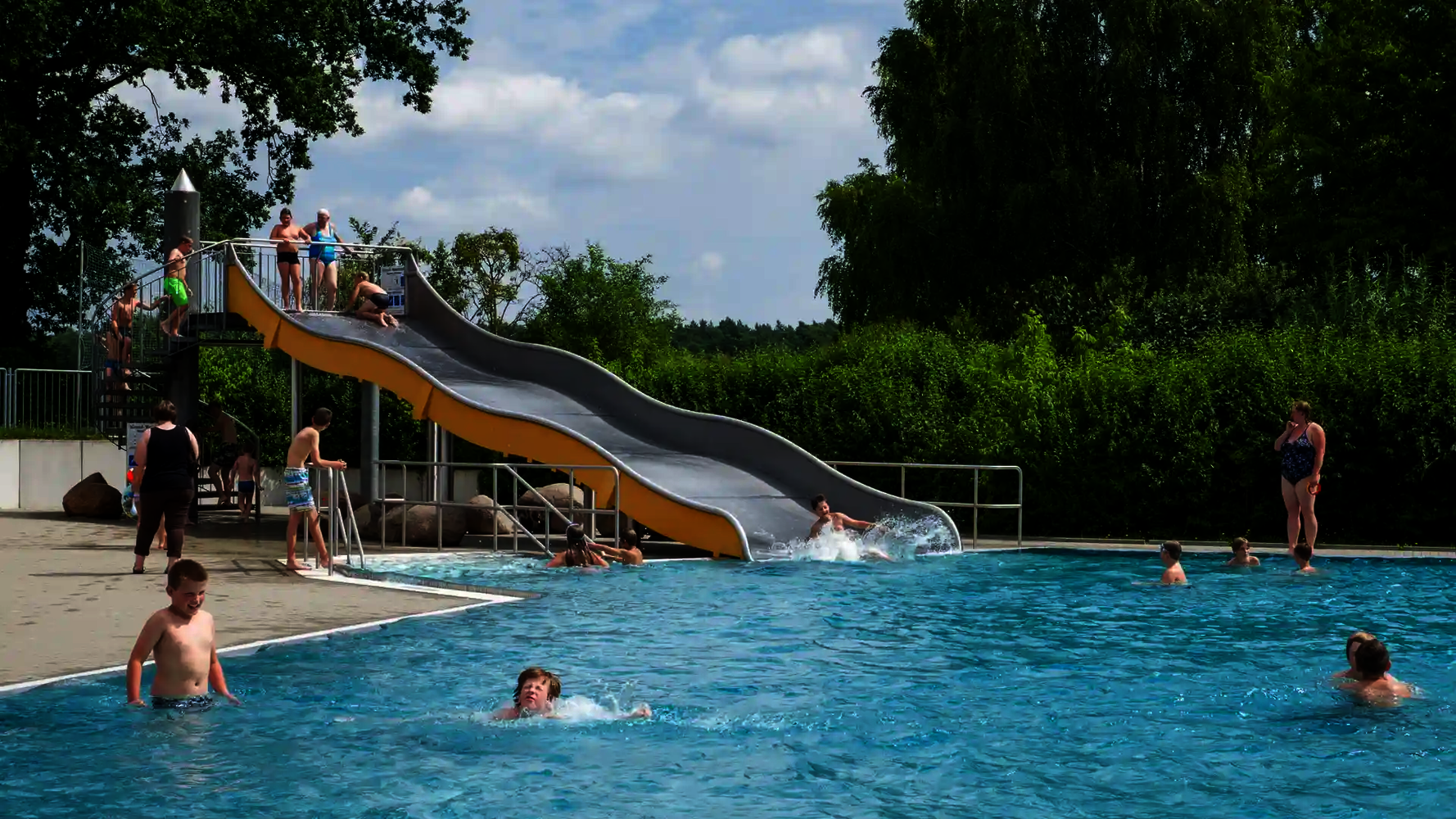

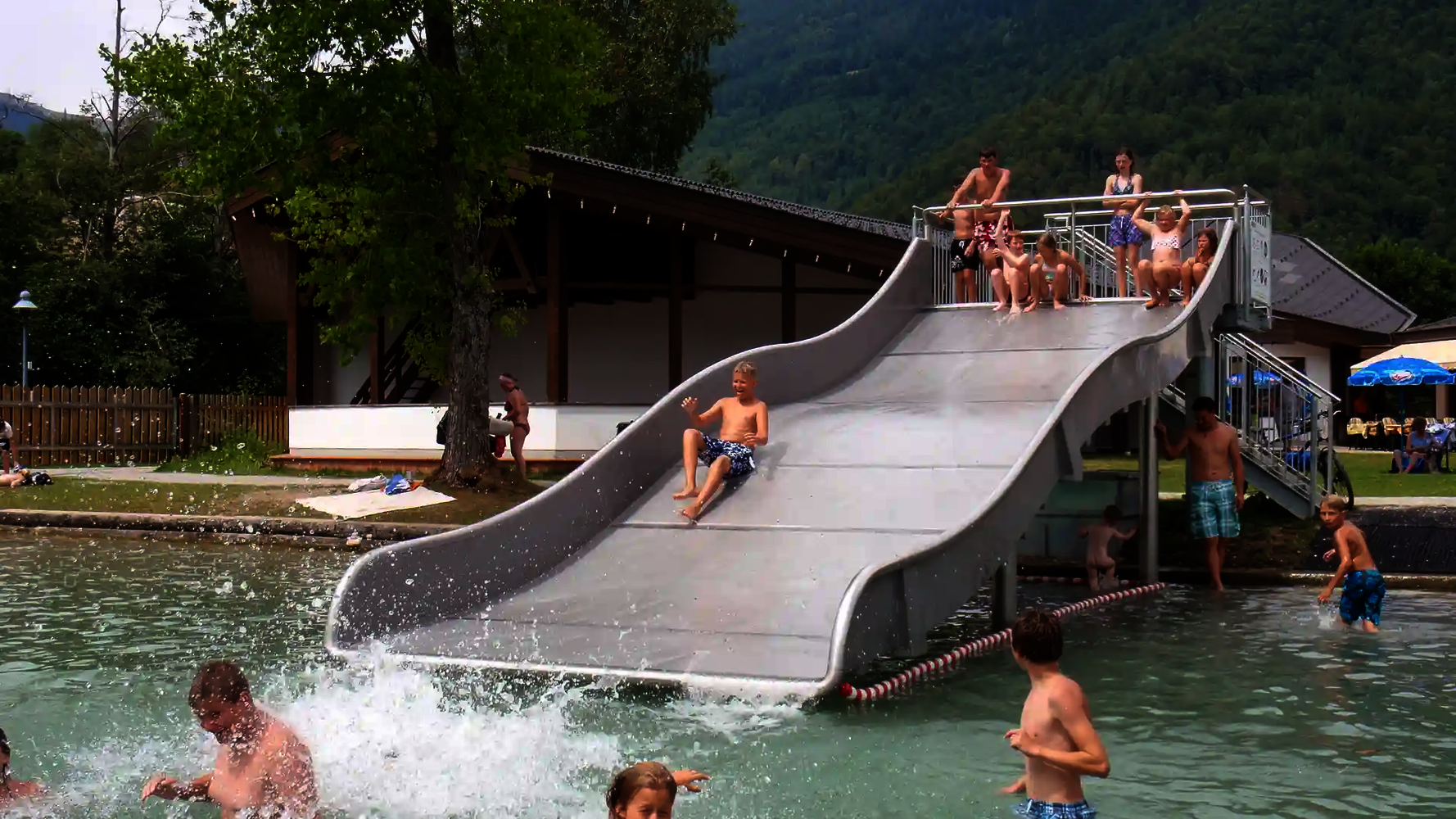

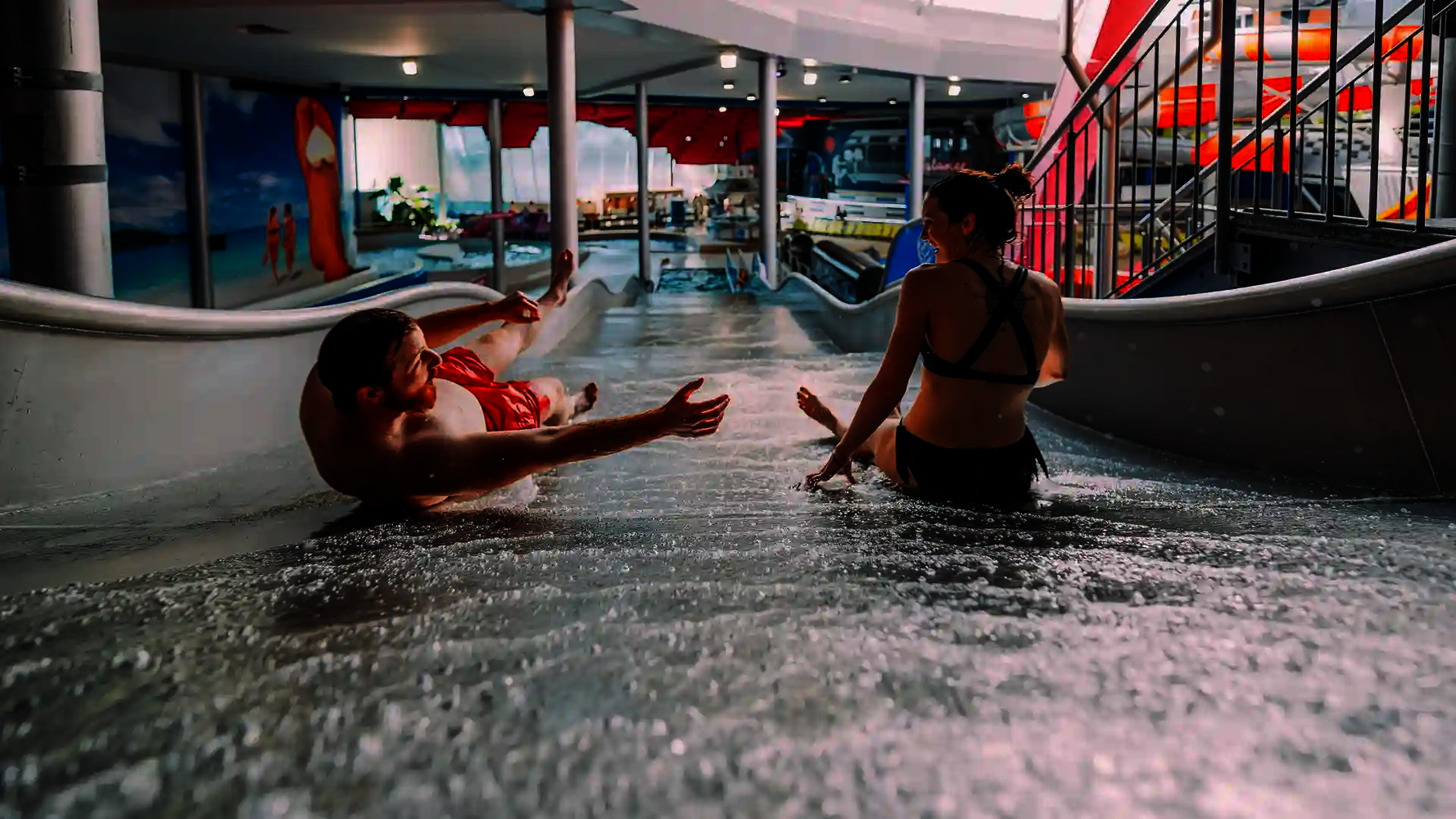

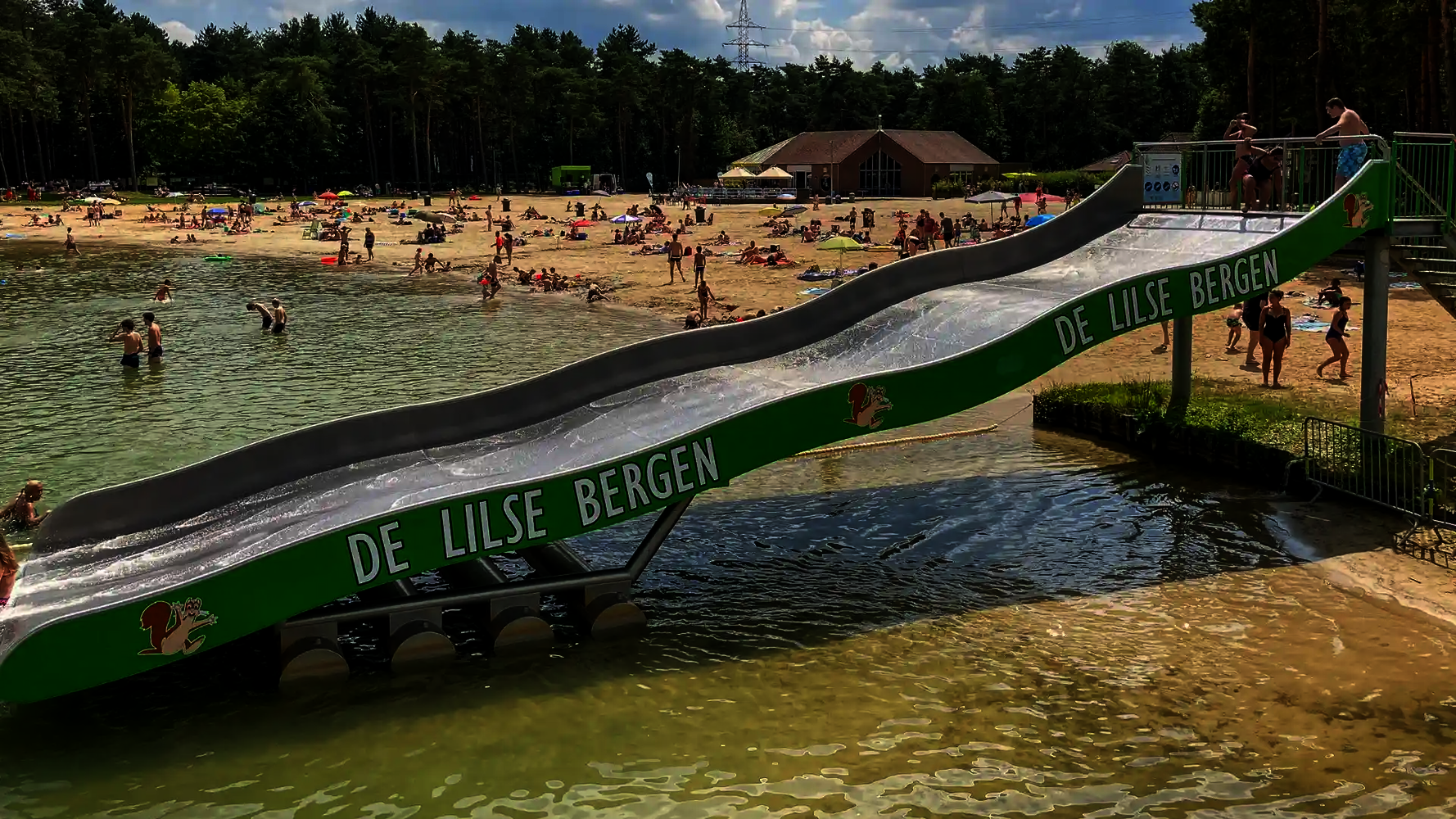

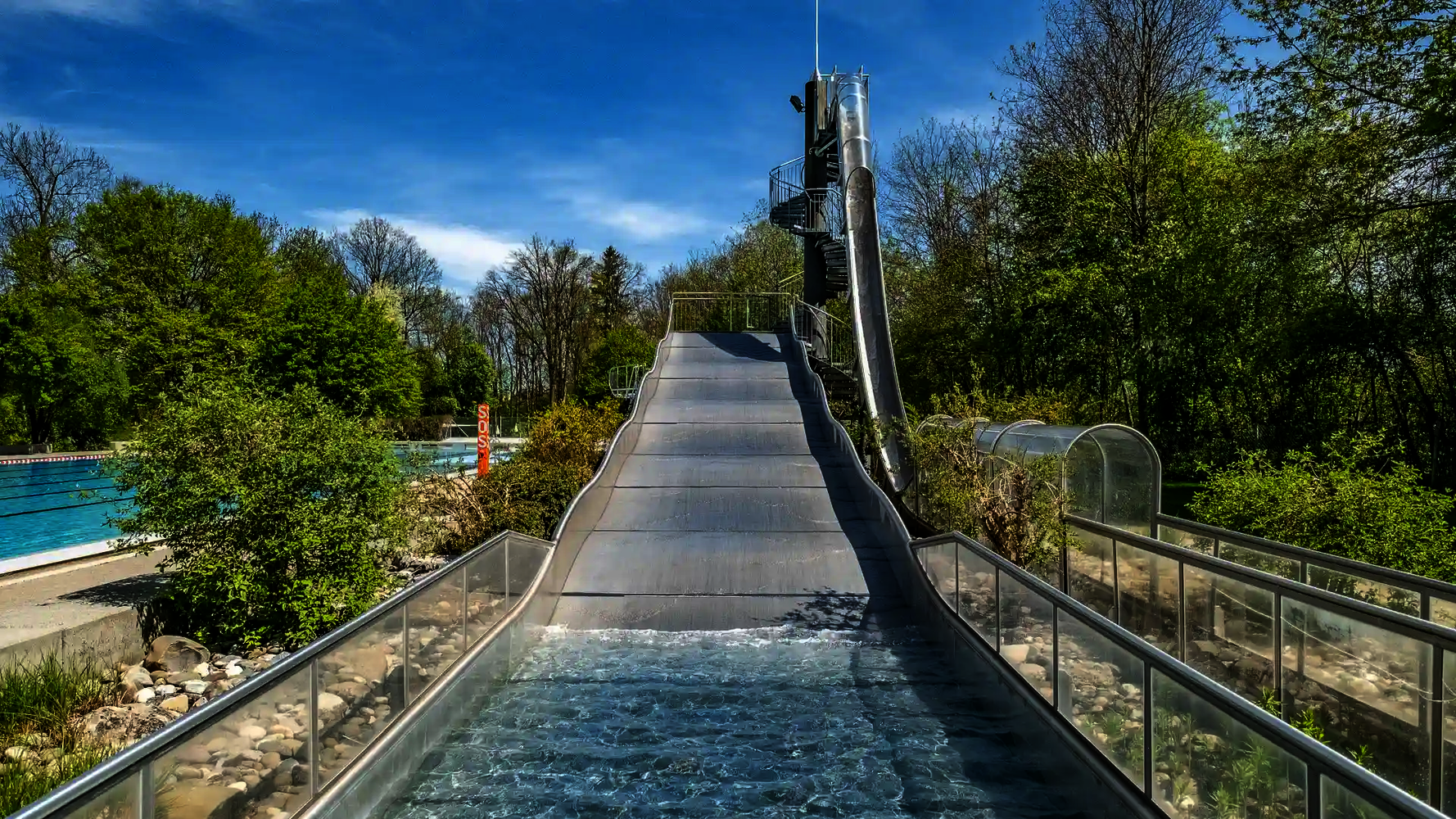

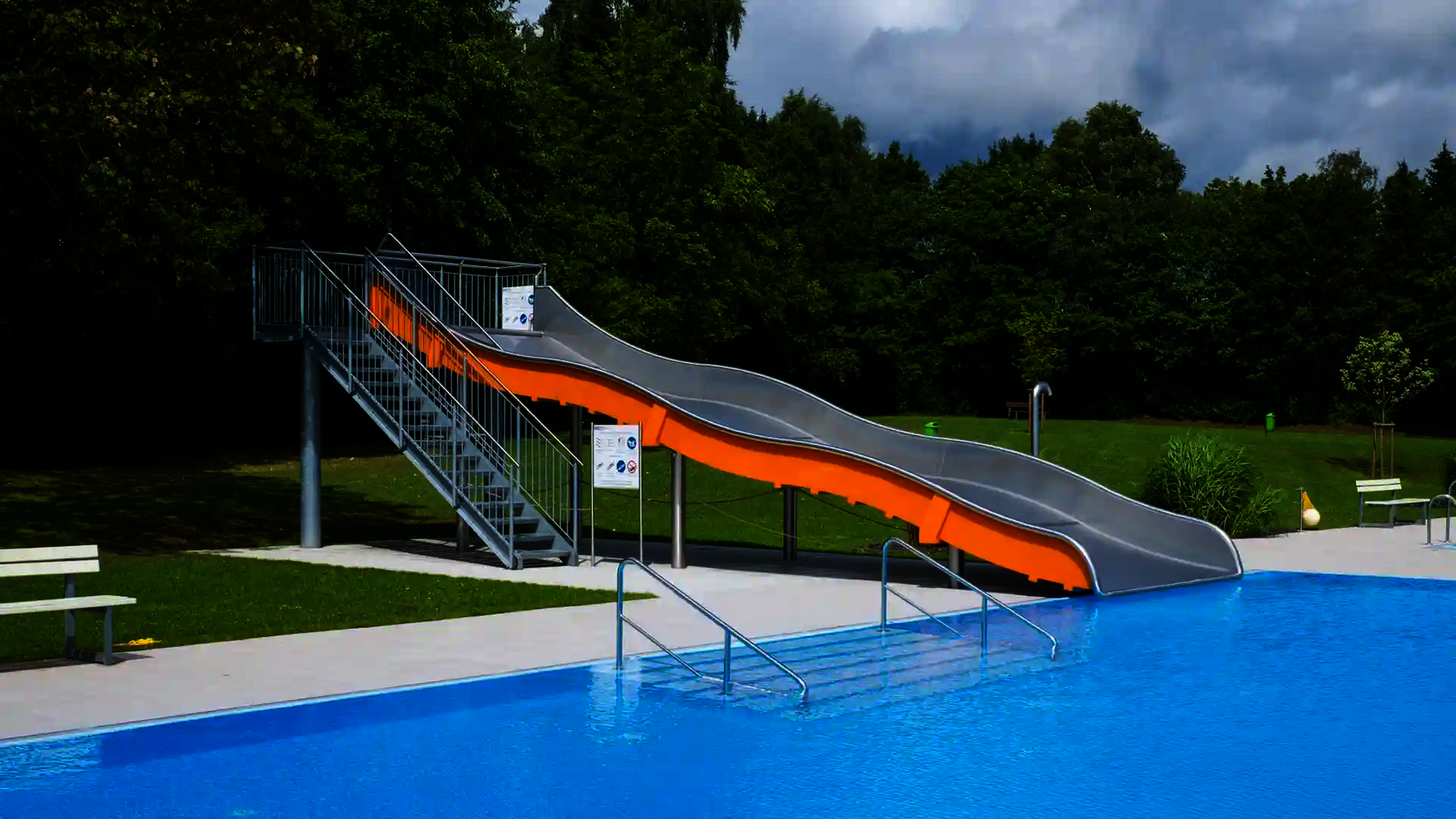

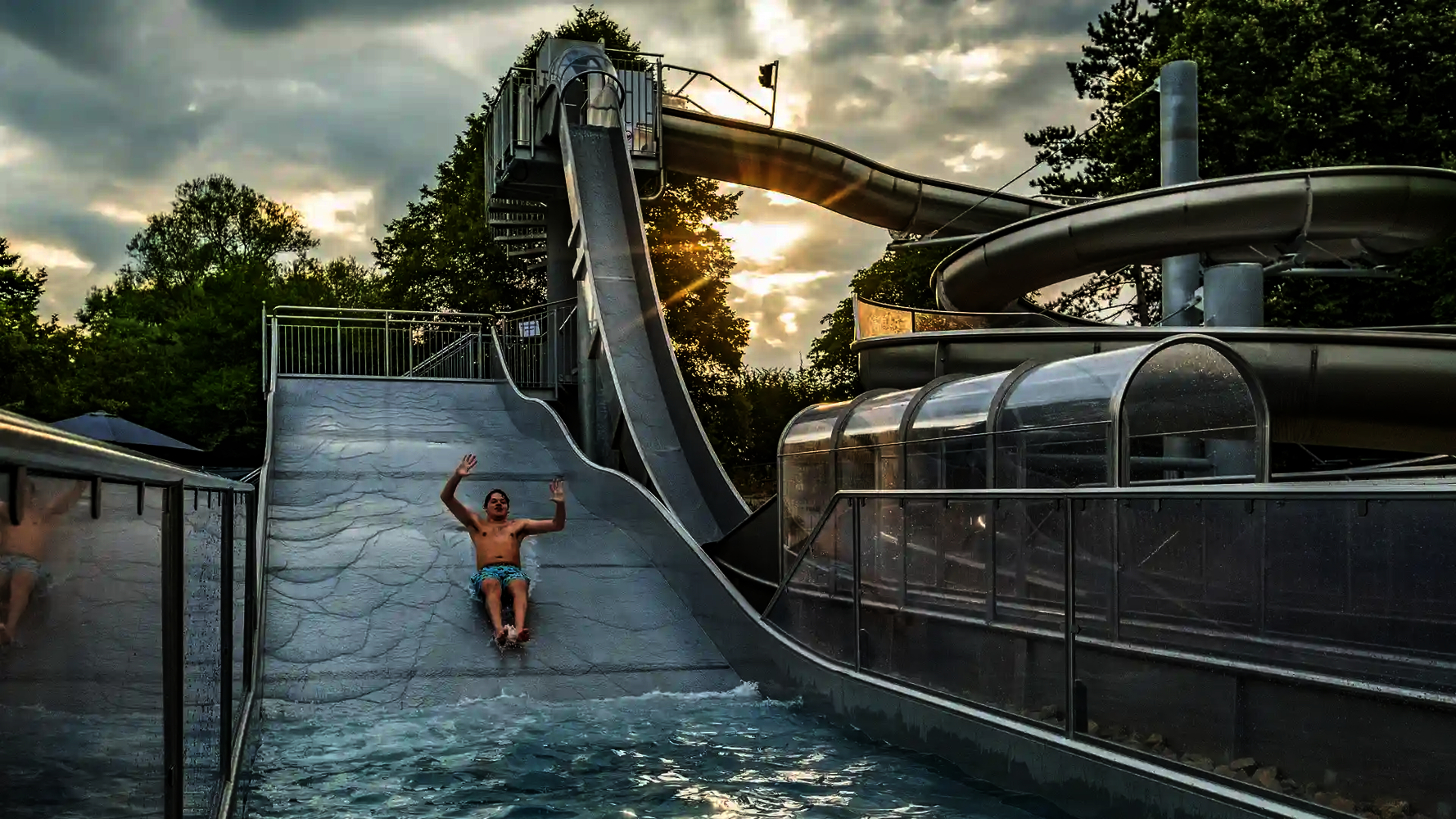

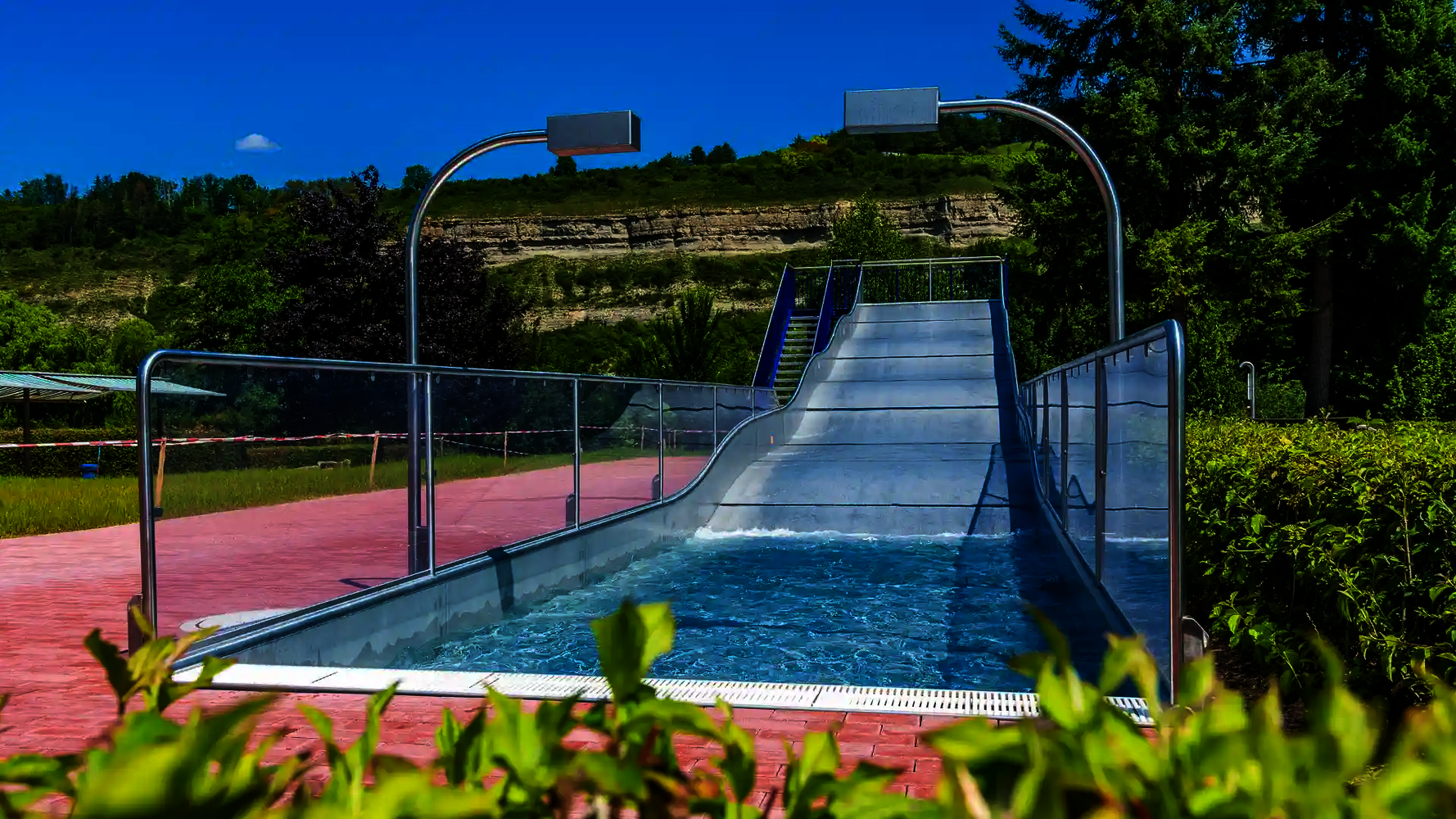

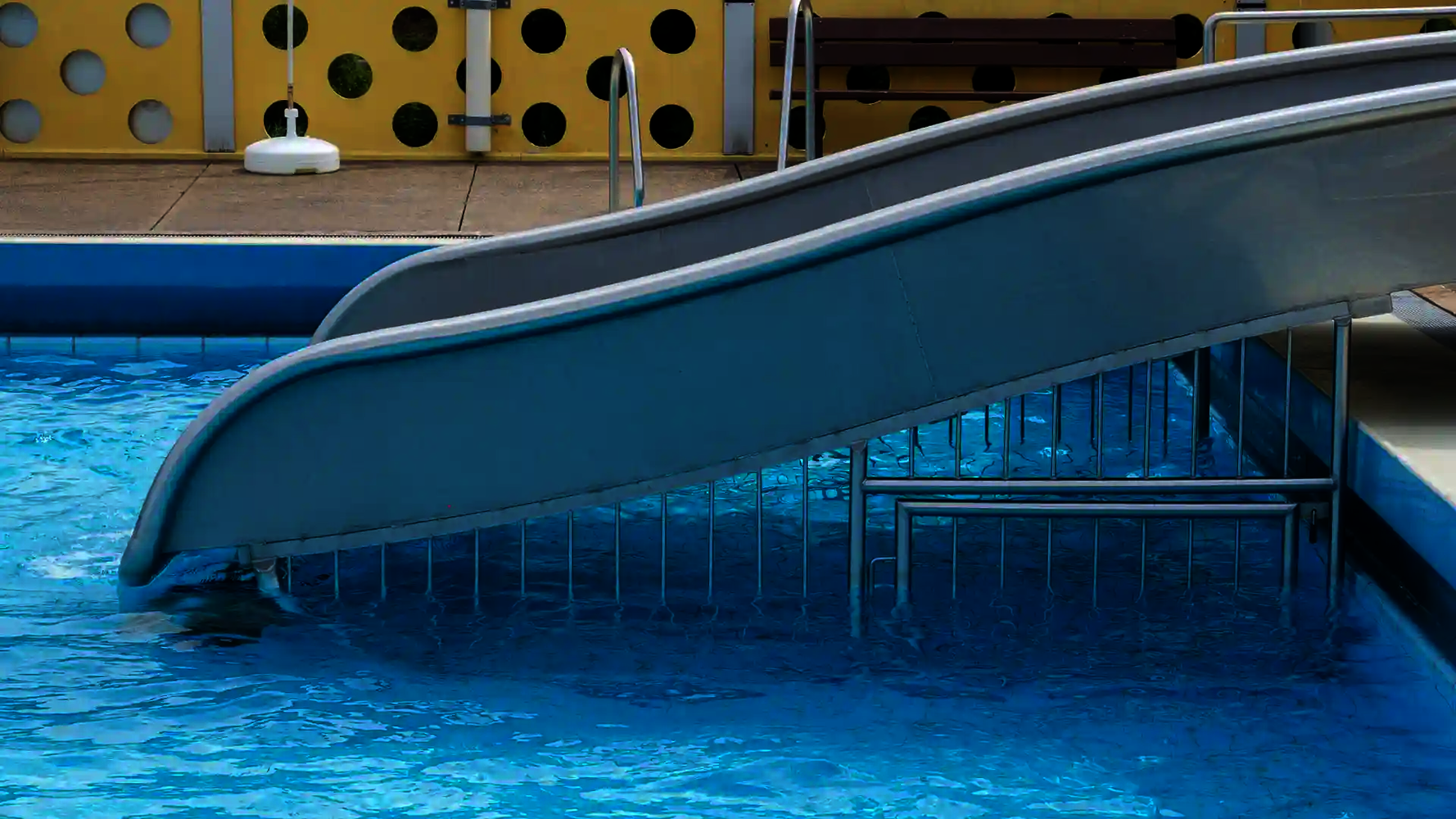

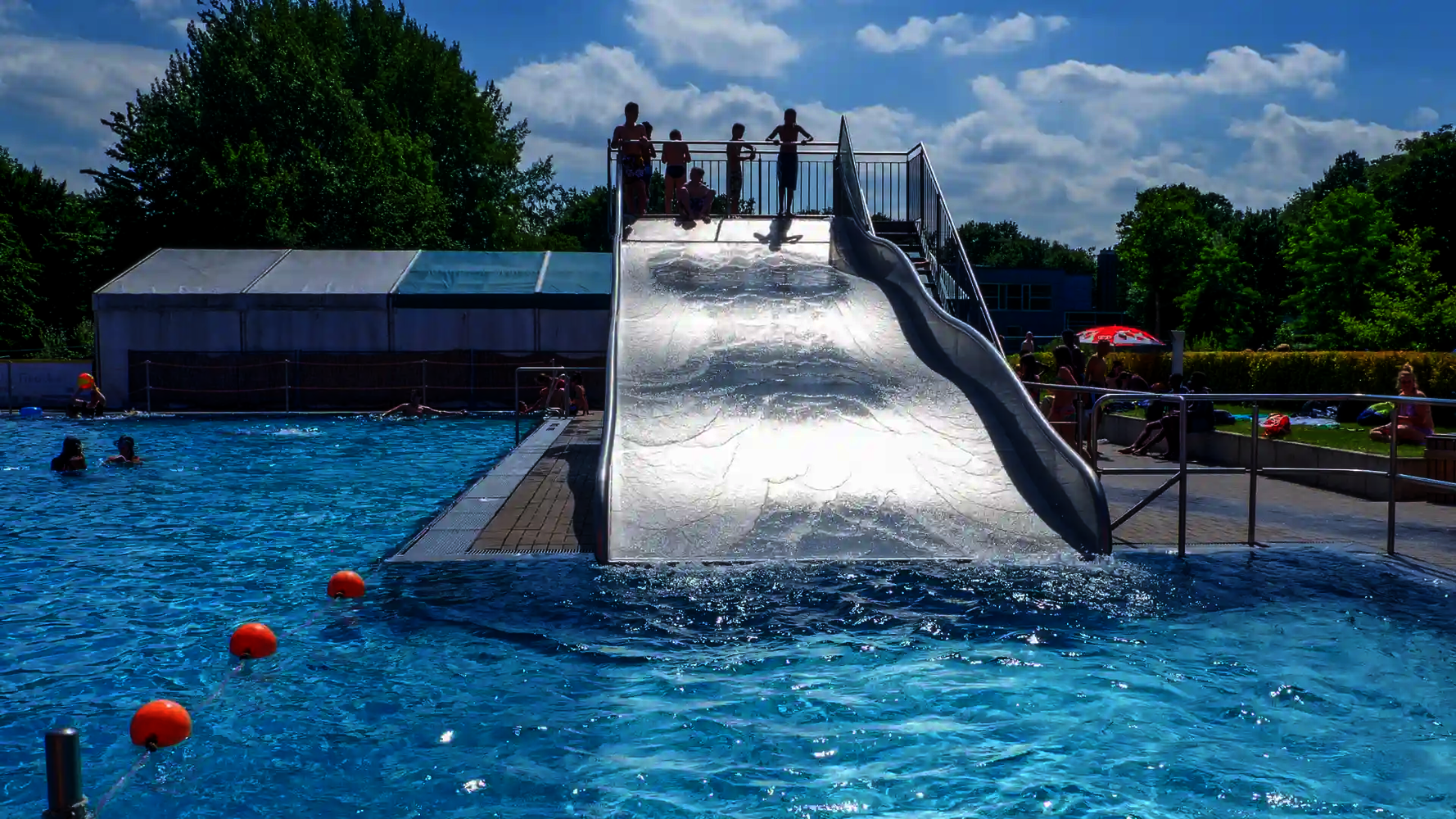

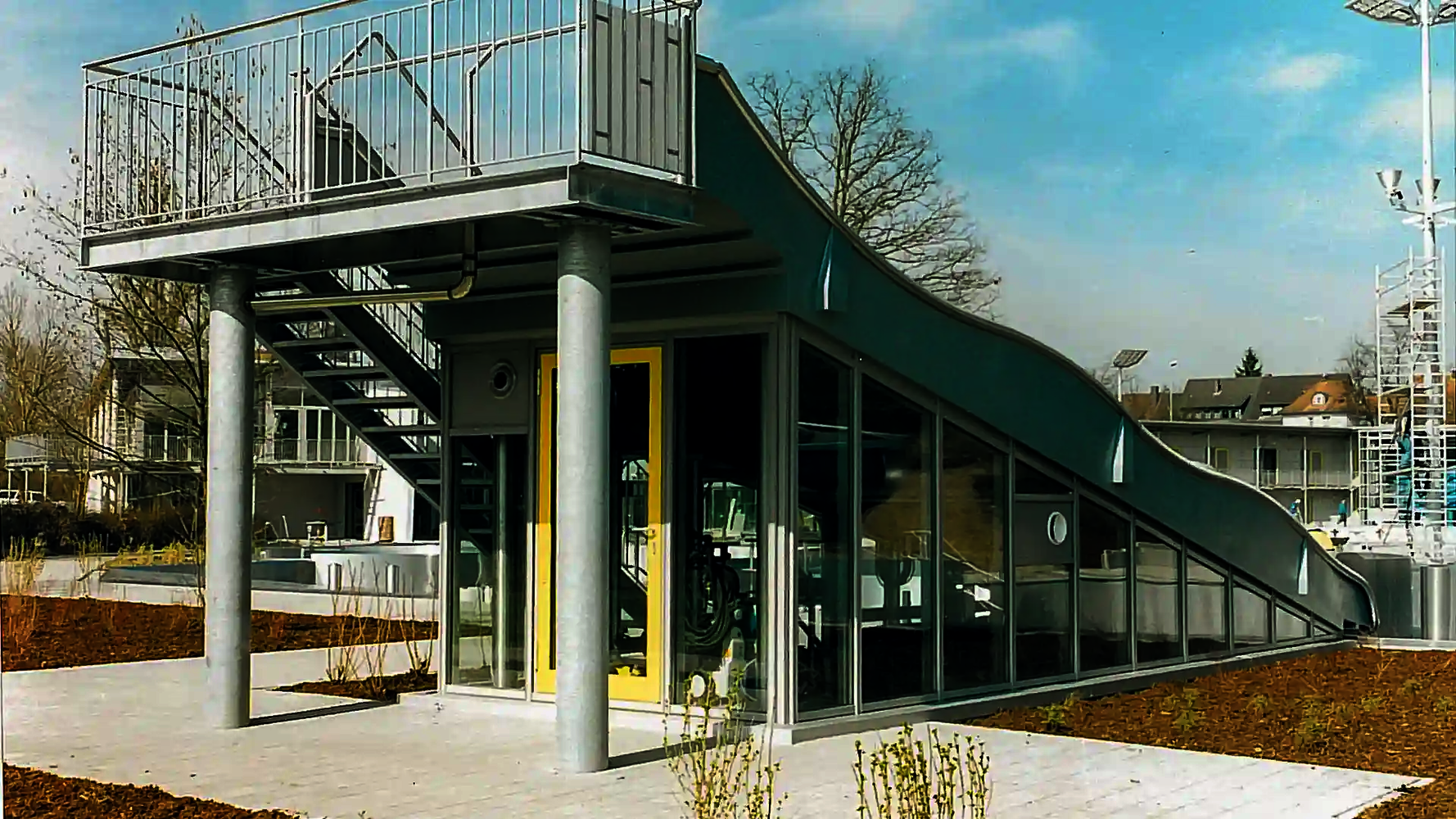

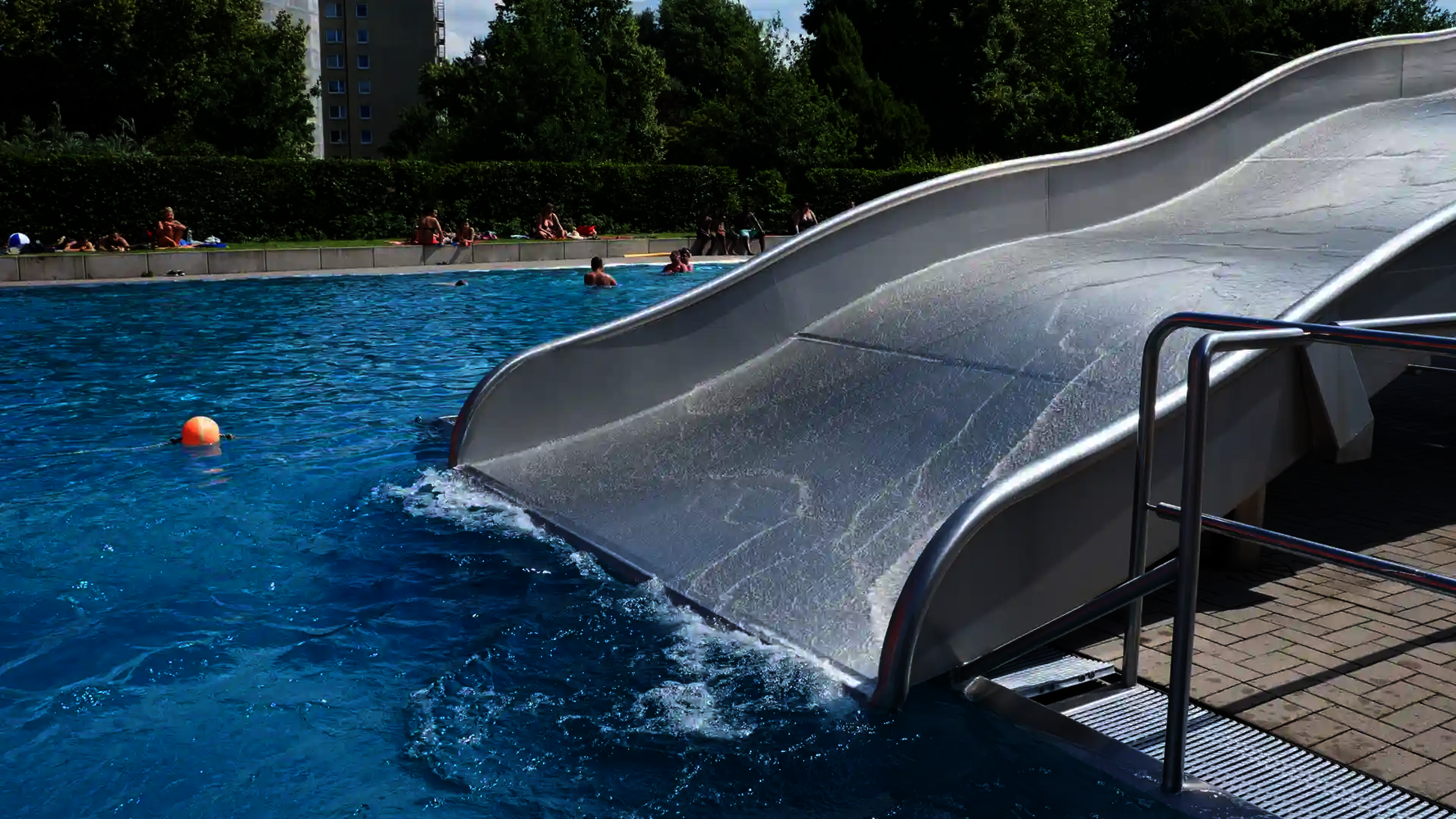

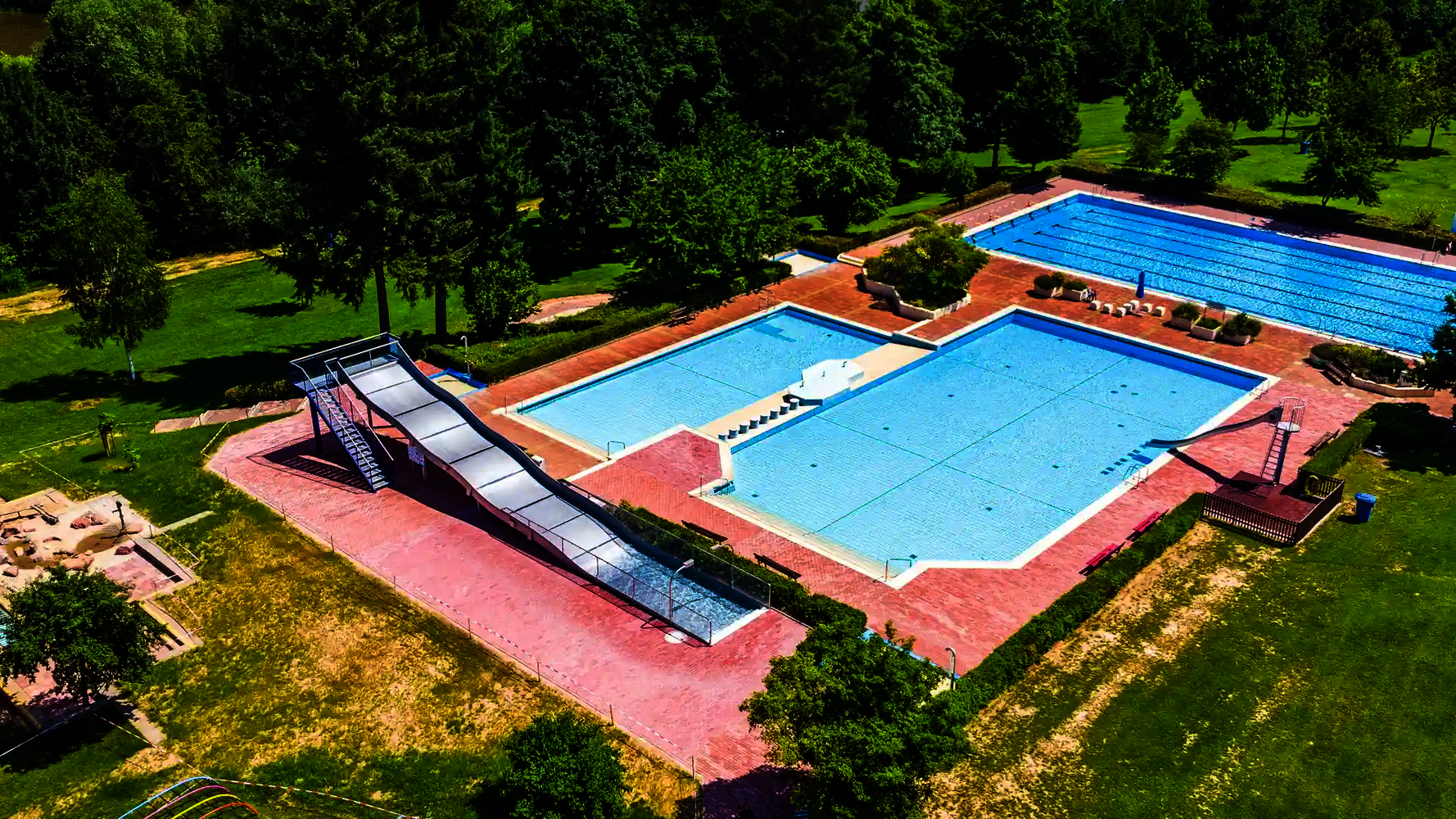

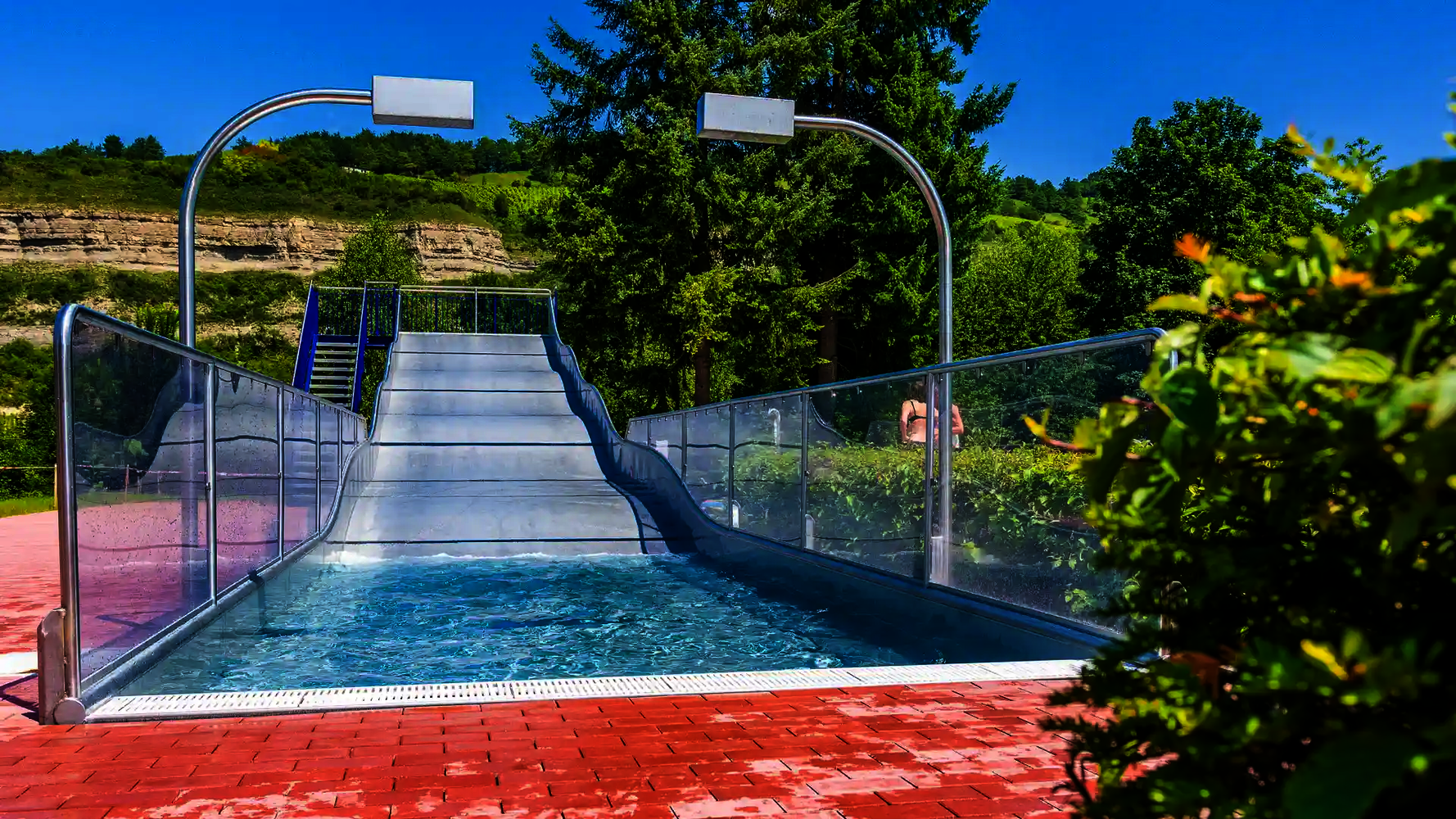

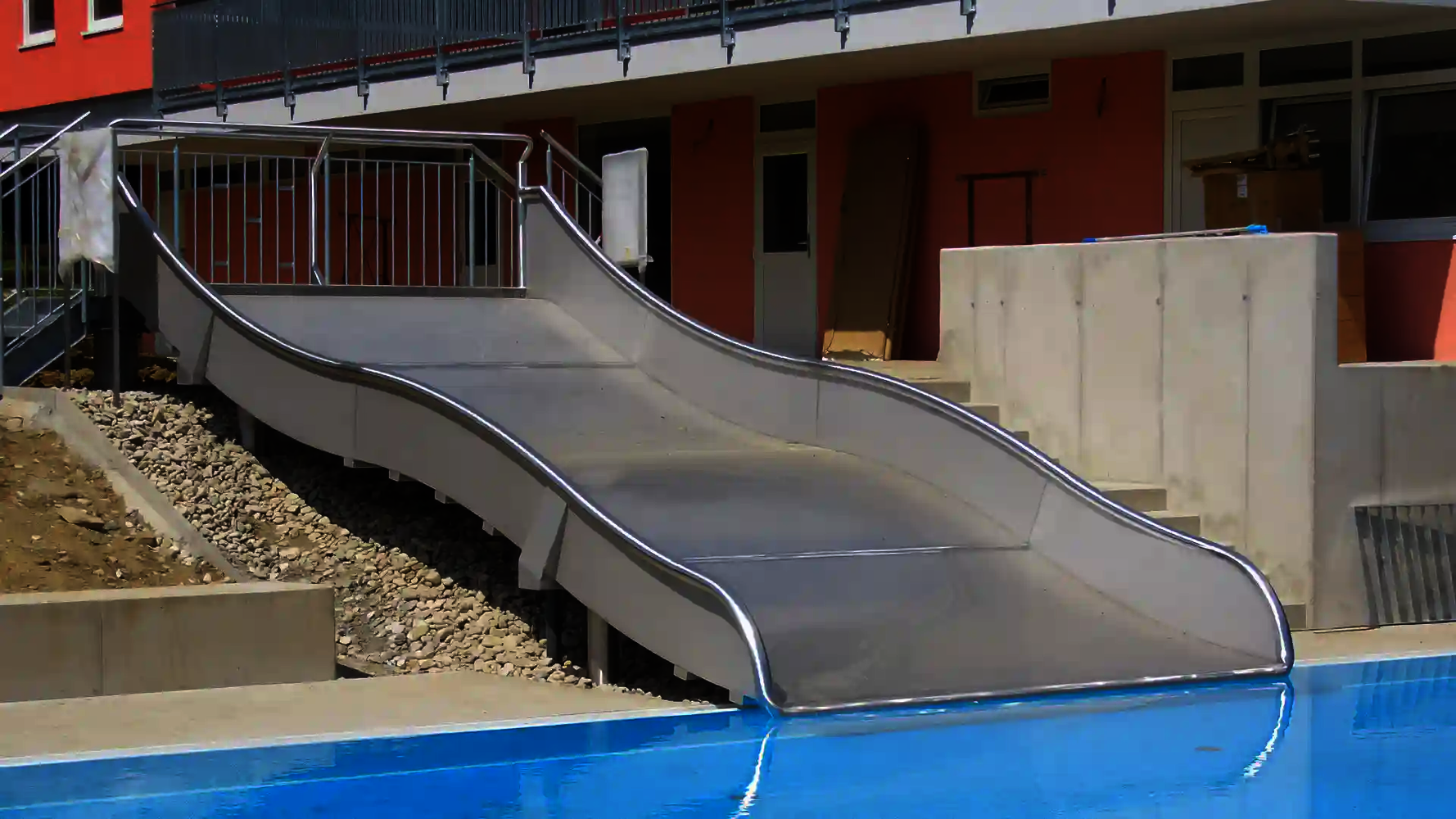

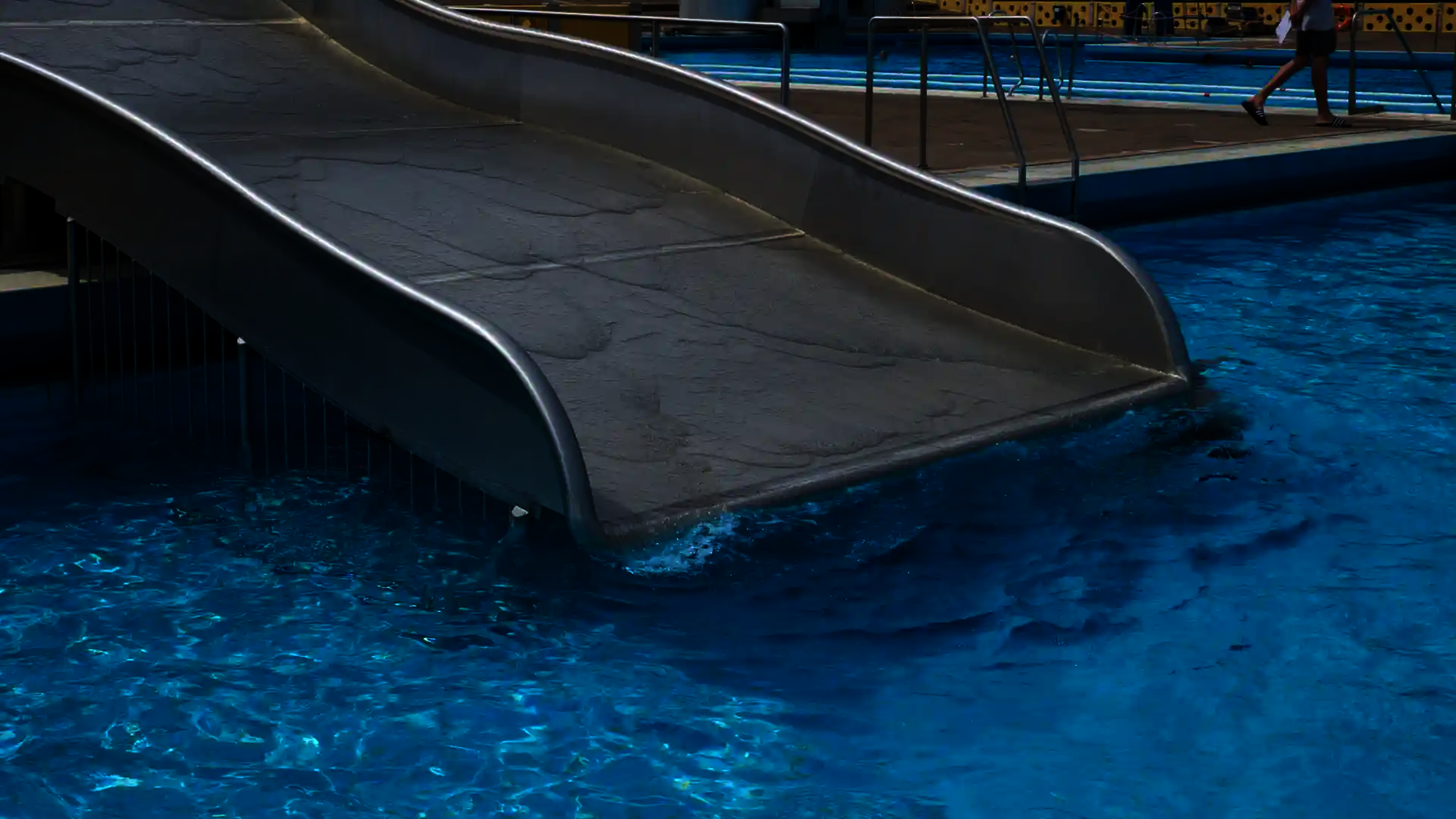

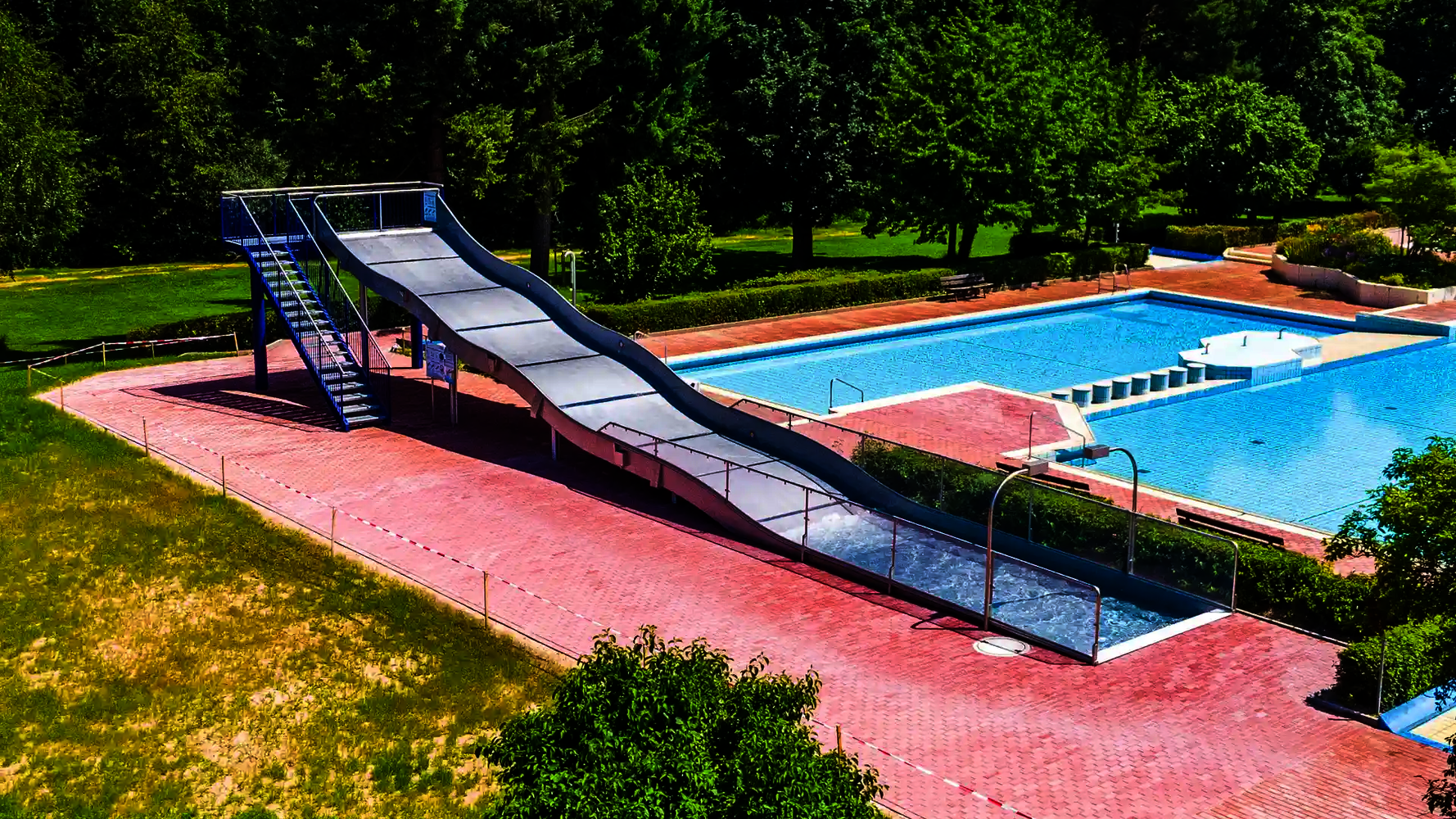

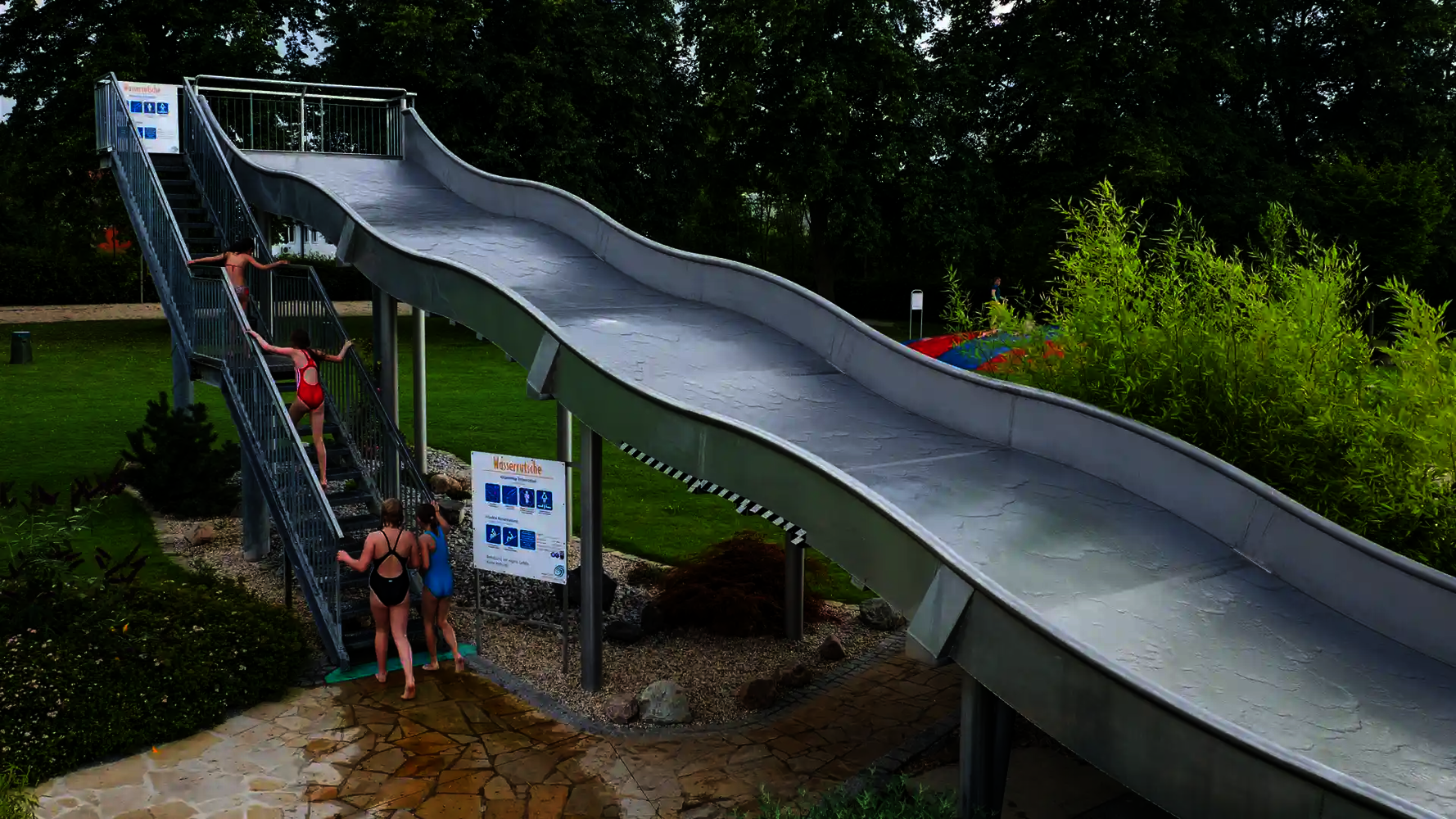

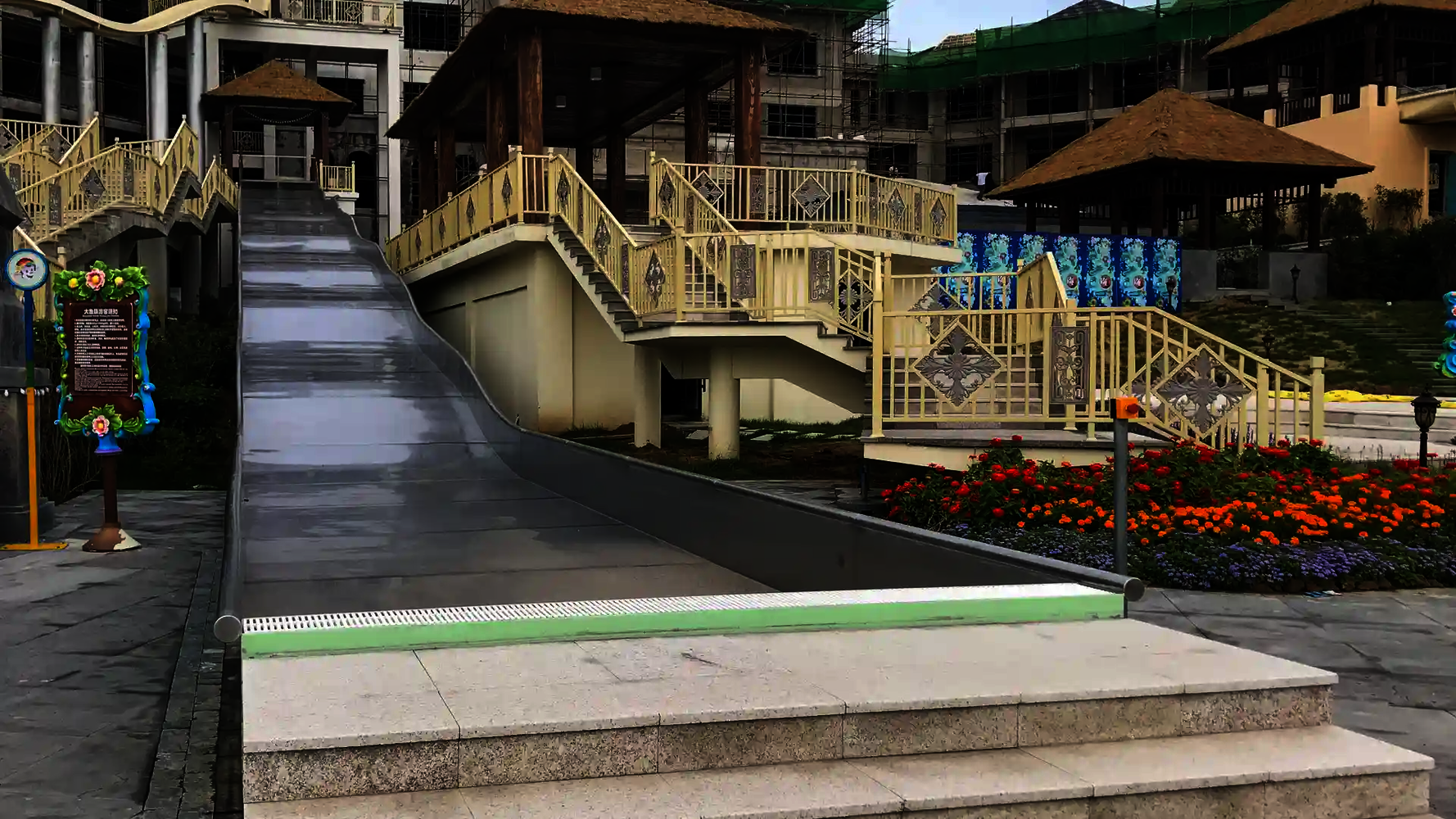

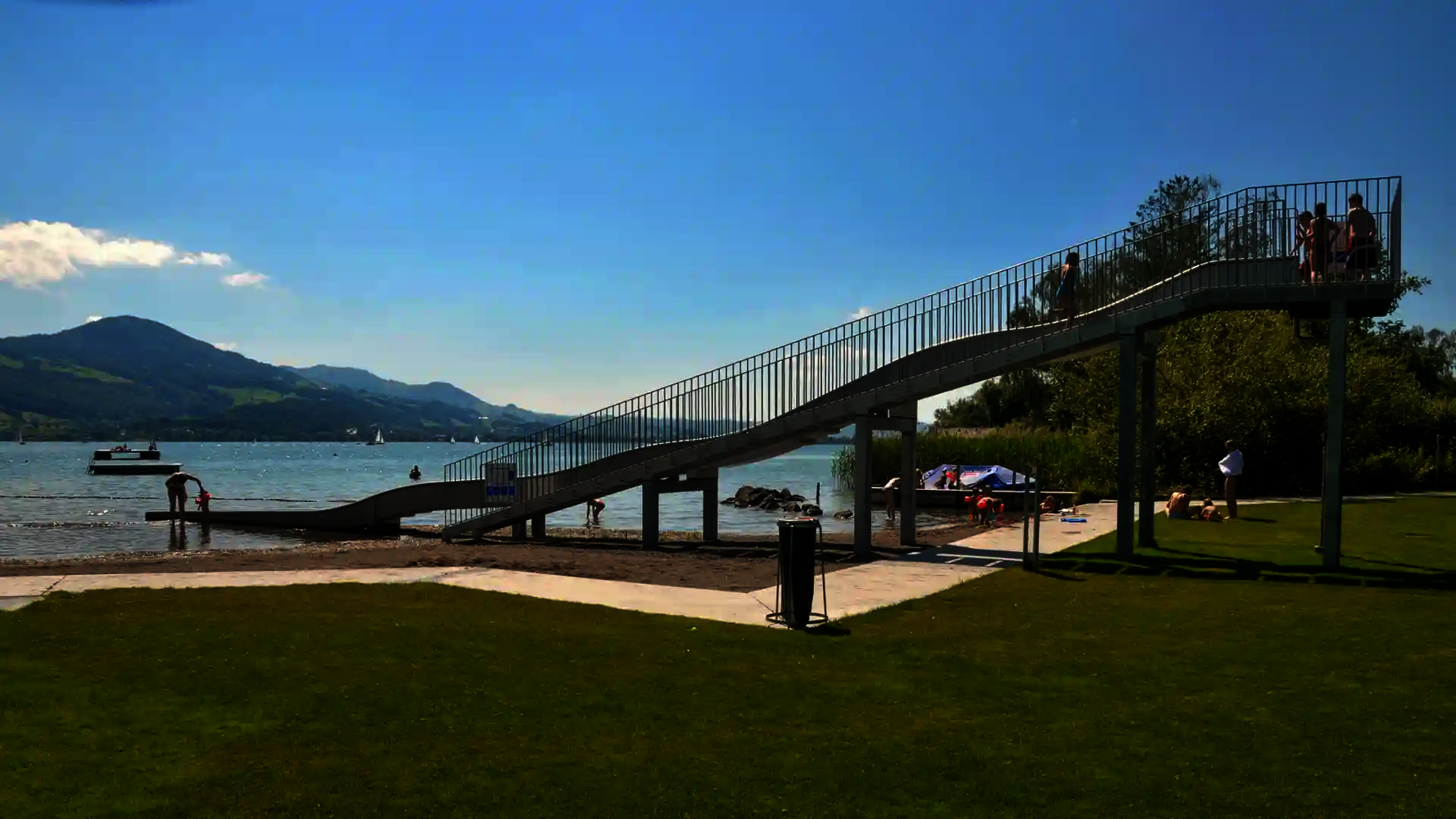

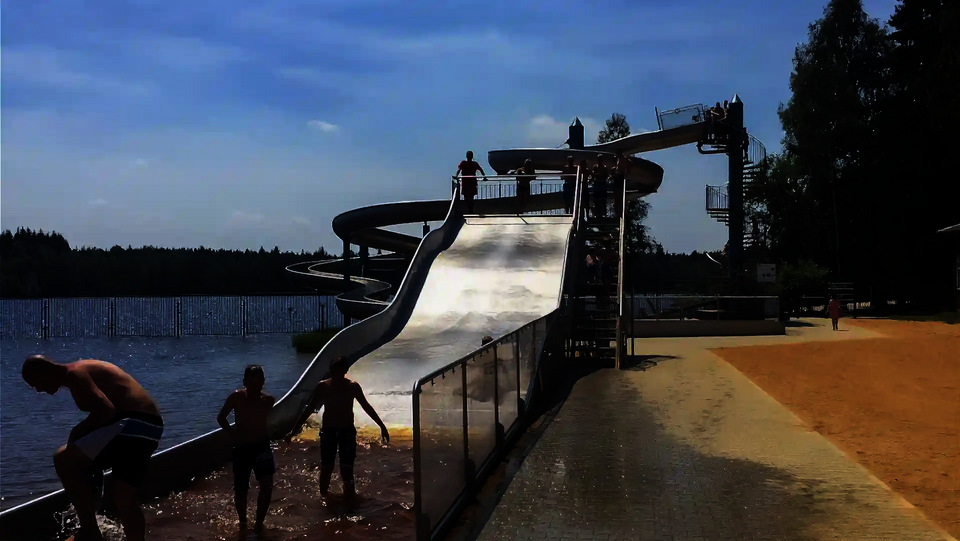

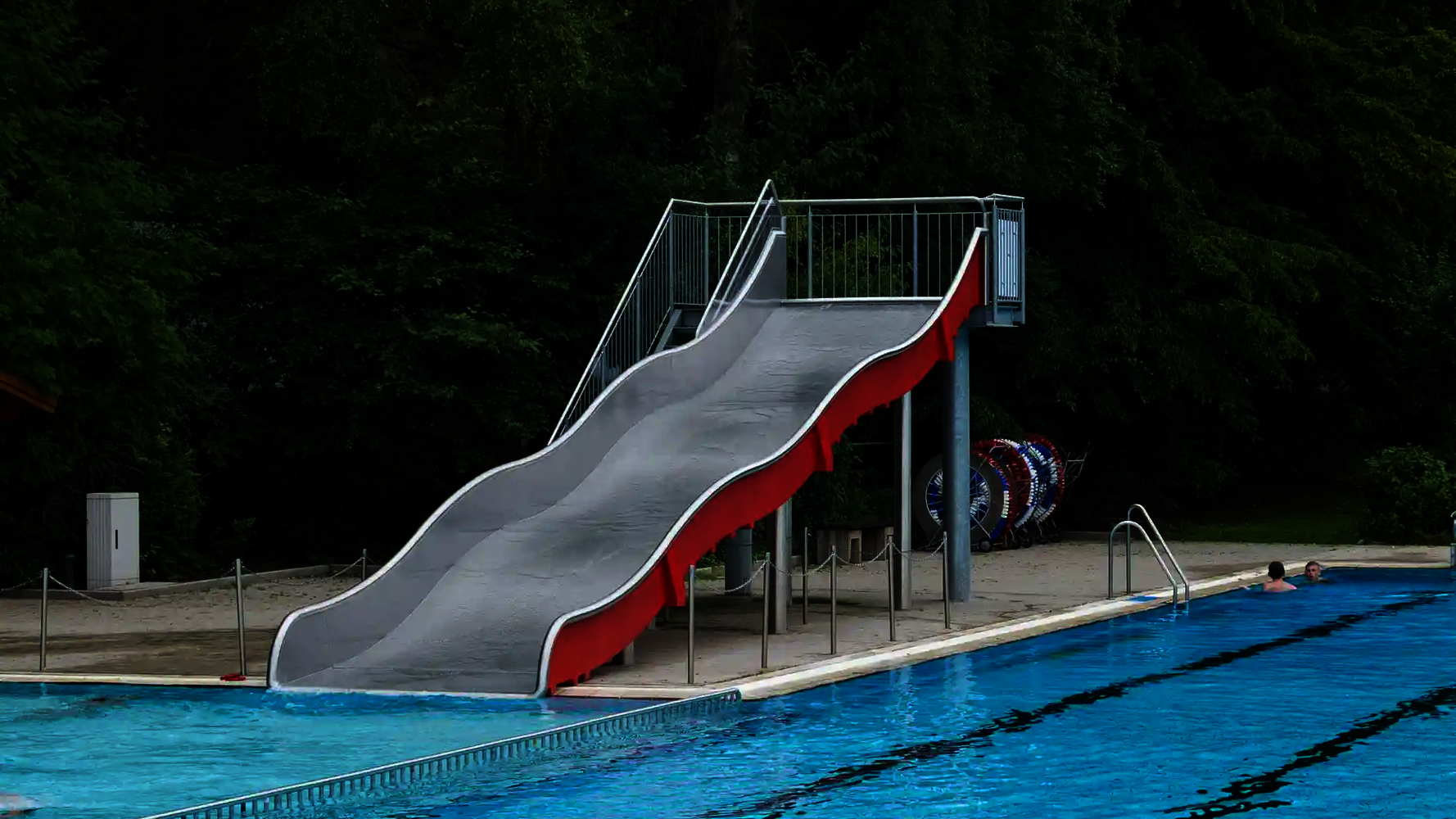

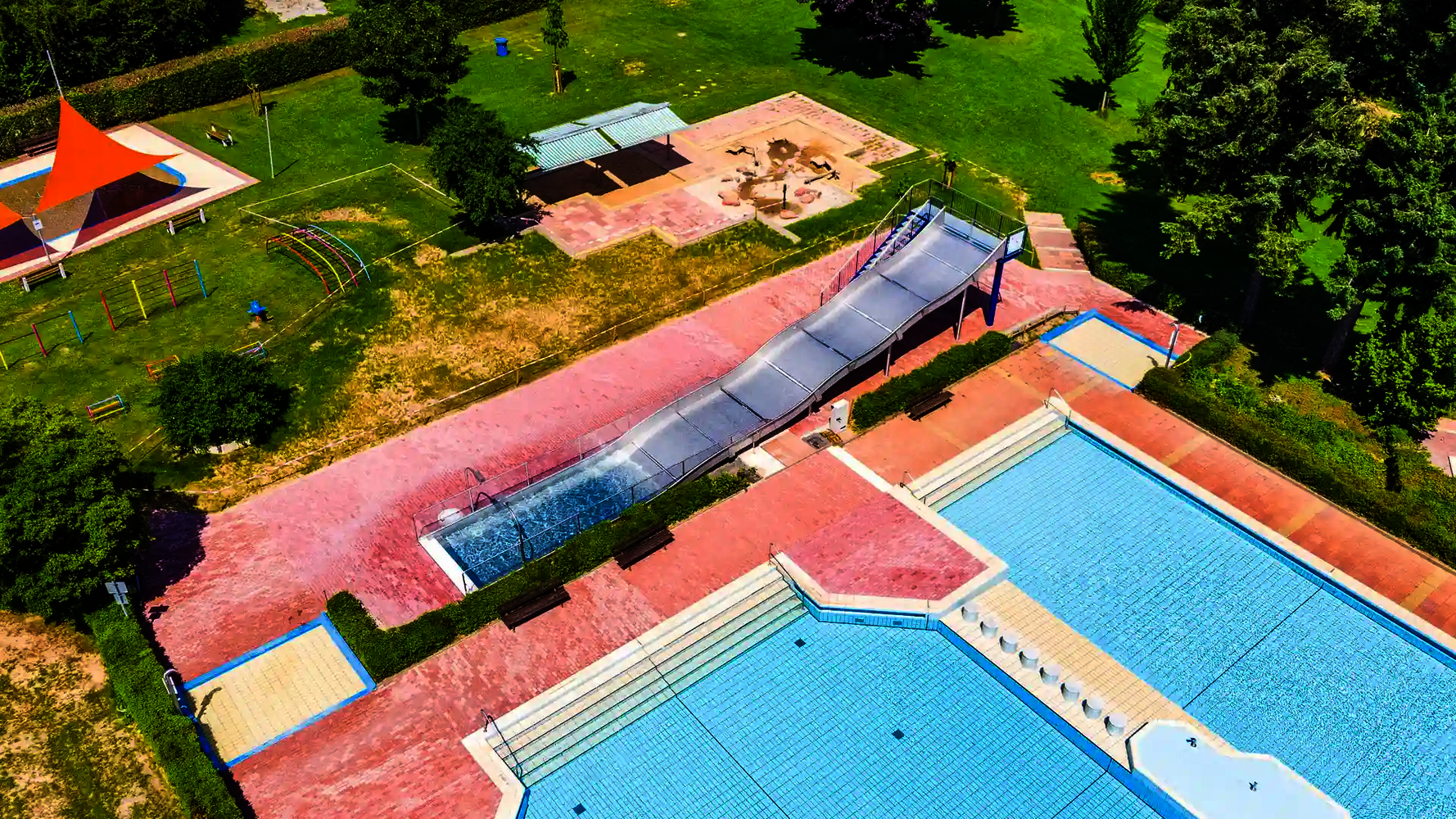

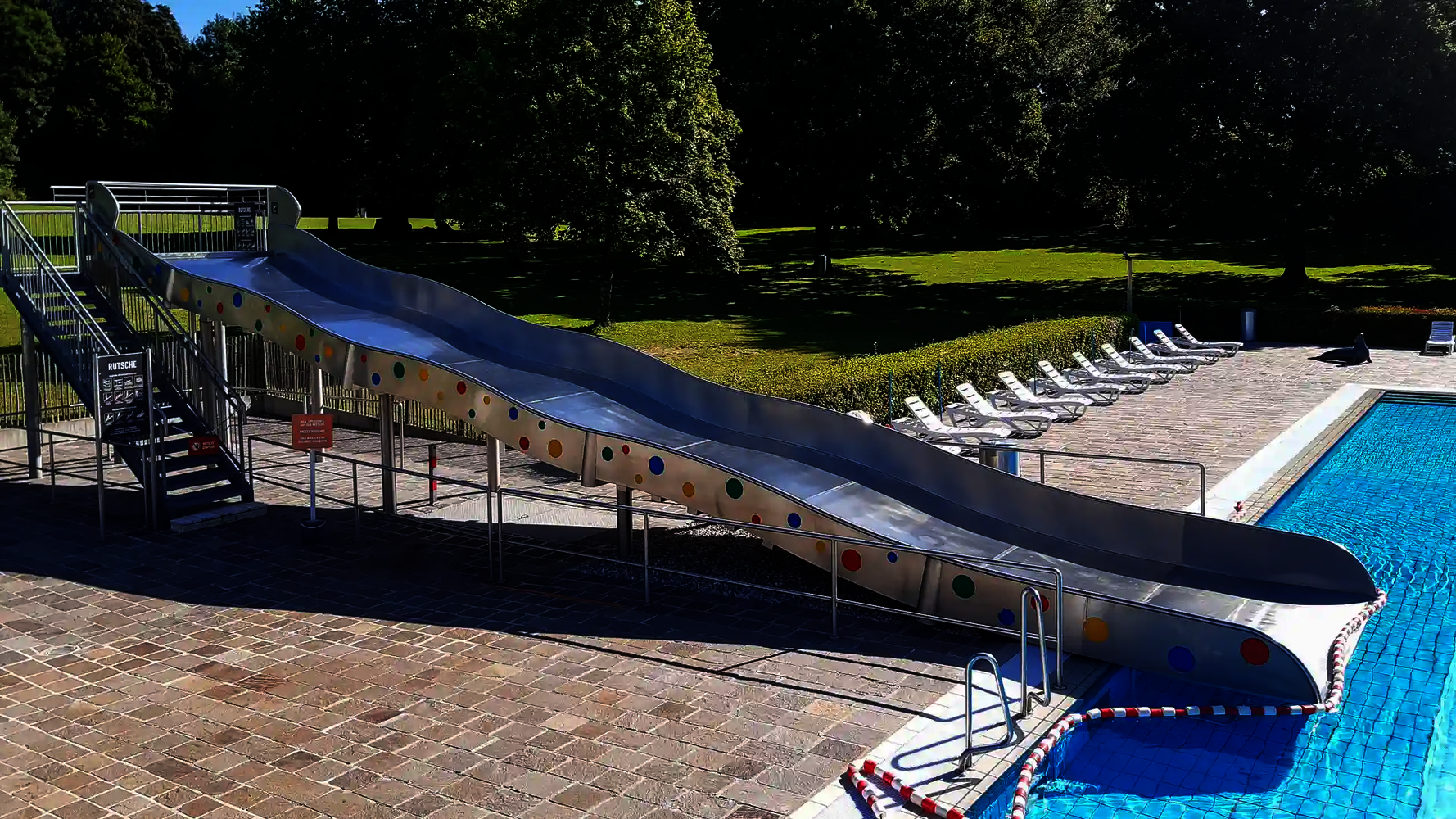

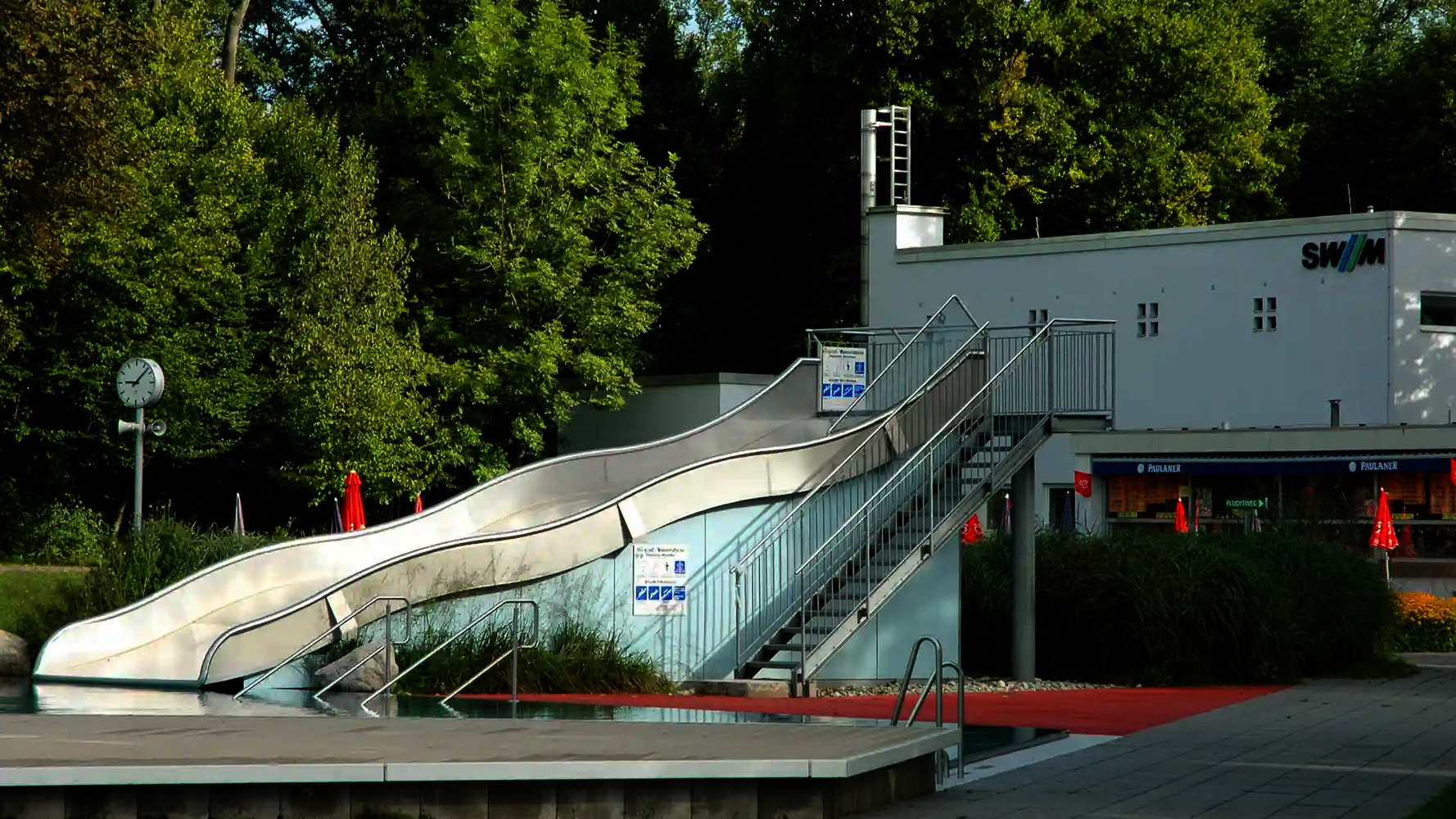

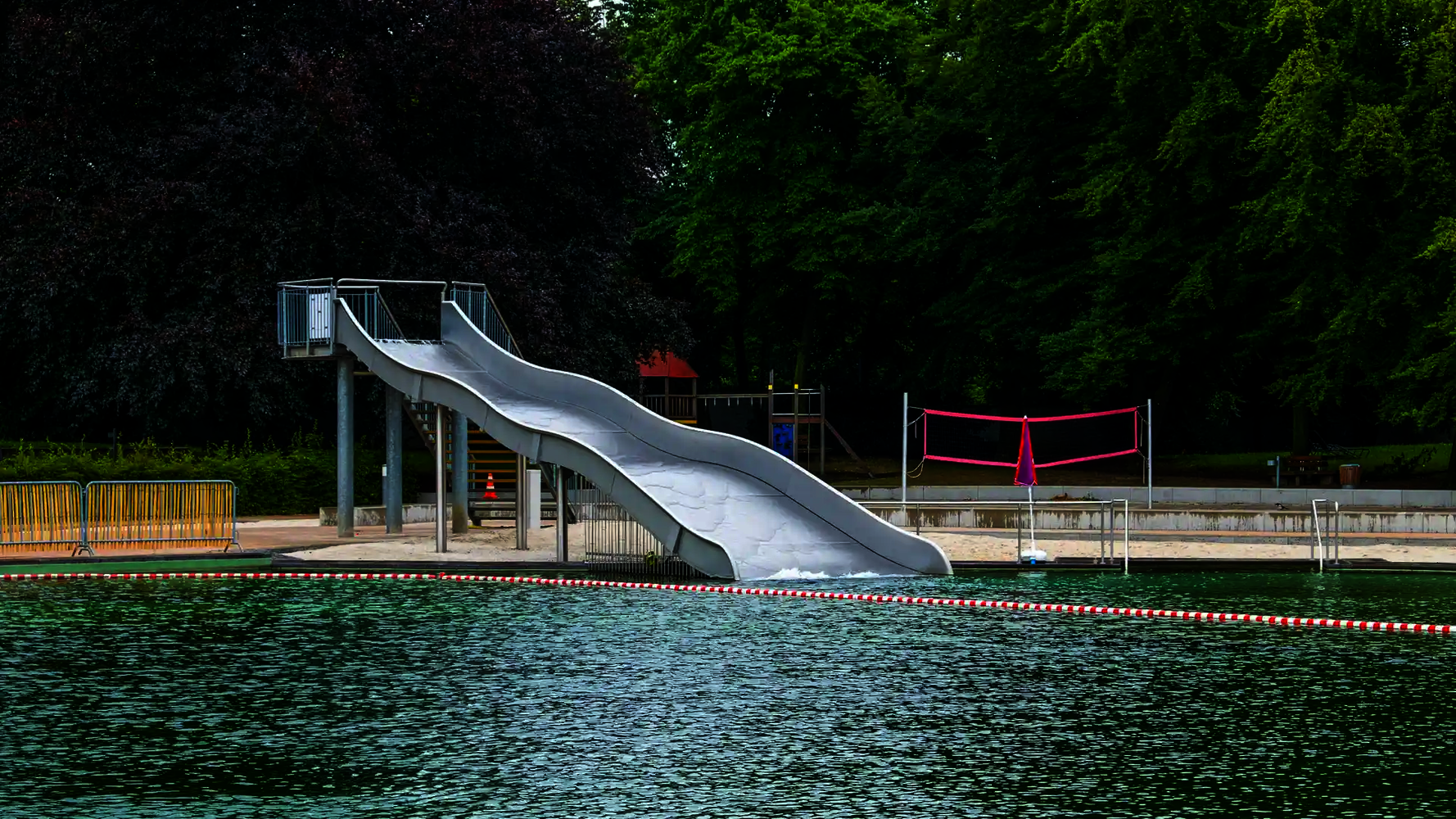

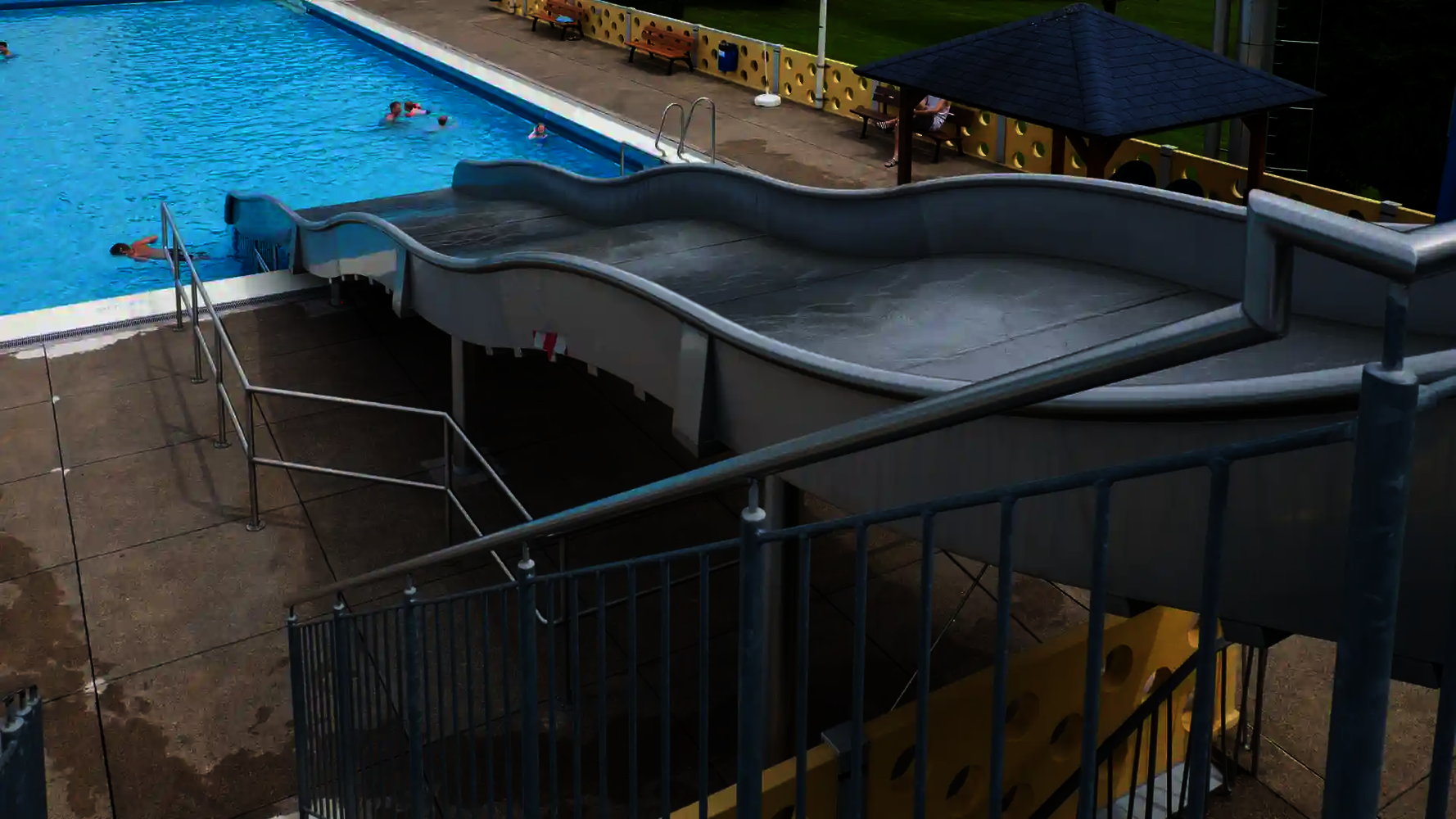

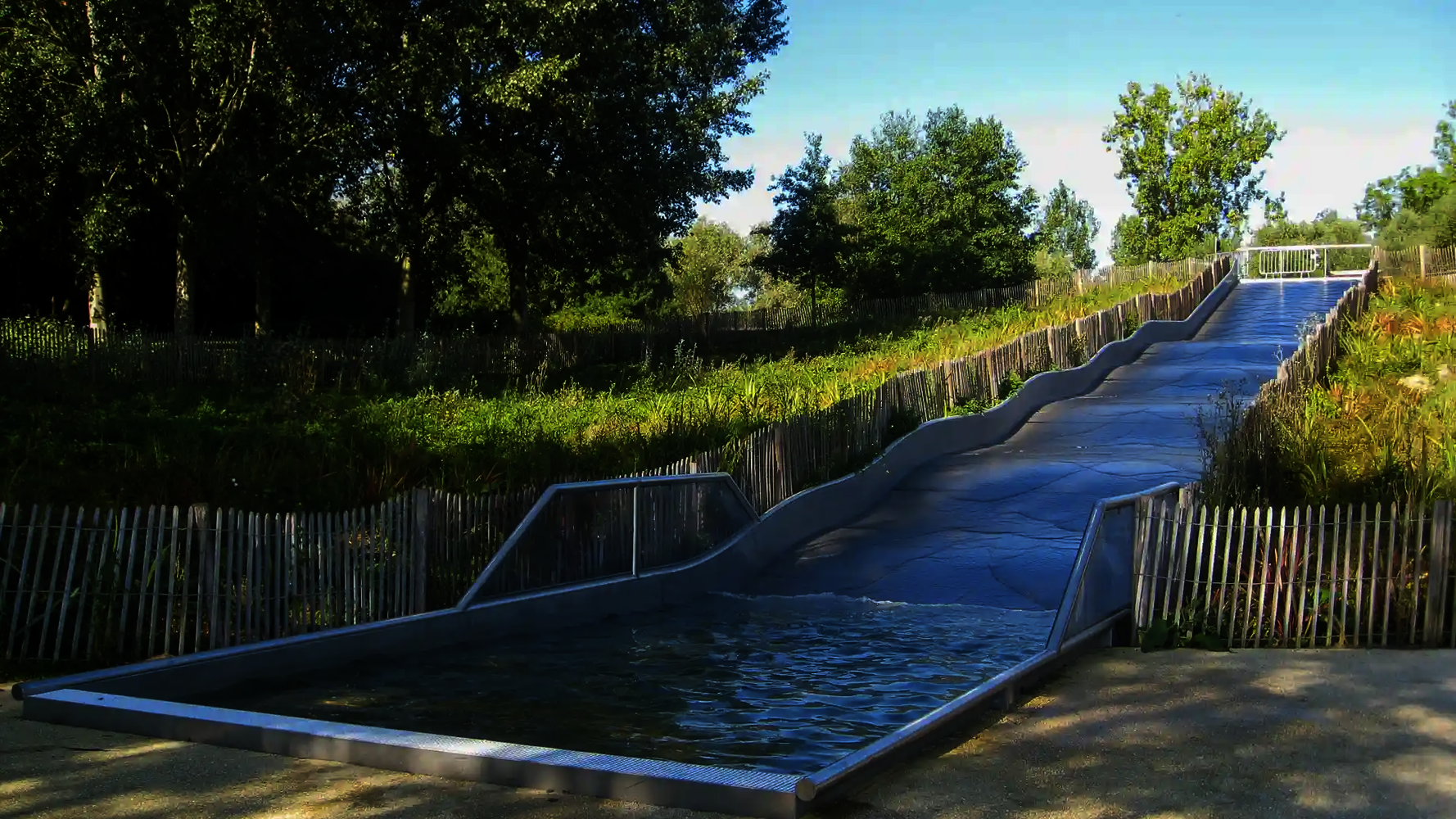

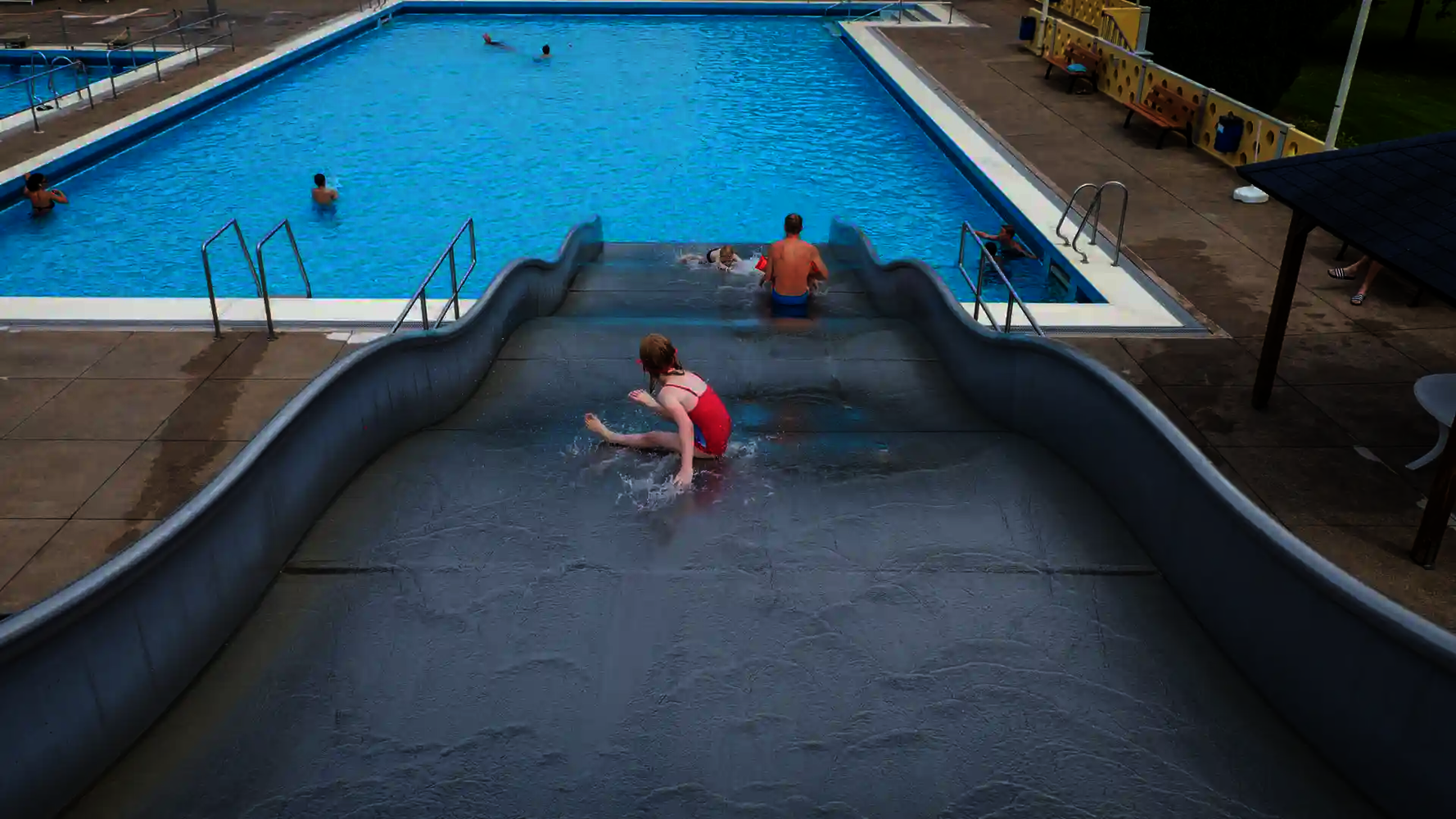

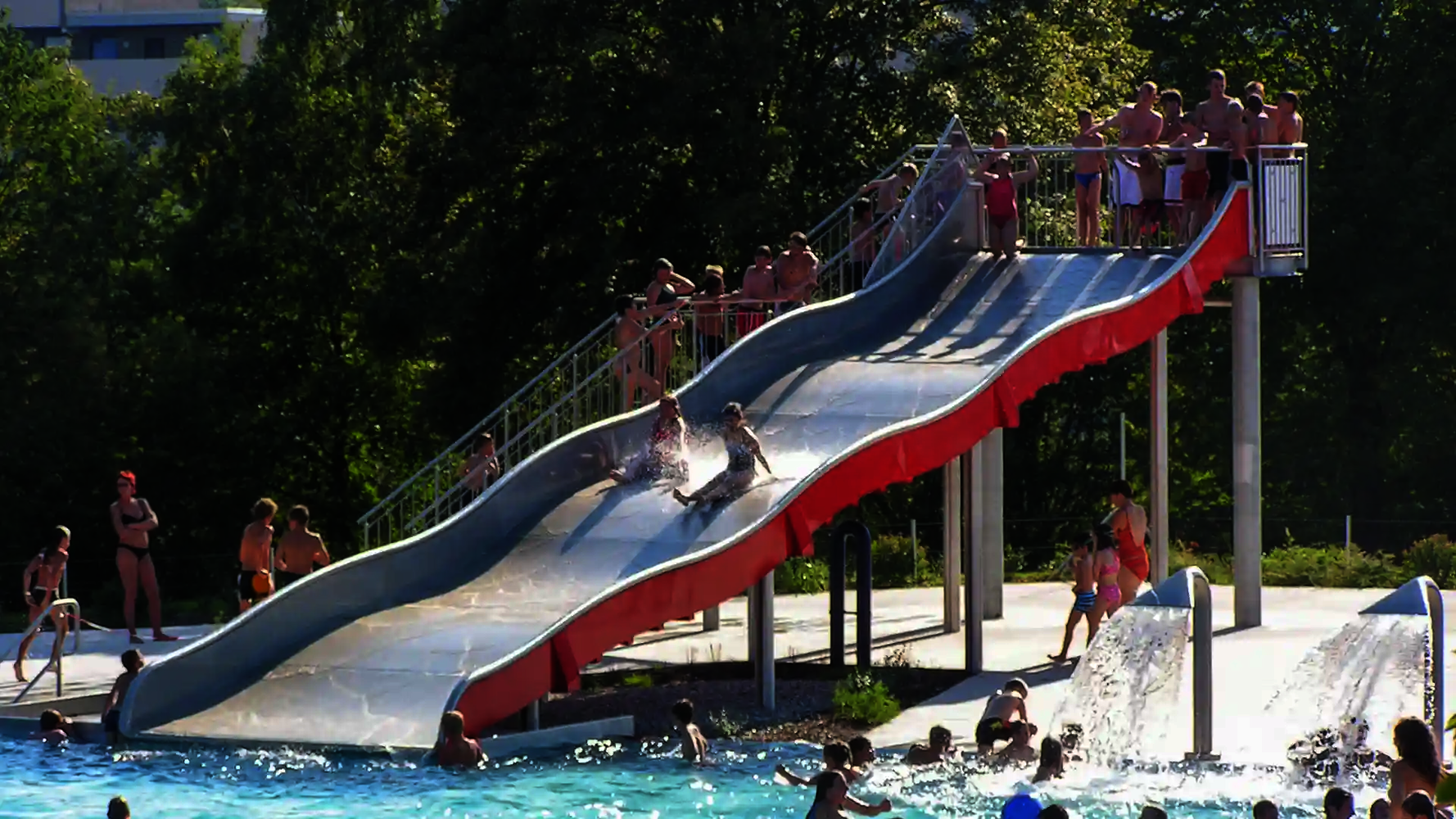

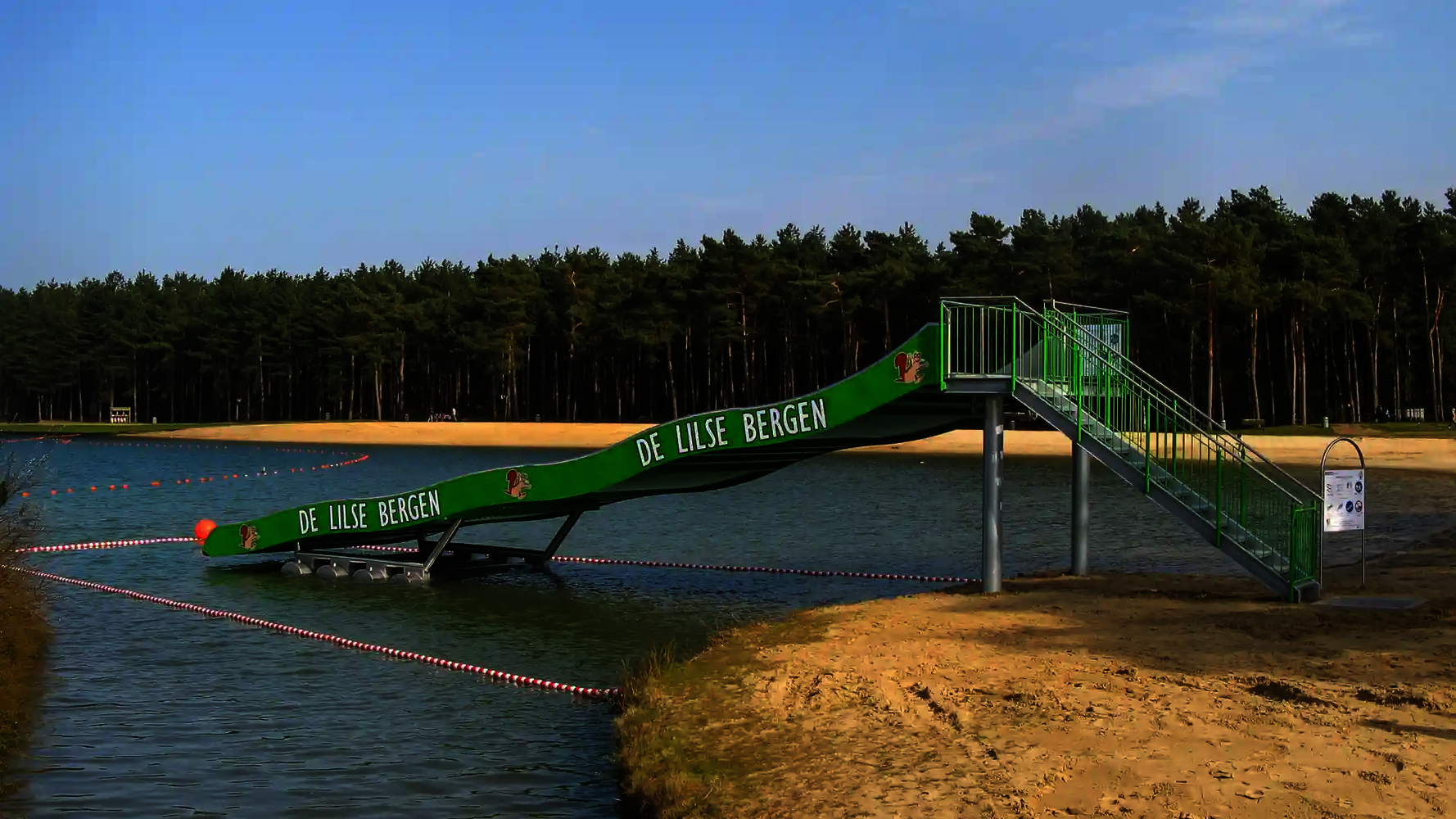

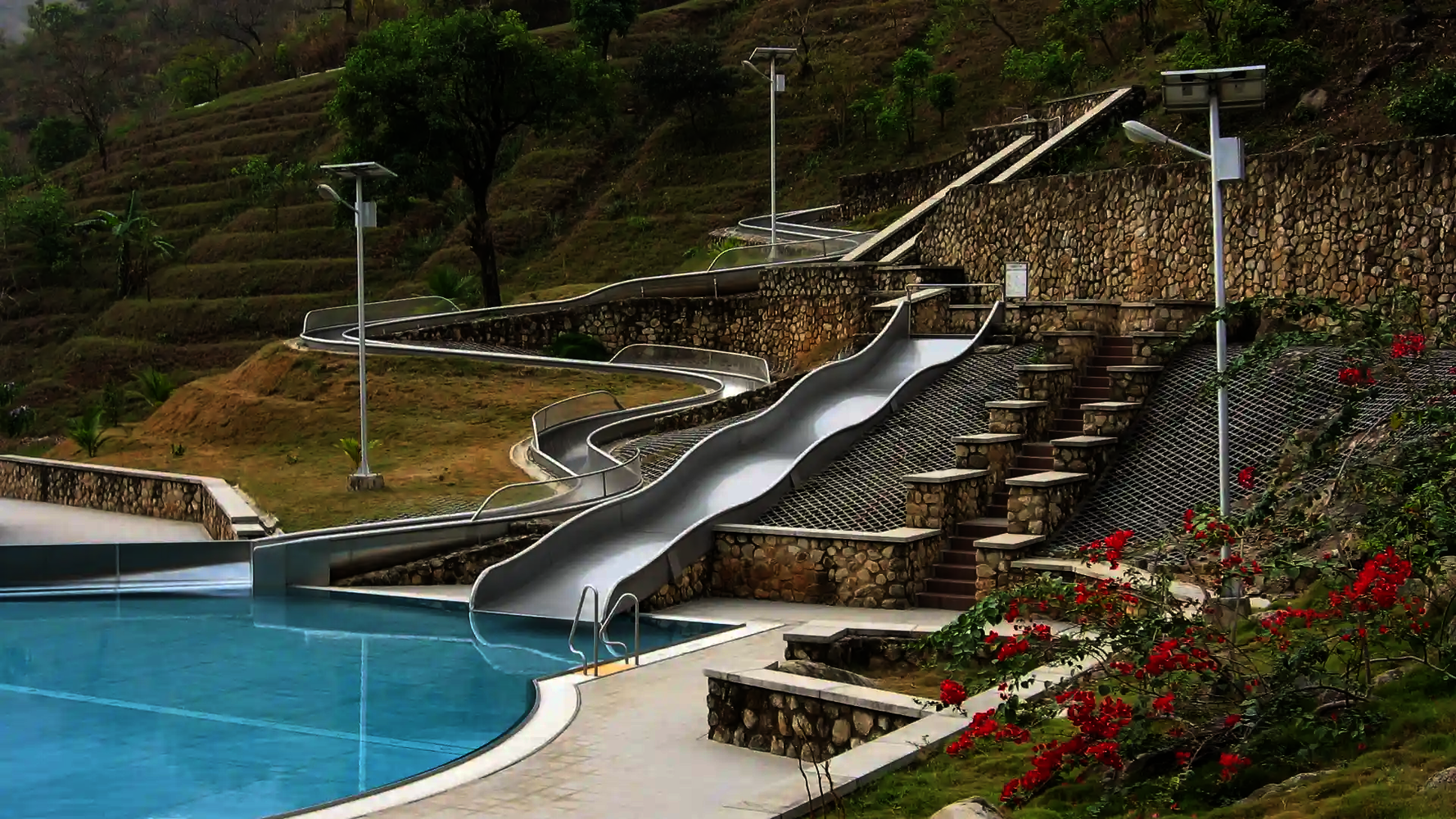

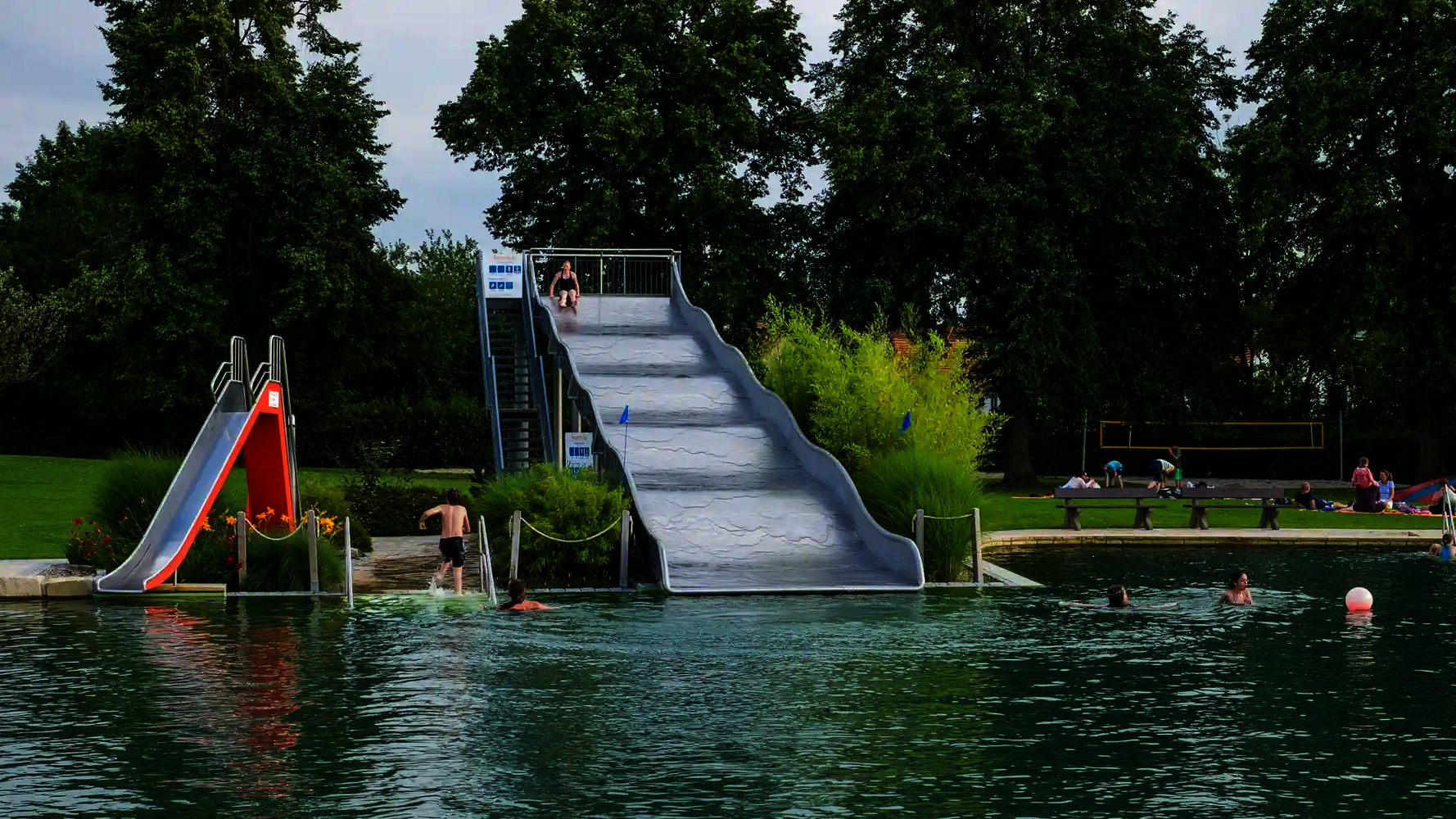

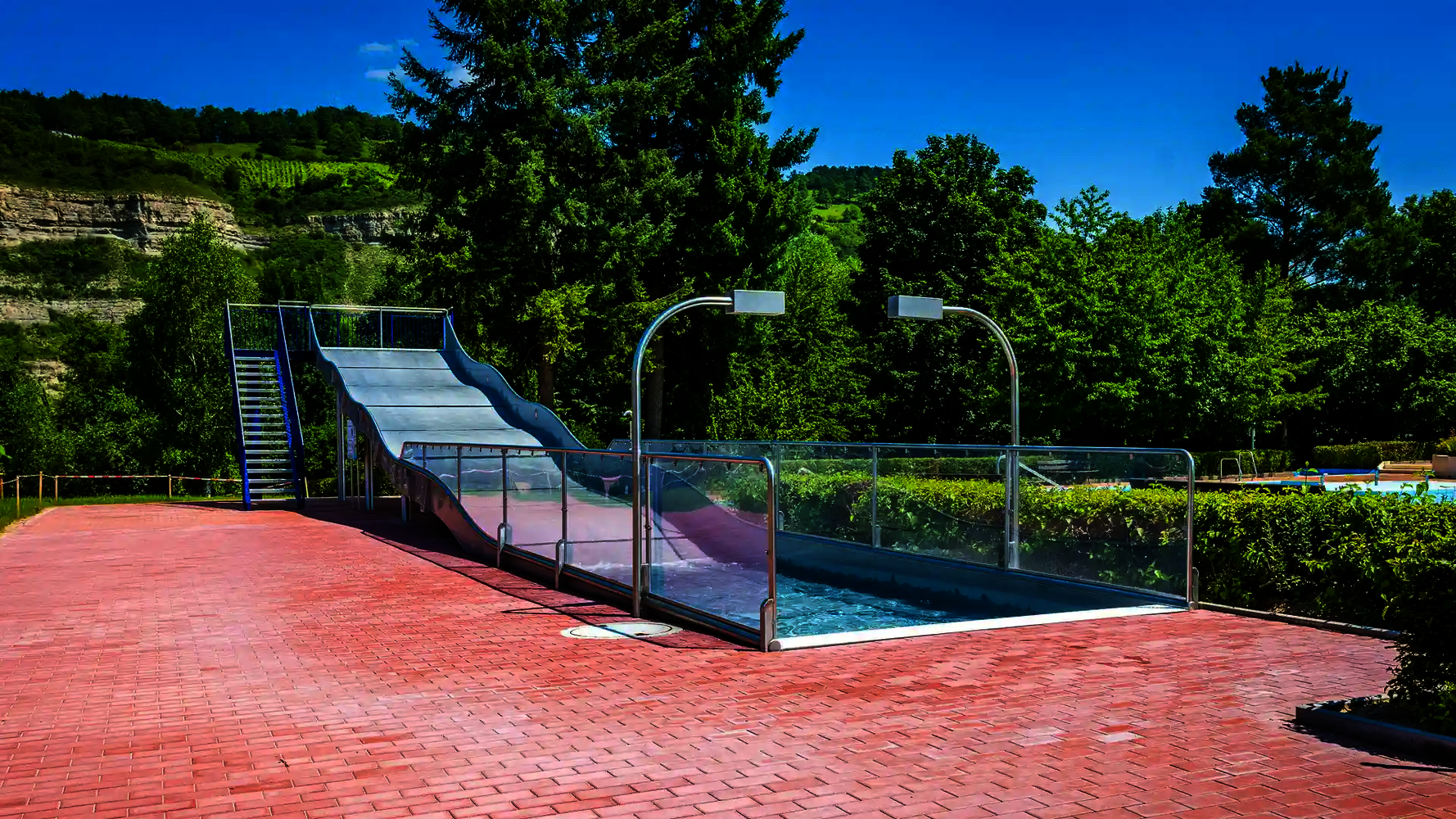

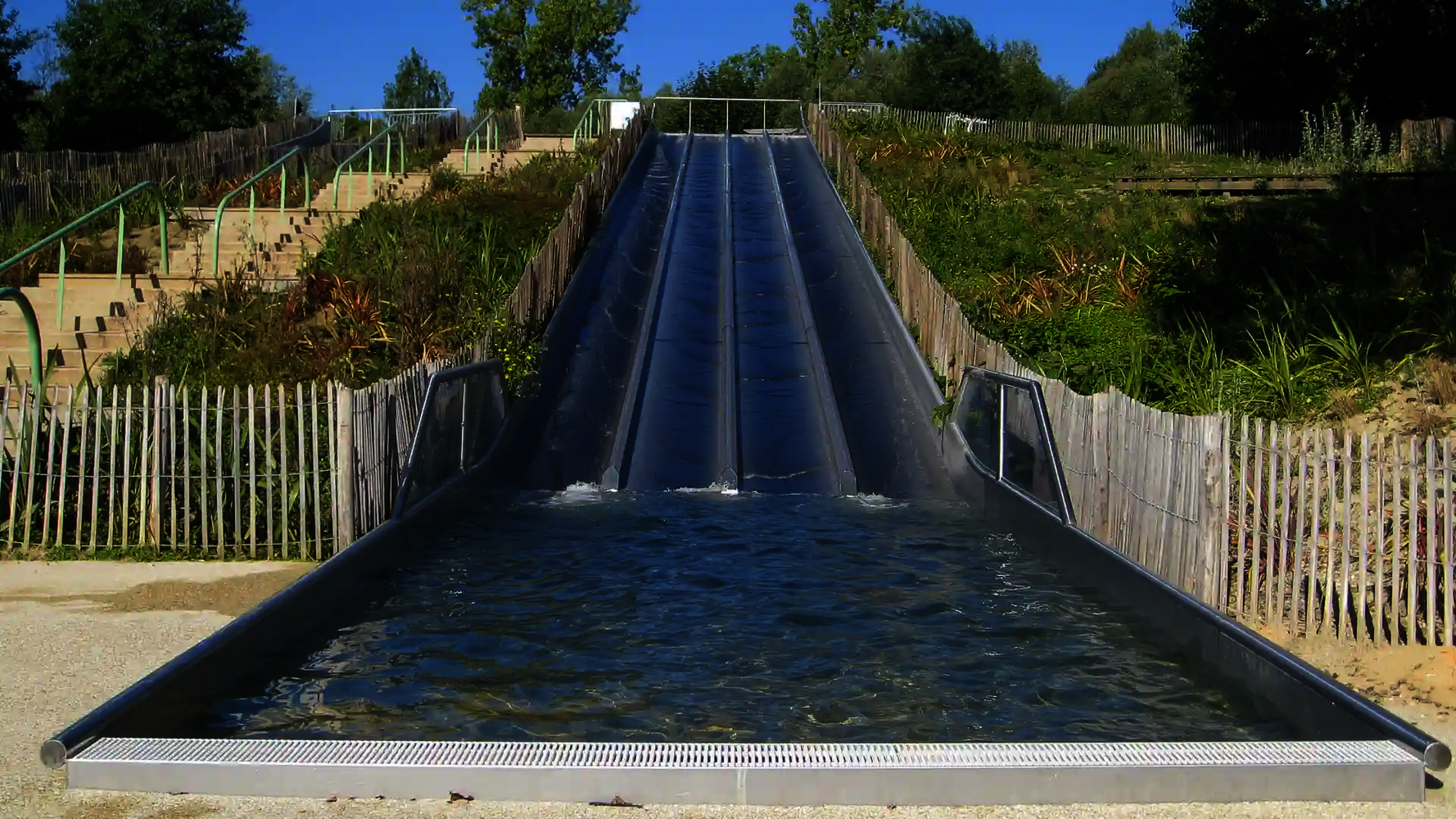

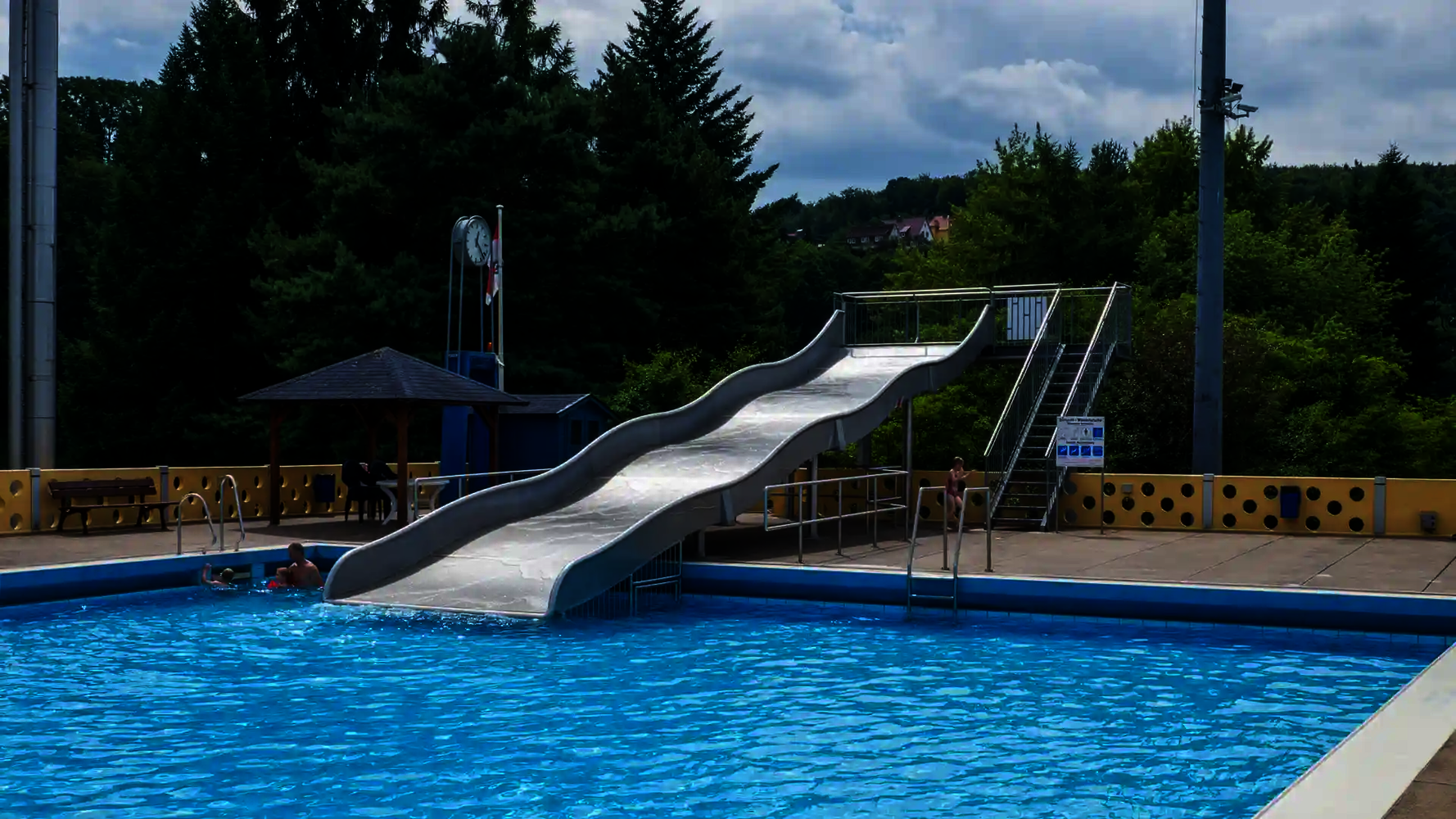

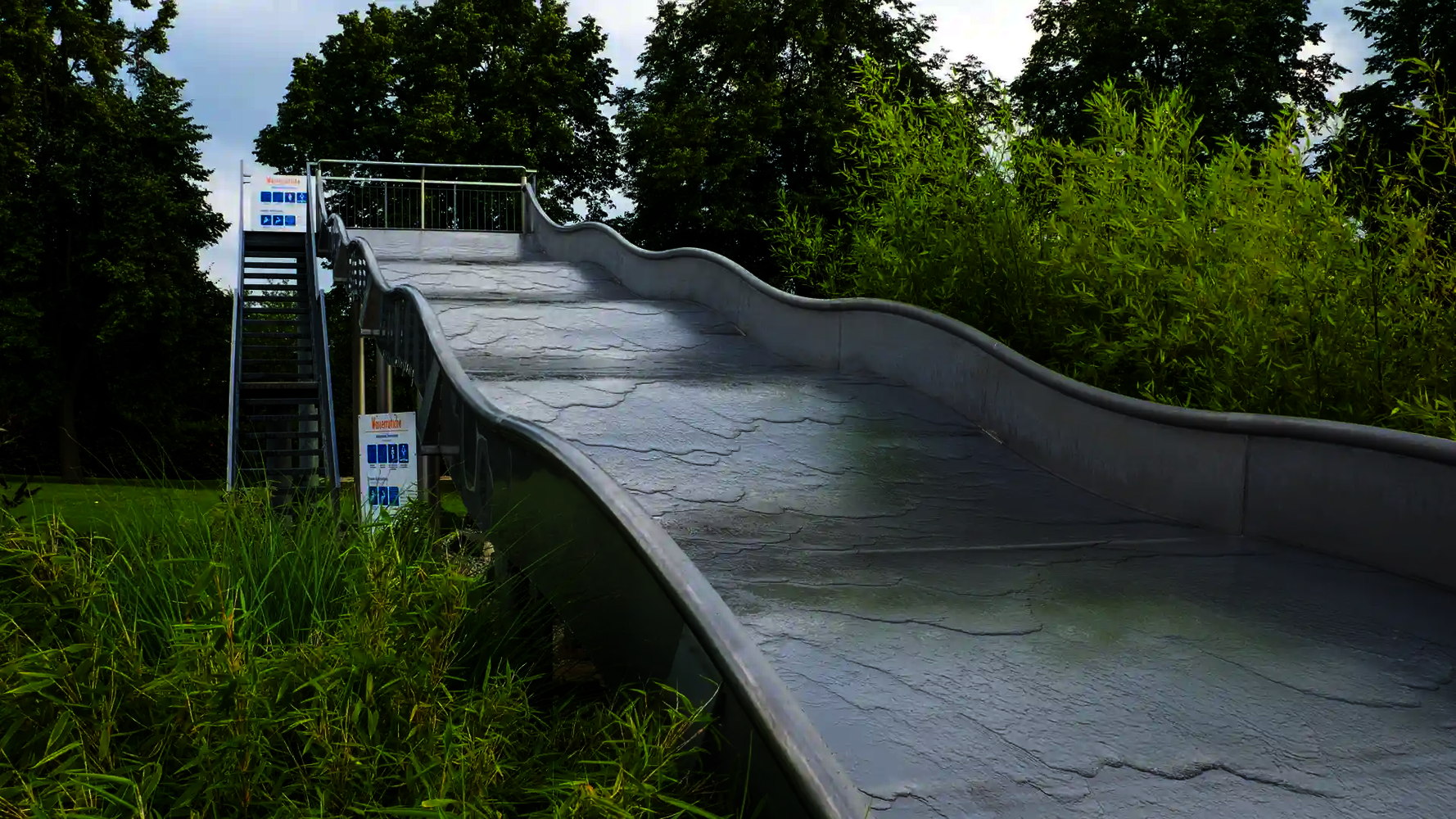

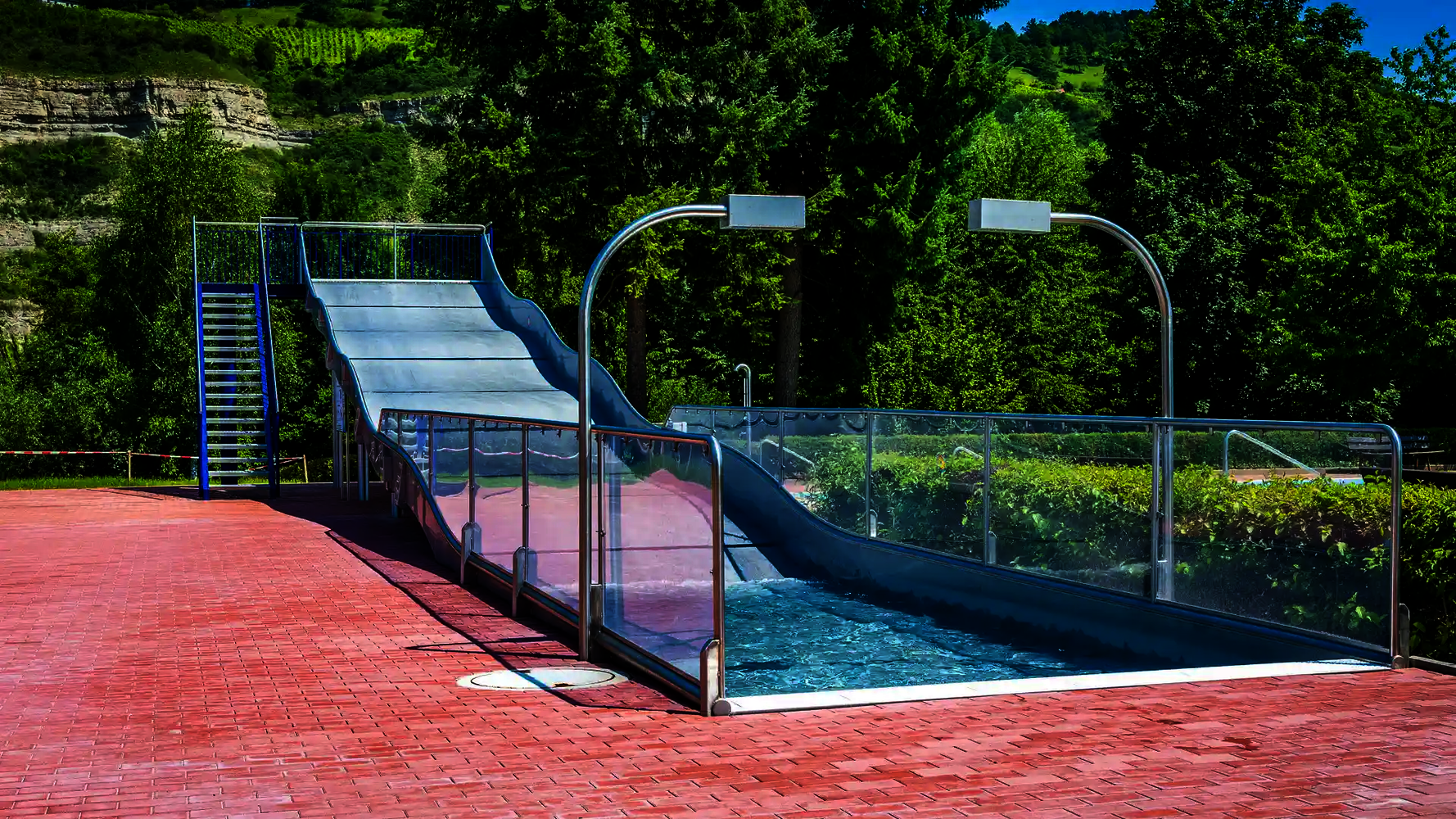

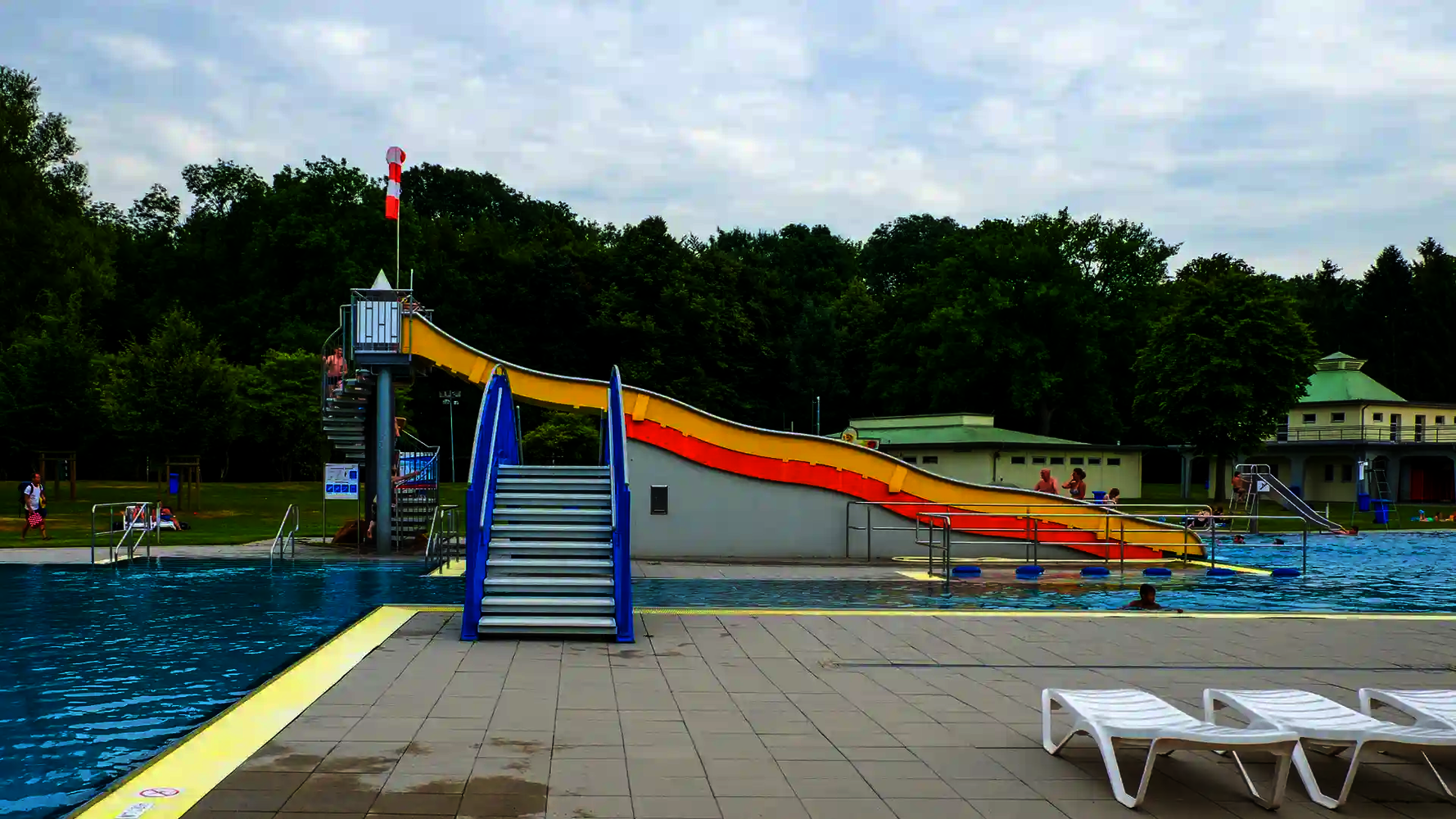

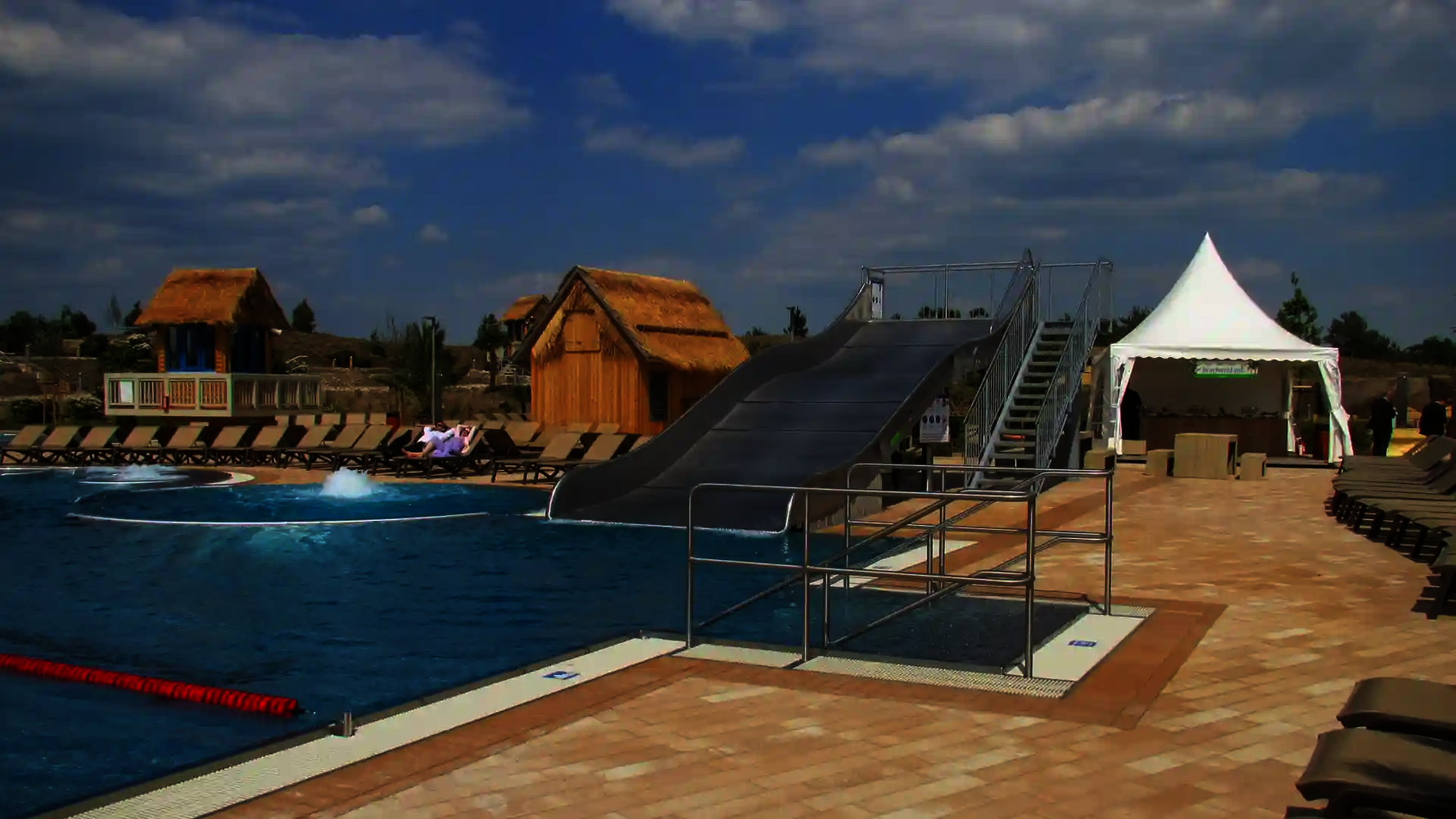

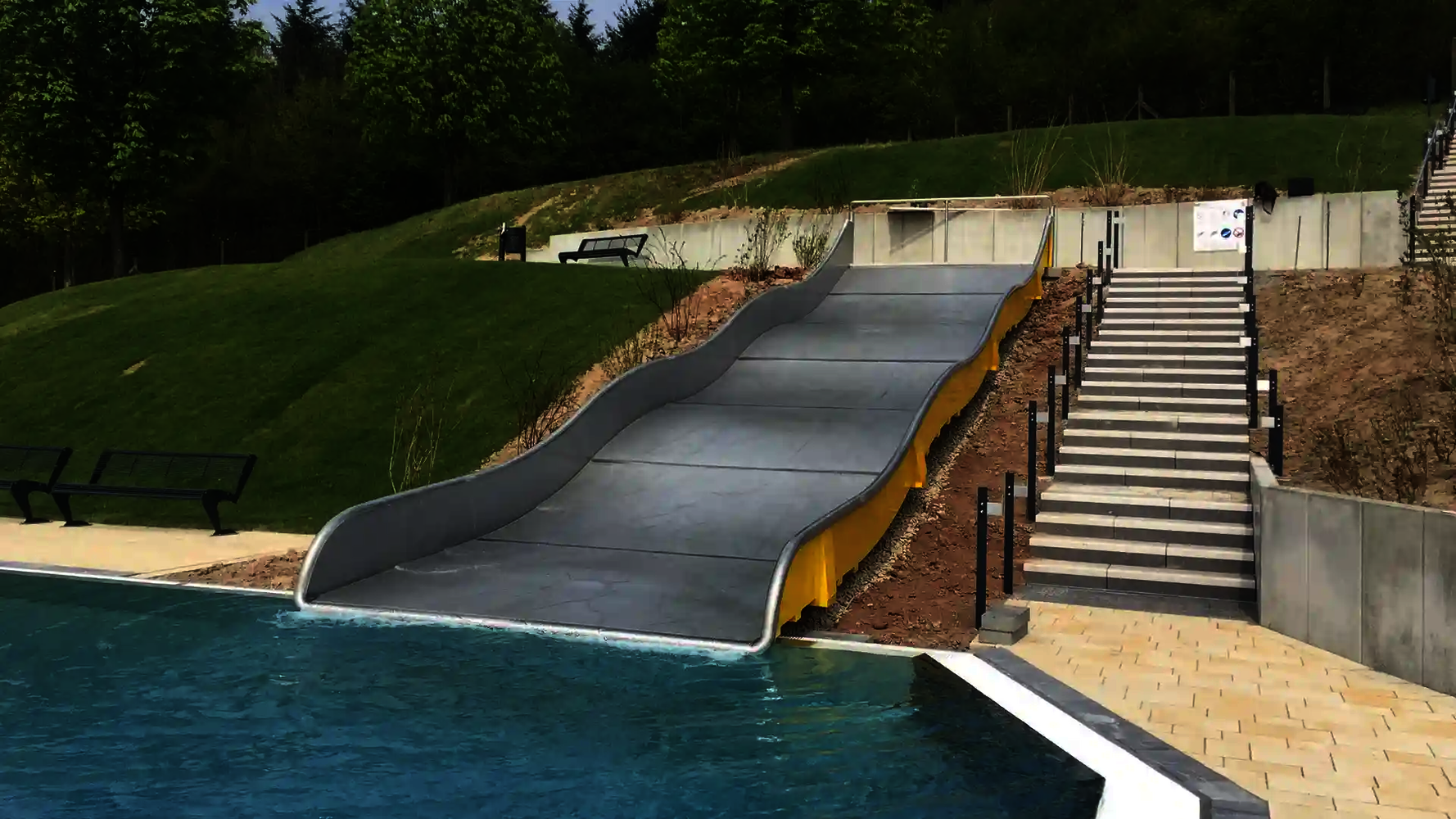

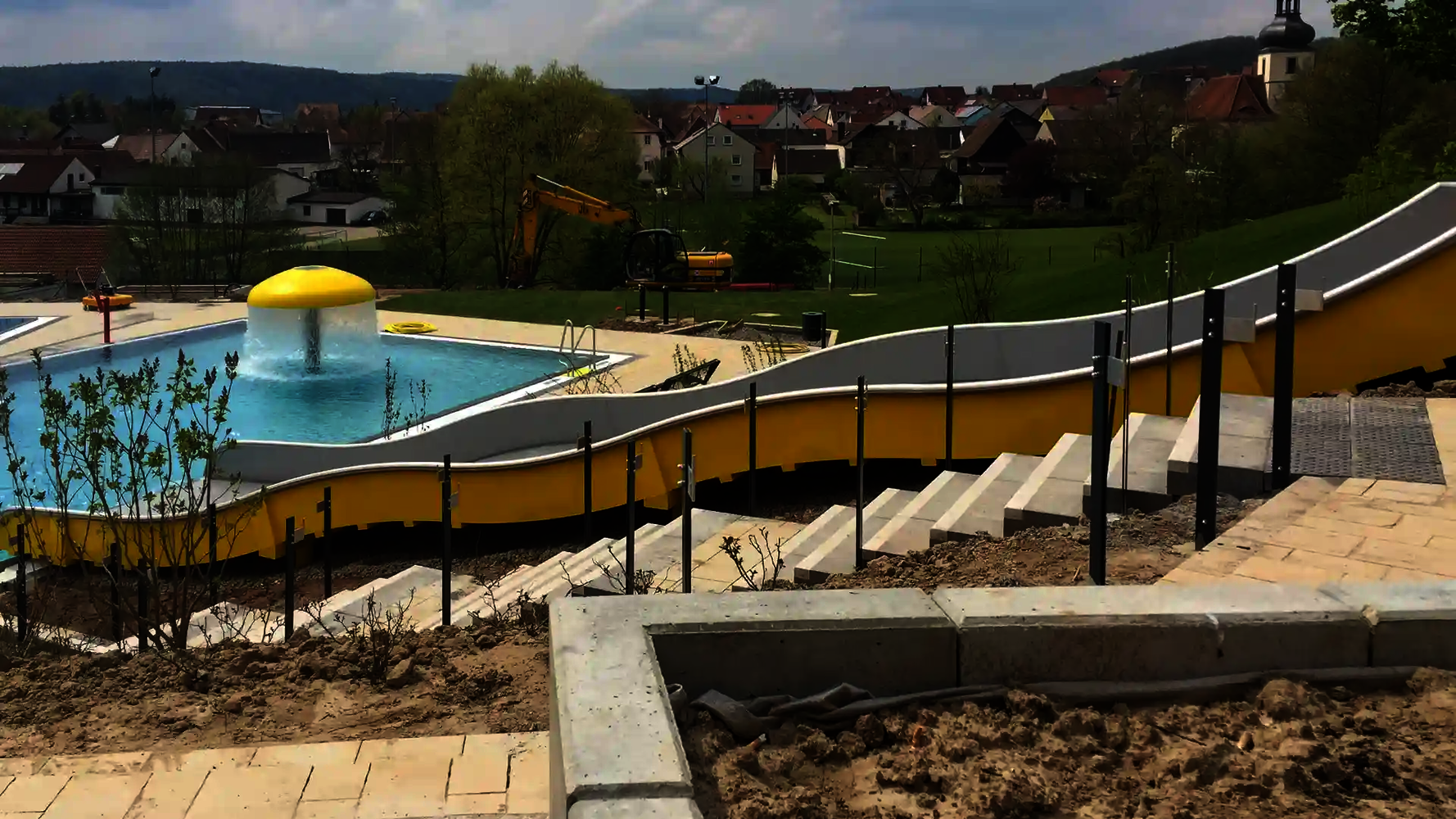

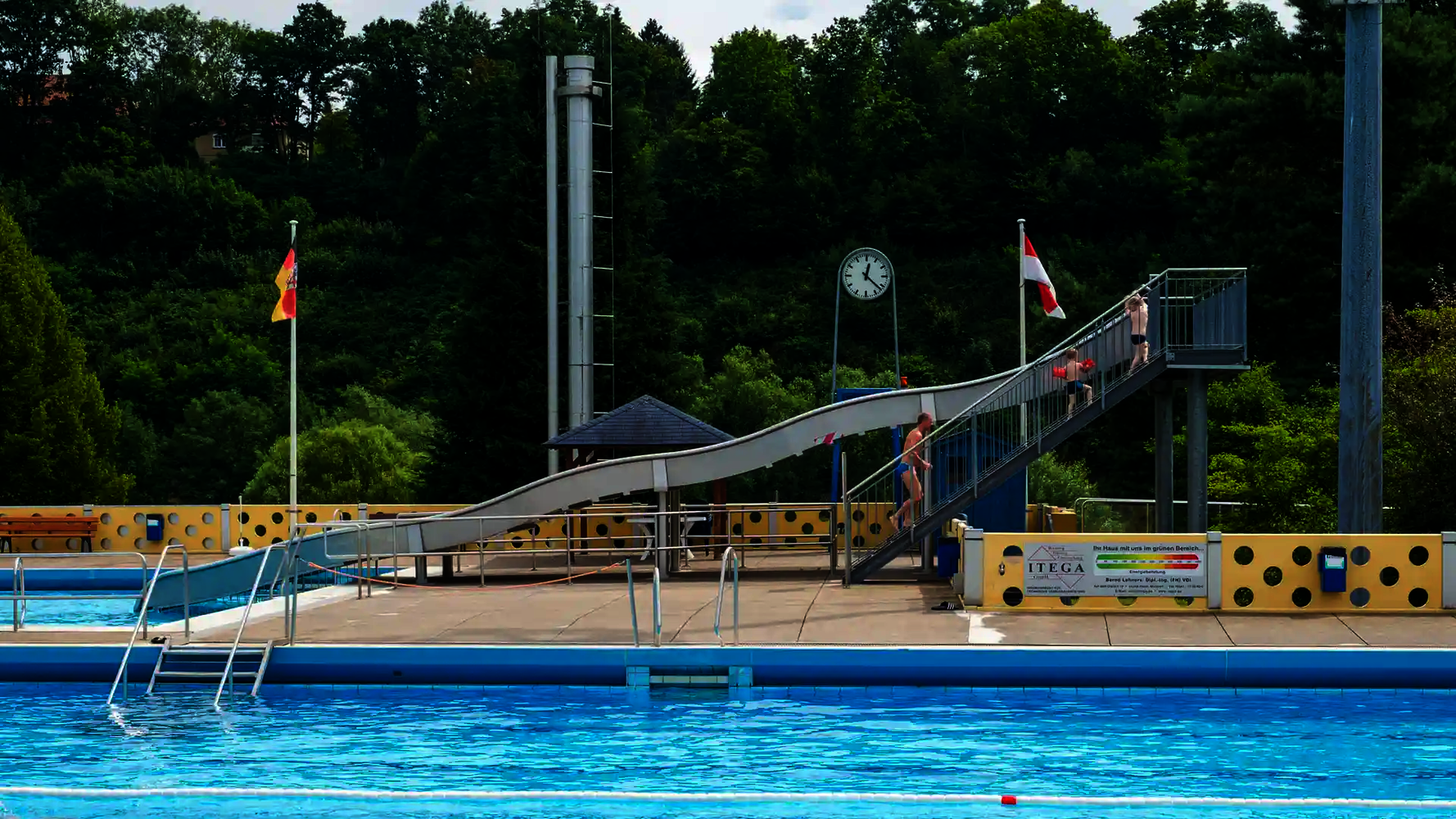

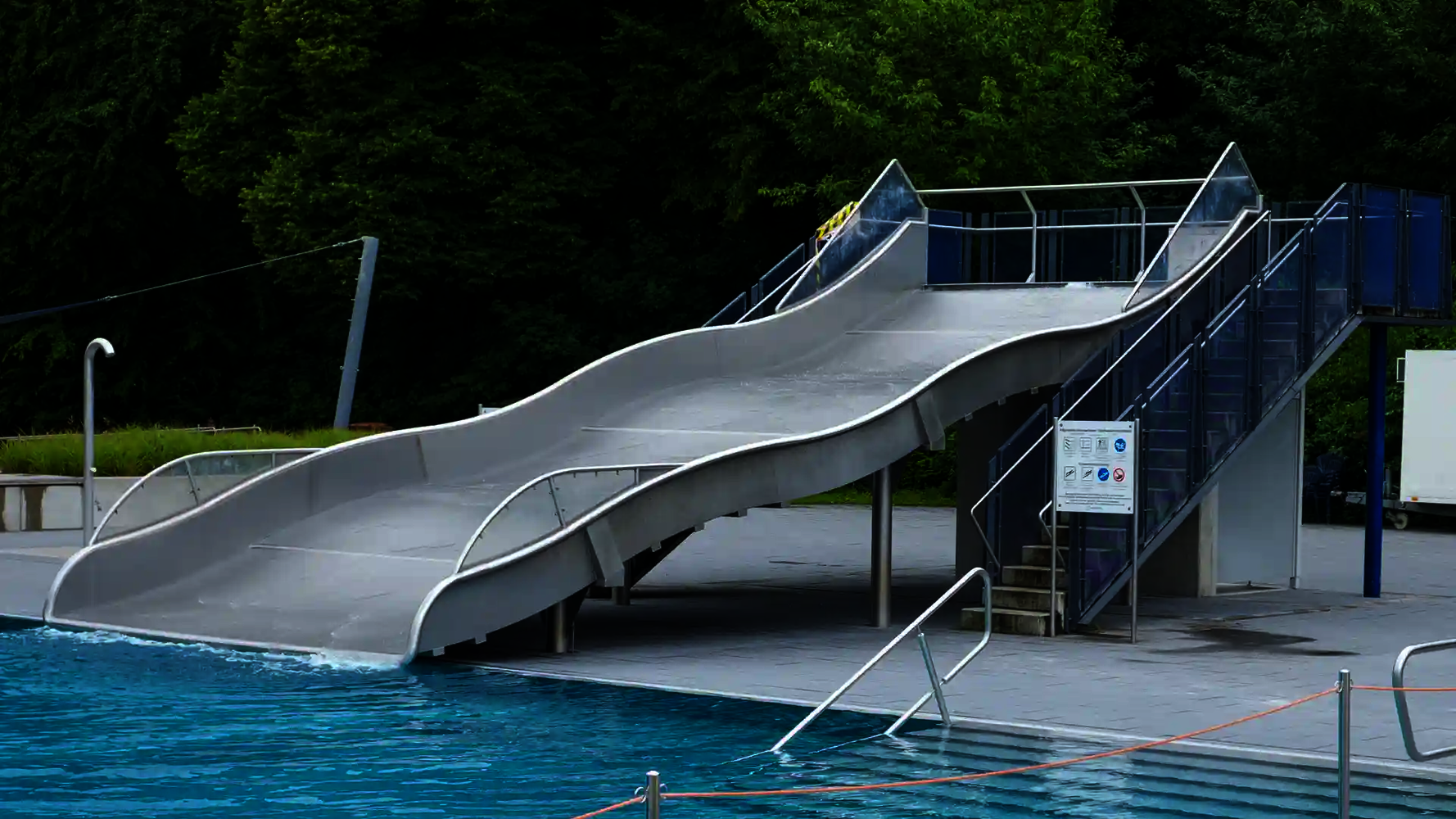

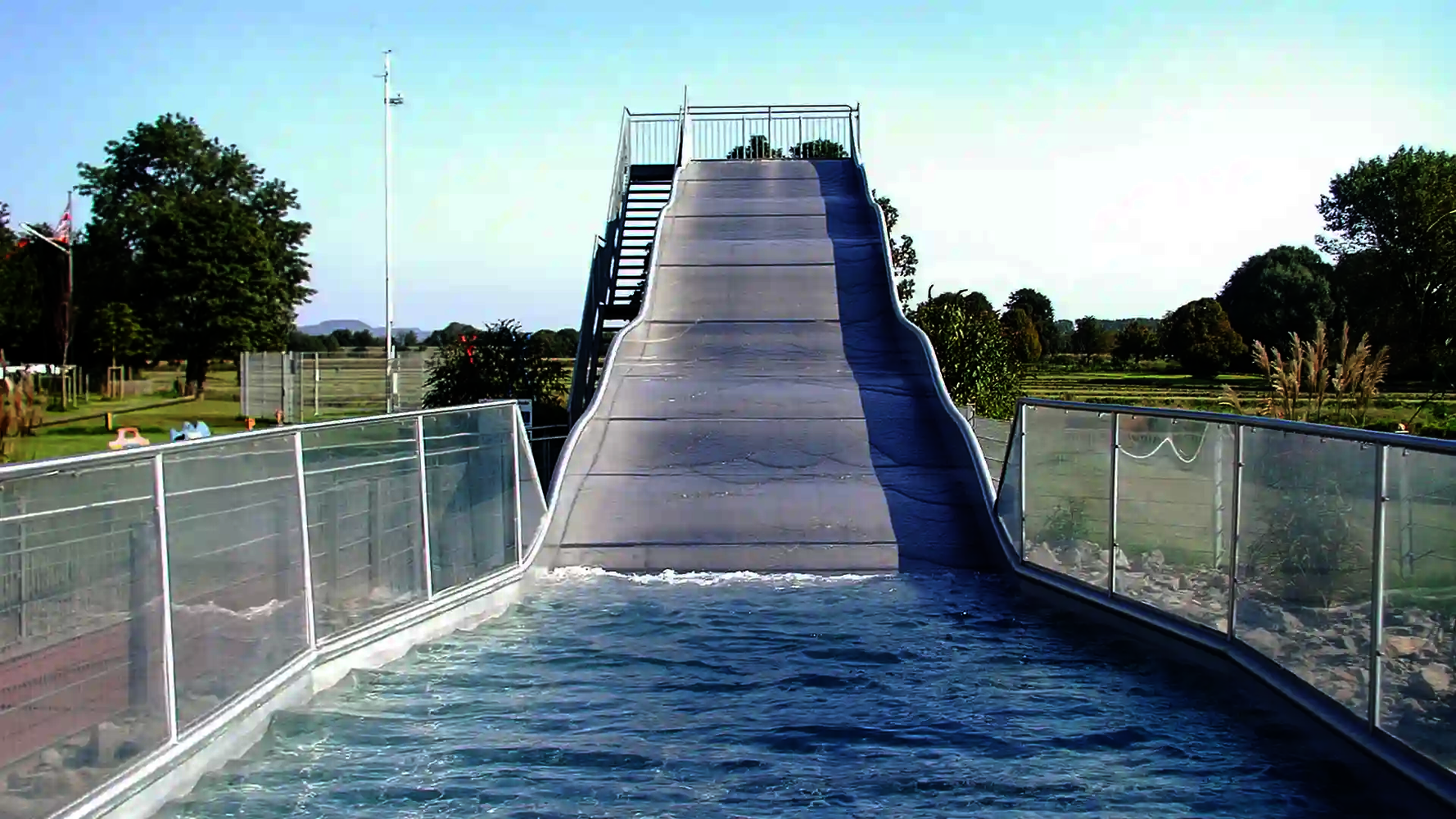

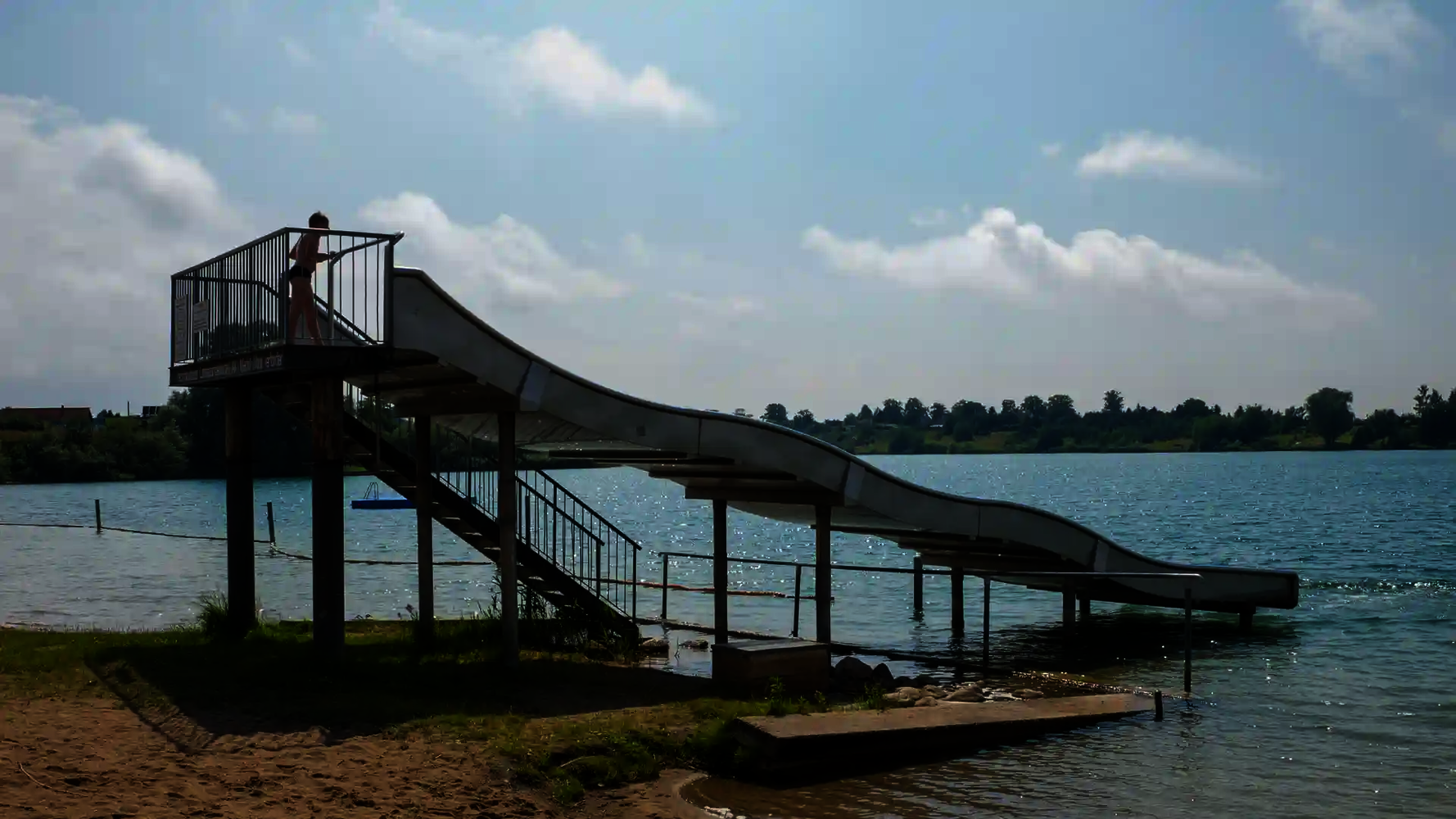

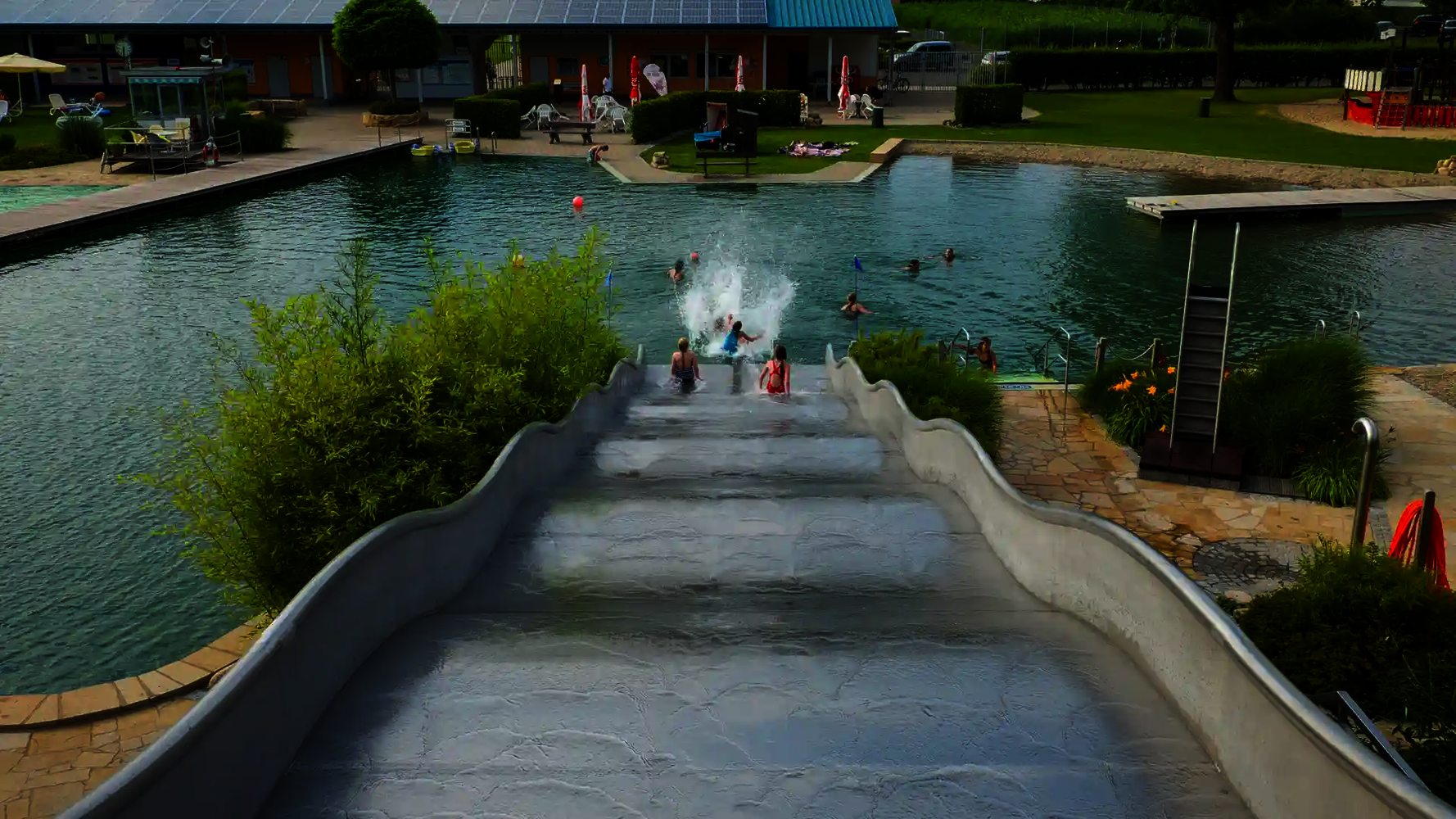

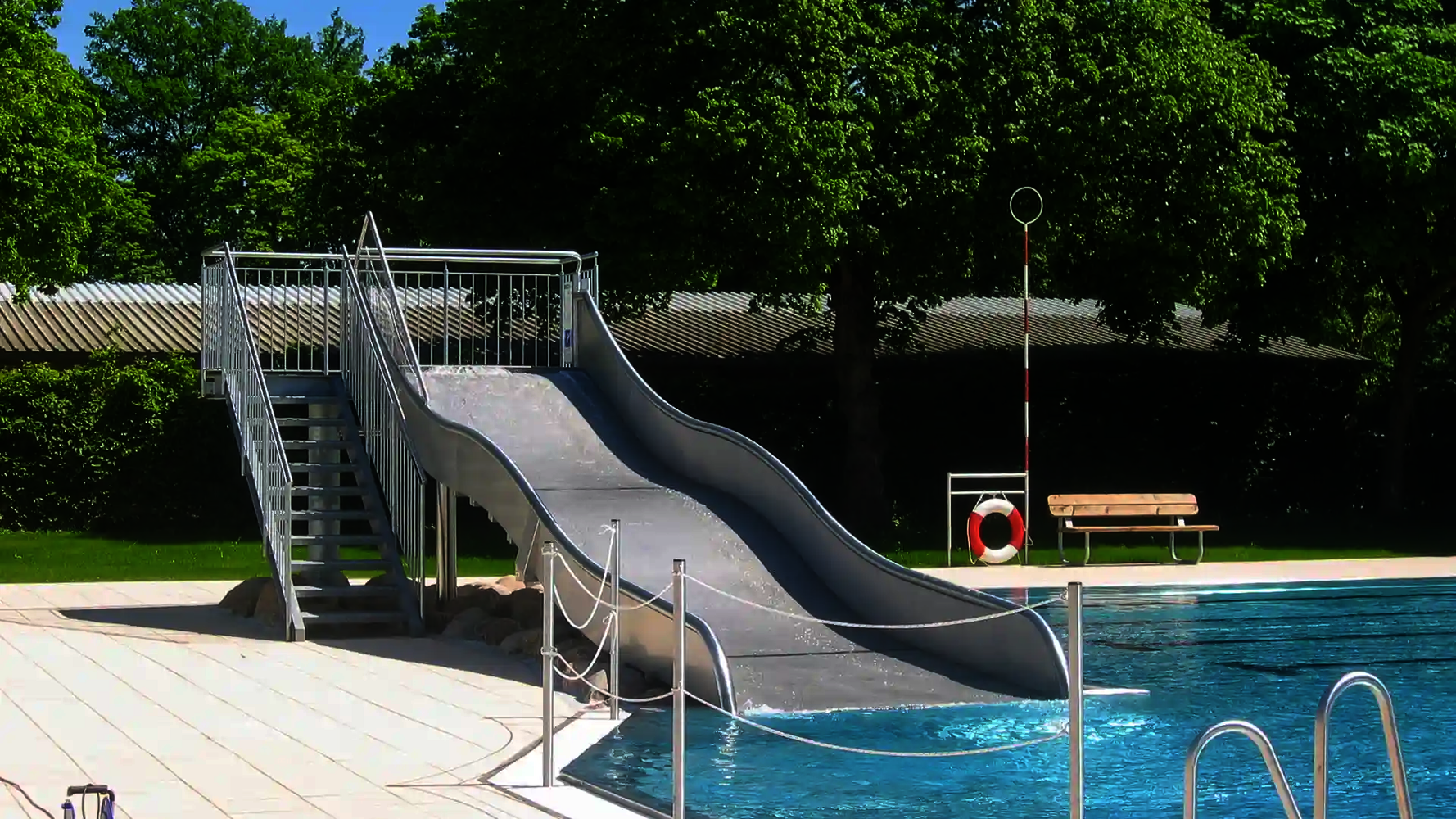

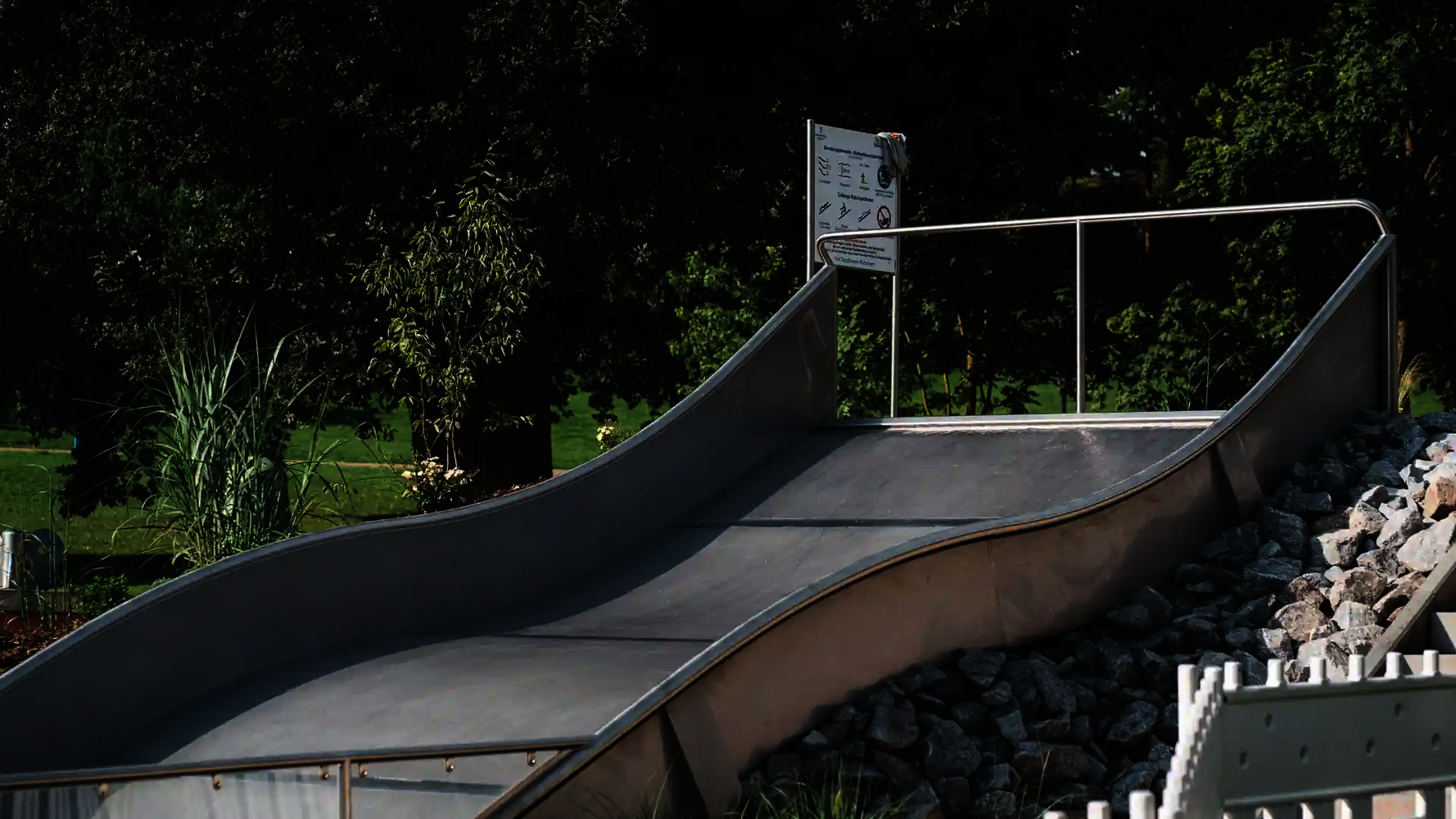

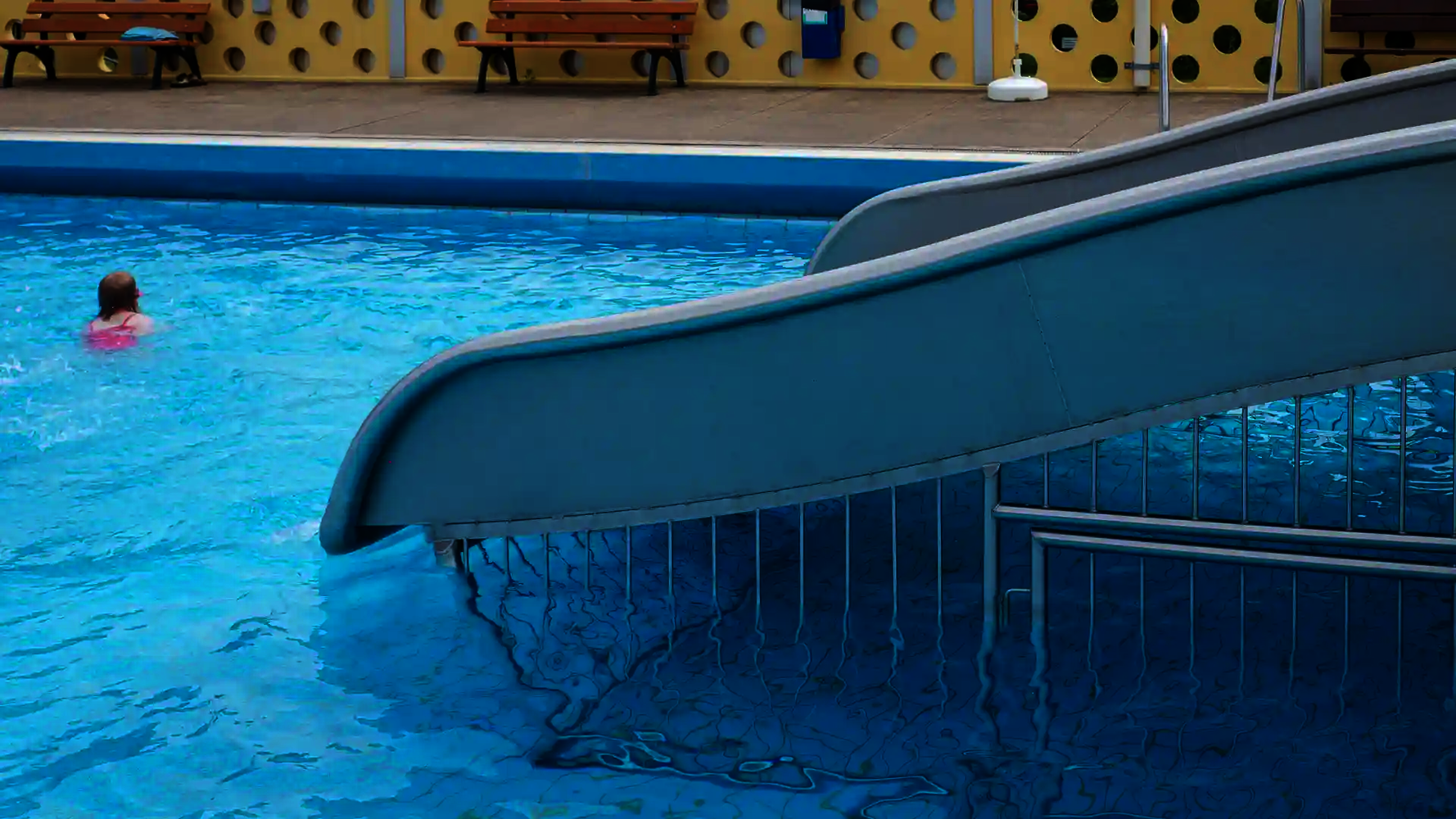

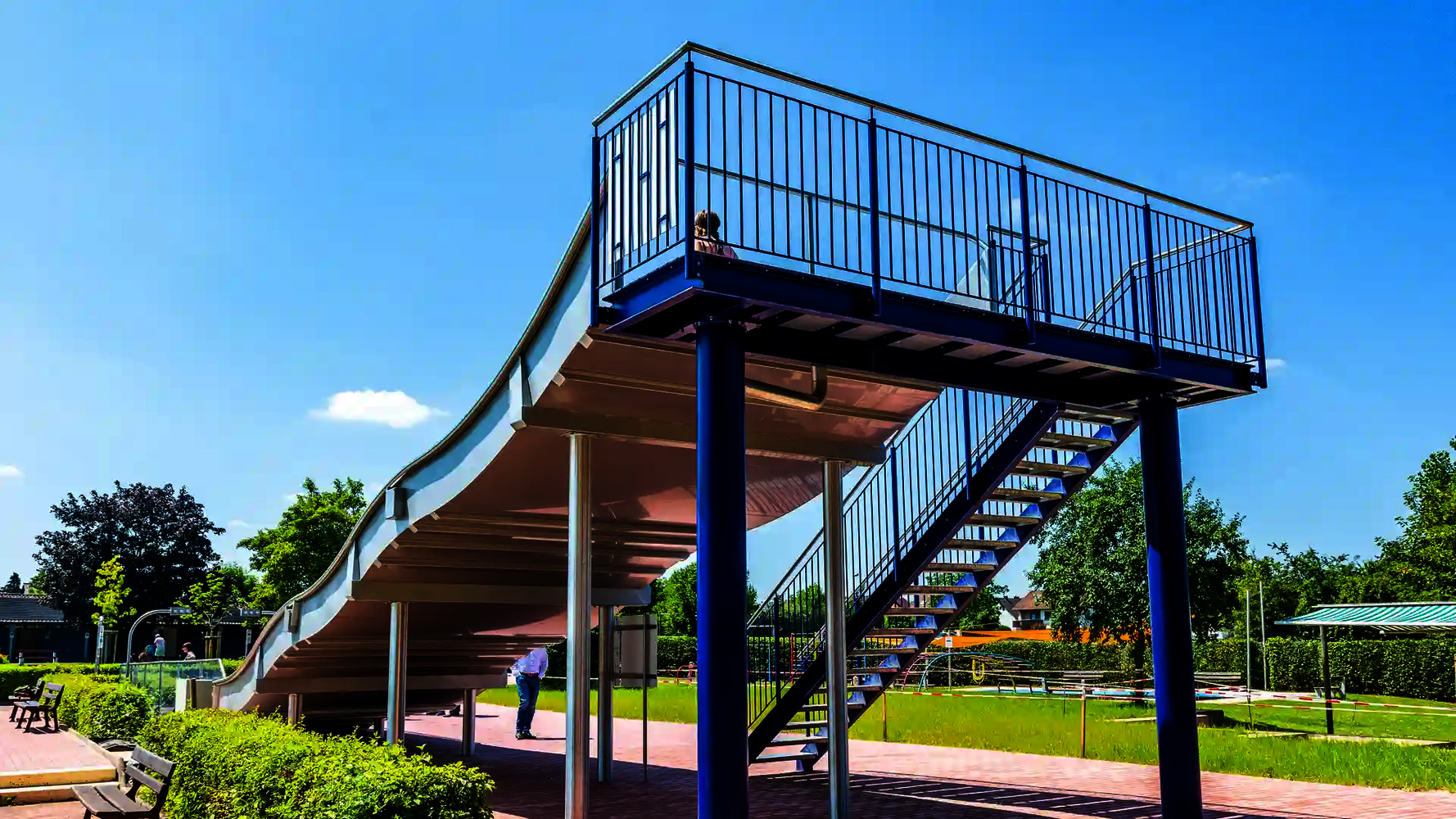

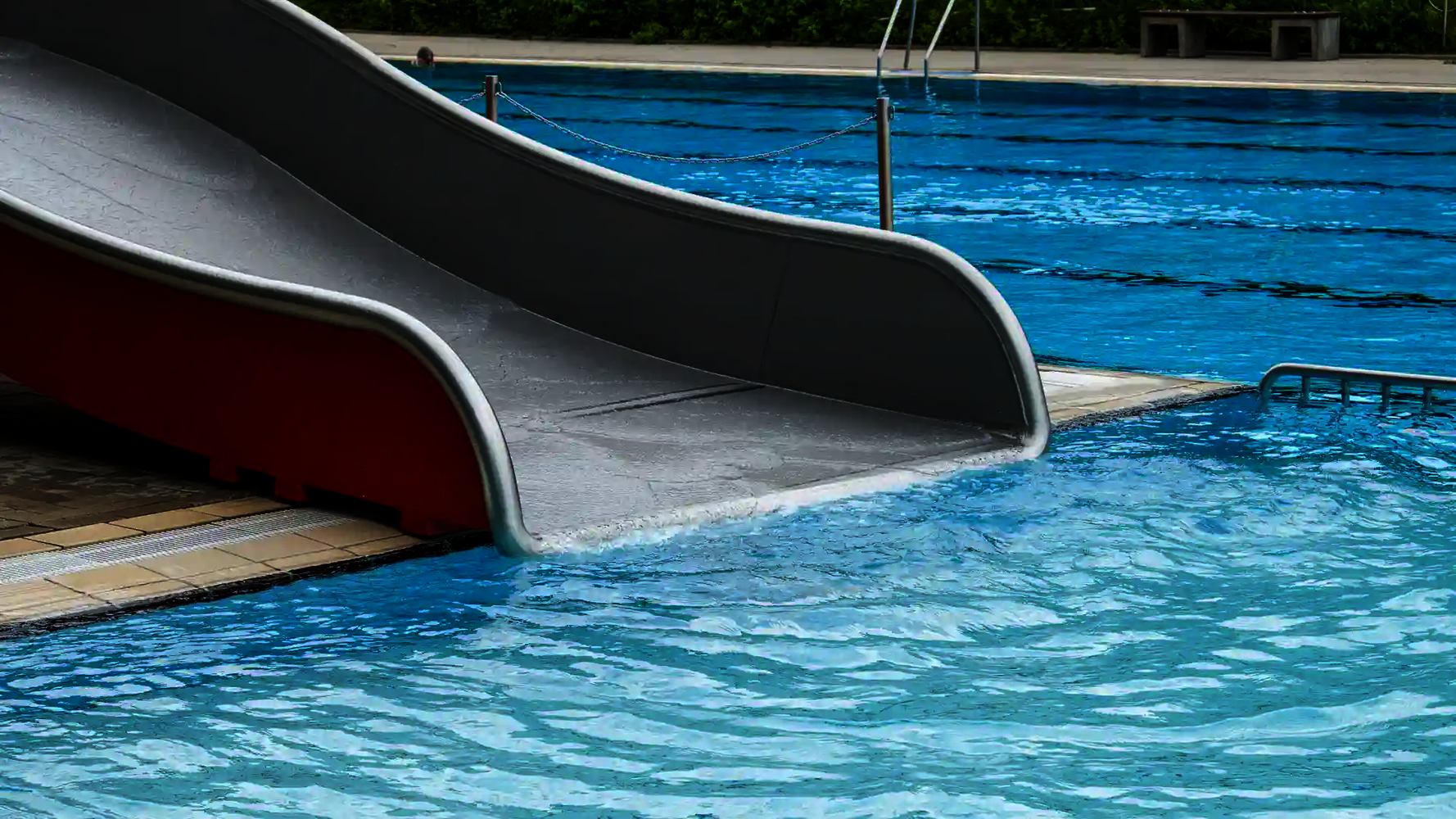

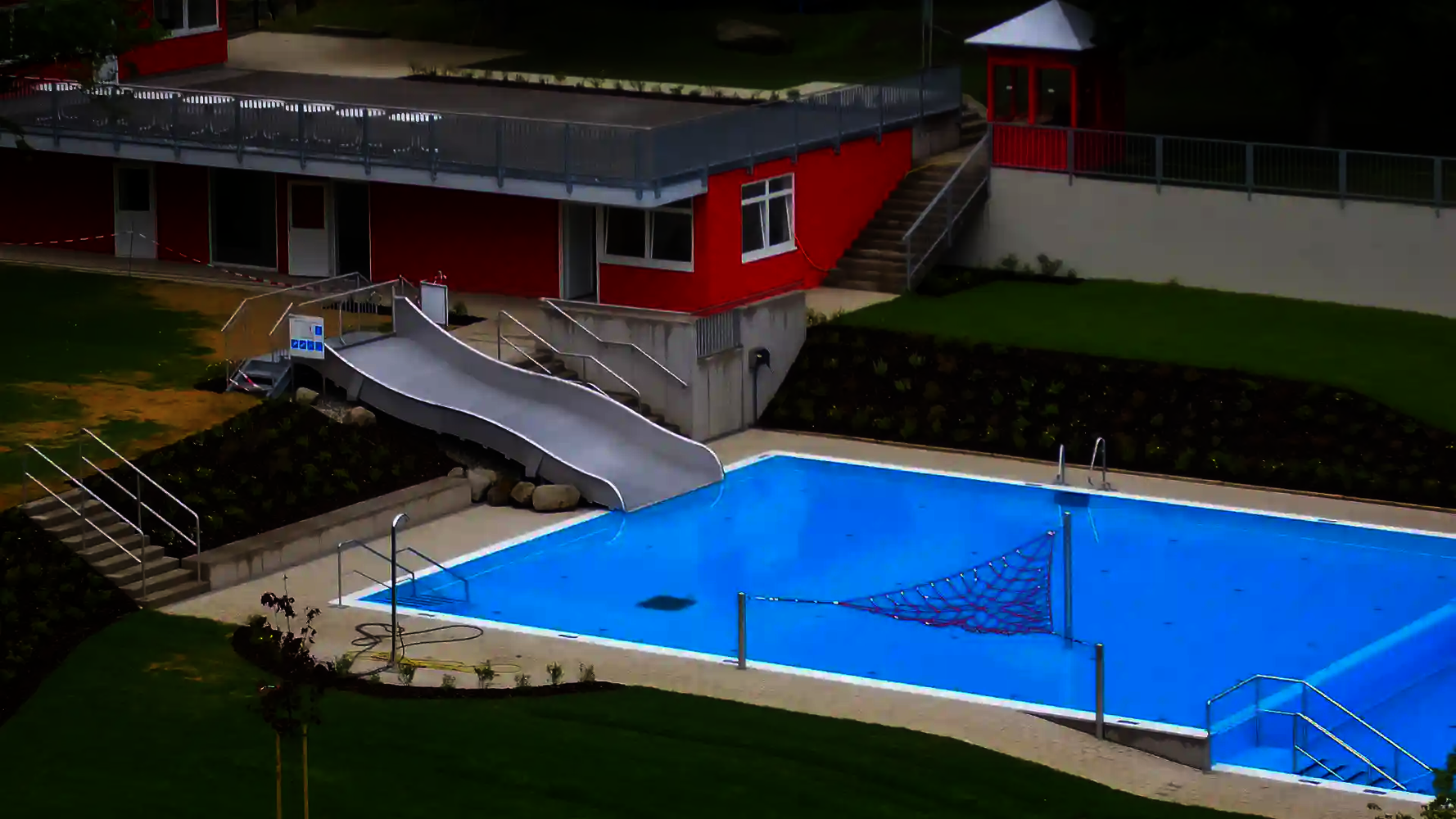

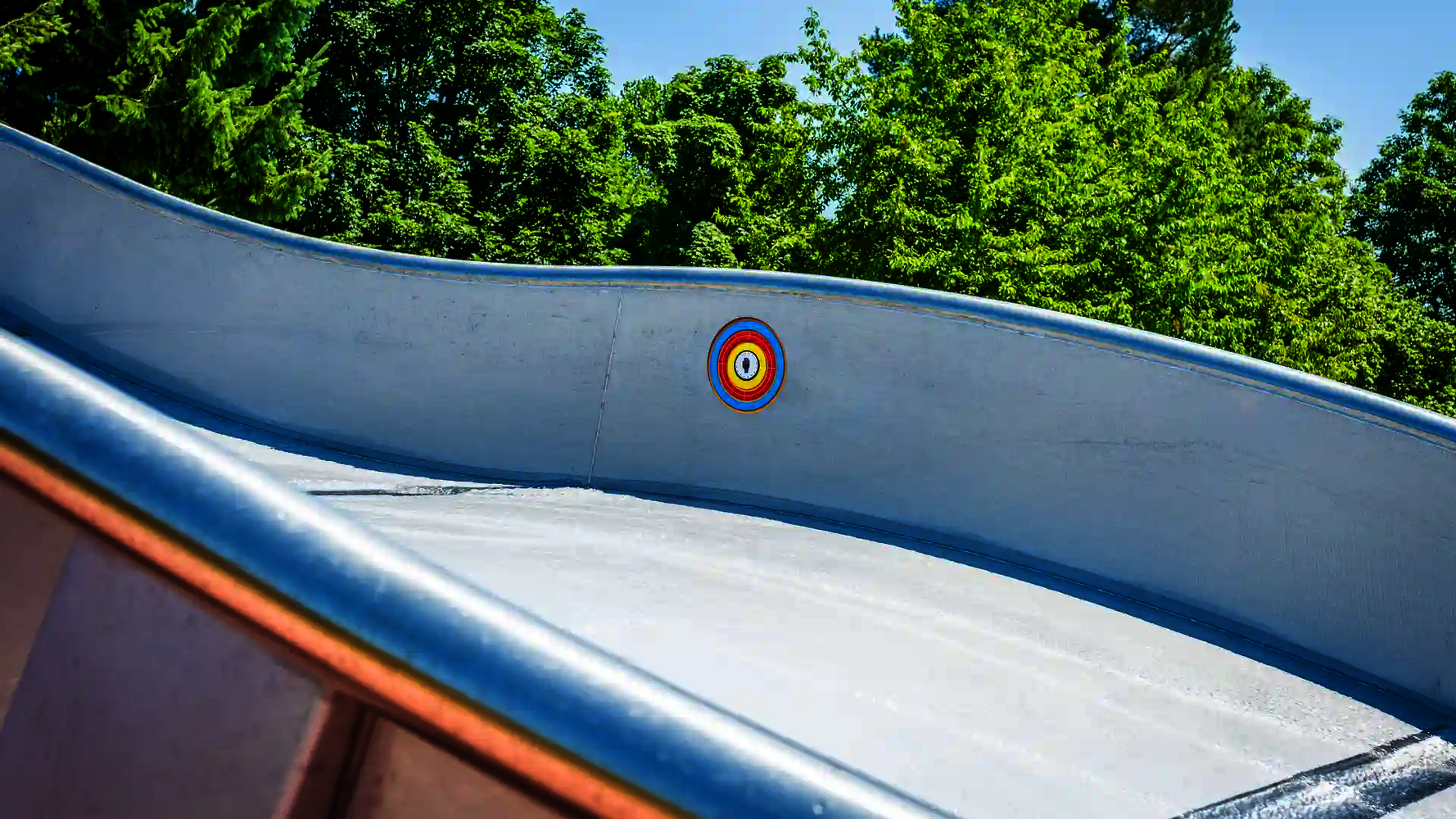

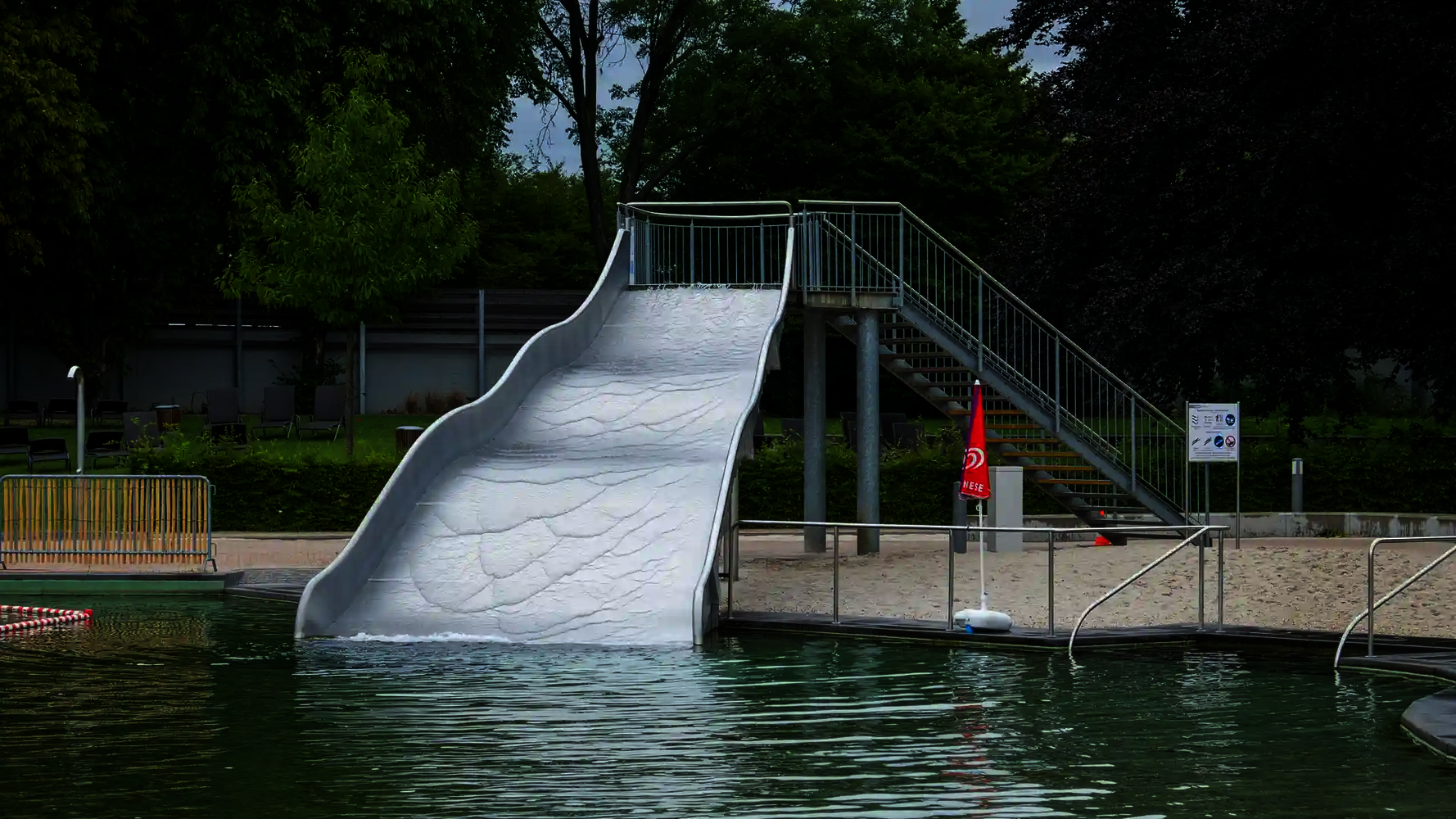

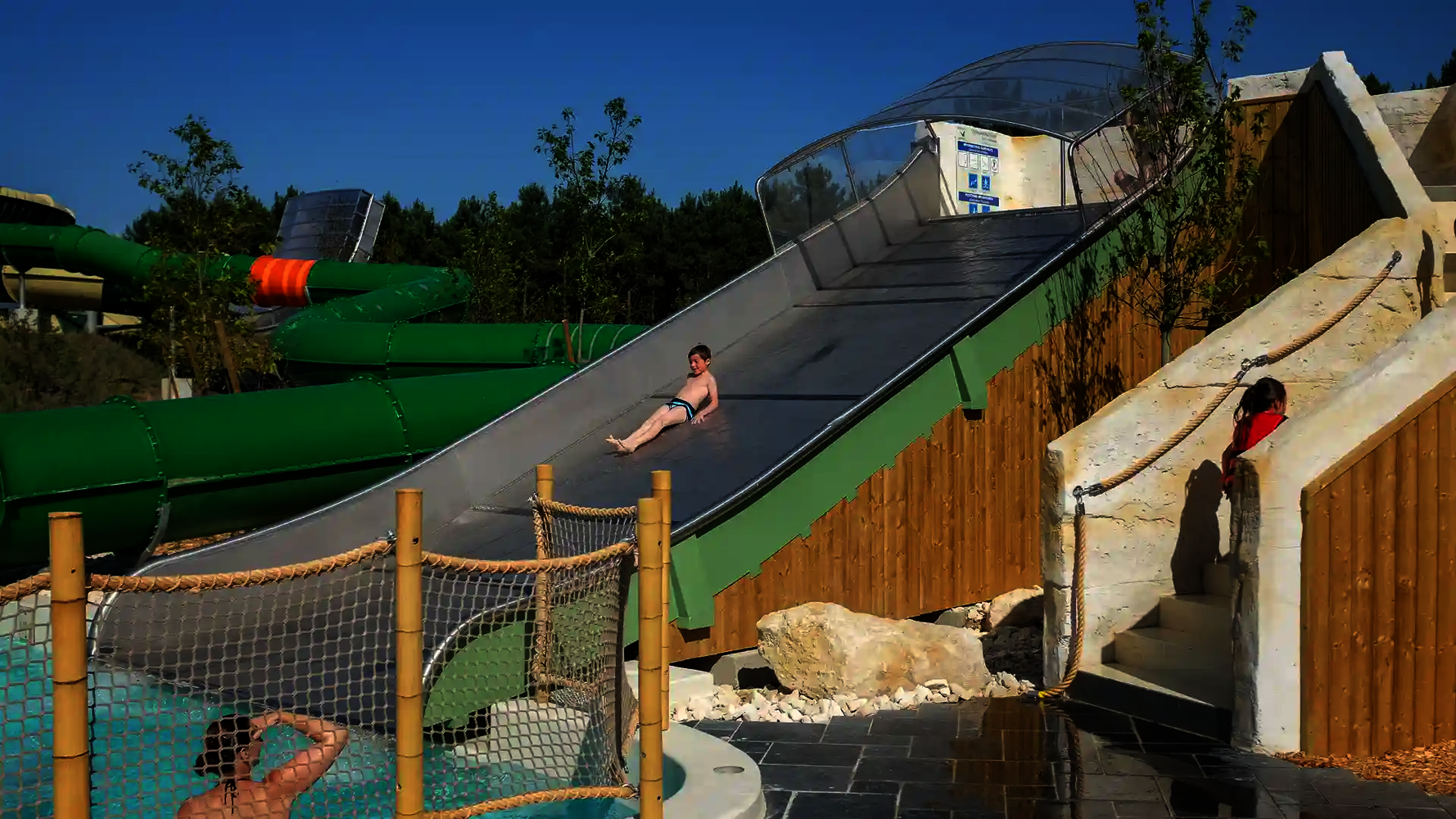

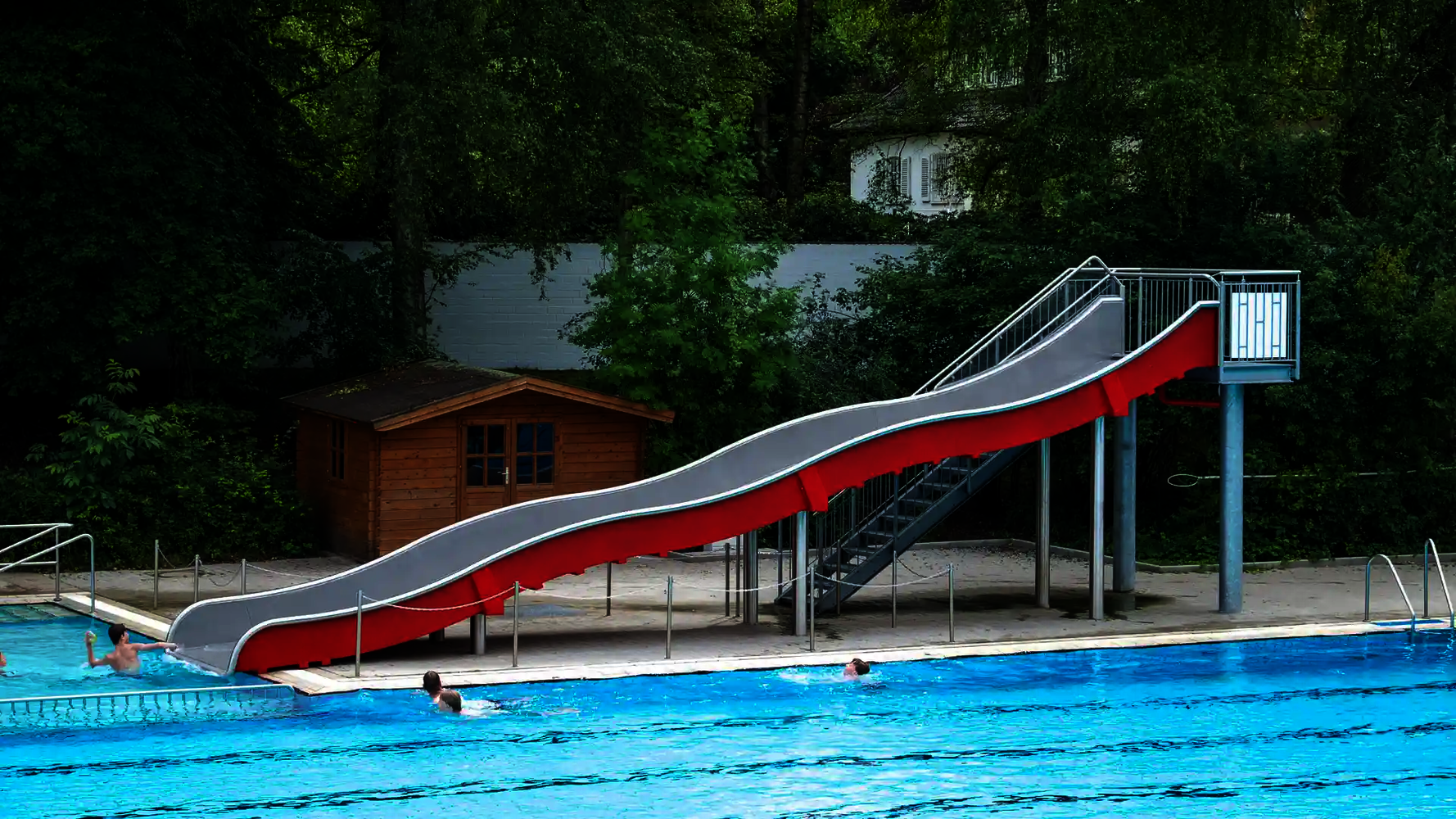

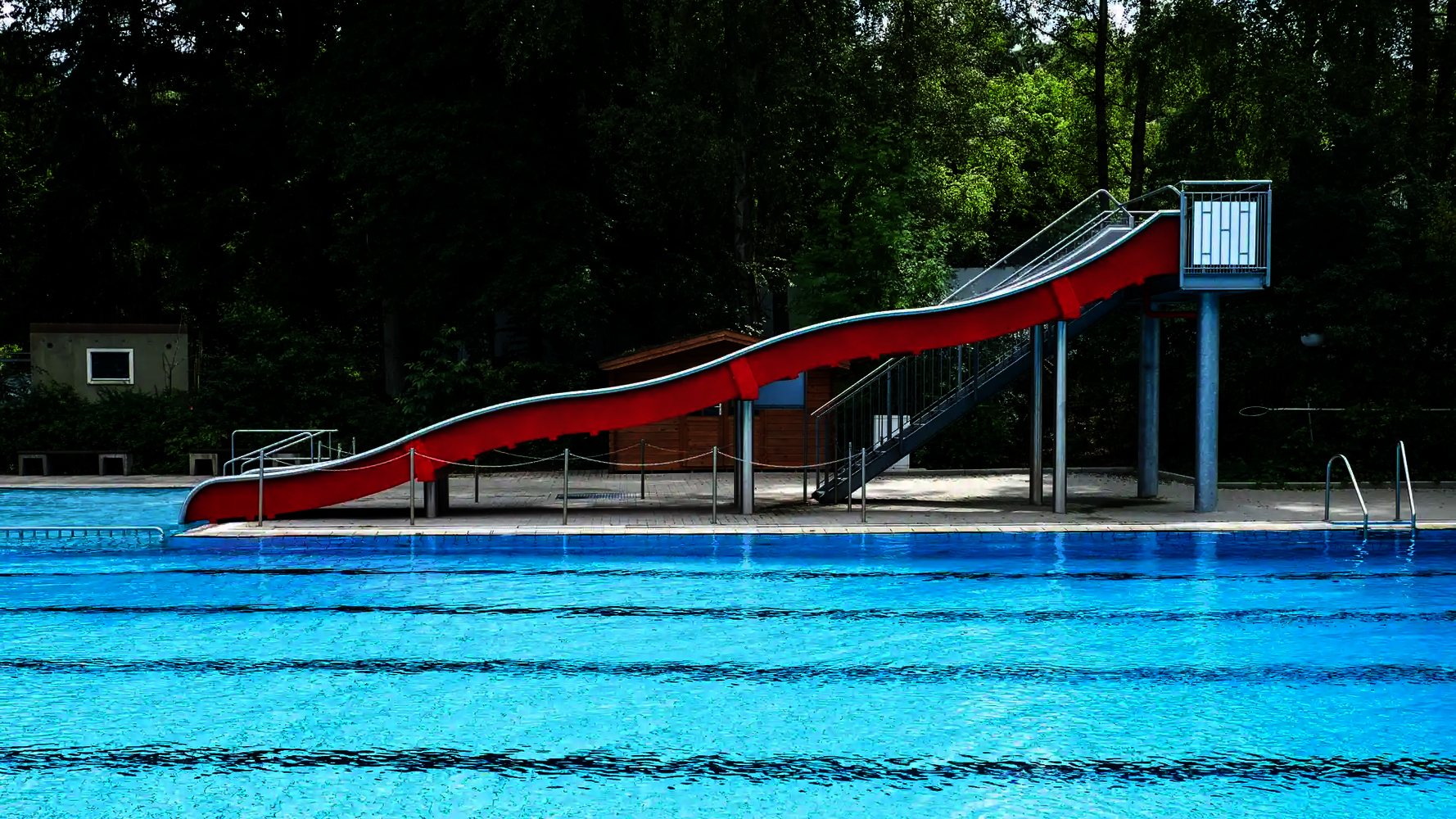

Broad wave slide
The broad wave slide is the ideal model of water slide for sliding together with the whole family. Together or alone, parents and children slide into the water. The focus is on the shared experience. This slide combines a safe sliding feeling with a high fun factor for all ages.
The broad wave slide is a classic model among outdoor pool slides and is now part of the basic equipment of many municipal baths and water parks. Its broad and open shape allows several people to slide at the same time. For this reason, this slide is ideal for families or groups. Thanks to its high capacity of over 1,000 people per hour, this slide is particularly suitable for high-traffic facilities. The stainless steel version convinces thanks to its seamless processing, long durability and easy cleaning. In contrast to GRP models, for this slide there is no need for regular maintenance of joints – a clear advantage in daily operation. The gentle course of the waves ensures a pleasant and safe sliding experience. The broad wave slide can be adjusted in color and, if desired, it can also be designed thematically. This slide model is suitable both as a single element and as a central attraction in a slide park. Due to its positive response from operators and guests, it is now one of the most popular water slides in public spaces.
Product features for the broad wave slide
| Product Name | Broad wave slide | |
| Materials | GRP or stainless steel possible | More information |
| Capacity per hour | max. >1000 people / hour | |
| Water quantity | 30 - 60 m³/h | |
| Level of difficulty | moderate | |
| Type of use | Body /anti-sliding mat |
Please note: All information is for guidance only. Changes may occur during planning and TÜV acceptance. The values refer to general TÜV specifications and must all be tested specifically in each country. Each slide must be checked individually.
Costs and Purchase
TheCostsfor a water slide vary depending on the product, location and scope of the provided services. A simple indication of costs is not feasible, as each project is individually evaluated and offered. The construction costs can be broken down into different services in order to enable a detailed cost statement.
The costs depend on several factors, including the following ones:
- Size and length of the slide
- Material (stainless steel or GRP)
- Additional functions (for example: LED lighting, virtual reality)
- Location and installation effort
For an individualofferwe create a tailor-made calculation.
Upon request, when purchasing a water slide, the customer not only receives the slide itself, but also stairs, towers, start and run area as well as potential special effects. The delivery also includes the entire planning documents and, of course, the applicable guarantees. In addition, a TÜV certificate for operational readiness can be issued. Static calculations and technical requirements for water technology are planned by us while the foundations as well as the water technology are usually provided by the customer.
Choosing betweenGRPandStainless steeldepends on many factors. Although stainless steel can be slightly more expensive to purchase, the follow-up and maintenance costs are much lower, and the service life is longer than that of GRP when properly maintained. On the other hand, GRP moulds can be shaped individually and also offer a higher degree of design freedom in terms of visual presentation. This can be a key success factor. For this reason, it is not clear which material is the best choice.
Stainless steelis almost maintenance-free if it is used and cared about properly.GRPon the other hand, is more susceptible to damage from sunlight and mechanical wear. For this reason, an annual maintenance is mandatory. As a consequence, stainless steel offers advantages in terms of maintenance costs as well as in terms of durability.
Yes, Wiegand water slides are sold worldwide. We are in many countries, from China to Cuba, and have an extensive network to for the global distribution and installation of the slides. From here you can reach ourReference Projects.
If you purchase a water slide, the construction situation on site is the first criterion determining what is feasible. It is important to select the correct product, check the statics and construction options, calculate the production times and construction costs and finally plan the implementation. A careful planning and a consideration of all factors is critical to the success of the project. For this reason, professional advice and concrete planning is recommended.
Our slides are designed to have a long service life and low maintenance costs. Their profitability depends on the number of visitors, water and energy costs as well as maintenance costs.
The payback period depends on the operating costs and on the frequency of visitors. The operators usually expect a payback period of around 5 years.
Yes, in addition to water slides, we also manufactureDry Slidesmade of stainless steel, including, for example, escape slides, playground slides, large slides and much more. The areas of application range from amusement parks to shopping centres to office buildings. Go directly to the manufacturer of dry slides:www.wiegandslide.de

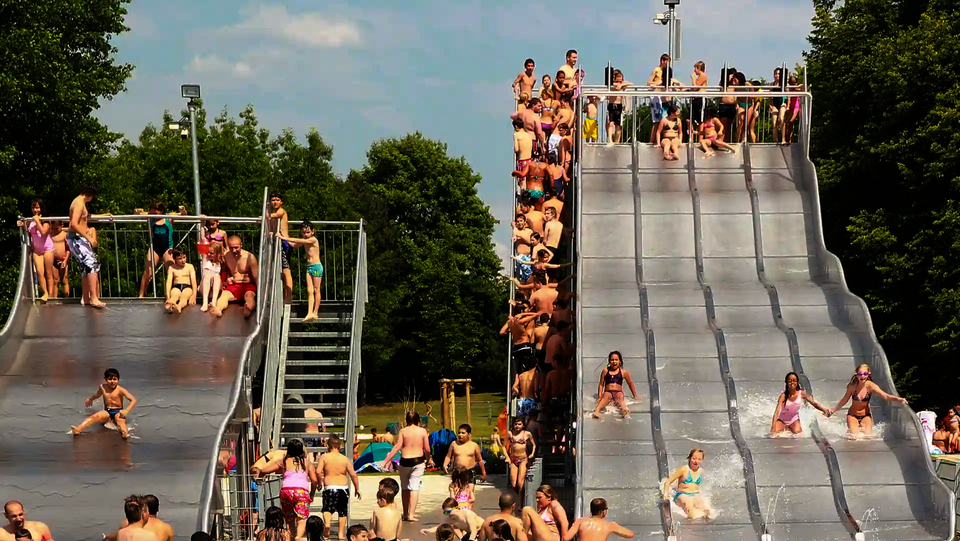

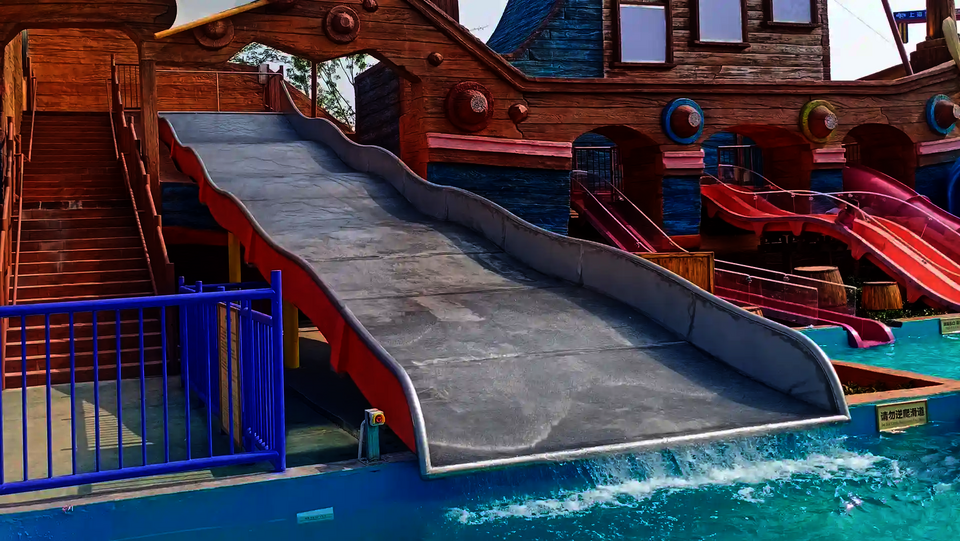

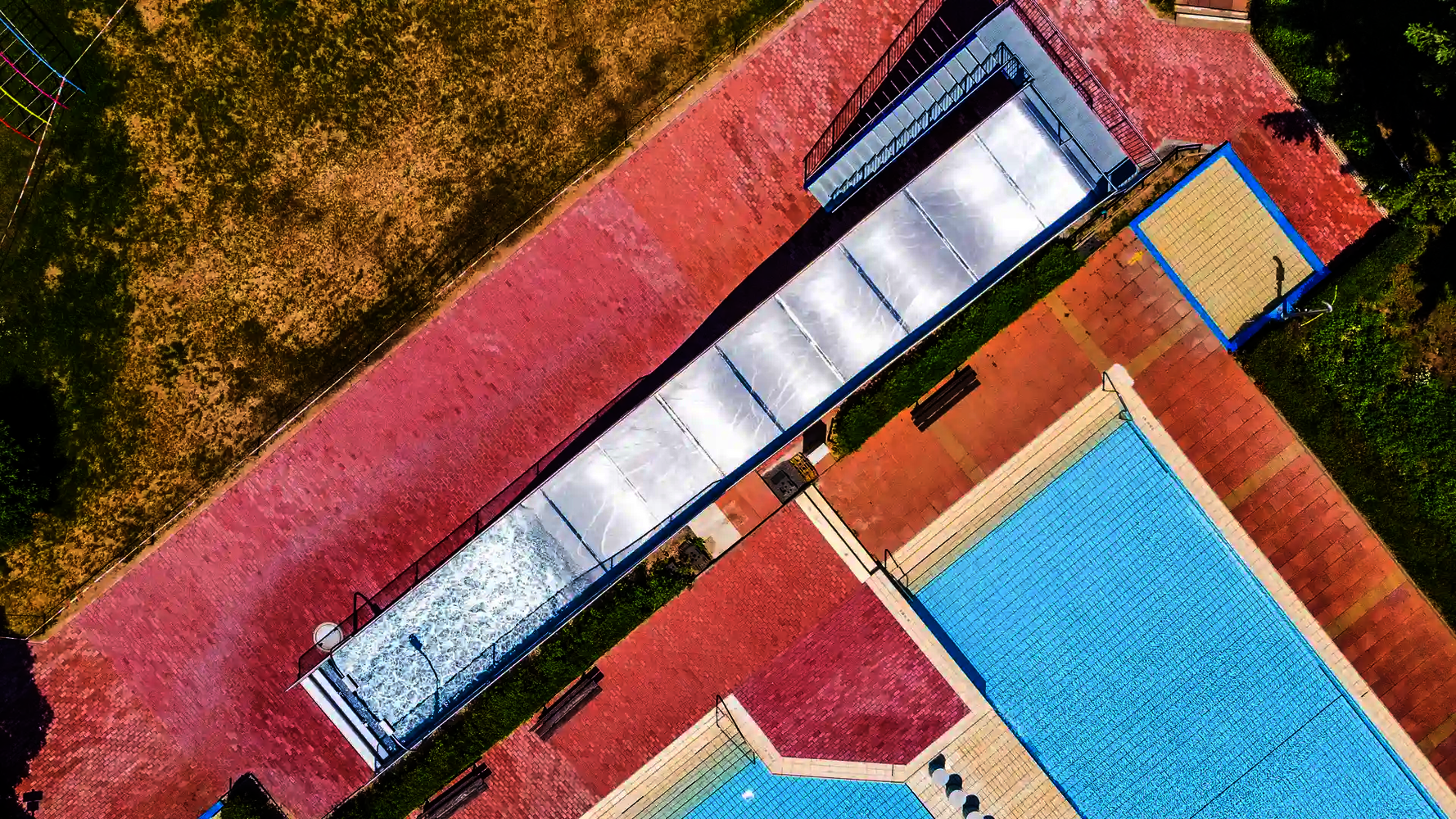

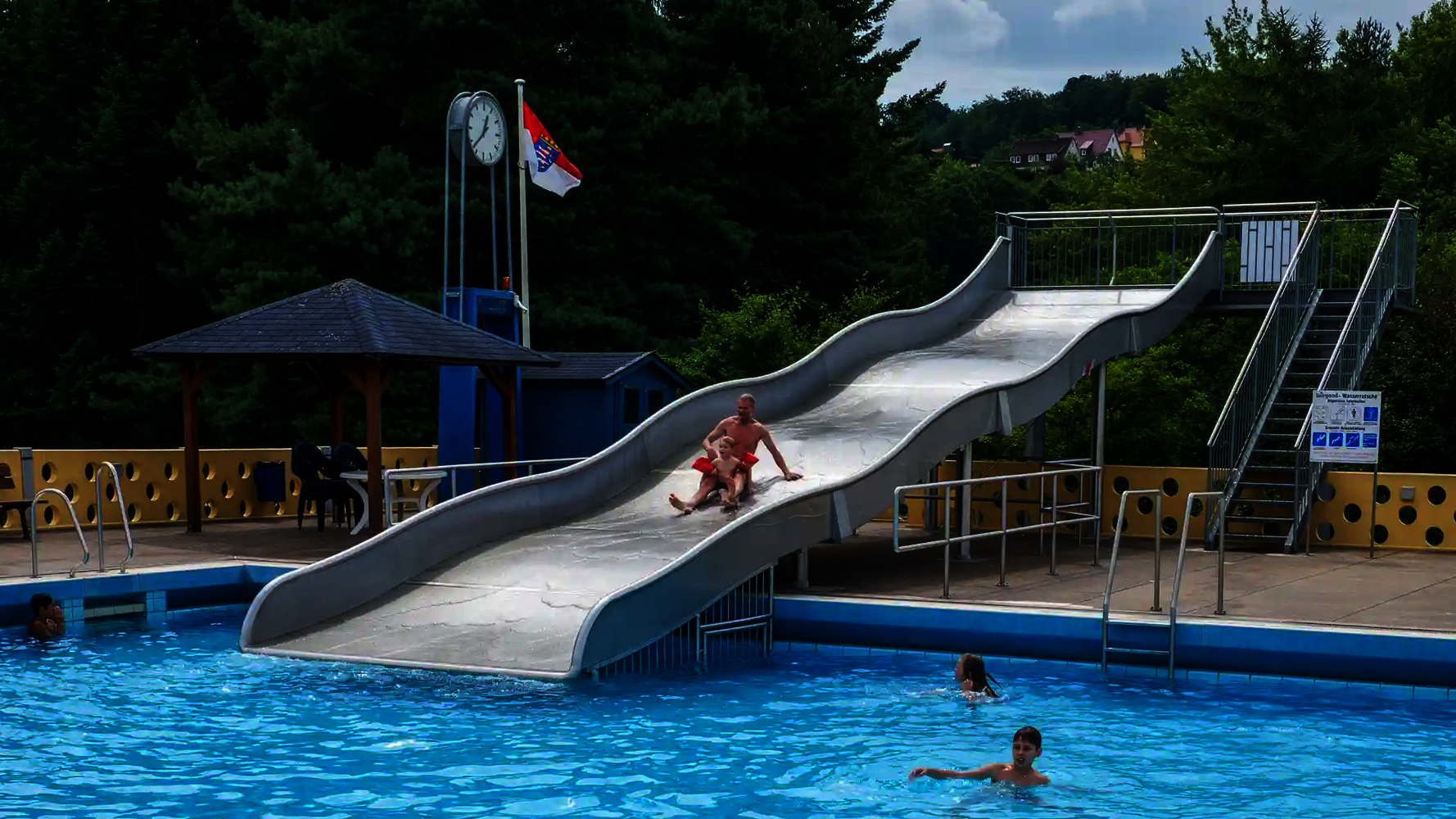

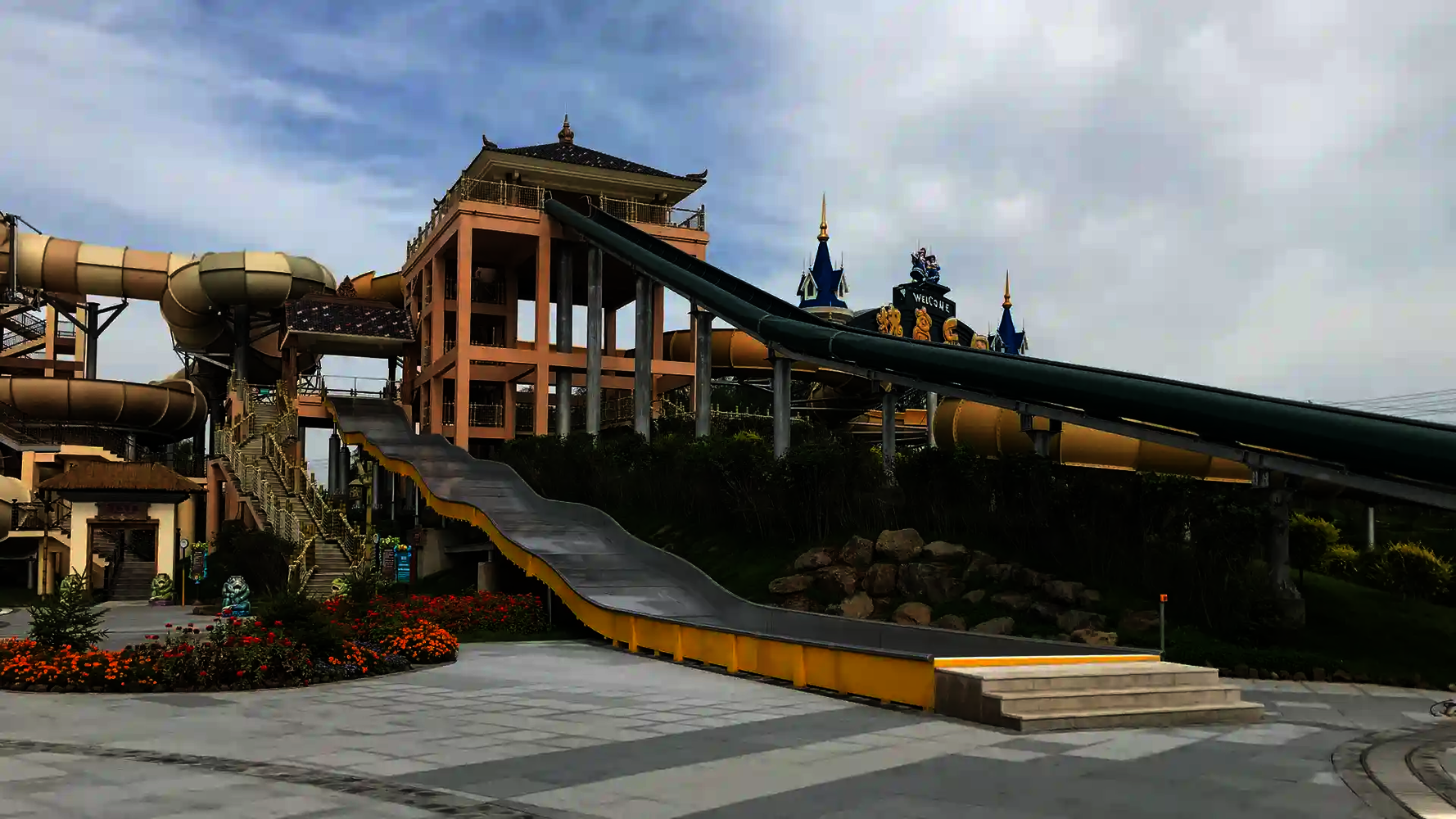

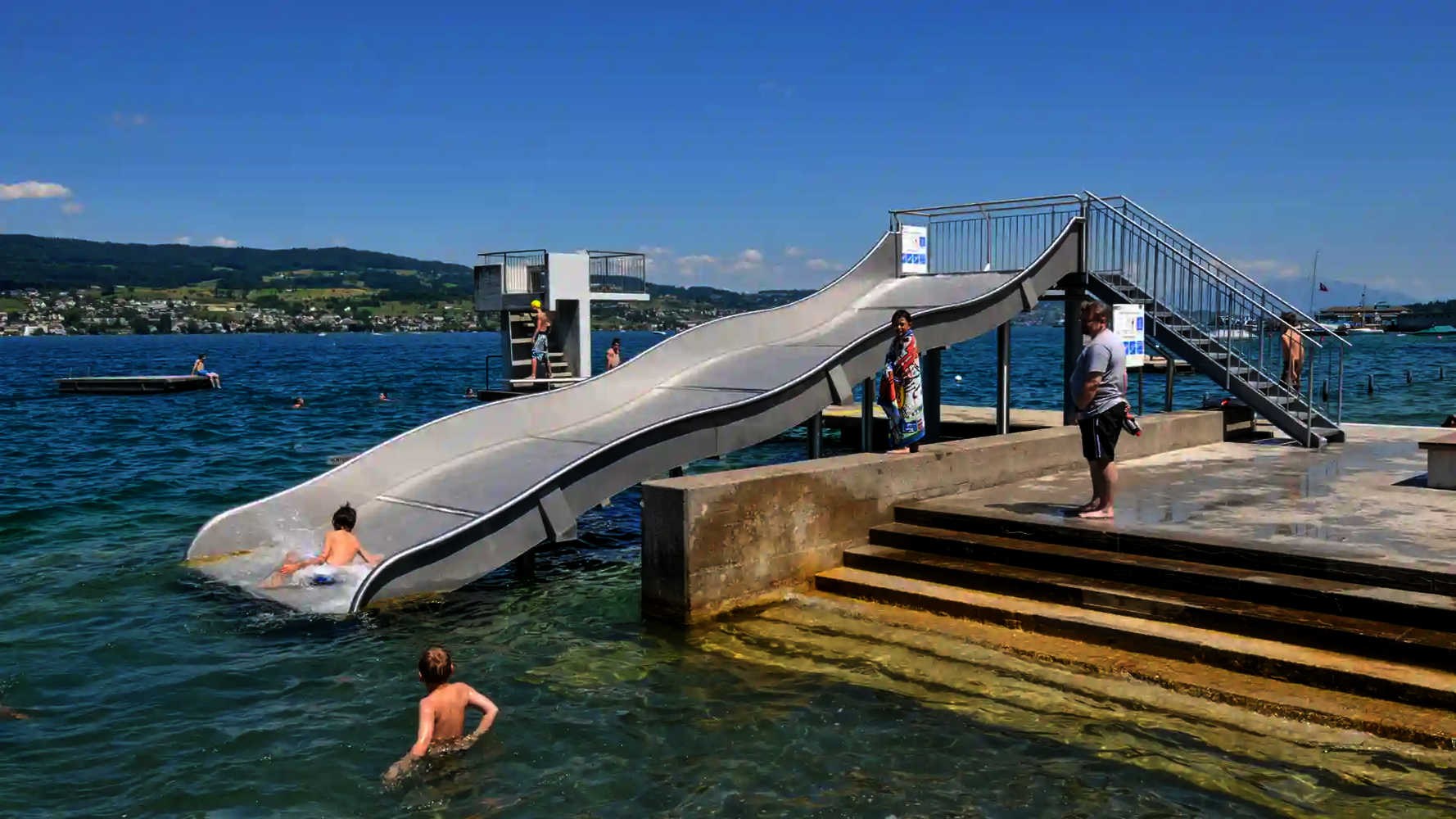

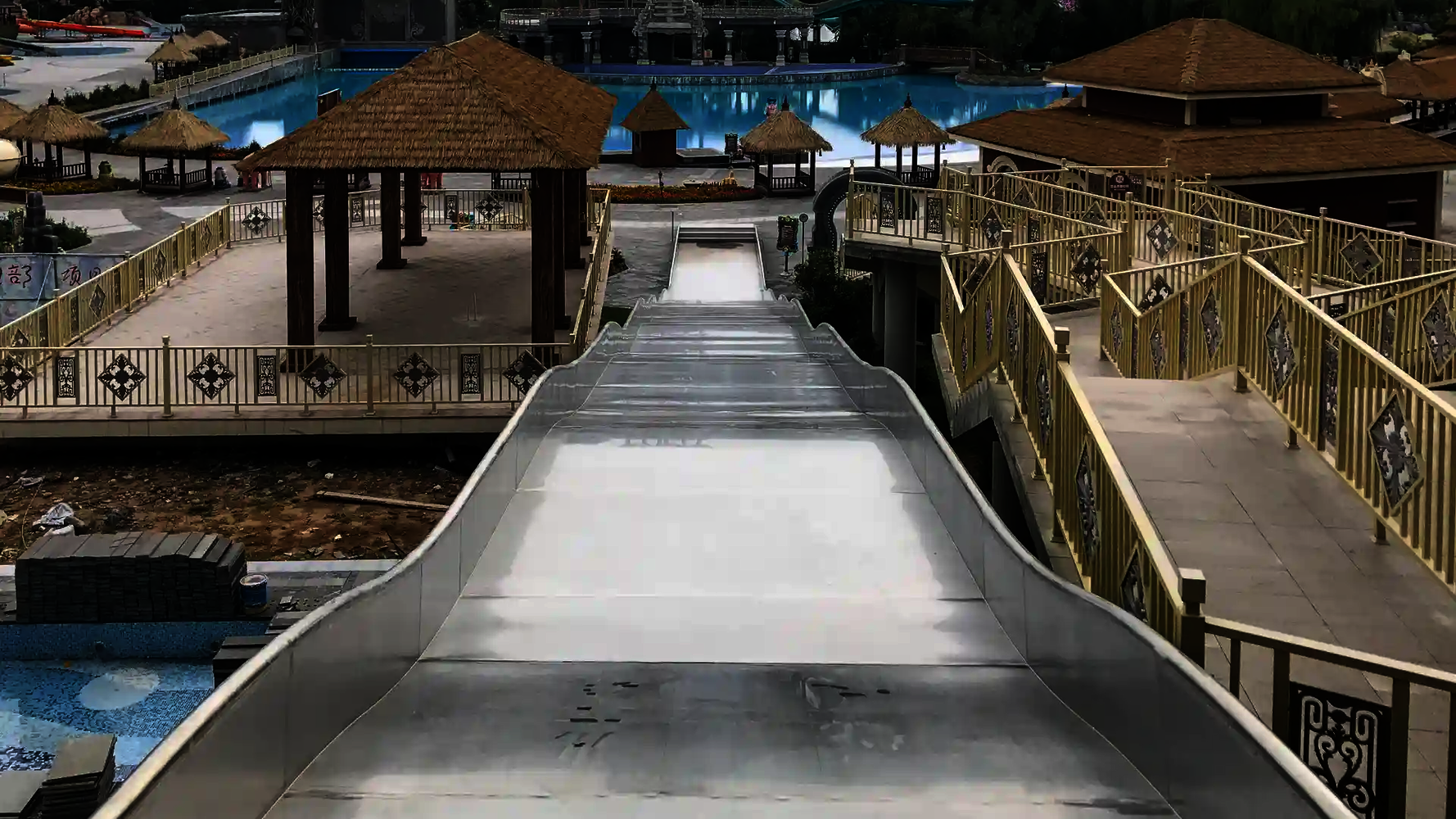

Body Slides / Reference projects Broad Wave Slide
List of reference projects
Discover all our references in your area and around the world now!
Special effects for the broad wave slide
The broad wave slide can be extended individually by adding matching effects. Whether visual highlights or interactive experience elements – the combinations can be chosen flexibly and technically coordinated. We will be glad to advise you on the ideal configuration.
| Product Name | Broad wave slide | |
| Daylight Effects | Not available | More information |
| Daylight motifs | Not available | More information |
| LED lighting effects | Not available | More information |
| UV Light / Wie-Glow | Not available | More information |
| Sound | Not available | More information |
| Acrylic | Not available | More information |
| Interactivity | Optional | More information |
| Time measurement | Not available | More information |
| Waterfall | Optional | More information |
| Topic selection | Not available | More information |
| Virtual Reality Water Slide | Not available | More information |
Please note: All information must be checked individually according to the circumstances.
Accessories for the broad wave slide
In addition to the actual slide, some accessory elements are possible. Depending on the slide, some accessory elements are necessary or optional. Specification can take place after a personal consultation.
| Product Name | Broad wave slide | |
| Insulation | Not available | More information |
| Discharge | Available | More information |

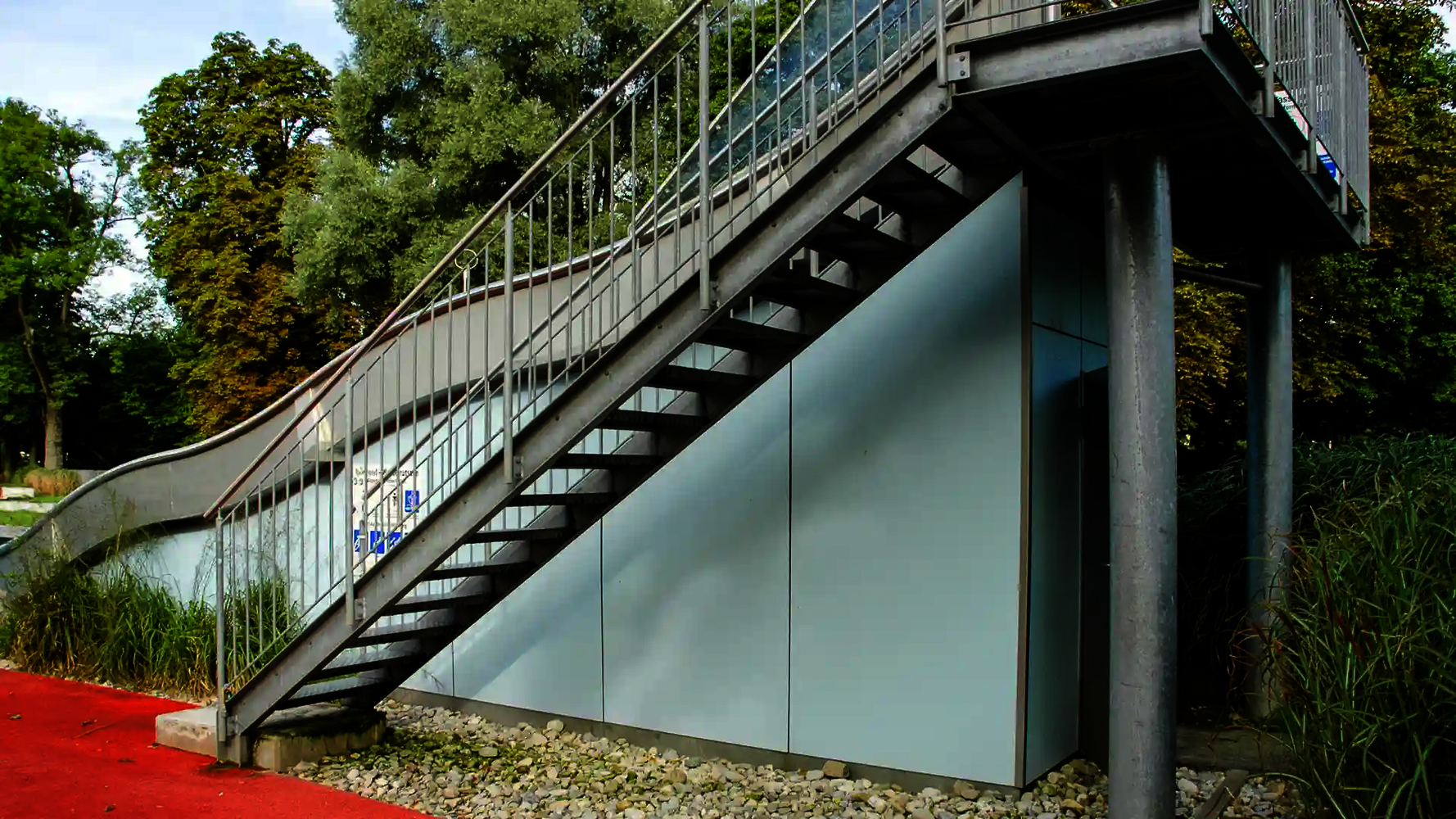

| Stairs and towers | Optional | More information |
| Flat external surface | Not available | More information |
| Façade penetration | Optional | More information |
| Slide tires | Not available | More information |
| Tire Lift | Not available | More information |
| Sliding mats | Optional | More information |
| Sealing plug | Not available | More information |
| Splash protection | Optional | More information |
| Water Technology | Optional | More information |
| Supports and steel | Available depending on circumstances | More information |
Please note: All information must be checked individually according to the circumstances.
Dimensions
This outdoor pool slide requires a certain minimum height level to achieve the ideal slide path. In addition, due to the width, a corresponding space requirement for the structure and pool connection must be planned. The company wiegand.waterrides takes over the complete implementation from planning to assembly.
Standard Dimensions
| Product Name | Broad wave slide |
| Width | 2 m // 3 m // 4 m |
| Length | 7.40 m // 11.40 m // 15.40 m // 19.40 m // 23.40 m |
Custom-made products in all widths as well as lengths are possible.
Construction and Features
The manufacture of water slides depends on the specific requirements of the customer and the chosenmaterial. There are two main materials: stainless steel and glass fibre reinforced plastic (GRP), which are produced in Wiegand's own plants in Rasdorf and Brüssow in Germany. With over 350 employees worldwide, the company ensures that the slides are pre-produced in the best possible way in order to minimize assembly times at the site. Theconstructionis carried out internally in regular coordination with the project management, the customer and theproduction.
A water slide uses an inclined plane and smooth materials such asGRPorStainless steelto allow low friction downward movement. The running water and sometimes rubber tires or mats help to further reduce friction so that one or more people can have a sliding experience at the same time. The speed is determined by the slope of the slide, with classic slides such as theWR1040which usually have a gradient of up to 13%.
The slide speed on a water slide varies depending on the slide type and design. Cozy slides such as whitewater rivers reach speeds of about1–2 km/hwhile steeper high-speed slides can reach over50 km/h. The speed is influenced by various factors, including the slope of the slide, the amount of water and special design elements.
We customize the said parameters to allow for different slide experiences, from the gentle family slides to action-packed adrenaline rides.
The steepness of water slides can vary considerably. The most extreme form is theFalling startwith a gradient of over 80°, which changes from an almost vertical start to a smoother slide. In contrast, whitewater rivers are almost horizontal. Generally speaking, the steeper the slide, the faster the slide speed.
TheConstruction periodof a water slide cannot be specified as a flat rate, as this period depends on the size of the slide, the production utilization and the construction phases. As a rule, you should expect several months from project planning to completion. For some projects, such as for example cruise ships, planning can take several years. The assembly time varies between a few days and several months depending on the type of slide.
The construction of a water slide begins with the preparation of the foundation. Depending on the site structure, support pylons and stairs are then erected, followed by the assembly of the outlet basin. The slide itself is usually assembled from the bottom to the top. This is done by our own assembly teams and auxiliary workers on site.
Basically, at the company Wiegand, we offer water and dry slides. We distinguish between the following categories:
Water Slides
- Body Slides
- Tire Slides
- Slides in the kids area
- Park Slides
Dry Slides
- Special Slides
- Playground Slides
- Slide Trails
- Escape Slides
If you're interested in a water slide, you've come to the right place. If, on the other hand, you are looking for a dry slide, the Josef Wiegand GmbH & Co. KGis the ideal contact for you.
The company Wiegand builds water slides in its own plants in Rasdorf (stainless steel) and Brüssow (GRP) in Germany with its over 350 employees worldwide. In addition, the company Wiegand is building its own steel substructure for all slides as well as access stairs and platforms for wet and dry areas. We offer a complete service from planning to production to assembly. From here you can reach ourPerformances.
Yes, we offer solutions for the installation of slides at a later stage into existing swimming pools, hotels or amusement parks. Our designs are the expression of the planning of the ideal integration into the existing infrastructure.
Our slides can be found worldwide in various amusement parks, spas, water parks or on cruise ships.
From here you can reach theReference Projects.
The construction work begins with an individual planning phase, in which we adapt the design to the circumstances and wishes of the customer. After that, the production takes place in our own plants by using high-quality materials such as stainless steel and GRP. The prefabricated slide parts are then assembled on site and extensively tested before the commissioning phase. Even after the installation, we will be available with maintenance and services. From here you can reach ourPerformances.
Safety for the broad wave slide
The focus of the broad wave slide is on safe sliding pleasure. In addition to the required legal standards, we offer additional safety systems which are adapted to local conditions. Our specialist consultants will support you in selecting the right security concept.
| Product Name | Broad wave slide | |

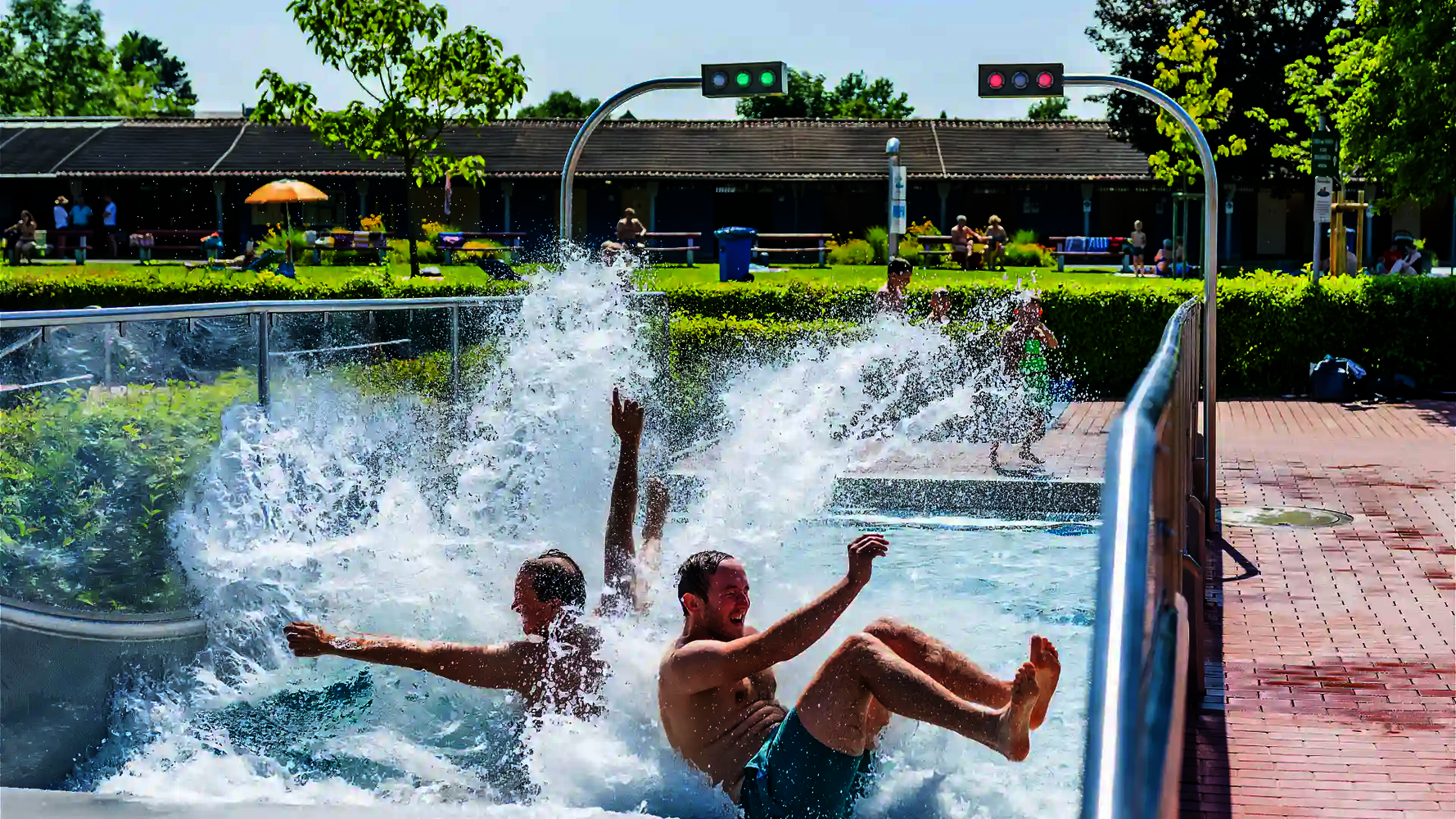

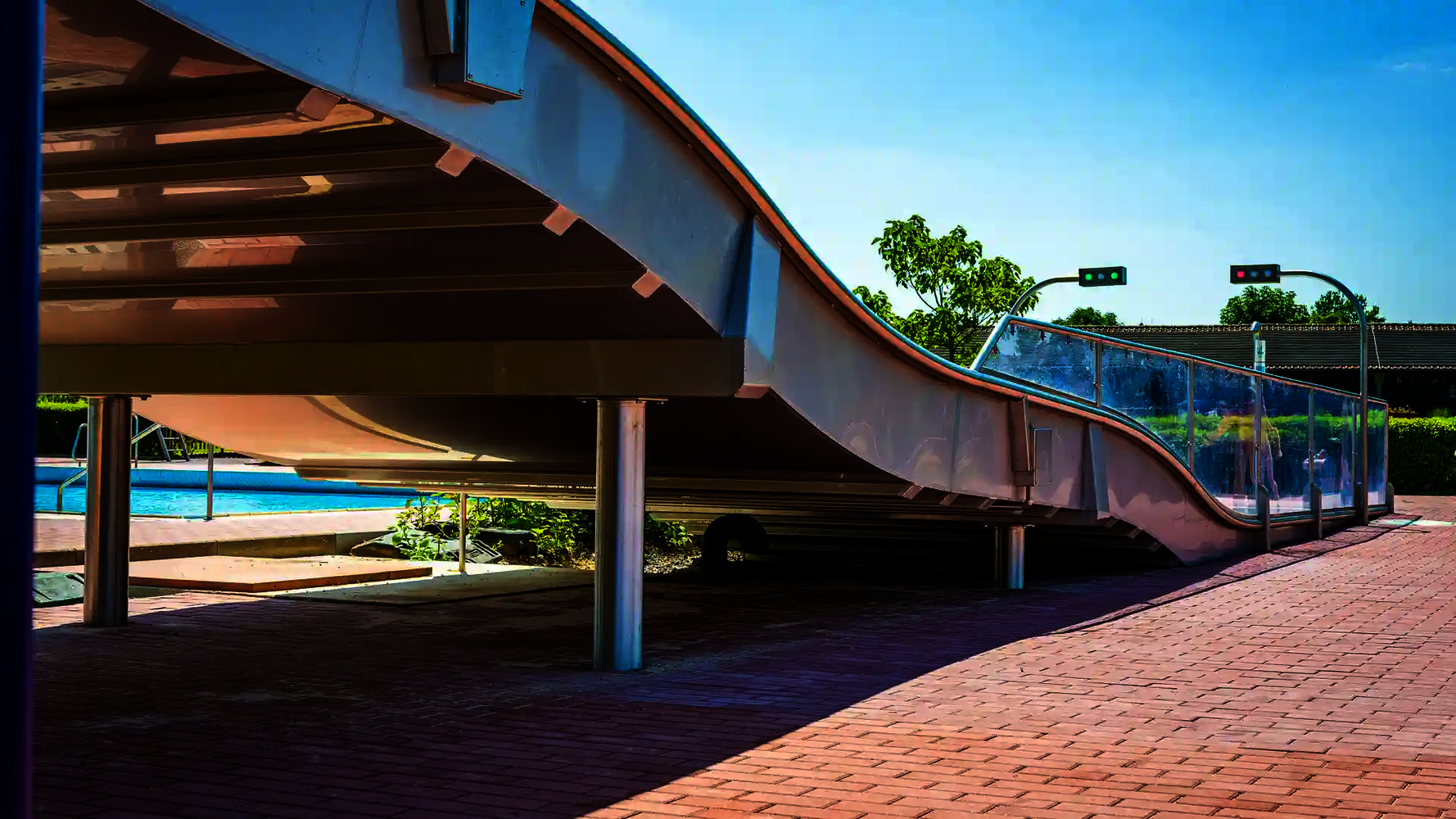

| Time traffic light | Optional | More information |
| Sensor traffic light | Not available | More information |
| Turnstile | Not available | More information |

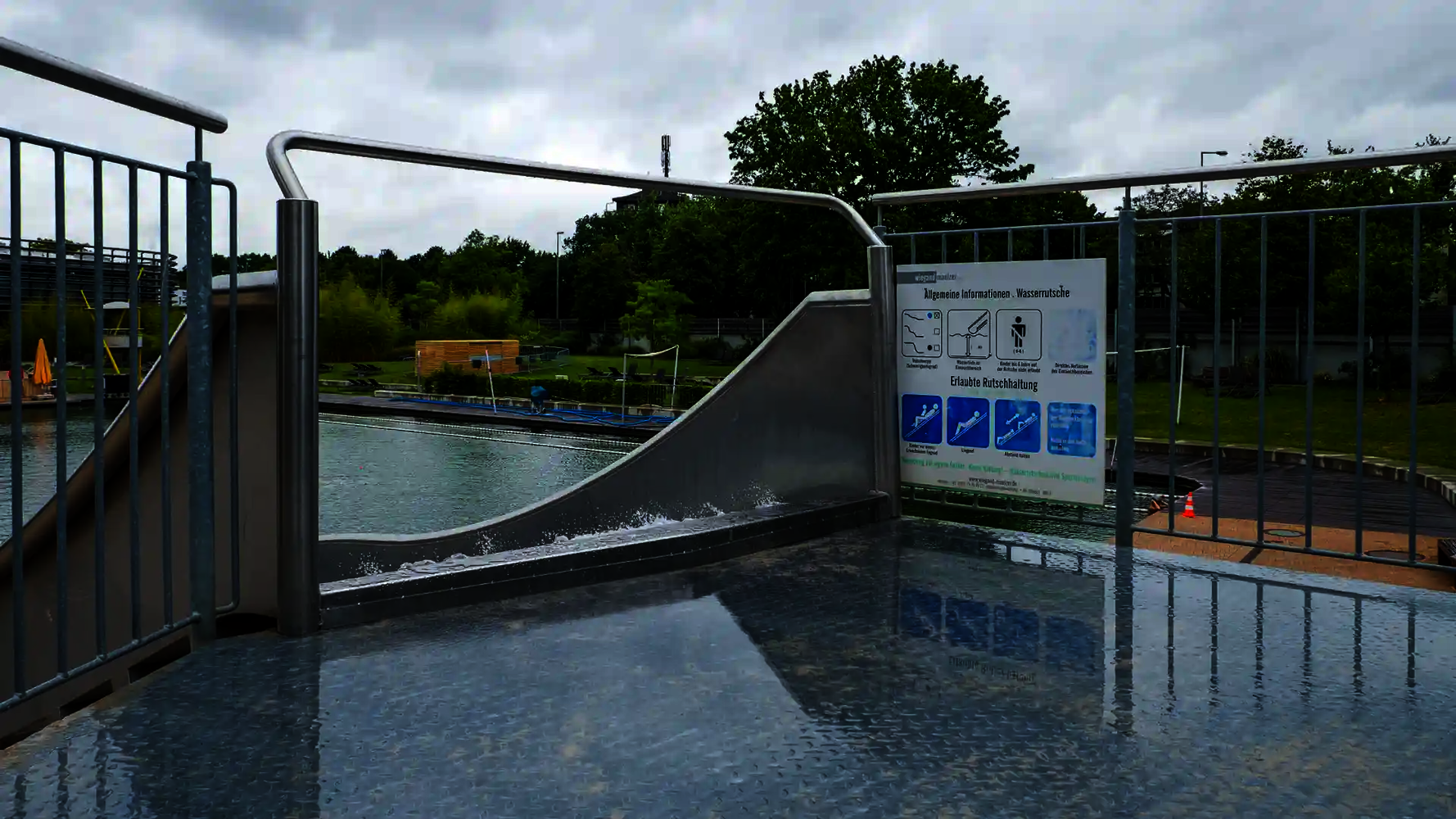

| Information board | Included in the scope of delivery | More information |
| Intervention protection | Optional | More information |
| Life-Line | Optional | More information |
| Start Belt Conveyor | Not available | More information |
Please note: All information must be checked individually according to the circumstances.
Similar slides
For whom and where
We offer specialKids slides. Children as young as 1 year old can have their first sliding experience accompanied by an adult, provided the water depth is adjusted accordingly. The selection of the suitable slide depends on the child's age, water depth, and adult supervision.

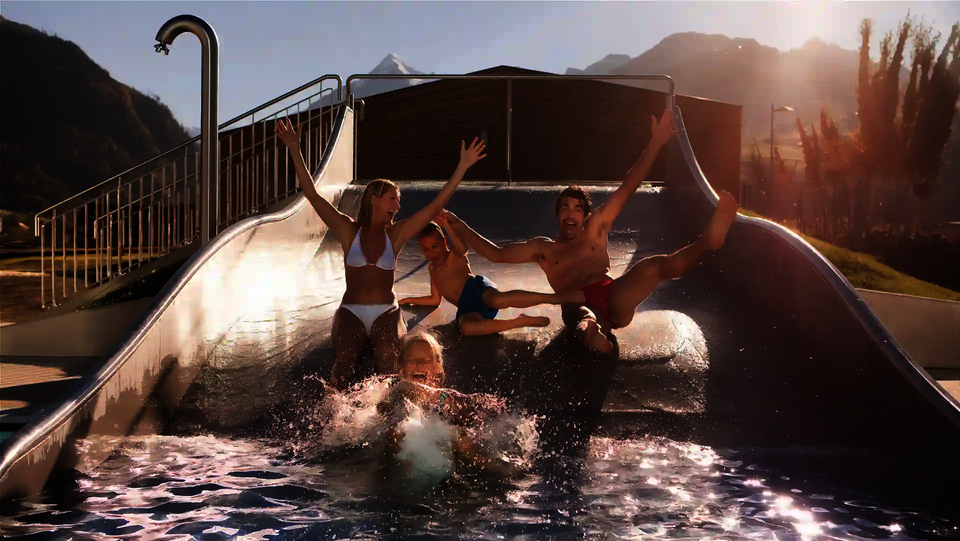

For families, broad wave slides, multi-track slides or tire slides which are suitable for both adults and children are ideal. The said slides offer a shared experience and allow you to slide next to each other or together in a tire. There are also interactive slides with lighting effects or timekeeping, which provide extra fun.
Yes, there are challenging slides which are more suitable for adults. These slides offer a more intense sliding experience due to their size and requirements.
For hotels, we offer tailor-made water slides which blend harmoniously into already existing structures and provide guests with an unforgettable experience. An example of this is the BEECH Resort Fleesensee, where we installed a 63-meter-long GRP slide of the model WR1040. Our many years of experience enable us to implement attractive slide solutions even in a limited space. Particularly popular are tubular slides, broad wave slides and interactive kids slides.
For swimming pools, we offer compact and versatile slide solutions which can be ideally integrated into already existing systems. The said solutions include classic body slides with different curves and jumps, high-capacity wide-shaft slides, and compact tire slides like the RR1400. Depending on the available space and target group, lighting effects, transparent elements or interactive features can be added.
Large, spectacular slides with a high experience value are used in water parks. These slides include tire slides with blackhole effects, multi-person slides, high-speed slides, and interactive water slides with light and sound effects. Our facilities are individually planned and tailored to the conditions of the park. So they can provide a unique slide experience for guests of all ages.
For thermal baths, we offer a wide range of water slides allowing both relaxation and adventure. An example is the Loipersdorf thermal bath with five impressive slides. Also in the thermal bath of Erding, Germany's largest slide paradise, many of the spectacular slides come from our production. Our slides can be individually adapted and harmoniously integrated into the architecture of the thermal bath in order to offer guests an unforgettable experience.
For the use on cruise ships, we develop tailor-made water slides meeting the special requirements on board. An example of this type of cruise ships is the AIDA PRIMA, which is equipped with a 96-meter-long Body Racer made of stainless steel and acrylic glass tubes, as well as a 54-meter-long Lazy River. Two tire slides with lengths of 79 metres and 80 metres as well as a 77 metre long family slide were installed on the cruise ship AIDA NOVA. Our slides are designed to meet the limited space and safety standards on cruise ships while providing an exciting slide experience for guests.
Yes, we manufacture slides in individual colors, shapes and with thematic elements to adapt them to the respective park design. We take into account influencing factors on site and adapt the product to the circumstances.
The amount of space required depends on the type of slide and can vary greatly. The water slide can also be adapted to the already existing space.
Smaller slides require only a few meters, while large tubular slides or multi-lane broad wave slides need more space. We offer individual planning solutions for different space conditions.
Yes, we develop solutions that can also be used by people with disabilities, for example through gentle slopes, special entry areas and non-slip surfaces.
Ensure durability and safety through regular maintenance.
// Our Service Team
We are waiting for your existing waterslide for the next TÜV appointment.
Due to the constant material stress, regular maintenance and cleaning work must be carried out. Through consistent and professional maintenance and servicing, long-term use of the water slide can be guaranteed.
Service and maintenance
Our GRP water slides require regularMaintenanceaccording to the standard DIN EN 1069. Our service team carries out annual inspections, repairs, cleanings and upgrades to increase safety, performs professional cleaning and repairs slides regardless of the manufacturer. We will be glad to draw up a maintenance contract with you. Request service now.
The operation of a water slide requires compliance with the DIN EN 1069 standard as well as regular safety tests. The operators must carry out maintenance, ensure water quality and check the slide system for damage. Emergency procedures and clear safety instructions for guests are also required.
The water quality has a direct influence on the longevity as well as on the preservation of the slide materials. Too high chlorine or salt contents can accelerate the corrosion in metal parts such asStainless steeland can attack surfaces ofGRP slides. For this reason, careful monitoring and regulation of water chemistry as well as regular maintenance are essential to minimise material wear and to extend the life of the slide.
The regularCleaningof GRP (glass fibre reinforced plastic) slides is essential for their durability and safety. OurService - Teamoffers professional cleaning services for your slides, both indoors and outdoors. Damaged areas are polished and the slides are thoroughly cleaned, especially before commissioning at the beginning of the season. For optimal care, we recommend carrying out these cleaning measures on a regular basis.
The regularCleaningof stainless steel slides is essential for their durability and safety. OurService - Teamoffers professional cleaning services that include both polishing damaged areas and thorough cleaning of the indoor and outdoor slides. Especially before the start of the season, careful preparation of the slides is important to ensure optimal sliding conditions.
The steel elements of a slide should be regularlycleanedand maintained in order to prevent corrosion and build-up. OurService - Teamoffers professional cleaning services, including polishing and protective measures for the long-term preservation of the surfaces. Especially before the start of the season, thorough cleaning is advisable in order to keep the slide in optimal condition.
In order to ensure that the water slides are used for a long time, regularMaintenanceand care of the individual components must be guaranteed. A maintenance joint is replaced as follows:
During the first step, the old existing seal must be cut out of the joint without residue by using a sharp cutter knife. After that, the edges must be carefully ground in order to ensure the adhesion of the new seal. During the next step, the area must be thoroughly cleaned and taped. Now the new joint can be filled with new sealant.
The damage to water slides can usually be professionally repaired. Our service team takes care of repair work on both our own slides and on systems from other manufacturers. We repair damage to sliding surfaces, landing pools, stairways and joints. Furthermore, we take care of the renewal of ageing acrylic or macrolone elements. Our qualified fitters ensure that your slide is safe and functional again as soon as possible. RequestServicenow.
Yes, we offervarious warranties for our products. This warranty covers various situations and is contractually stipulated. Wear parts are not subject to any warranty.
We will be happy to advise you on your waterslide project and prepare an individual offer. The maintenance work is also part of our service.
