Cyclone

The Cyclone is one of the largest funnel slides in the world and, with its gigantic diameter, provides an impressive sliding experience. In a 4-person tire, guests glide through a steep access road directly into the huge funnel. There the guests will experience spectacular changes of direction and the feeling of weightlessness. This is a real highlight for any kind of adventure pool.

Innenansicht des Cyclone mit gelbem Boot auf blau-weiß gestreifter Rutschfläche.

With its diameter of maximum 19 metres, the Cyclone is the XXL version of the classic funnel slide. The sliders first reach high speed on a GRP access slide. After that, they start diving into the wide-open funnel shape. In the bowl, the boat oscillates from wall to wall by creating extremely intense rocking moments. The final outlet is designed to be safe and comfortable. The Cyclone is particularly suitable for groups and families because the common riding experience is paramount. The slide is both visually and functionally a crowd pleaser. Modern lighting effects, projections inside the funnel and sound features increase the intensity of the experience. The slide may be integrated into the already existing facilities. As an alternative, it can be implemented as a separate attraction. Thanks to its striking shape, this slide is also an eye-catcher from a distance. This makes it ideal for applications in the leisure branch.

youtube video

Product Features for Cyclone

Product Name Cyclone
Materials GRP only More information
Capacity per hour max. 600 people / hour
Water quantity 600 + 270 + 350 m³/h
Level of difficulty difficult
Type of use 4-sliding tyres


Please note: All information is for guidance only. Changes may occur during planning and TÜV acceptance. The values refer to general TÜV specifications and must all be tested specifically in each country. Each slide must be checked individually.

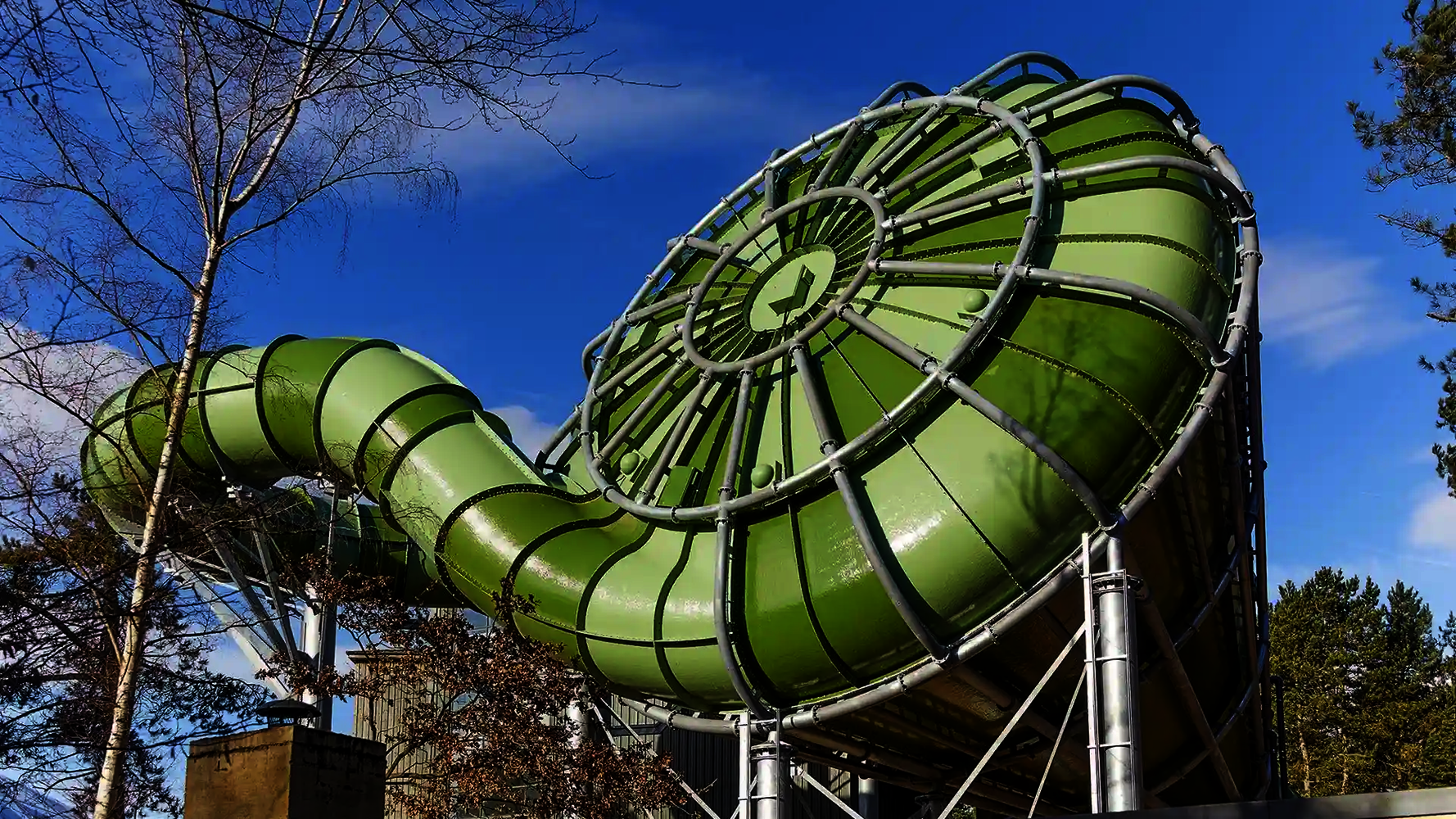

Ein grüner Cyclone-Trichter mit angrenzender Röhrenrutsche auf Stahlstützen zwischen Bäumen.

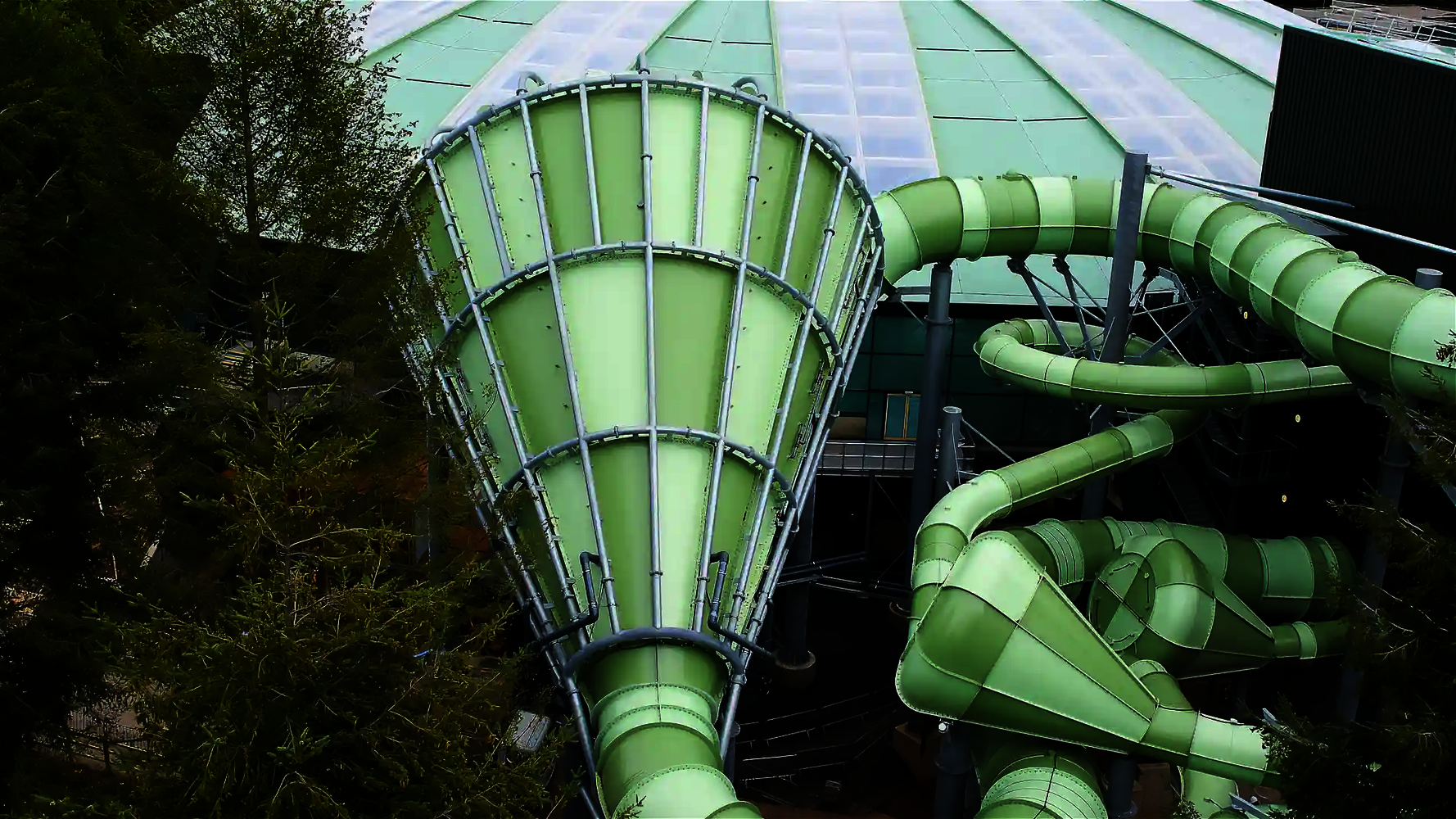

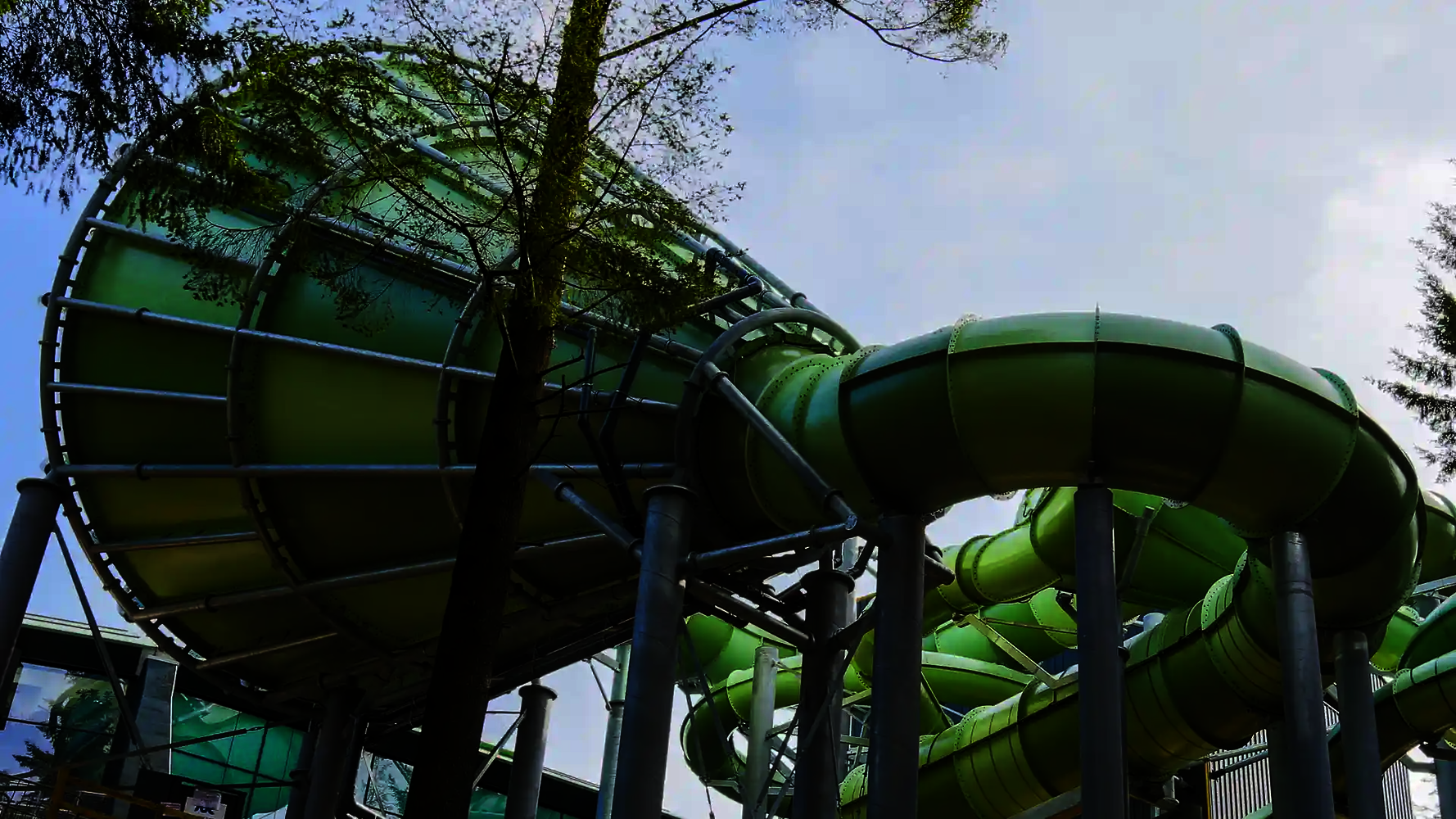

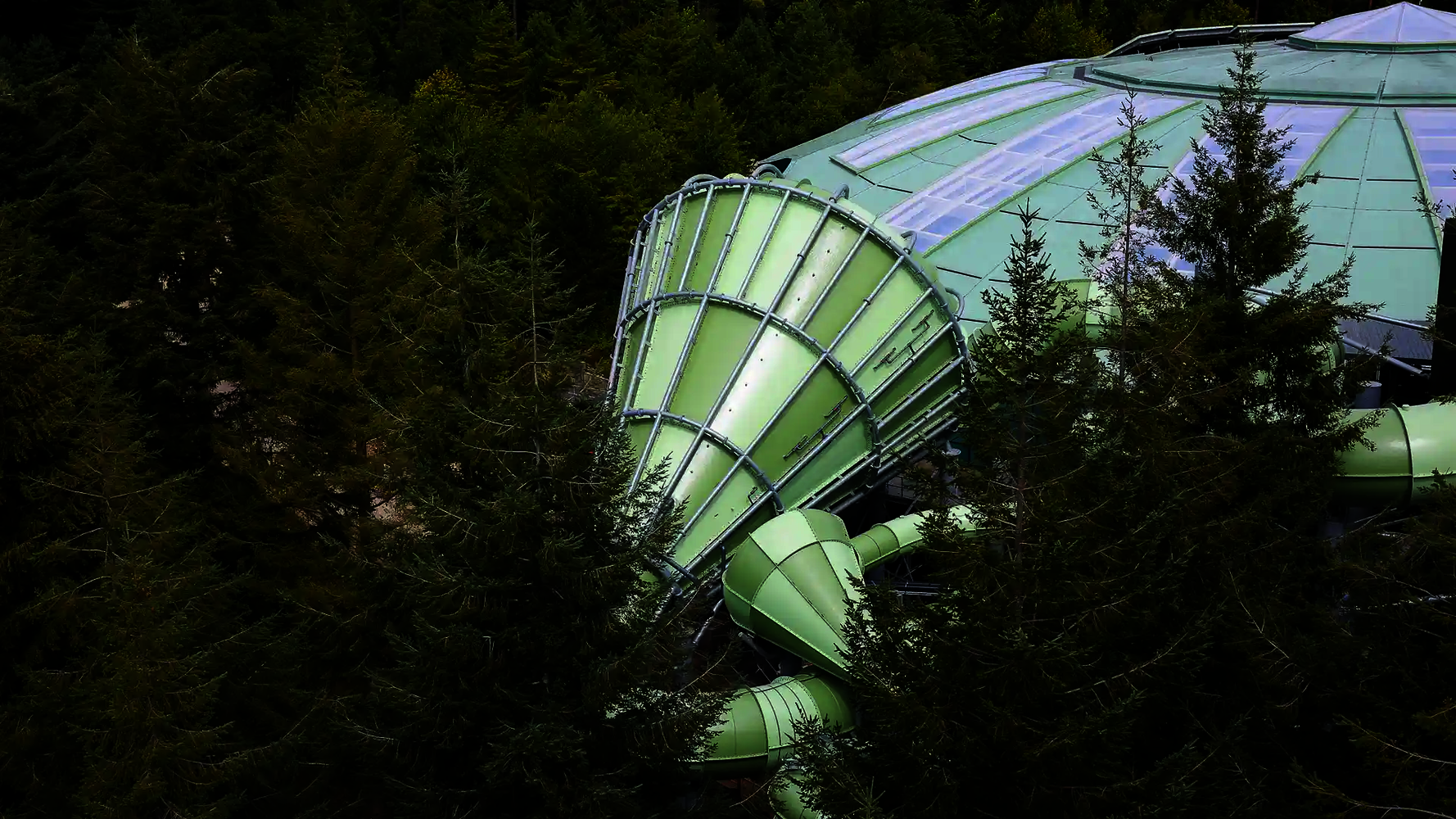

Teilweise verdeckter Cyclone-Trichter in Grün, von Bäumen umgeben, an großes Gebäude angeschlossen.
Blauer Cyclone-Trichter mit weit verzweigter Röhrenrutsche in Landschaft mit Ferienhäusern.

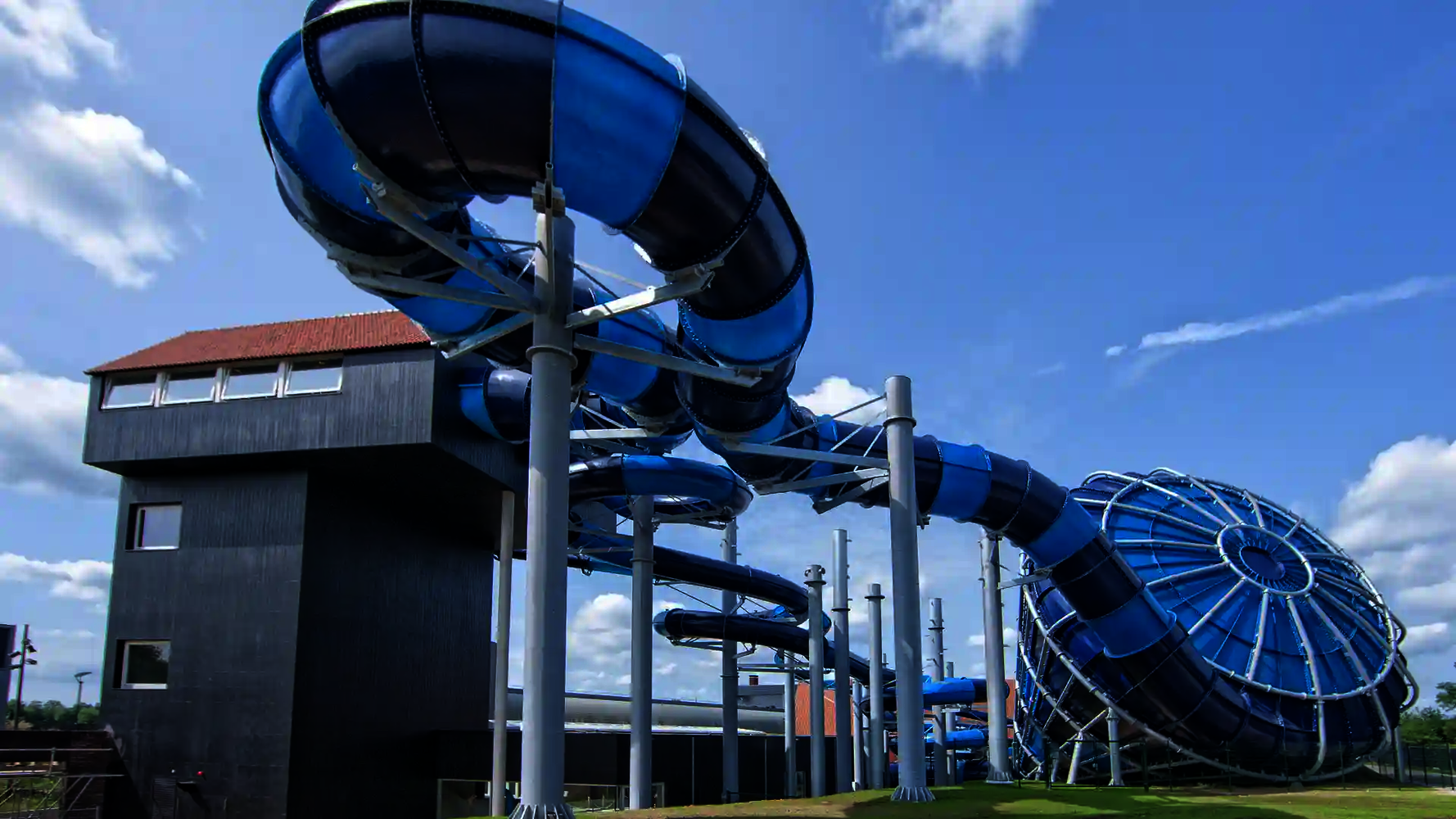

Seitenansicht des Cyclone-Trichters in Blau mit Röhrenrutsche, Gebäuden und See im Hintergrund.
Gesamtansicht des Cyclone-Trichters mit Röhrenrutschen, eingebettet in bewaldeter Umgebung.

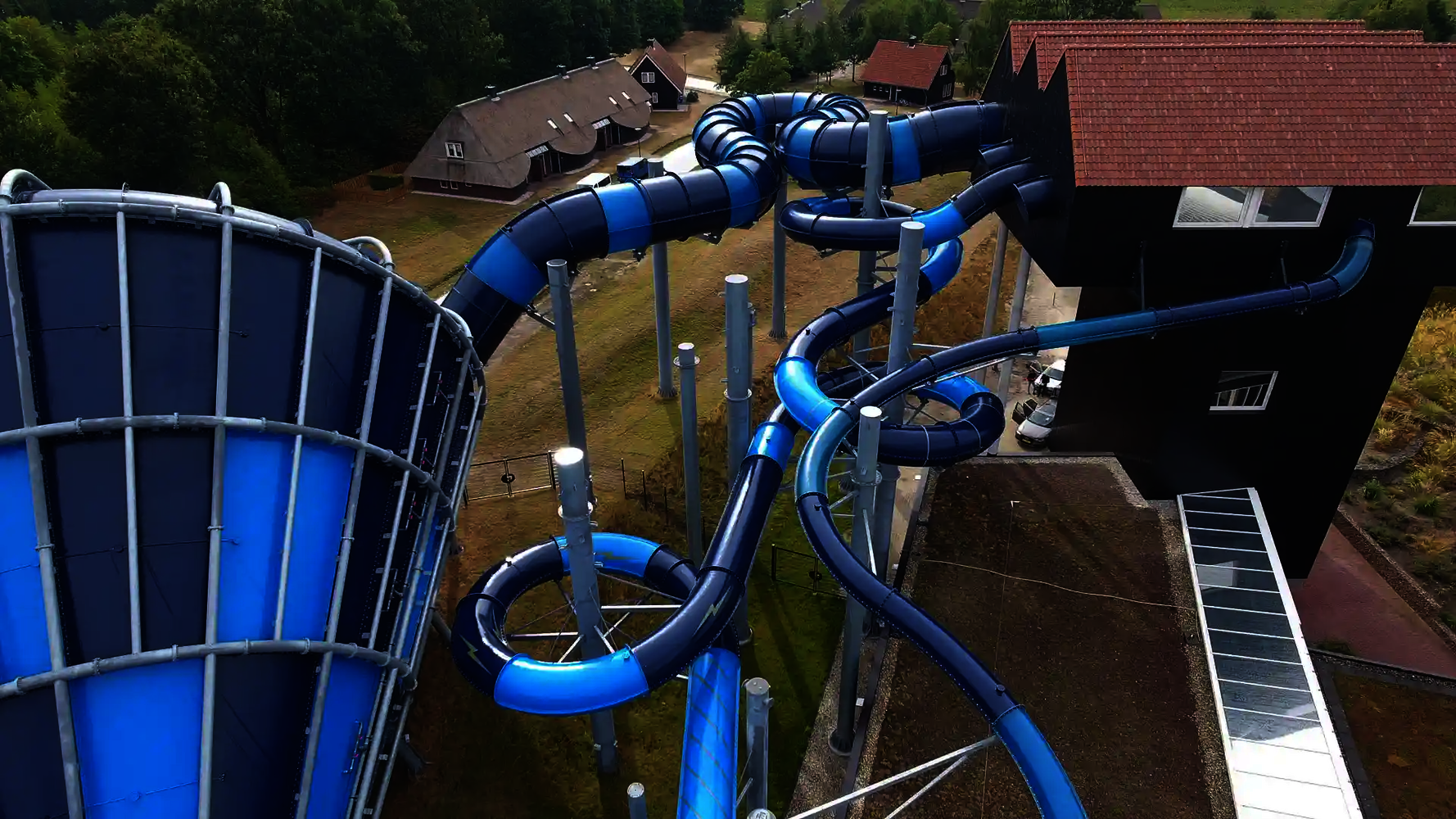

Nahaufnahme des Cyclone-Trichters mit blauer Röhrenrutsche, angrenzend an ein dunkles Gebäude.

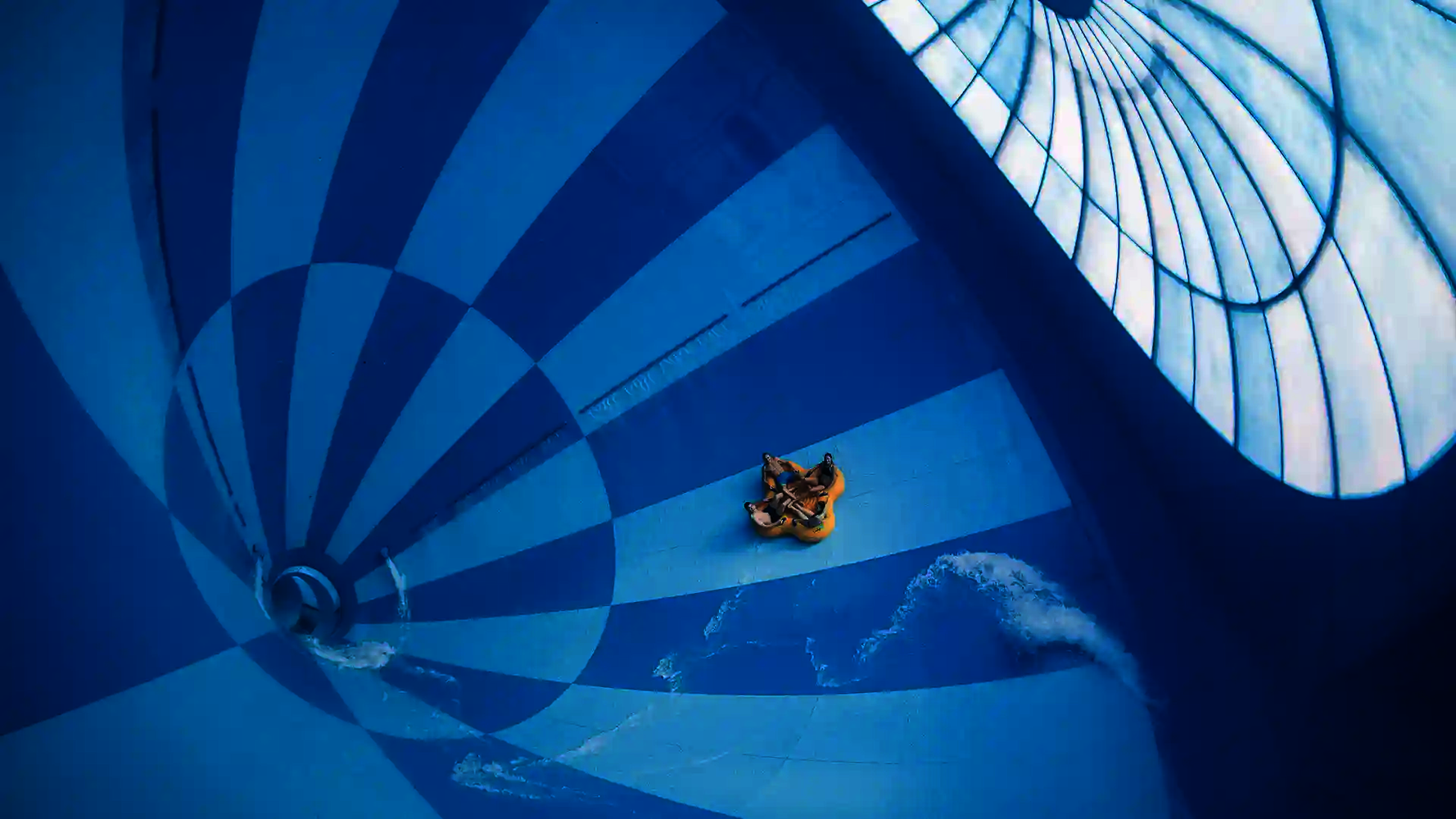

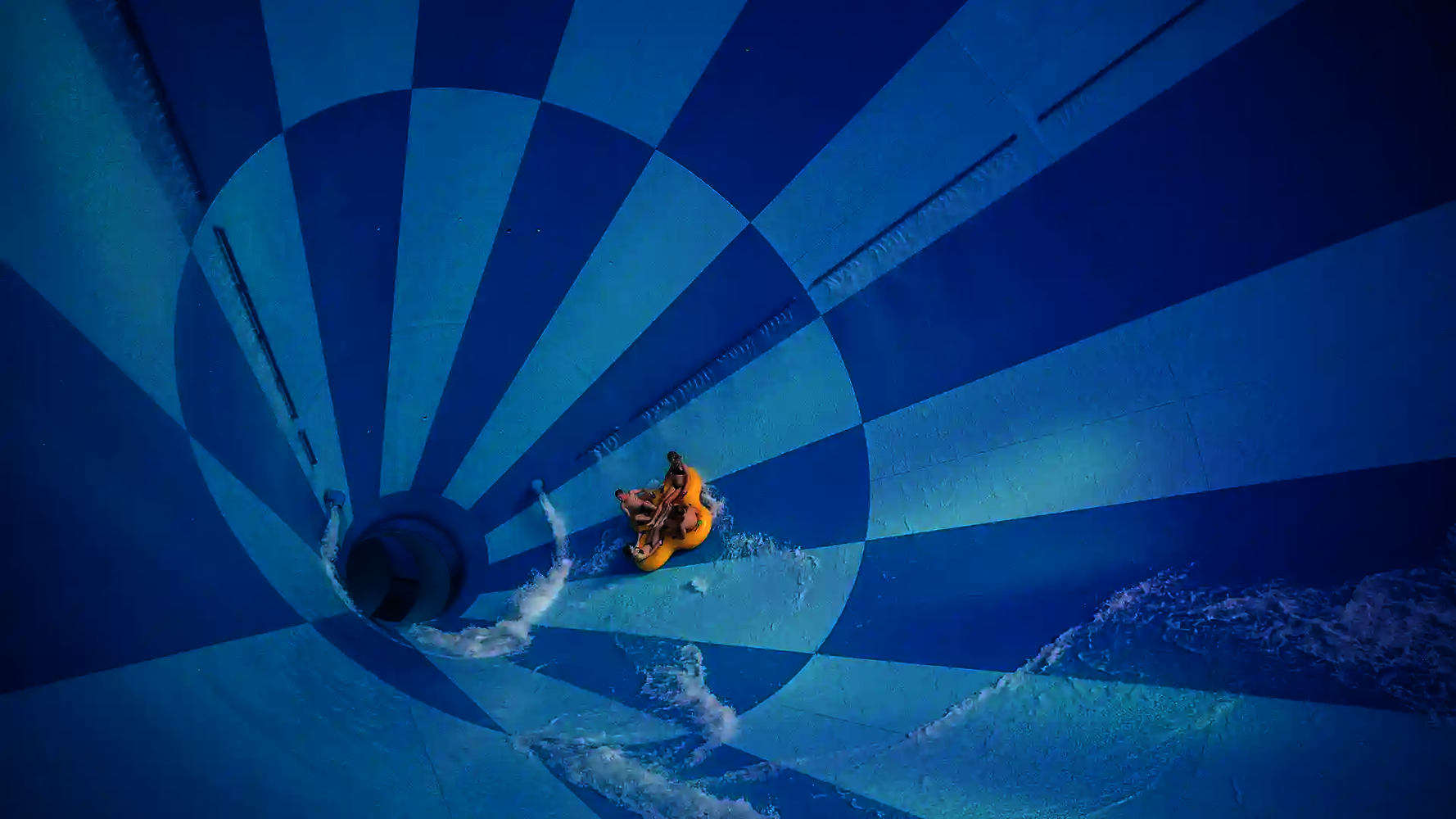

Blick von oben in den blauen Cyclone mit vier Personen im gelben Rutschreifen.

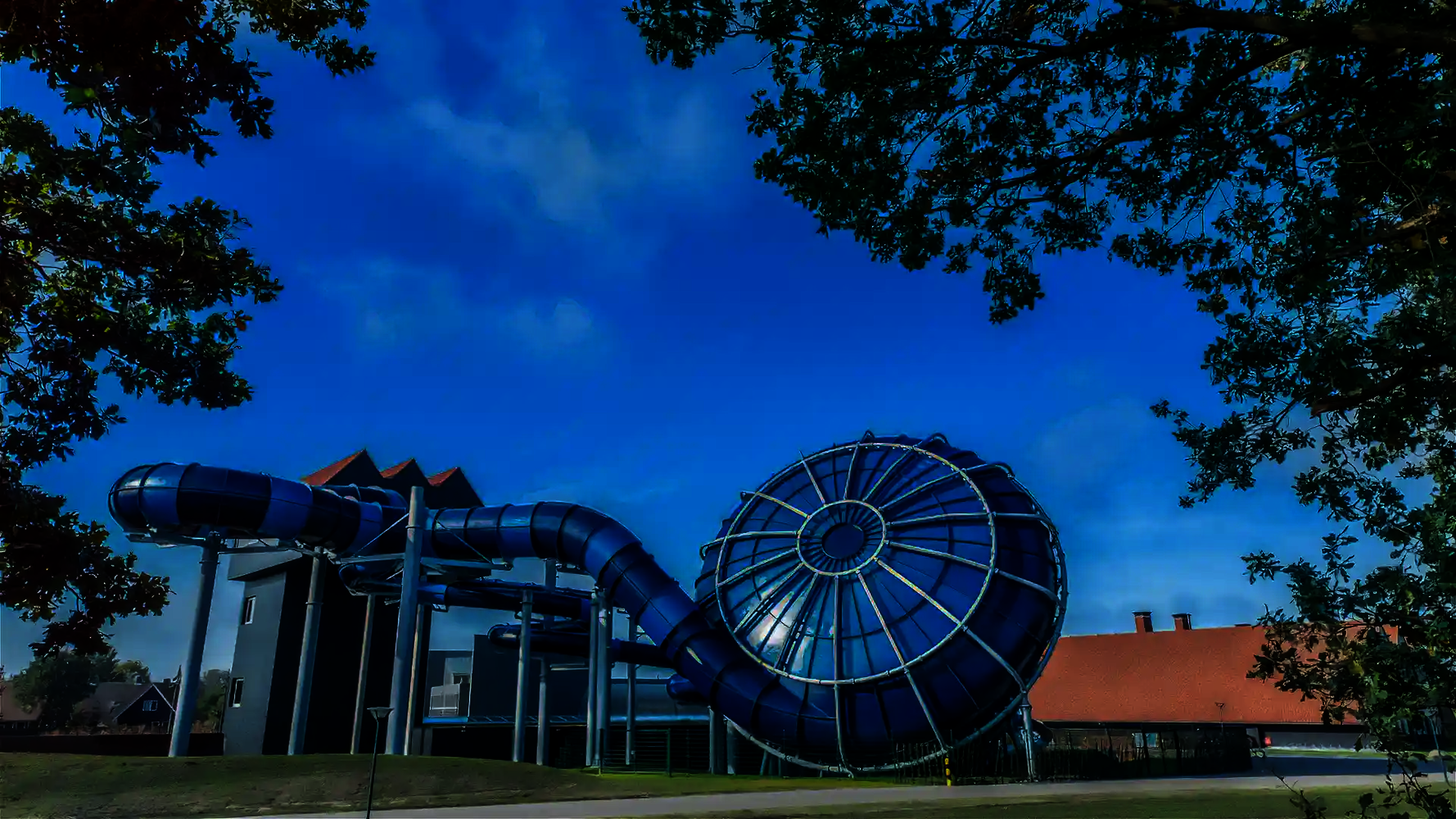

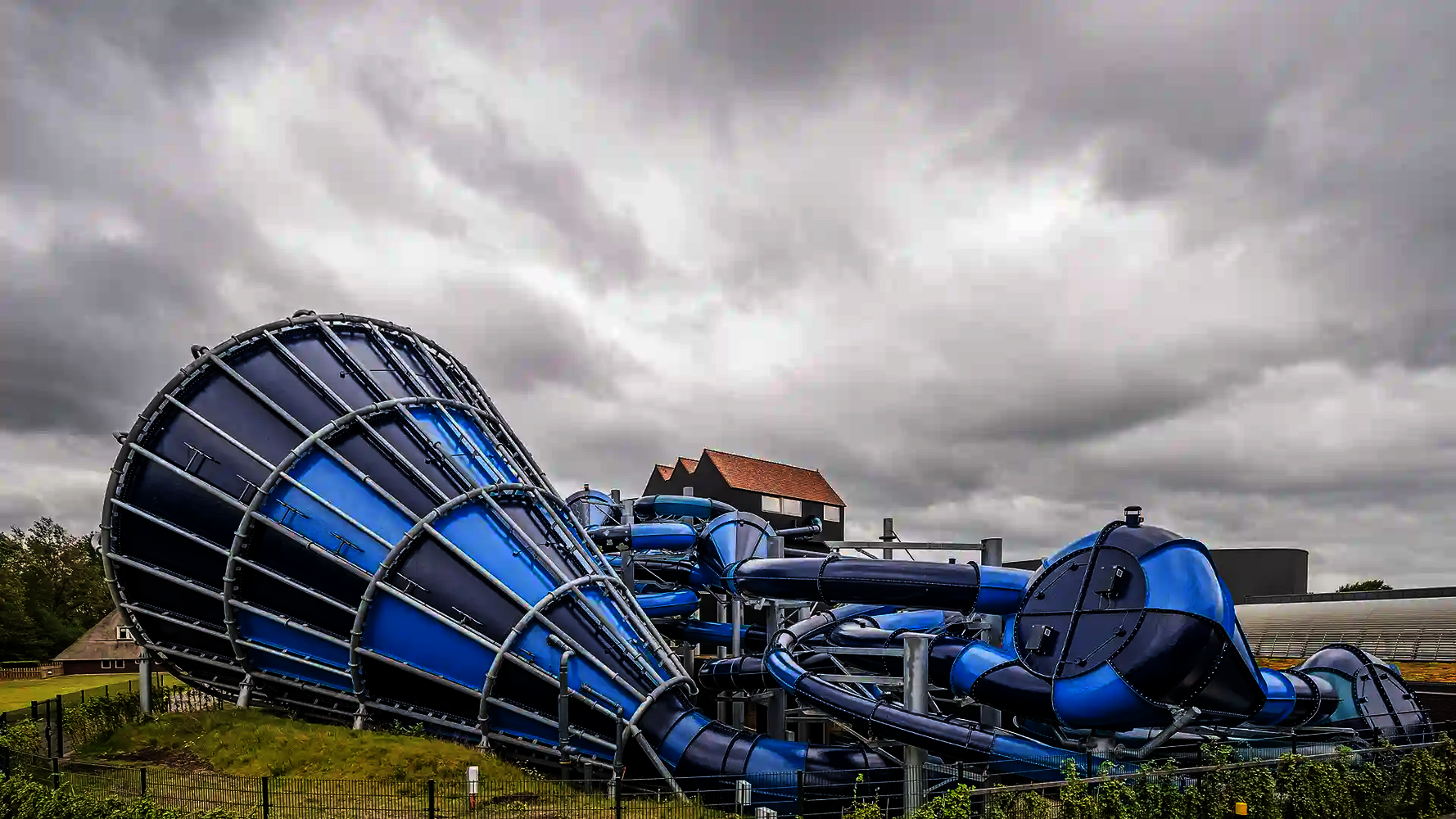

Blauer Cyclone-Trichter mit komplexer Röhrenrutsche vor grauem Himmel und Gebäuden.
Großer Cyclone in Grün mit markanter Trichterform vor einem runden Dach mit Glasflächen.

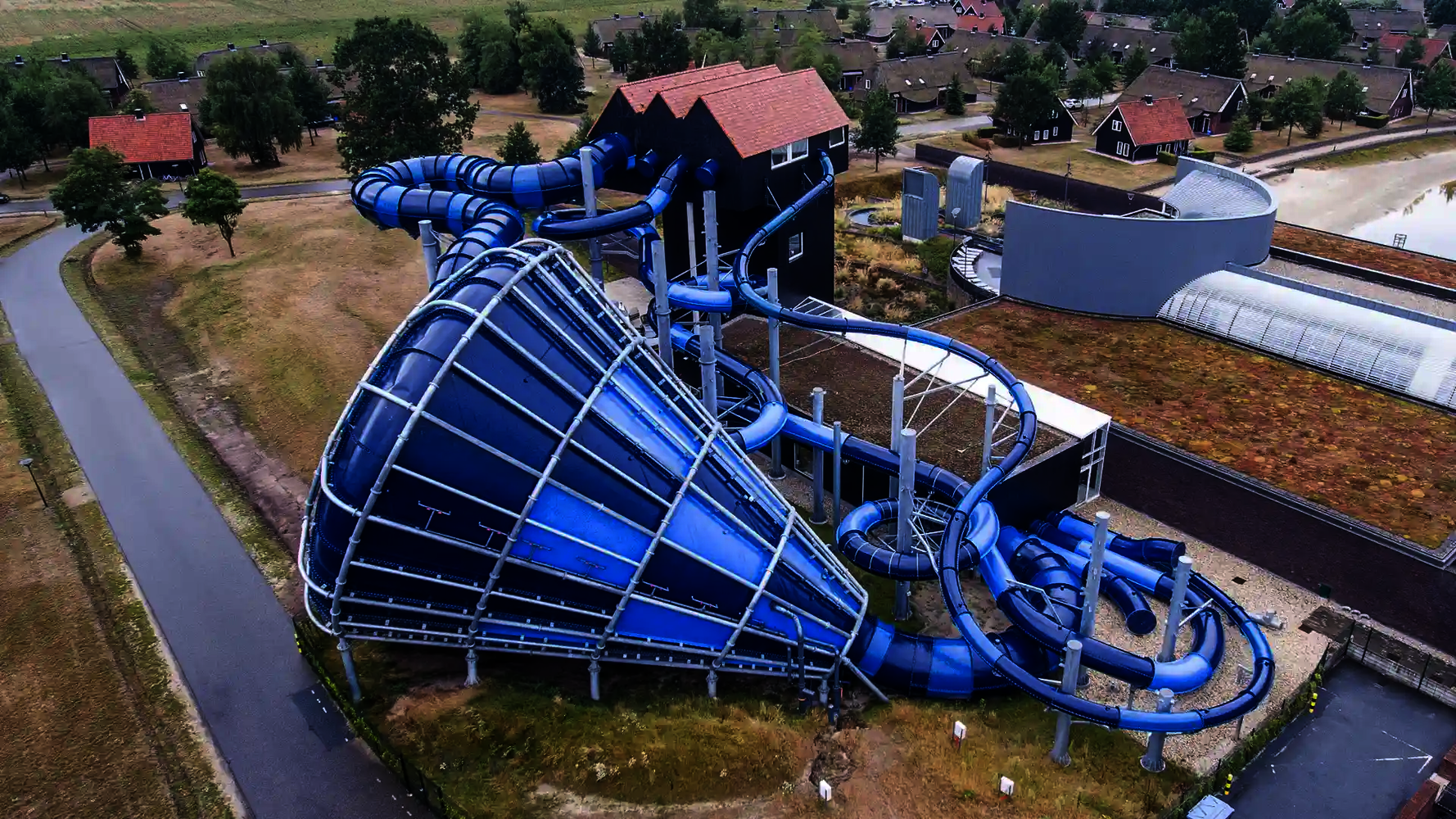

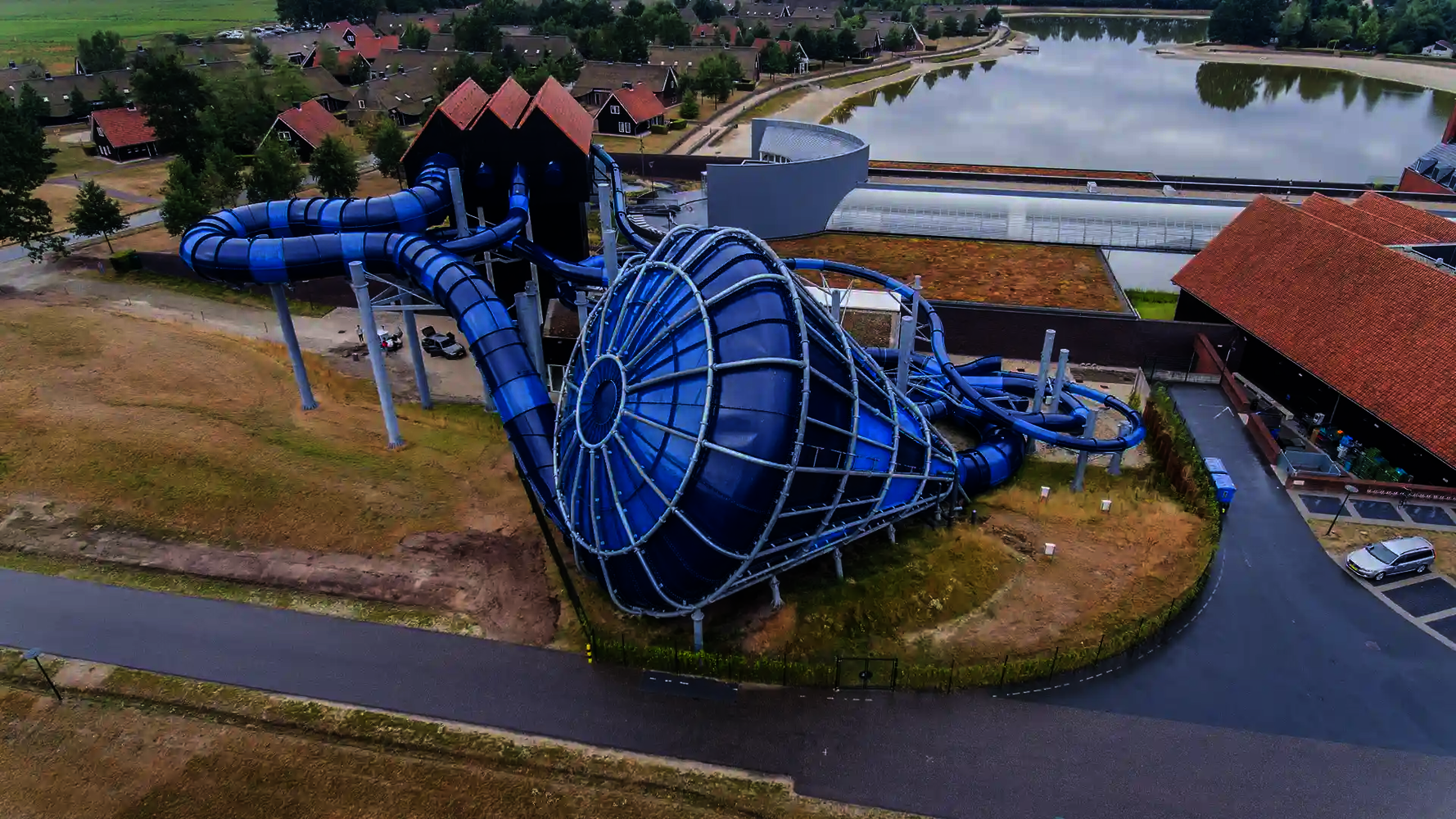

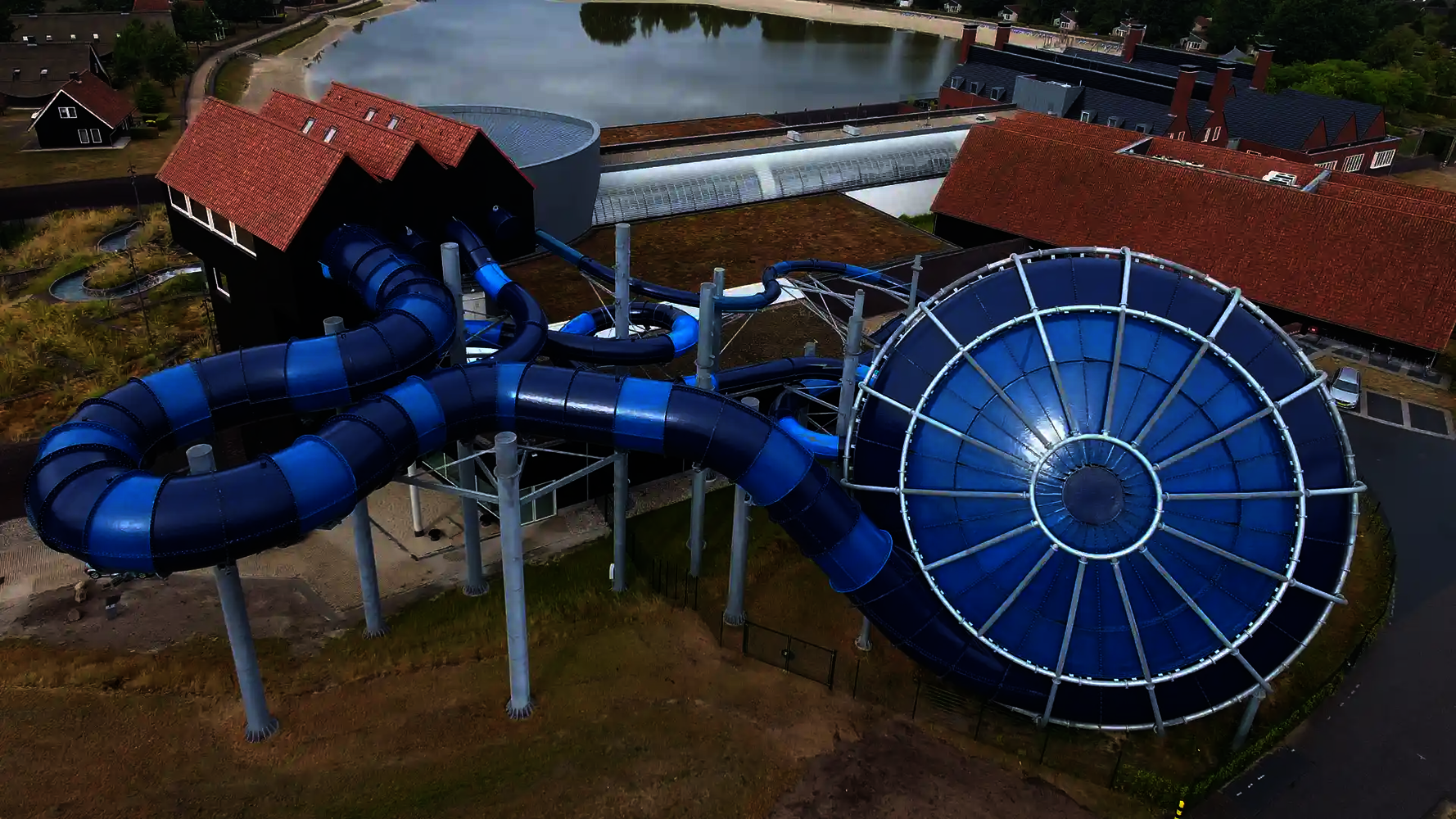

Luftbild des Cyclone in Blau mit verschlungenen Röhrenrutschen neben einem Flachdachgebäude.
Innenansicht des Cyclone mit gelbem Boot auf blau-weiß gestreifter Rutschfläche.
Vier Kinder rutschen lachend in einem gelben Rutschreifen durch eine blaue Röhrenrutsche.

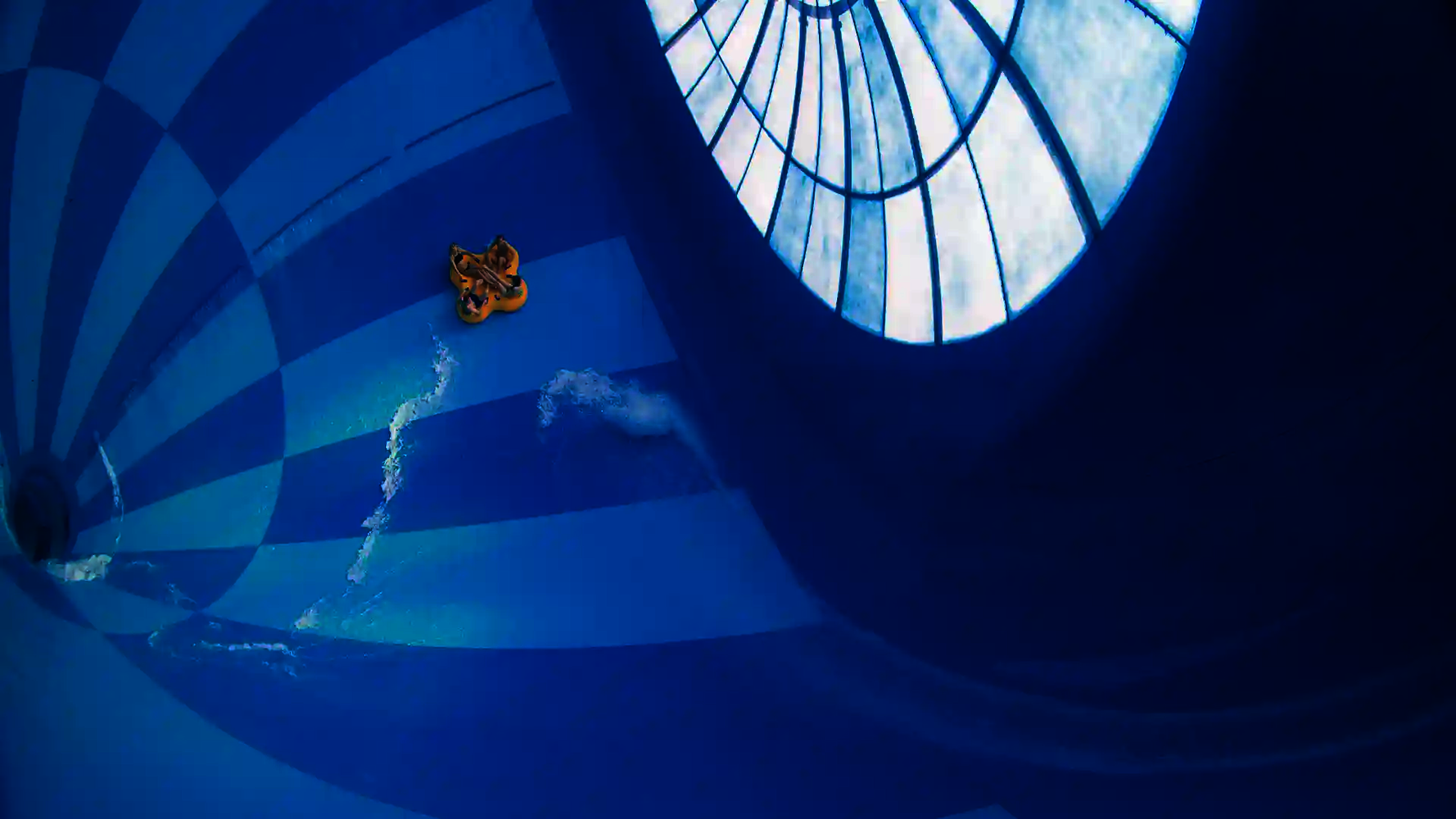

Innenaufnahme des Cyclone mit gelbem Boot auf Wasserfläche unter lichtdurchlässiger Kuppel.
Grüner Cyclone mit auffälliger Endkappe und angrenzender Röhrenrutsche bei blauem Himmel.

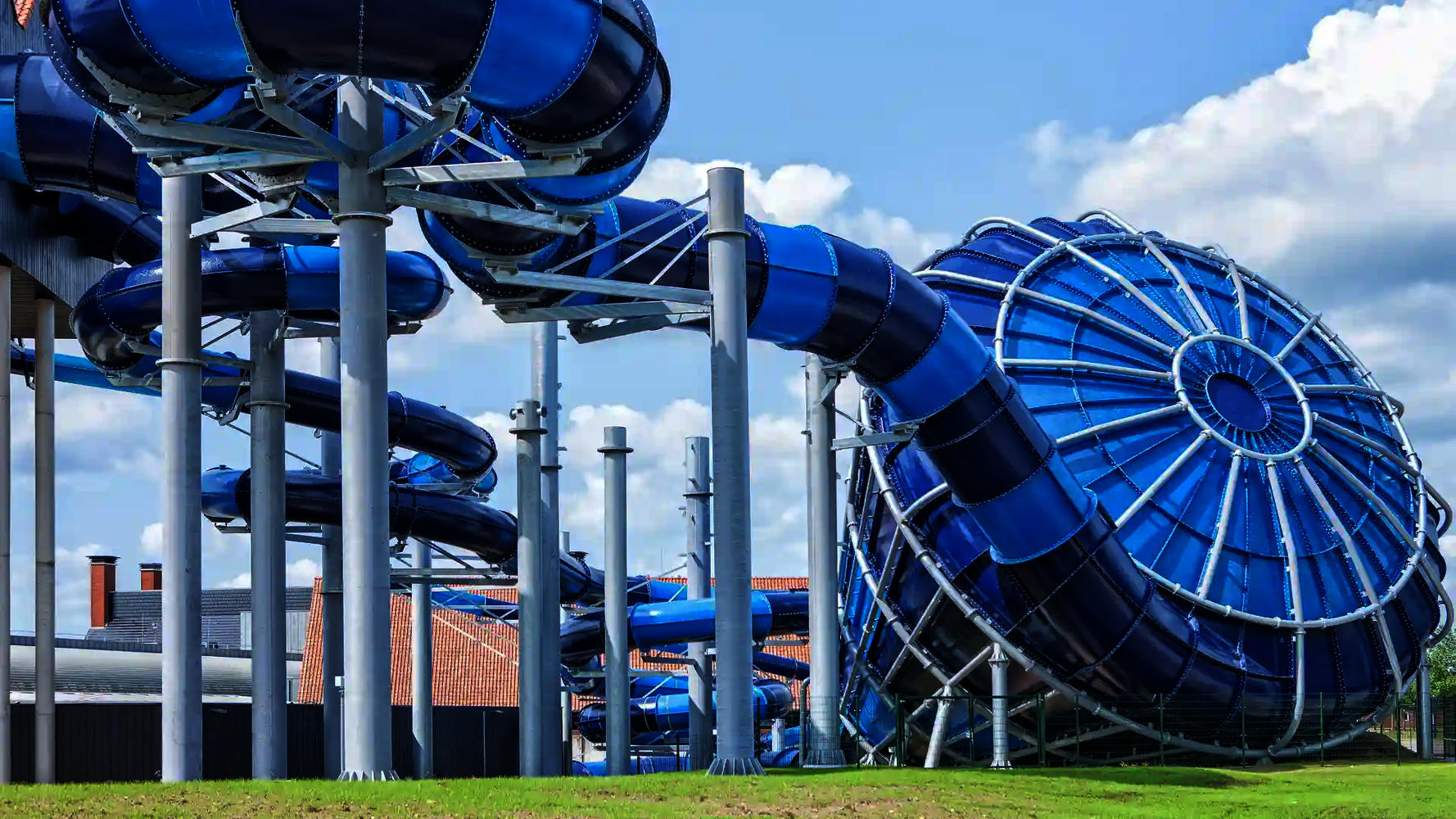

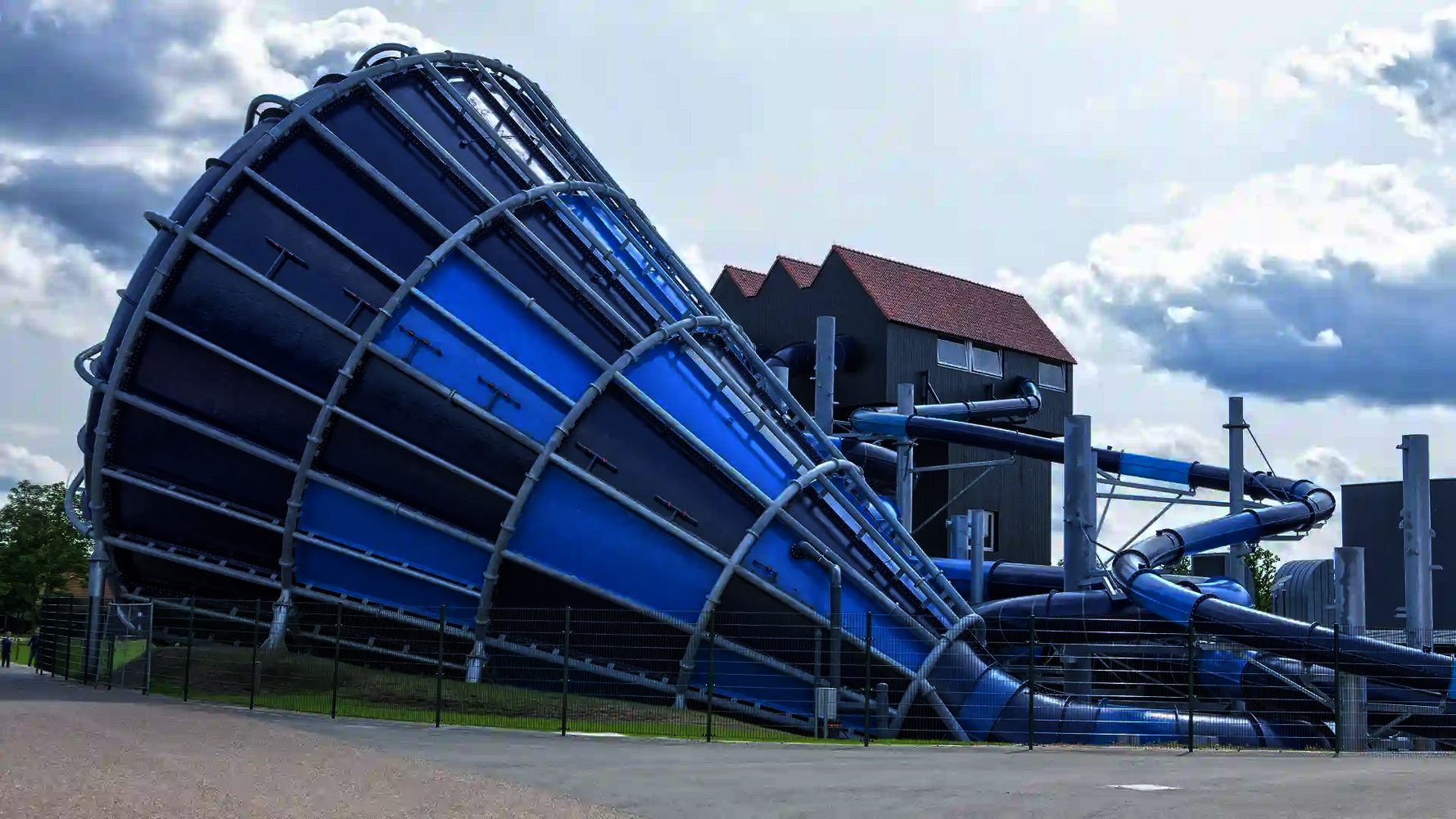

Großer Cyclone-Trichter in Blau mit angrenzender Röhrenrutsche vor modernem Rutschenturm.
Blauer Cyclone mit sichtbarem Trichtereingang und Röhrenrutsche auf grünem Gelände.
Seitenansicht einer blauen Röhrenrutsche und des Cyclone-Trichters neben einem Rutschenturm.

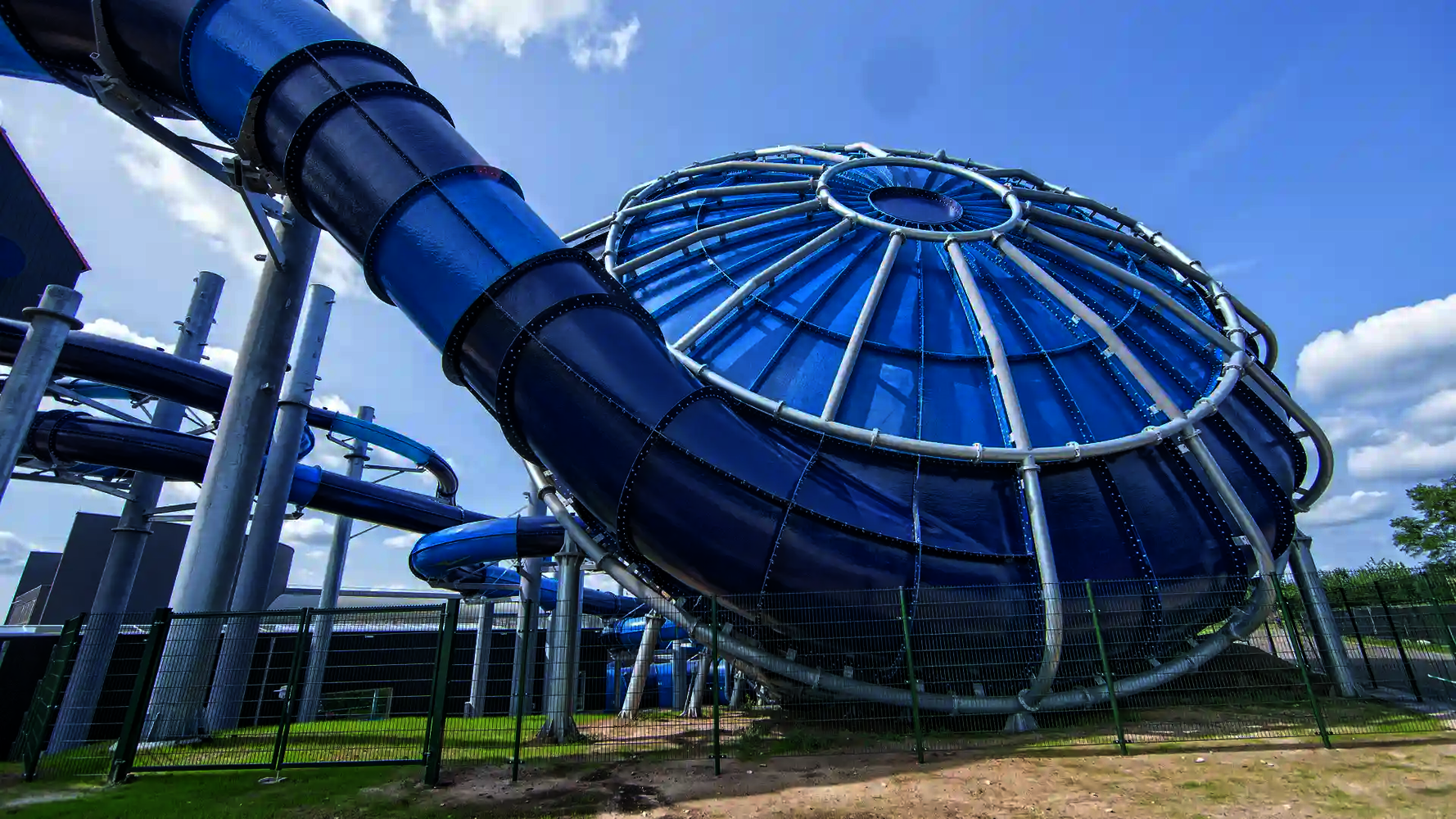

Rückansicht des blauen Cyclone mit großer Trichteröffnung und geschwungener Röhrenrutsche.

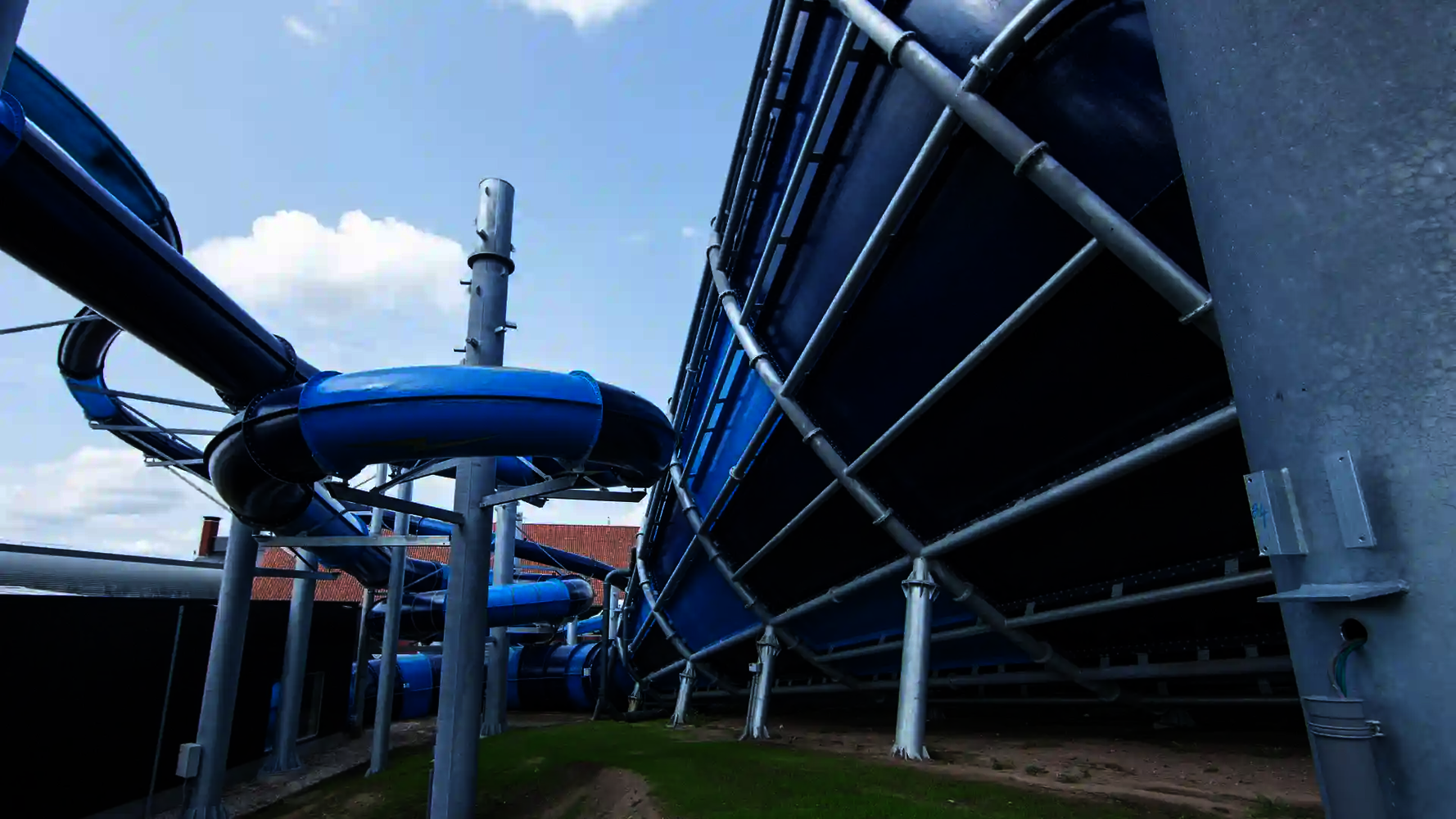

Blick unter den Cyclone und die blaue Röhrenrutsche mit Stahlkonstruktion auf Wiese.
Blauer Cyclone-Trichter mit angrenzender Röhrenrutsche auf Pfeilern bei sonnigem Wetter.
Blick auf den grünen Cyclone von hinten, mit sichtbarer Trichterstruktur und angrenzender Röhre.

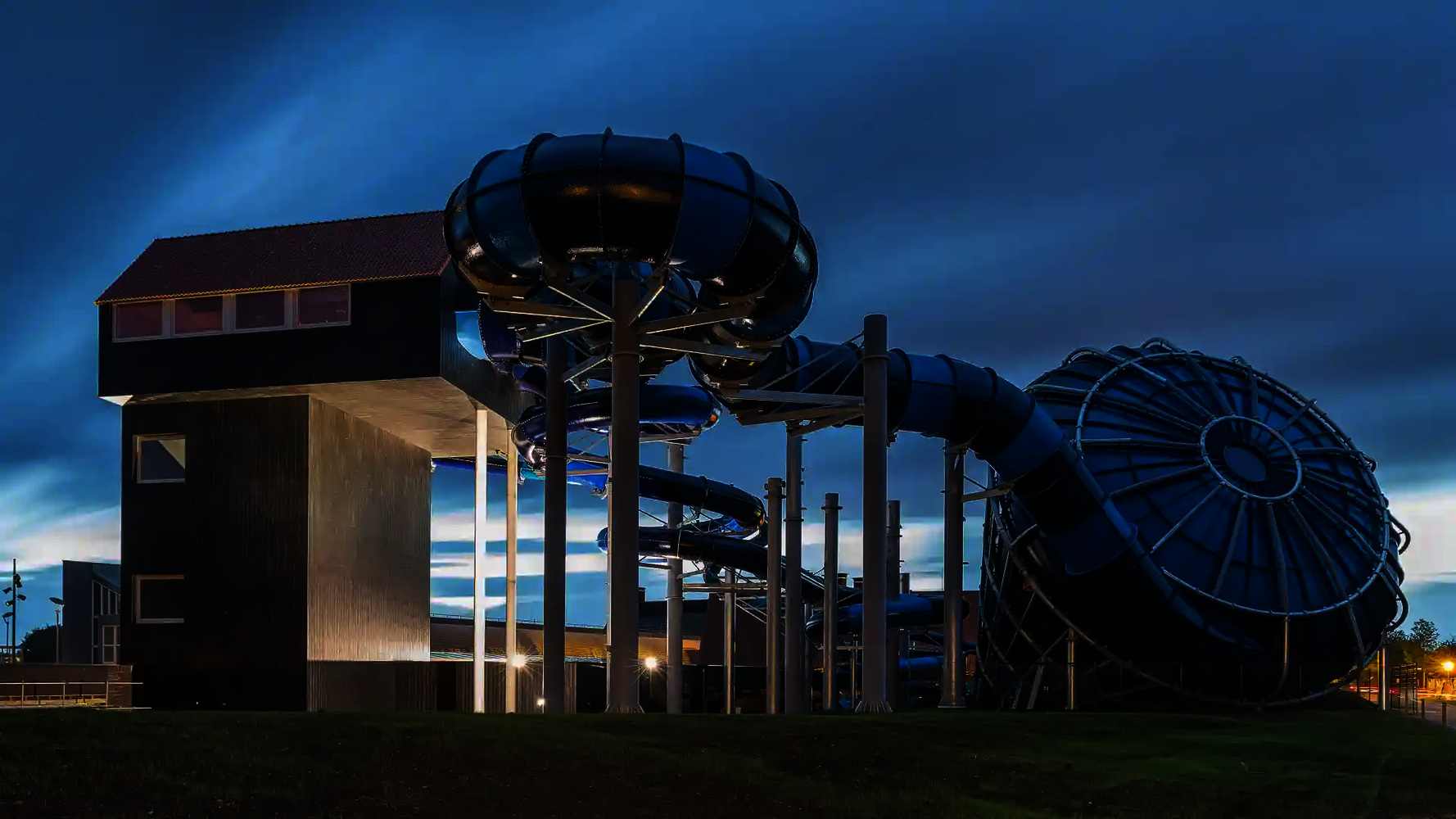

Blauer Cyclone bei Abenddämmerung mit beleuchteter Röhrenrutsche und modernem Startturm.
Vier Personen in gelbem Reifenboot rutschen lachend durch eine helle Röhrenrutsche.

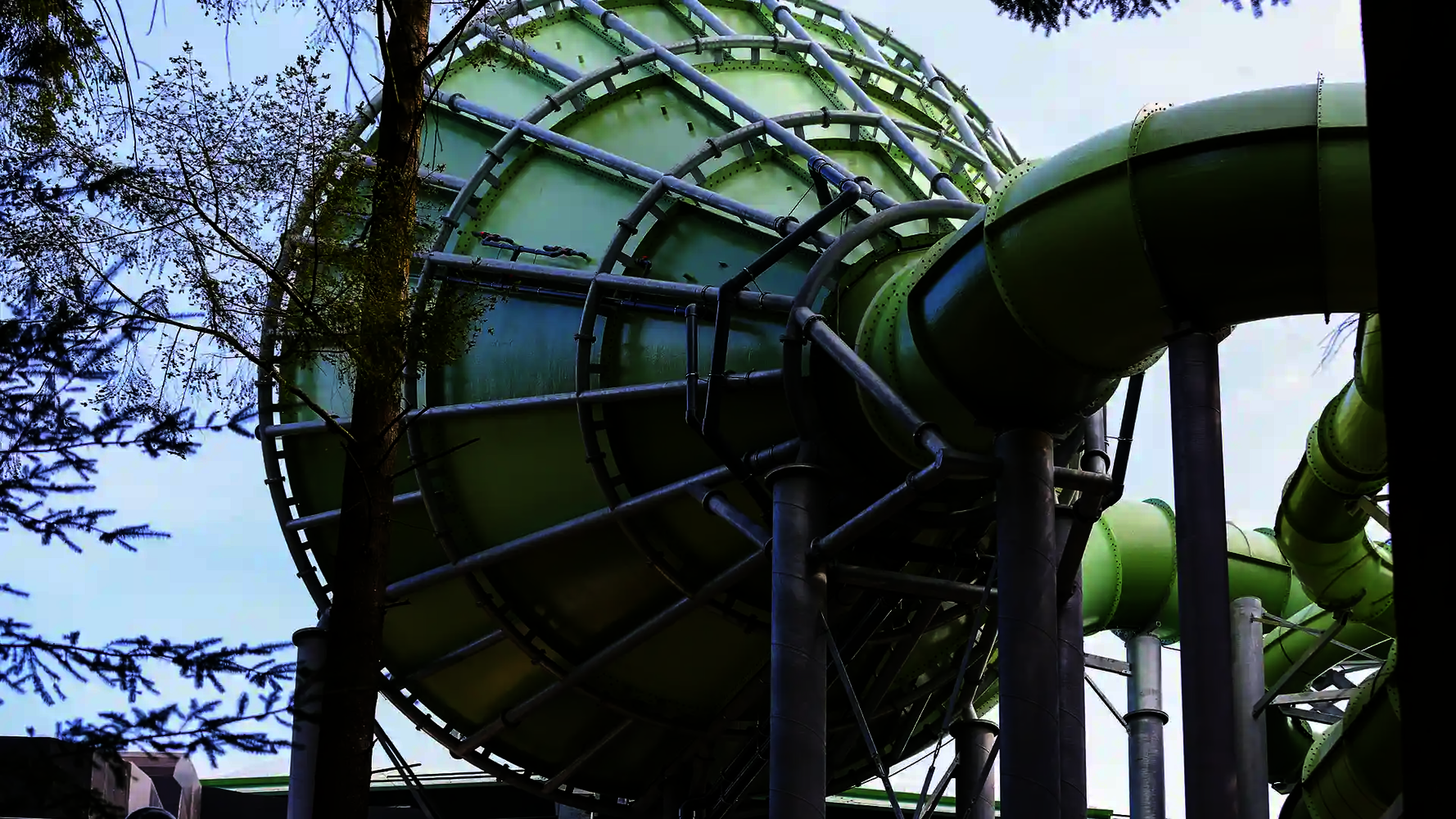

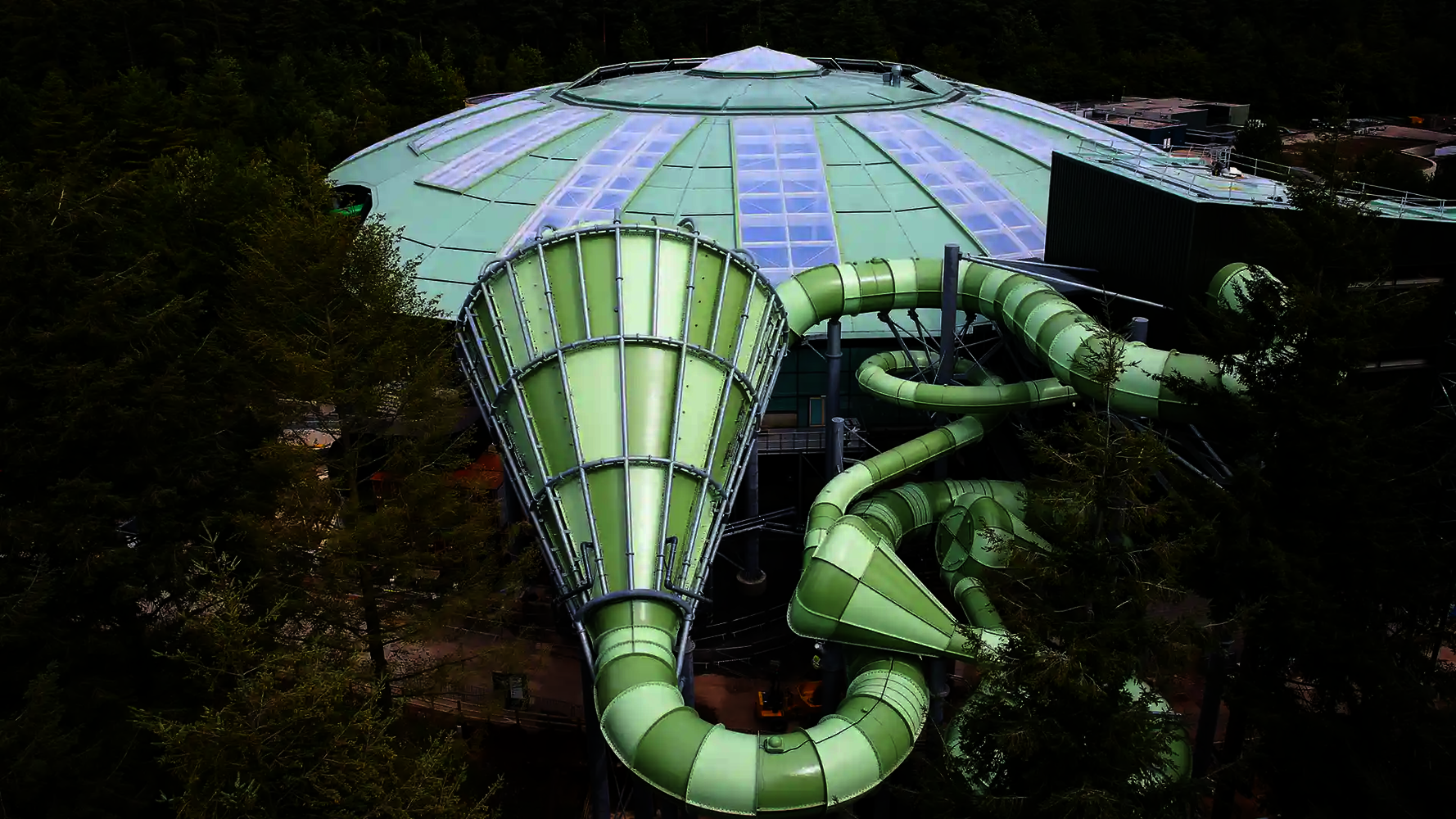

Großer grüner Cyclone-Trichter mit verwinkelten Röhrenrutschen neben einer Glasdachhalle.
Blauer Cyclone mit auffälliger Trichterform und langgezogener Röhre unter blauem Himmel.

Costs and Purchase

This depends on the following aspects:

TheCostsfor a water slide vary depending on the product, location and scope of the provided services. A simple indication of costs is not feasible, as each project is individually evaluated and offered. The construction costs can be broken down into different services in order to enable a detailed cost statement.

The costs depend on several factors, including the following ones:

  • Size and length of the slide
  • Material (stainless steel or GRP)
  • Additional functions (for example: LED lighting, virtual reality)
  • Location and installation effort

For an individualofferwe create a tailor-made calculation.

Scope of services

Upon request, when purchasing a water slide, the customer not only receives the slide itself, but also stairs, towers, start and run area as well as potential special effects. The delivery also includes the entire planning documents and, of course, the applicable guarantees. In addition, a TÜV certificate for operational readiness can be issued. Static calculations and technical requirements for water technology are planned by us while the foundations as well as the water technology are usually provided by the customer.

Global market and its fluctuations

Choosing betweenGRPandStainless steeldepends on many factors. Although stainless steel can be slightly more expensive to purchase, the follow-up and maintenance costs are much lower, and the service life is longer than that of GRP when properly maintained. On the other hand, GRP moulds can be shaped individually and also offer a higher degree of design freedom in terms of visual presentation. This can be a key success factor. For this reason, it is not clear which material is the best choice.

Stainless steel

Stainless steelis almost maintenance-free if it is used and cared about properly.GRPon the other hand, is more susceptible to damage from sunlight and mechanical wear. For this reason, an annual maintenance is mandatory. As a consequence, stainless steel offers advantages in terms of maintenance costs as well as in terms of durability.

From China to Cuba

Yes, Wiegand water slides are sold worldwide. We are in many countries, from China to Cuba, and have an extensive network to for the global distribution and installation of the slides. From here you can reach ourReference Projects.

Go to the orientation

If you purchase a water slide, the construction situation on site is the first criterion determining what is feasible. It is important to select the correct product, check the statics and construction options, calculate the production times and construction costs and finally plan the implementation. A careful planning and a consideration of all factors is critical to the success of the project. For this reason, professional advice and concrete planning is recommended.

It depends

Our slides are designed to have a long service life and low maintenance costs. Their profitability depends on the number of visitors, water and energy costs as well as maintenance costs.

The payback period depends on the operating costs and on the frequency of visitors. The operators usually expect a payback period of around 5 years.

Go to the orientation

Yes, in addition to water slides, we also manufactureDry Slidesmade of stainless steel, including, for example, escape slides, playground slides, large slides and much more. The areas of application range from amusement parks to shopping centres to office buildings. Go directly to the manufacturer of dry slides:www.wiegandslide.de

Would you like a quote?
Note on the product

Van Egdom slide form – now available at the company wiegand.waterrides

This slide model is based on the original designs of the manufacturer Van Egdom. After its insolvency in 2023, the company wiegand.waterrides took over the designs and continues to offer this product – as well as the appropriate maintenance service.

More information about the company Van Egdom


Worldwide

List of reference projects

Discover all our references in your area and around the world now!

Open the whole list of reference projects

Special effects for Cyclone

The Cyclone slide can be equipped with different themes and with different visual effects. Lighting, sound or thematic design in the funnel make every ride unique. We recommend personalized consultation for the correct selection.

Product Name Cyclone
Daylight Effects Optional More information
Daylight motifs Optional More information
LED lighting effects Optional More information
UV Light / Wie-Glow Optional More information
Sound Optional More information
Acrylic Not available More information
Interactivity Not available More information
Time measurement Not available More information
Waterfall Not available More information
Topic selection Optional More information
Virtual Reality Water Slide Not available More information


Please note: All information must be checked individually according to the circumstances.


Accessories for Cyclone

In addition to the actual slide, some accessory elements are possible. Depending on the slide, some accessory elements are necessary or optional. Specification can take place after a personal consultation.

Product Name Cyclone
Insulation Optional More information
Discharge Available More information
Stairs and towers Optional More information
Flat external surface Not available More information
Façade penetration Optional More information
Slide tires Available More information
Tire Lift Optional More information
Sliding mats Not available More information
Sealing plug Optional More information
Splash protection Not available More information
Water Technology Optional More information
Supports and steel Included in the scope of delivery More information


Please note: All information must be checked individually according to the circumstances.

We like to help you!
Accurate to millimetre

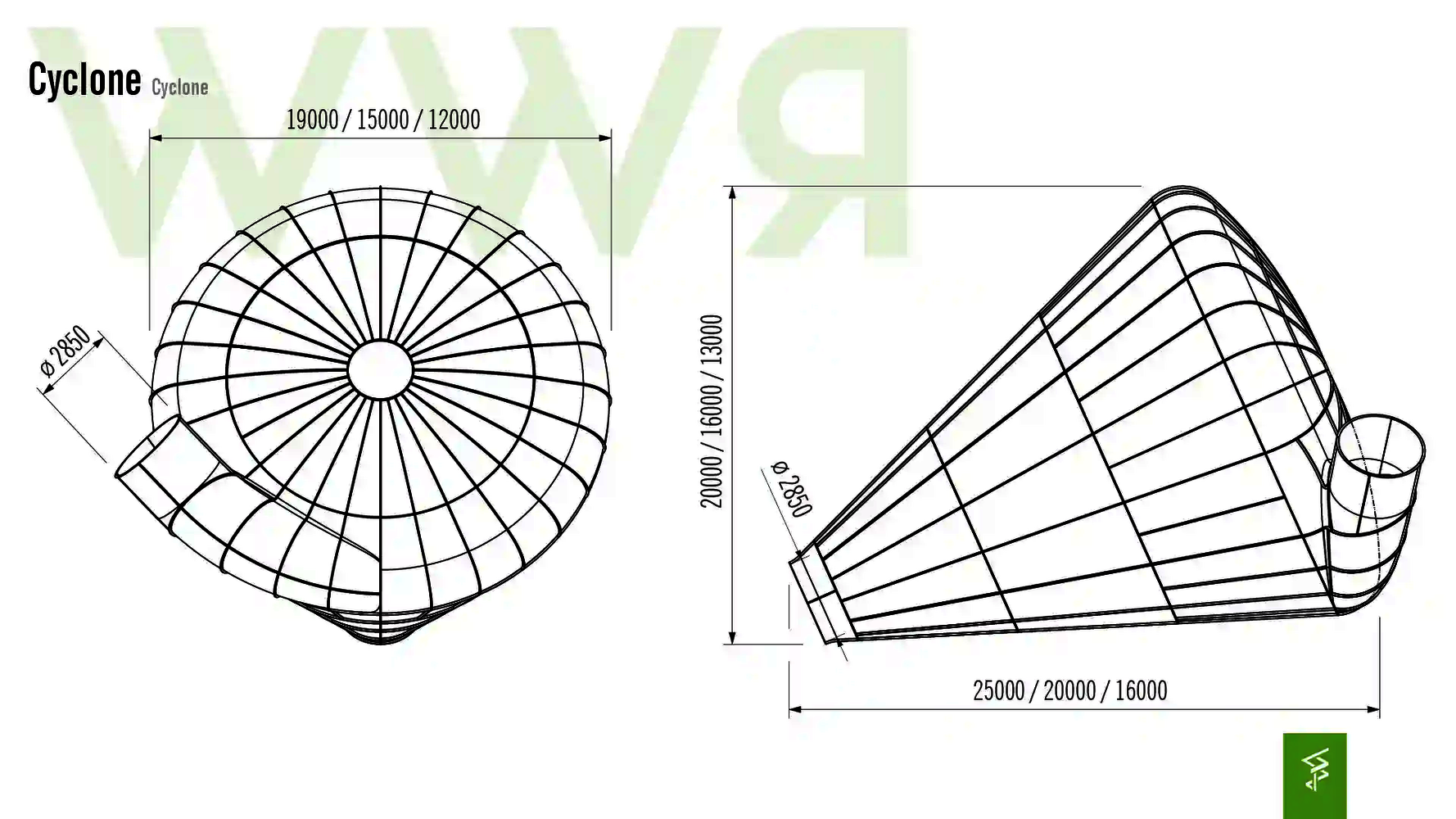

Dimensions

Due to the large funnel element, a generous construction area is required for this model. The height and length of the slide can be flexibly adapted to the terrain. The company wiegand.waterrides takes care of the whole project – from the planning to the production and assembly.

Technische Zeichnung der Abmessungen der Cyclone Wasserrutsche.

Construction and Features

Vogelperspektive auf einen blauen Wildwasserfluss, in dem sich mehrere Personen befinden.
With Wiegand's professionals

The manufacture of water slides depends on the specific requirements of the customer and the chosenmaterial. There are two main materials: stainless steel and glass fibre reinforced plastic (GRP), which are produced in Wiegand's own plants in Rasdorf and Brüssow in Germany. With over 350 employees worldwide, the company ensures that the slides are pre-produced in the best possible way in order to minimize assembly times at the site. Theconstructionis carried out internally in regular coordination with the project management, the customer and theproduction.

Innenansicht einer RR1400 mit Daylights, in der zwei Kinder auf einem Reifen rutschen.
With water

A water slide uses an inclined plane and smooth materials such asGRPorStainless steelto allow low friction downward movement. The running water and sometimes rubber tires or mats help to further reduce friction so that one or more people can have a sliding experience at the same time. The speed is determined by the slope of the slide, with classic slides such as theWR1040which usually have a gradient of up to 13%.

Eine Frau und ein Kind fahren lachend in einem Rutschreifen auf der Wasserrutsche RR2050.
Above 50 km/h possible

The slide speed on a water slide varies depending on the slide type and design. Cozy slides such as whitewater rivers reach speeds of about1–2 km/hwhile steeper high-speed slides can reach over50 km/h. The speed is influenced by various factors, including the slope of the slide, the amount of water and special design elements.

We customize the said parameters to allow for different slide experiences, from the gentle family slides to action-packed adrenaline rides.

Lazy River im Indoor Bereich eines Kreuzfahrtschiffes mit Rutschreifen, Wasserattraktionen und bunten Spielgeräten.
Almost vertically possible

The steepness of water slides can vary considerably. The most extreme form is theFalling startwith a gradient of over 80°, which changes from an almost vertical start to a smoother slide. In contrast, whitewater rivers are almost horizontal. Generally speaking, the steeper the slide, the faster the slide speed.

Personen kommen lachend auf Rutschmatten am unteren Ende des Matracers an, Wasser spritzt.
It depends

TheConstruction periodof a water slide cannot be specified as a flat rate, as this period depends on the size of the slide, the production utilization and the construction phases. As a rule, you should expect several months from project planning to completion. For some projects, such as for example cruise ships, planning can take several years. The assembly time varies between a few days and several months depending on the type of slide.

3D Darstellung des Startbereich des Slide Coasters.
From the bottom to the top

The construction of a water slide begins with the preparation of the foundation. Depending on the site structure, support pylons and stairs are then erected, followed by the assembly of the outlet basin. The slide itself is usually assembled from the bottom to the top. This is done by our own assembly teams and auxiliary workers on site.

3D Animation der X-Slide Wasserrutsche.
Water and dry slides

Basically, at the company Wiegand, we offer water and dry slides. We distinguish between the following categories:

Water Slides

  • Body Slides
  • Tire Slides
  • Slides in the kids area
  • Park Slides

Dry Slides

  • Special Slides
  • Playground Slides
  • Slide Trails
  • Escape Slides

If you're interested in a water slide, you've come to the right place. If, on the other hand, you are looking for a dry slide, the Josef Wiegand GmbH & Co. KGis the ideal contact for you.

In Germany

The company Wiegand builds water slides in its own plants in Rasdorf (stainless steel) and Brüssow (GRP) in Germany with its over 350 employees worldwide. In addition, the company Wiegand is building its own steel substructure for all slides as well as access stairs and platforms for wet and dry areas. We offer a complete service from planning to production to assembly. From here you can reach ourPerformances.

Sure, this is possible

Yes, we offer solutions for the installation of slides at a later stage into existing swimming pools, hotels or amusement parks. Our designs are the expression of the planning of the ideal integration into the existing infrastructure.

Worldwide

Our slides can be found worldwide in various amusement parks, spas, water parks or on cruise ships.

From here you can reach theReference Projects.

Vier Personen rutschen auf einem Rutschreifen die grüne Lotus Wasserrutsche hinab.
Tailored

The construction work begins with an individual planning phase, in which we adapt the design to the circumstances and wishes of the customer. After that, the production takes place in our own plants by using high-quality materials such as stainless steel and GRP. The prefabricated slide parts are then assembled on site and extensively tested before the commissioning phase. Even after the installation, we will be available with maintenance and services. From here you can reach ourPerformances.

Consulting needed?
In the first place

Cyclone Safety

We equip the Cyclone slide with proven safety systems in order to make the slide enjoyment safe at all times. Together with our customers, we develop a tailor-made security concept based on local conditions.

Product Name Cyclone
Time traffic light Not sufficient More information
Sensor traffic light Minimum Requirement More information
Turnstile Optional More information
Information board Included in the scope of delivery More information
Intervention protection Optional More information
Life-Line Optional More information
Start Belt Conveyor Optional More information


Please note: All information must be checked individually according to the circumstances.


Possible product combinations

Some slides can also be made as a combination. This means that they make the slide experience even more attractive.

Cyclone + RR1400 Optional More information
Cyclone + RR2050 Optional More information
Cyclone + RR2700 Optional More information



Please note: All information must be checked individually according to the circumstances.


Similar slides

For whom and where

Ein gelber und ein roter Cannonball, mit Blick auf den Ozean im Hintergrund.
Kids slides

We offer specialKids slides. Children as young as 1 year old can have their first sliding experience accompanied by an adult, provided the water depth is adjusted accordingly. The selection of the suitable slide depends on the child's age, water depth, and adult supervision.

Obenansicht einer bunten Body Bowl Wasserrutsche, in der eine Person mit Badebekleidung rutscht.

For families, broad wave slides, multi-track slides or tire slides which are suitable for both adults and children are ideal. The said slides offer a shared experience and allow you to slide next to each other or together in a tire. There are also interactive slides with lighting effects or timekeeping, which provide extra fun.

Vier Personen fahren gemeinsam im gelben Rundreifen durch den gelben Trichter der Rutsche RR2700.
Yes, there are.

Yes, there are challenging slides which are more suitable for adults. These slides offer a more intense sliding experience due to their size and requirements.

Zwei Frauen fahren auf grünem Reifen durch rot beleuchteten Family Twister.
Customized slides

For hotels, we offer tailor-made water slides which blend harmoniously into already existing structures and provide guests with an unforgettable experience. An example of this is the BEECH Resort Fleesensee, where we installed a 63-meter-long GRP slide of the model WR1040. Our many years of experience enable us to implement attractive slide solutions even in a limited space. Particularly popular are tubular slides, broad wave slides and interactive kids slides.

Zwei Teams rutschen auf zwei parallel verlaufenden Bahnen auf orangenen Reifen die Raft Racer Wasserrutsche hinab.
Versatile Slide Solutions

For swimming pools, we offer compact and versatile slide solutions which can be ideally integrated into already existing systems. The said solutions include classic body slides with different curves and jumps, high-capacity wide-shaft slides, and compact tire slides like the RR1400. Depending on the available space and target group, lighting effects, transparent elements or interactive features can be added.

Zwei Teams rutschen auf zwei parallel verlaufenden Bahnen auf orangenen Reifen die Raft Racer Wasserrutsche hinab.
Large, spectacular slides

Large, spectacular slides with a high experience value are used in water parks. These slides include tire slides with blackhole effects, multi-person slides, high-speed slides, and interactive water slides with light and sound effects. Our facilities are individually planned and tailored to the conditions of the park. So they can provide a unique slide experience for guests of all ages.

Lazy River im Indoor Bereich eines Kreuzfahrtschiffes mit Rutschreifen, Wasserattraktionen und bunten Spielgeräten.
Diverse slides

For thermal baths, we offer a wide range of water slides allowing both relaxation and adventure. An example is the Loipersdorf thermal bath with five impressive slides. Also in the thermal bath of Erding, Germany's largest slide paradise, many of the spectacular slides come from our production. Our slides can be individually adapted and harmoniously integrated into the architecture of the thermal bath in order to offer guests an unforgettable experience.

Personen kommen lachend auf Rutschmatten am unteren Ende des Matracers an, Wasser spritzt.
Special slides for cruise ships

For the use on cruise ships, we develop tailor-made water slides meeting the special requirements on board. An example of this type of cruise ships is the AIDA PRIMA, which is equipped with a 96-meter-long Body Racer made of stainless steel and acrylic glass tubes, as well as a 54-meter-long Lazy River. Two tire slides with lengths of 79 metres and 80 metres as well as a 77 metre long family slide were installed on the cruise ship AIDA NOVA. Our slides are designed to meet the limited space and safety standards on cruise ships while providing an exciting slide experience for guests.

3D Darstellung des Startbereich des Slide Coasters.
Sure, this is possible

Yes, we manufacture slides in individual colors, shapes and with thematic elements to adapt them to the respective park design. We take into account influencing factors on site and adapt the product to the circumstances.

3D Animation der X-Slide Wasserrutsche.
Between 3m and 15m

The amount of space required depends on the type of slide and can vary greatly. The water slide can also be adapted to the already existing space.

Smaller slides require only a few meters, while large tubular slides or multi-lane broad wave slides need more space. We offer individual planning solutions for different space conditions.

Yes, upon request, they are.

Yes, we develop solutions that can also be used by people with disabilities, for example through gentle slopes, special entry areas and non-slip surfaces.


Ensure durability and safety through regular maintenance.

// Our Service Team

We are waiting for your existing waterslide for the next TÜV appointment.

Due to the constant material stress, regular maintenance and cleaning work must be carried out. Through consistent and professional maintenance and servicing, long-term use of the water slide can be guaranteed.

Go to the service

Service and maintenance

Regular inspection and maintenance

Our GRP water slides require regularMaintenanceaccording to the standard DIN EN 1069. Our service team carries out annual inspections, repairs, cleanings and upgrades to increase safety, performs professional cleaning and repairs slides regardless of the manufacturer. We will be glad to draw up a maintenance contract with you. Request service now.

Safe and standard-compliant operation

The operation of a water slide requires compliance with the DIN EN 1069 standard as well as regular safety tests. The operators must carry out maintenance, ensure water quality and check the slide system for damage. Emergency procedures and clear safety instructions for guests are also required.

Material stress due to poor water quality

The water quality has a direct influence on the longevity as well as on the preservation of the slide materials. Too high chlorine or salt contents can accelerate the corrosion in metal parts such asStainless steeland can attack surfaces ofGRP slides. For this reason, careful monitoring and regulation of water chemistry as well as regular maintenance are essential to minimise material wear and to extend the life of the slide.

Thorough cleaning required

The regularCleaningof GRP (glass fibre reinforced plastic) slides is essential for their durability and safety. OurService - Teamoffers professional cleaning services for your slides, both indoors and outdoors. Damaged areas are polished and the slides are thoroughly cleaned, especially before commissioning at the beginning of the season. For optimal care, we recommend carrying out these cleaning measures on a regular basis.

Professional cleaning recommended

The regularCleaningof stainless steel slides is essential for their durability and safety. OurService - Teamoffers professional cleaning services that include both polishing damaged areas and thorough cleaning of the indoor and outdoor slides. Especially before the start of the season, careful preparation of the slides is important to ensure optimal sliding conditions.

Regular maintenance necessary

The steel elements of a slide should be regularlycleanedand maintained in order to prevent corrosion and build-up. OurService - Teamoffers professional cleaning services, including polishing and protective measures for the long-term preservation of the surfaces. Especially before the start of the season, thorough cleaning is advisable in order to keep the slide in optimal condition.

Ideal if this work is carried out by our service team

In order to ensure that the water slides are used for a long time, regularMaintenanceand care of the individual components must be guaranteed. A maintenance joint is replaced as follows:

During the first step, the old existing seal must be cut out of the joint without residue by using a sharp cutter knife. After that, the edges must be carefully ground in order to ensure the adhesion of the new seal. During the next step, the area must be thoroughly cleaned and taped. Now the new joint can be filled with new sealant.

Yes, damage is repairable

The damage to water slides can usually be professionally repaired. Our service team takes care of repair work on both our own slides and on systems from other manufacturers. We repair damage to sliding surfaces, landing pools, stairways and joints. Furthermore, we take care of the renewal of ageing acrylic or macrolone elements. Our qualified fitters ensure that your slide is safe and functional again as soon as possible. RequestServicenow.

Yes, there is.

Yes, we offervarious warranties for our products. This warranty covers various situations and is contractually stipulated. Wear parts are not subject to any warranty.

Complementary slides

Freifallrutsche mit rot-weißem Design mündet in einem Auslaufbecken, in einem Freibad mit Schwimmern.
Free fall
Blick von oben auf eine Person in einem Rutschreifen in einer Crazy River Wasserrutsche aus Edelstahl.
Crazy River
Ein gelber und ein roter Cannonball, mit Blick auf den Ozean im Hintergrund.
Cannonball
Obenansicht einer bunten Body Bowl Wasserrutsche, in der eine Person mit Badebekleidung rutscht.
Body Bowl
Vier Personen fahren gemeinsam im gelben Rundreifen durch den gelben Trichter der Rutsche RR2700.
RR2700
Lazy River im Indoor Bereich eines Kreuzfahrtschiffes mit Rutschreifen, Wasserattraktionen und bunten Spielgeräten.
Lazy River
3D Darstellung des Startbereich des Slide Coasters.
Slide Coaster
Der schwarze Speed Blaster mit transparentem Dach führt vom Gebäude in ein Außenbecken.
Speed Blaster
Get in touch with us!

We will be happy to advise you on your waterslide project and prepare an individual offer. The maintenance work is also part of our service.
