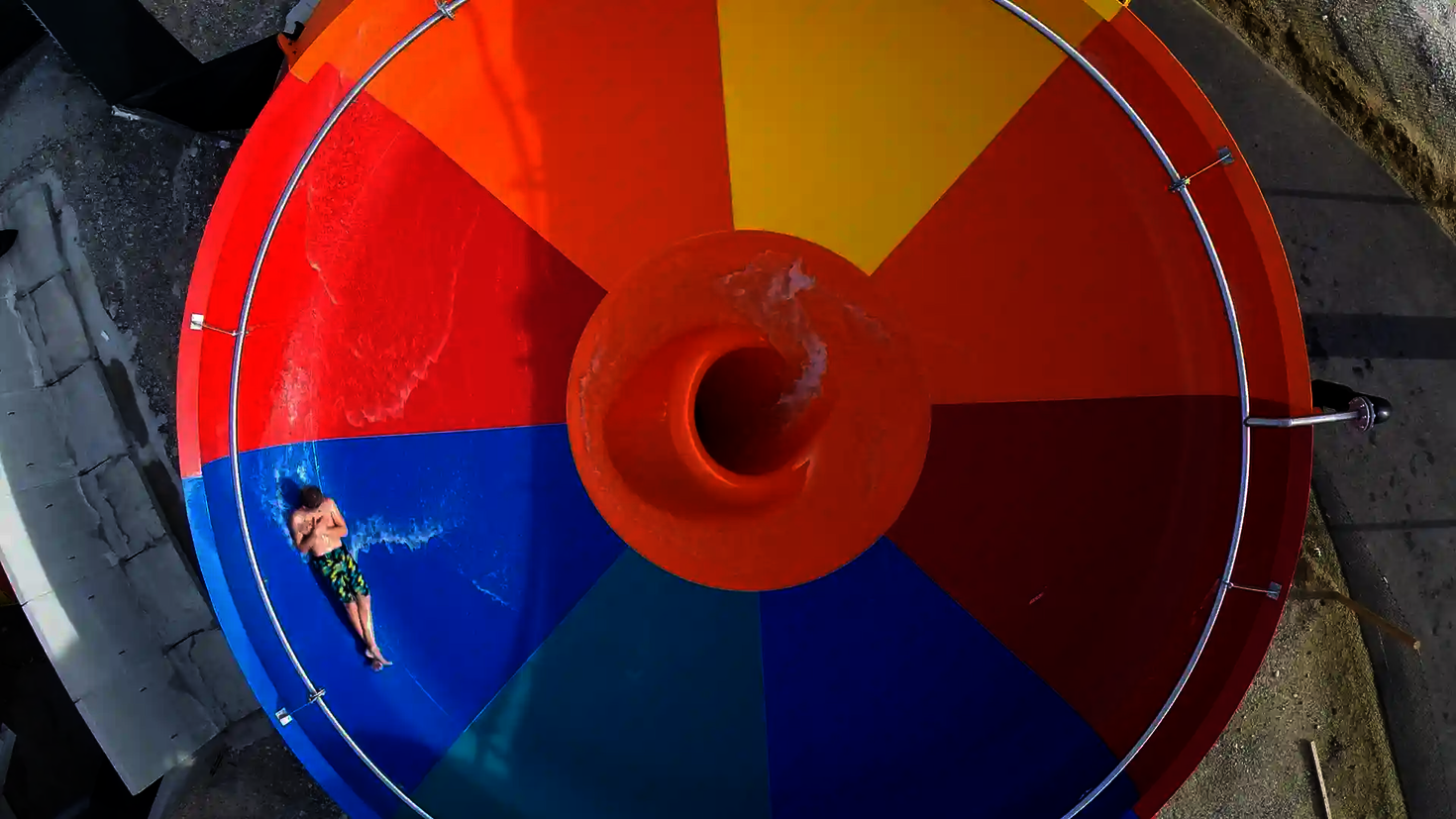

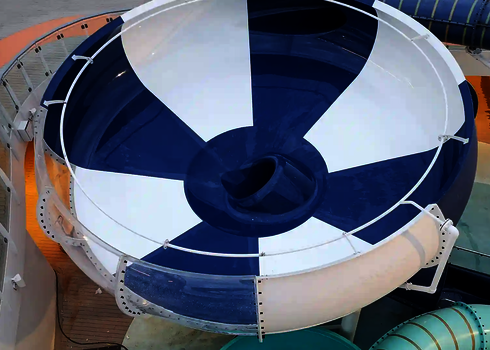

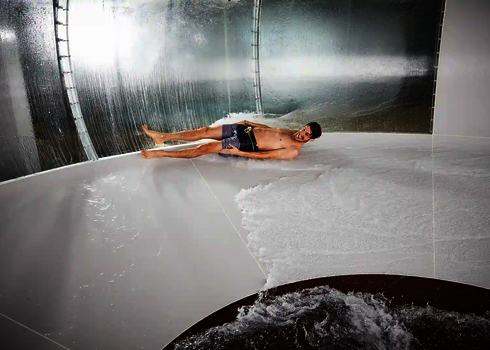

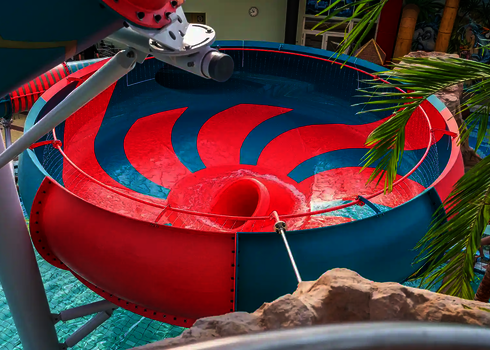

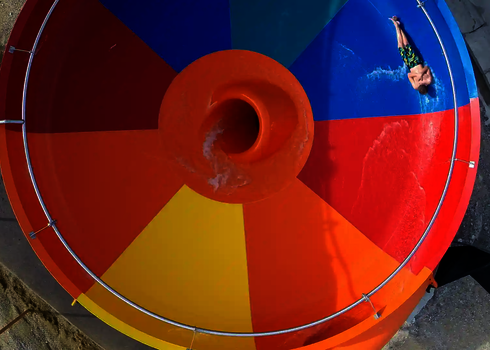

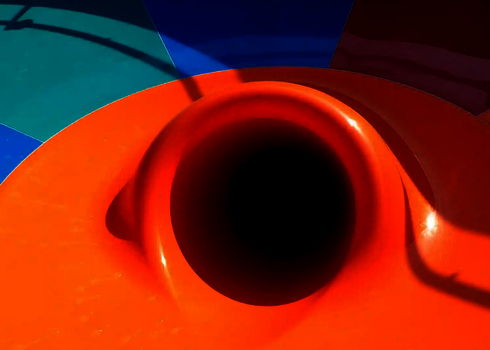

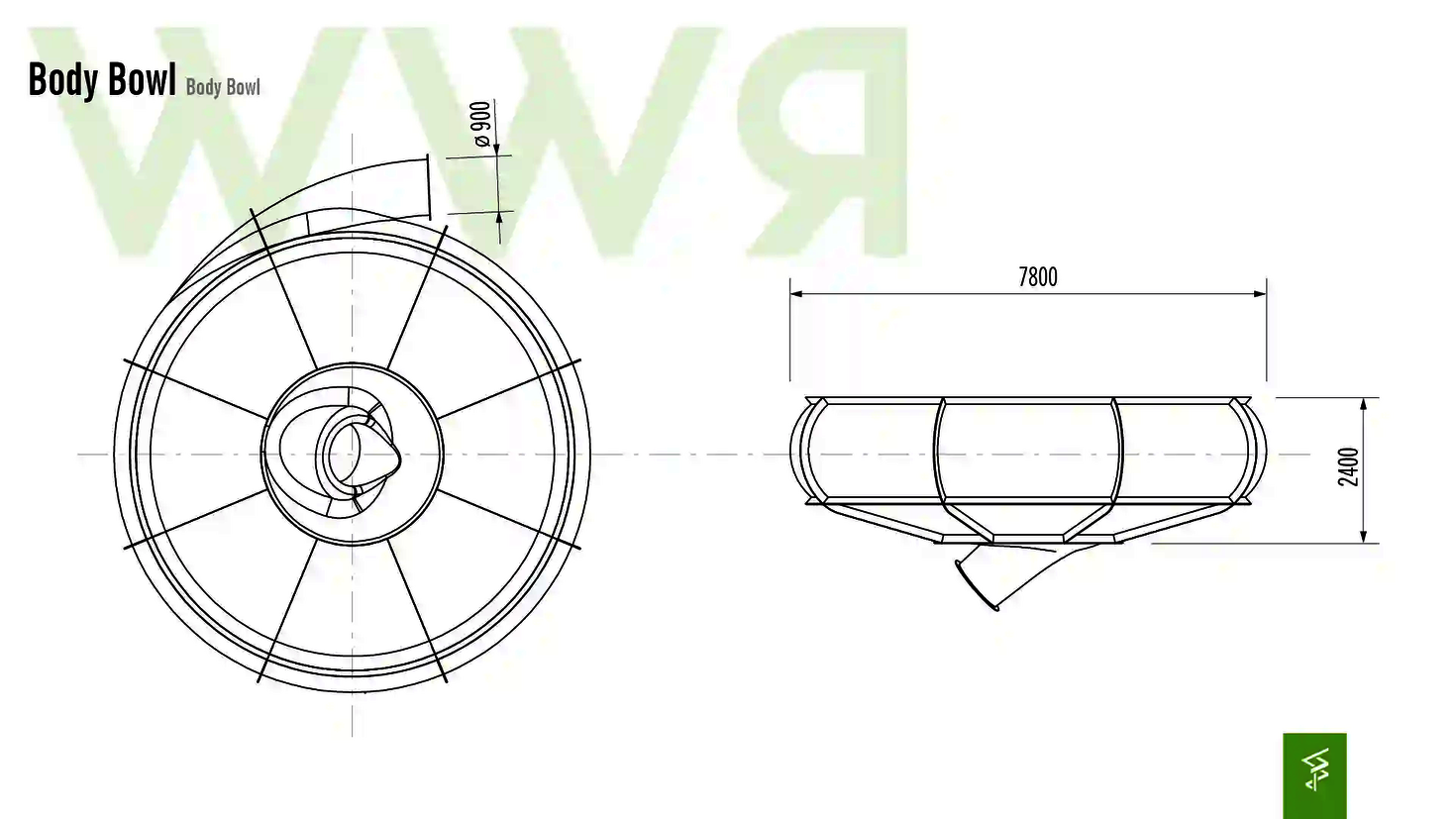

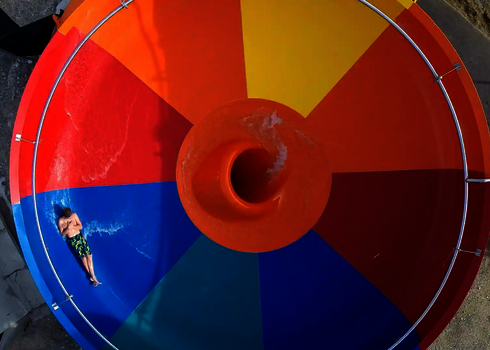

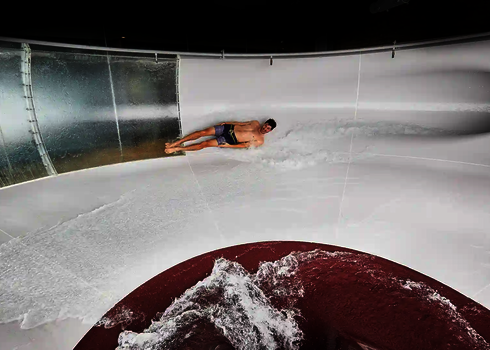

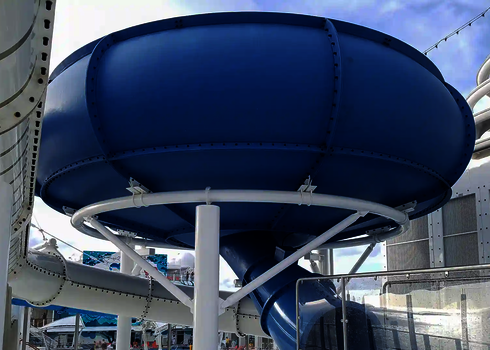

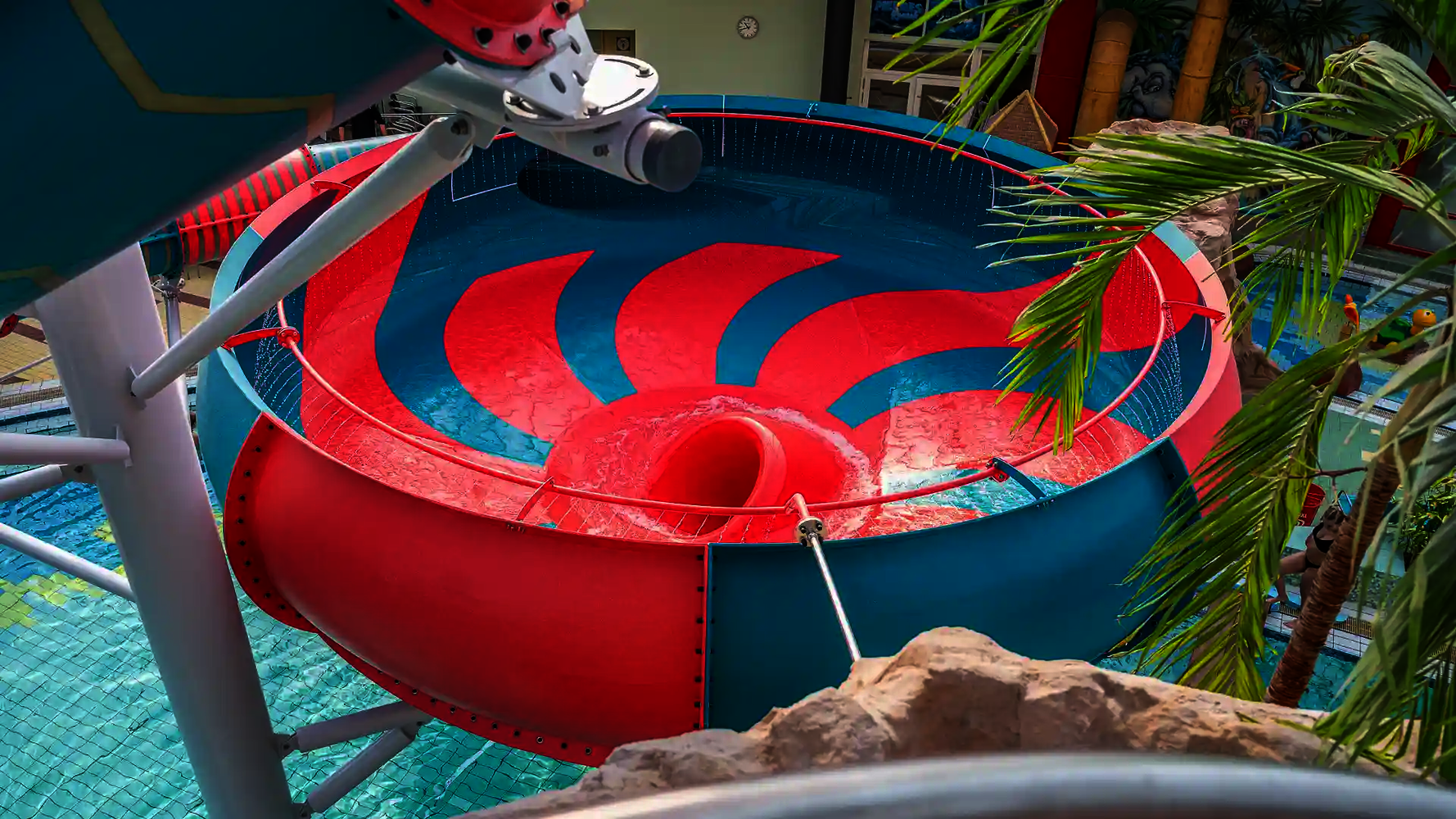

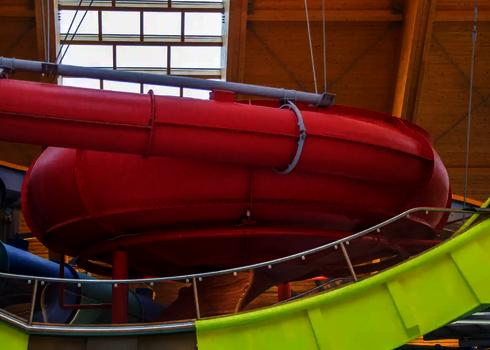

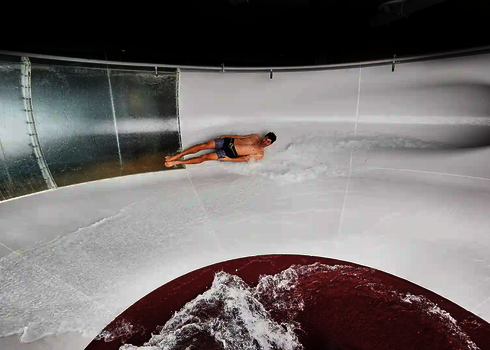

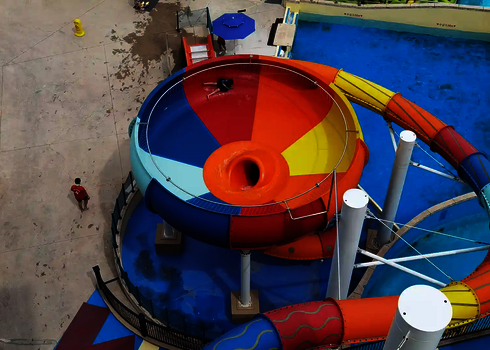

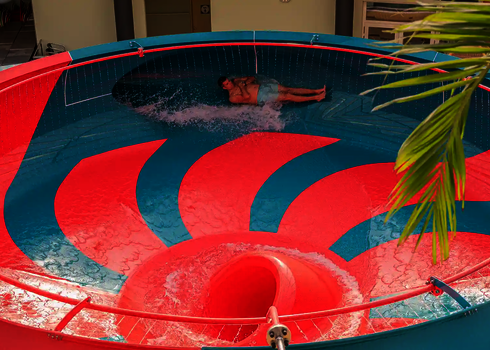

Body Bowl

The manufacture of water slides depends on the specific requirements of the customer and the chosenmaterial. There are two main materials: stainless steel and glass fibre reinforced plastic (GRP), which are produced in Wiegand's own plants in Rasdorf and Brüssow in Germany. With over 350 employees worldwide, the company ensures that the slides are pre-produced in the best possible way in order to minimize assembly times at the site. Theconstructionis carried out internally in regular coordination with the project management, the customer and theproduction.

A water slide uses an inclined plane and smooth materials such asGRPorStainless steelto allow low friction downward movement. The running water and sometimes rubber tires or mats help to further reduce friction so that one or more people can have a sliding experience at the same time. The speed is determined by the slope of the slide, with classic slides such as theWR1040which usually have a gradient of up to 13%.

The slide speed on a water slide varies depending on the slide type and design. Cozy slides such as whitewater rivers reach speeds of about1–2 km/hwhile steeper high-speed slides can reach over50 km/h. The speed is influenced by various factors, including the slope of the slide, the amount of water and special design elements.

We customize the said parameters to allow for different slide experiences, from the gentle family slides to action-packed adrenaline rides.

The steepness of water slides can vary considerably. The most extreme form is theFalling startwith a gradient of over 80°, which changes from an almost vertical start to a smoother slide. In contrast, whitewater rivers are almost horizontal. Generally speaking, the steeper the slide, the faster the slide speed.

TheConstruction periodof a water slide cannot be specified as a flat rate, as this period depends on the size of the slide, the production utilization and the construction phases. As a rule, you should expect several months from project planning to completion. For some projects, such as for example cruise ships, planning can take several years. The assembly time varies between a few days and several months depending on the type of slide.

The construction of a water slide begins with the preparation of the foundation. Depending on the site structure, support pylons and stairs are then erected, followed by the assembly of the outlet basin. The slide itself is usually assembled from the bottom to the top. This is done by our own assembly teams and auxiliary workers on site.

Basically, at the company Wiegand, we offer water and dry slides. We distinguish between the following categories:

Water Slides

• Body Slides
• Tire Slides
• Slides in the kids area
• Park Slides

Dry Slides

• Special Slides
• Playground Slides
• Slide Trails
• Escape Slides

If you're interested in a water slide, you've come to the right place. If, on the other hand, you are looking for a dry slide, the Josef Wiegand GmbH & Co. KGis the ideal contact for you.

The company Wiegand builds water slides in its own plants in Rasdorf (stainless steel) and Brüssow (GRP) in Germany with its over 350 employees worldwide. In addition, the company Wiegand is building its own steel substructure for all slides as well as access stairs and platforms for wet and dry areas. We offer a complete service from planning to production to assembly. From here you can reach ourPerformances.

Yes, we offer solutions for the installation of slides at a later stage into existing swimming pools, hotels or amusement parks. Our designs are the expression of the planning of the ideal integration into the existing infrastructure.

Our slides can be found worldwide in various amusement parks, spas, water parks or on cruise ships.

From here you can reach theReference Projects.

The construction work begins with an individual planning phase, in which we adapt the design to the circumstances and wishes of the customer. After that, the production takes place in our own plants by using high-quality materials such as stainless steel and GRP. The prefabricated slide parts are then assembled on site and extensively tested before the commissioning phase. Even after the installation, we will be available with maintenance and services. From here you can reach ourPerformances.

We offer specialKids slides. Children as young as 1 year old can have their first sliding experience accompanied by an adult, provided the water depth is adjusted accordingly. The selection of the suitable slide depends on the child's age, water depth, and adult supervision.

For families, broad wave slides, multi-track slides or tire slides which are suitable for both adults and children are ideal. The said slides offer a shared experience and allow you to slide next to each other or together in a tire. There are also interactive slides with lighting effects or timekeeping, which provide extra fun.

Yes, there are challenging slides which are more suitable for adults. These slides offer a more intense sliding experience due to their size and requirements.

For hotels, we offer tailor-made water slides which blend harmoniously into already existing structures and provide guests with an unforgettable experience. An example of this is the BEECH Resort Fleesensee, where we installed a 63-meter-long GRP slide of the model WR1040. Our many years of experience enable us to implement attractive slide solutions even in a limited space. Particularly popular are tubular slides, broad wave slides and interactive kids slides.

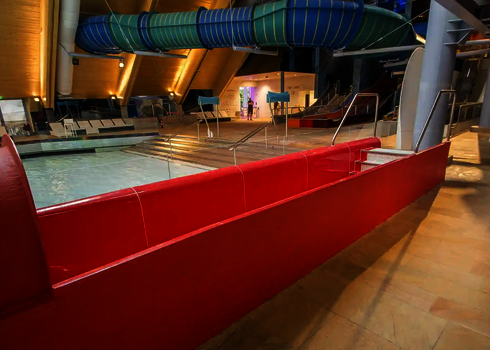

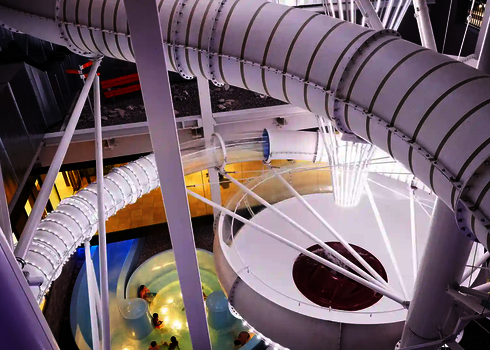

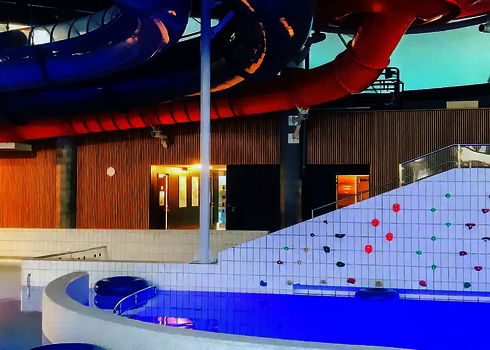

For swimming pools, we offer compact and versatile slide solutions which can be ideally integrated into already existing systems. The said solutions include classic body slides with different curves and jumps, high-capacity wide-shaft slides, and compact tire slides like the RR1400. Depending on the available space and target group, lighting effects, transparent elements or interactive features can be added.

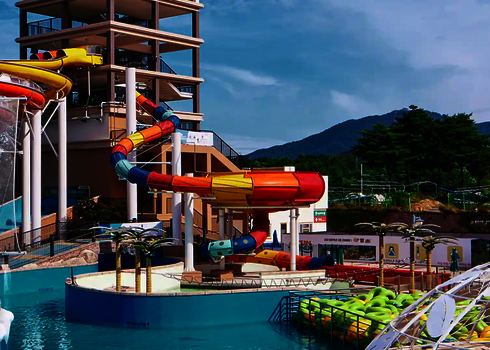

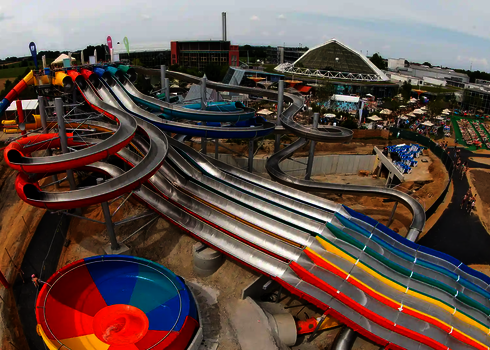

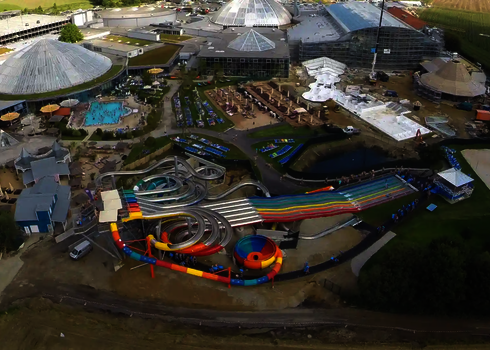

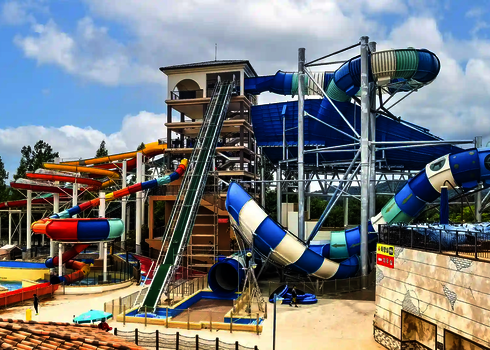

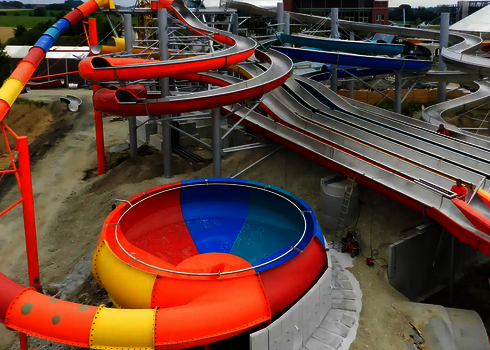

Large, spectacular slides with a high experience value are used in water parks. These slides include tire slides with blackhole effects, multi-person slides, high-speed slides, and interactive water slides with light and sound effects. Our facilities are individually planned and tailored to the conditions of the park. So they can provide a unique slide experience for guests of all ages.

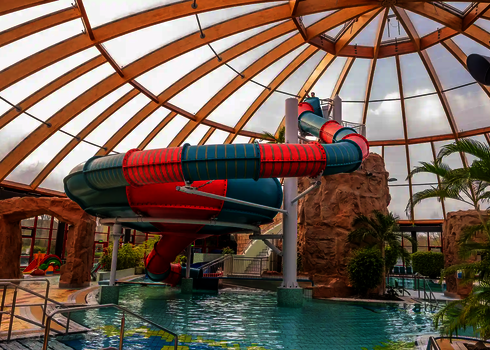

For thermal baths, we offer a wide range of water slides allowing both relaxation and adventure. An example is the Loipersdorf thermal bath with five impressive slides. Also in the thermal bath of Erding, Germany's largest slide paradise, many of the spectacular slides come from our production. Our slides can be individually adapted and harmoniously integrated into the architecture of the thermal bath in order to offer guests an unforgettable experience.

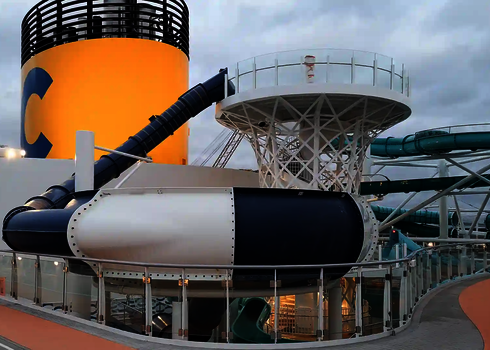

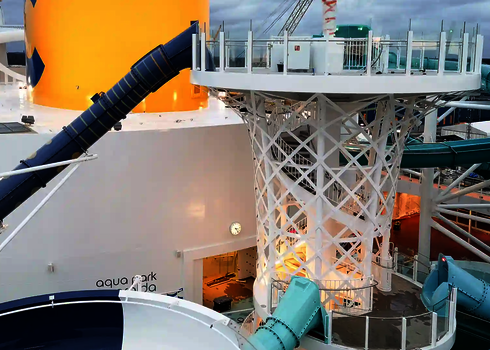

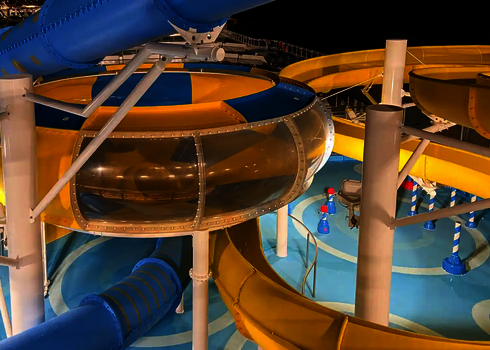

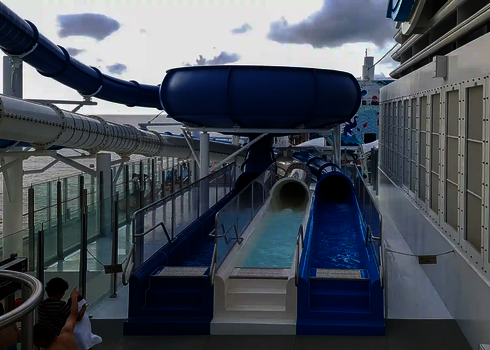

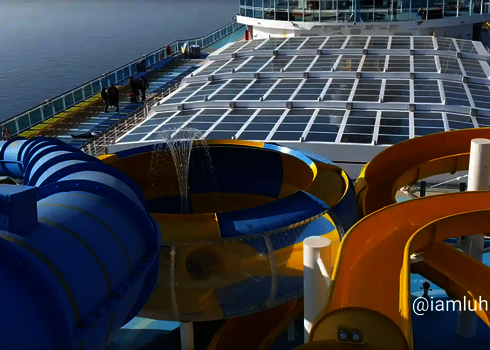

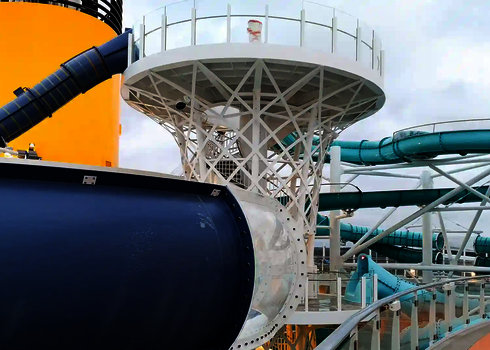

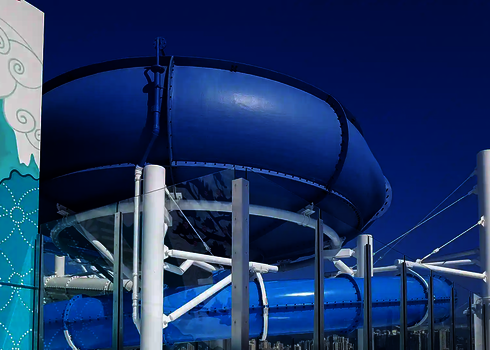

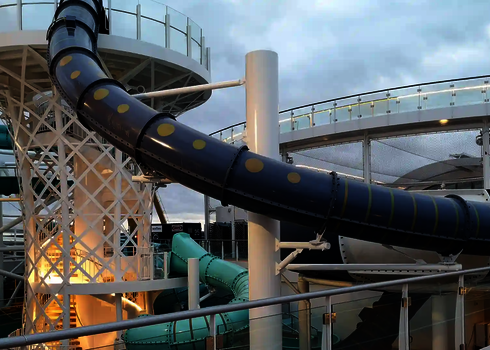

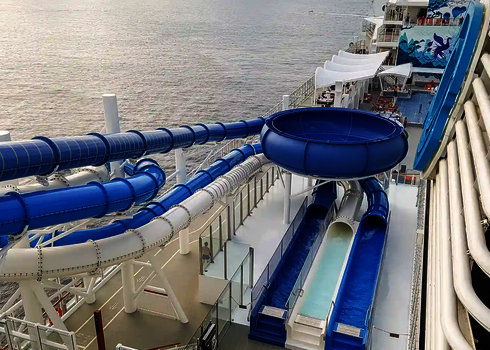

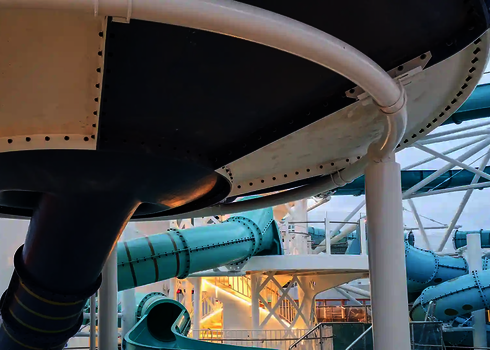

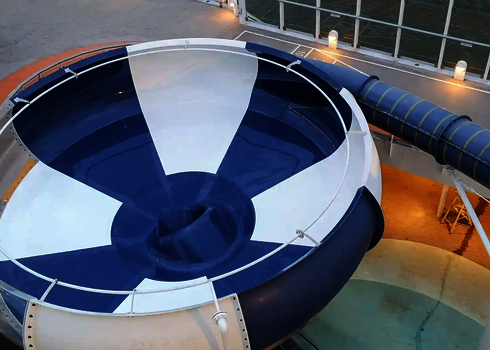

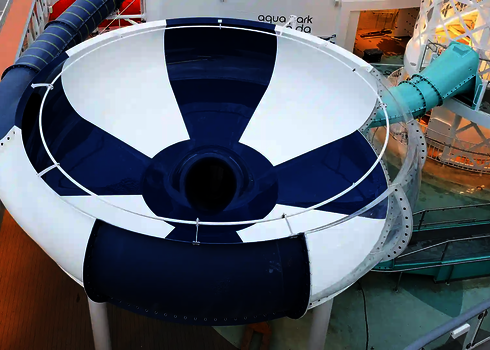

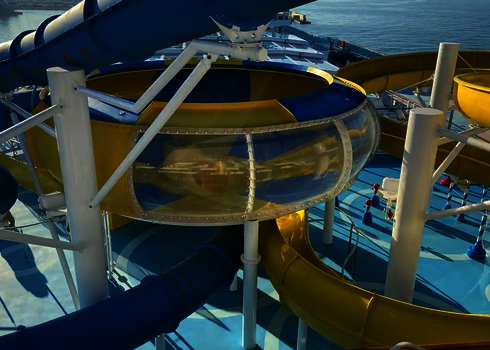

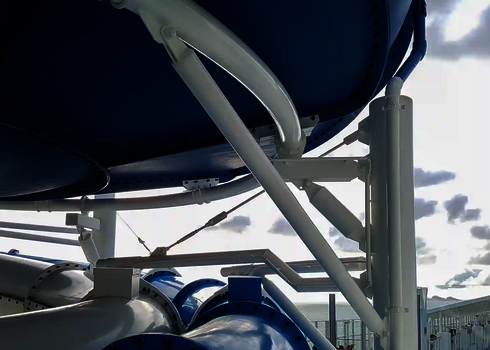

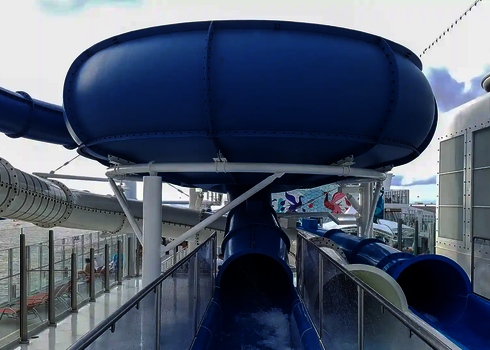

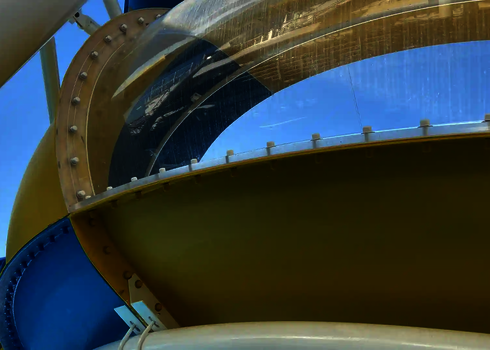

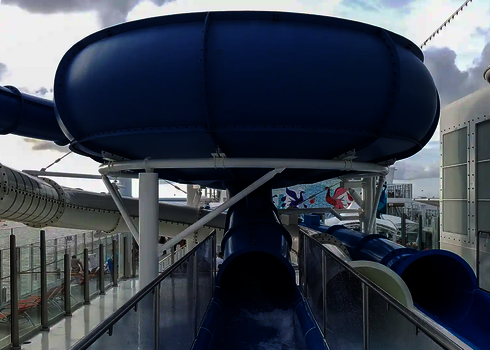

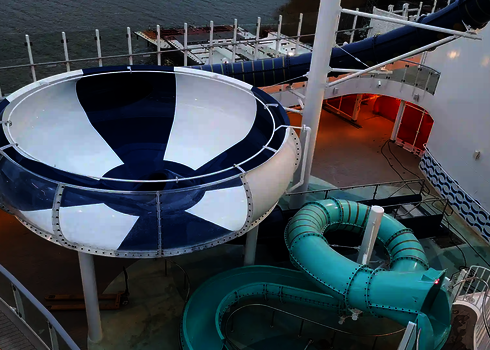

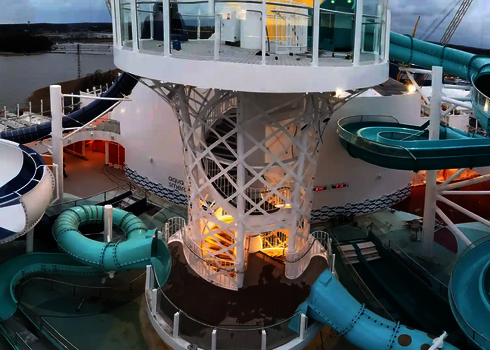

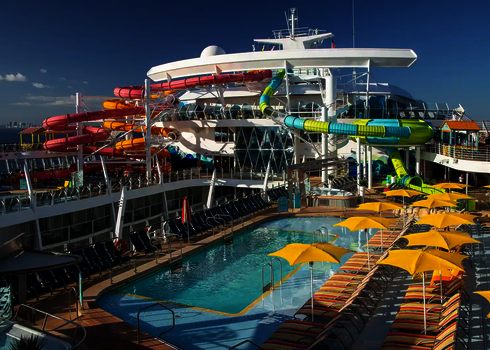

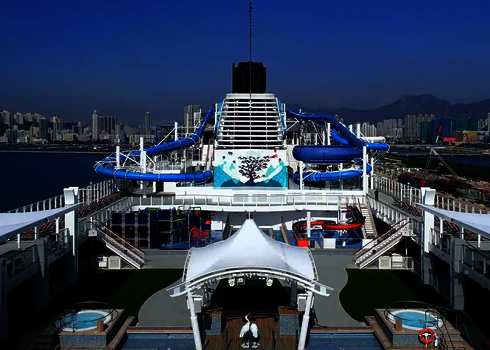

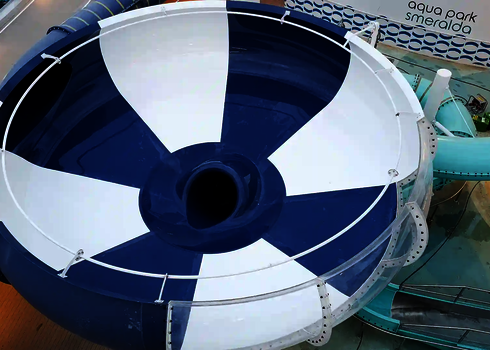

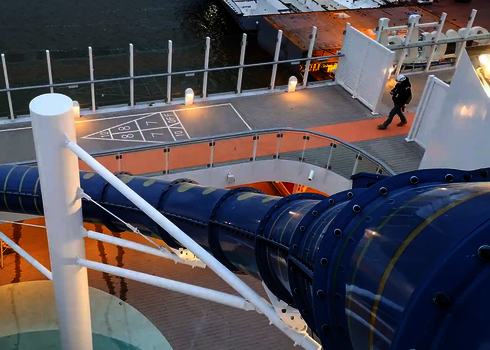

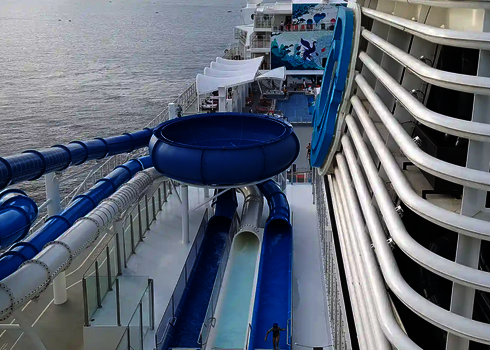

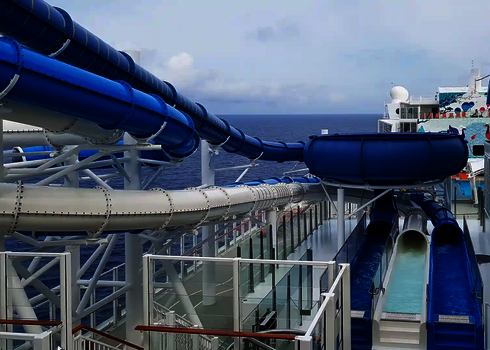

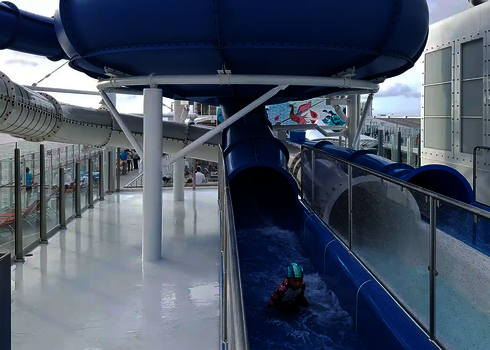

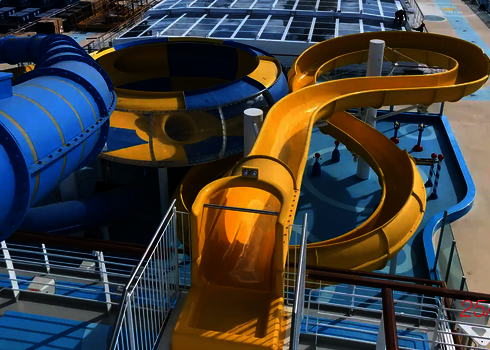

For the use on cruise ships, we develop tailor-made water slides meeting the special requirements on board. An example of this type of cruise ships is the AIDA PRIMA, which is equipped with a 96-meter-long Body Racer made of stainless steel and acrylic glass tubes, as well as a 54-meter-long Lazy River. Two tire slides with lengths of 79 metres and 80 metres as well as a 77 metre long family slide were installed on the cruise ship AIDA NOVA. Our slides are designed to meet the limited space and safety standards on cruise ships while providing an exciting slide experience for guests.

Yes, we manufacture slides in individual colors, shapes and with thematic elements to adapt them to the respective park design. We take into account influencing factors on site and adapt the product to the circumstances.

The amount of space required depends on the type of slide and can vary greatly. The water slide can also be adapted to the already existing space.

Smaller slides require only a few meters, while large tubular slides or multi-lane broad wave slides need more space. We offer individual planning solutions for different space conditions.

Yes, we develop solutions that can also be used by people with disabilities, for example through gentle slopes, special entry areas and non-slip surfaces.

Our GRP water slides require regularMaintenanceaccording to the standard DIN EN 1069. Our service team carries out annual inspections, repairs, cleanings and upgrades to increase safety, performs professional cleaning and repairs slides regardless of the manufacturer. We will be glad to draw up a maintenance contract with you. Request service now.

The operation of a water slide requires compliance with the DIN EN 1069 standard as well as regular safety tests. The operators must carry out maintenance, ensure water quality and check the slide system for damage. Emergency procedures and clear safety instructions for guests are also required.

The water quality has a direct influence on the longevity as well as on the preservation of the slide materials. Too high chlorine or salt contents can accelerate the corrosion in metal parts such asStainless steeland can attack surfaces ofGRP slides. For this reason, careful monitoring and regulation of water chemistry as well as regular maintenance are essential to minimise material wear and to extend the life of the slide.

The regularCleaningof GRP (glass fibre reinforced plastic) slides is essential for their durability and safety. OurService - Teamoffers professional cleaning services for your slides, both indoors and outdoors. Damaged areas are polished and the slides are thoroughly cleaned, especially before commissioning at the beginning of the season. For optimal care, we recommend carrying out these cleaning measures on a regular basis.

The regularCleaningof stainless steel slides is essential for their durability and safety. OurService - Teamoffers professional cleaning services that include both polishing damaged areas and thorough cleaning of the indoor and outdoor slides. Especially before the start of the season, careful preparation of the slides is important to ensure optimal sliding conditions.

The steel elements of a slide should be regularlycleanedand maintained in order to prevent corrosion and build-up. OurService - Teamoffers professional cleaning services, including polishing and protective measures for the long-term preservation of the surfaces. Especially before the start of the season, thorough cleaning is advisable in order to keep the slide in optimal condition.

In order to ensure that the water slides are used for a long time, regularMaintenanceand care of the individual components must be guaranteed. A maintenance joint is replaced as follows:

During the first step, the old existing seal must be cut out of the joint without residue by using a sharp cutter knife. After that, the edges must be carefully ground in order to ensure the adhesion of the new seal. During the next step, the area must be thoroughly cleaned and taped. Now the new joint can be filled with new sealant.

The damage to water slides can usually be professionally repaired. Our service team takes care of repair work on both our own slides and on systems from other manufacturers. We repair damage to sliding surfaces, landing pools, stairways and joints. Furthermore, we take care of the renewal of ageing acrylic or macrolone elements. Our qualified fitters ensure that your slide is safe and functional again as soon as possible. RequestServicenow.

Yes, we offervarious warranties for our products. This warranty covers various situations and is contractually stipulated. Wear parts are not subject to any warranty.
